How strong is this bolt lock?

This lock is built to handle up to 2,600 pounds of holding force, thanks to its solid stainless steel bolt. That makes it a tough and reliable choice for securing doors in both residential and commercial settings.

What happens to the lock if the power goes out?

The VIS-DP102-FSE-LED is fail-secure, which means the bolt will lock in place during a power outage. This helps protect your property by keeping the door locked even if power is lost.

Can I adjust how long the door stays unlocked?

Yes. This lock comes with a time delay feature that lets you choose between 0, 3, or 6 seconds before it locks again. This gives you some control over how fast the door re-secures itself after unlocking.

Is this lock considered an electric deadbolt?

Yes, the VISIONIS DP102-FSE-LED is often called an electric deadbolt because it uses a motorized bolt to lock the door instead of a traditional key. It offers strong security with keyless control and smooth operation.

Electric drop bolt lock with 2600lb holding force, LED, and fail secure function. VIS-DP102-FSE-LED VISIONIS

Looking for something slightly different? Check out these variations:

This PRODUCT has a 3 YEAR warranty with full access to tech support in the USA!

Description

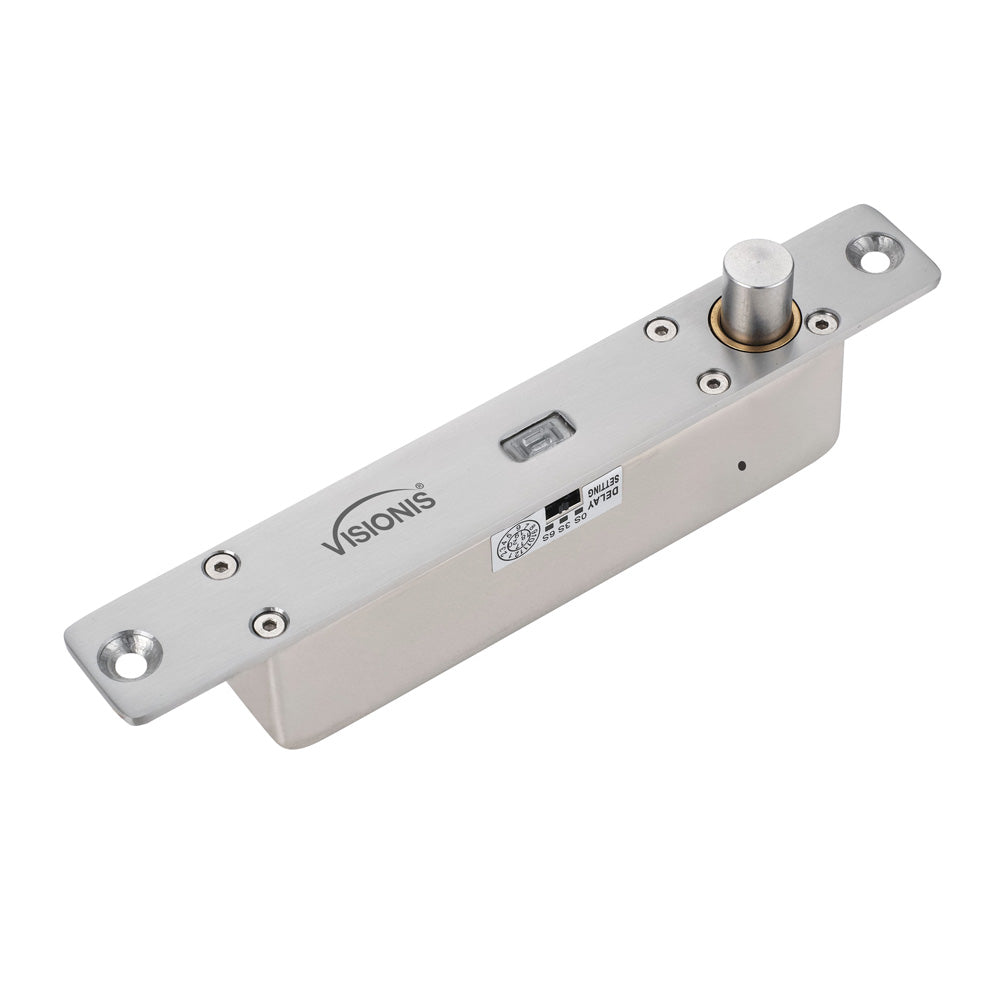

The VISIONIS VIS-DP102-FSE-LED is a high-strength electric drop bolt lock designed to provide secure access control with 2600 lbs (1200 kg) of holding force. Featuring a LED lock status indication, and adjustable time delay, this electric deadbolt offers the performance and security needed for commercial, office, or high-risk environments.

This model is a fail-secure electric bolt lock, meaning the door remains locked during a power outage, enhancing safety for restricted areas. When powered, the bolt retracts to unlock and re-engages when power is cut. The adjustable time delay (0, 3, or 6 seconds) provides flexibility in how the lock responds to user access.

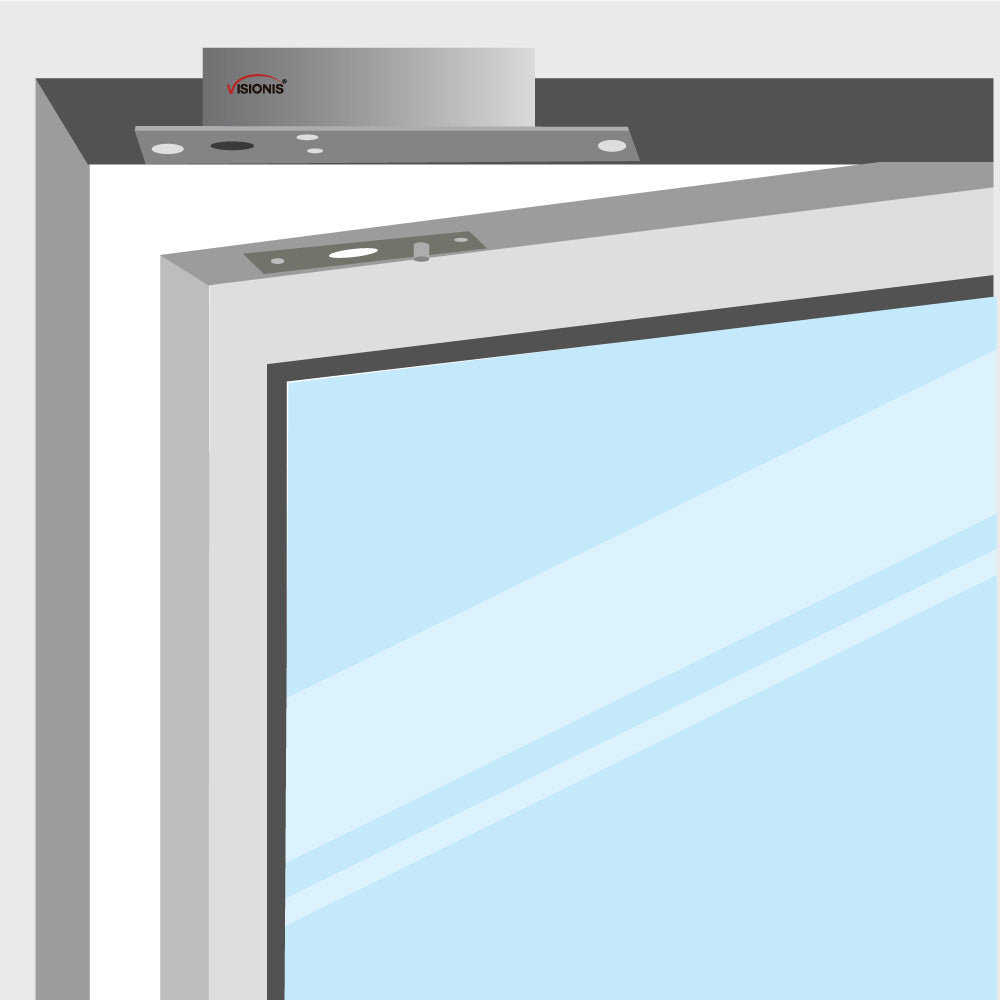

Ideal for hidden or clean installations—similar to a shear lock—the VIS-DP102-FSE-LED is built for doors where high holding strength and secure locking are essential.

Key Features:

Electric drop bolt lock with 2600 lbs (1200 kg) of holding force
Fail secure operation: locked when power is lost
Time delay settings: 0, 3, or 6 seconds
Built-in LED indicator for lock status
Designed for concealed or shear-lock-style installations
Perfect for offices, security rooms, and restricted access zones
Operates on 12V–24V DC with low standby current
Tested for 300,000 cycles

This product doesn’t include a power supply. You might want to consider a kit that comes with one for an easier setup.

Check out this product: VIS-DP104ND-FSA-LED Electric Drop Bolt Lock 2,200lbs For Narrow Door With LED and Time Delay Fail Safe Normally Closed Dead Bolt

Characteristics

Model No. VIS-DP102-FSE-LED:

Voltage: DC12V - DC24V
Holding Force: 1200Kg (2600lbs)
Current: (DC12V): Standby 110mA
Function: Fail Secure. N/O with power it’s unlock
Time Delay: 0/3/6 sec; Unlock time delay: 6 sec (If do not push the door after unlocking, again automatically lock)
Bolt: SUS 304 solid stainless steel
Size: 175Lx25Wx35H (mm) - 6.89Lx0.98Wx1.38H (in.)
Product + Packaging Weight: 0.64Kg (1.41 pounds)
Operating Temperature: -20°C / +50°C (-4°F / 122°F)
Cycles Tested: 300.000

Description

Ideal for hidden or clean installations—similar to a shear lock—the VIS-DP102-FSE-LED is built for doors where high holding strength and secure locking are essential.

Key Features:

Electric drop bolt lock with 2600 lbs (1200 kg) of holding force
Fail secure operation: locked when power is lost
Time delay settings: 0, 3, or 6 seconds
Built-in LED indicator for lock status
Designed for concealed or shear-lock-style installations
Perfect for offices, security rooms, and restricted access zones
Operates on 12V–24V DC with low standby current
Tested for 300,000 cycles

This product doesn’t include a power supply. You might want to consider a kit that comes with one for an easier setup.

Check out this product: VIS-DP104ND-FSA-LED Electric Drop Bolt Lock 2,200lbs For Narrow Door With LED and Time Delay Fail Safe Normally Closed Dead Bolt

Characteristics

Model No. VIS-DP102-FSE-LED:

Voltage: DC12V - DC24V
Holding Force: 1200Kg (2600lbs)
Current: (DC12V): Standby 110mA
Function: Fail Secure. N/O with power it’s unlock
Time Delay: 0/3/6 sec; Unlock time delay: 6 sec (If do not push the door after unlocking, again automatically lock)
Bolt: SUS 304 solid stainless steel
Size: 175Lx25Wx35H (mm) - 6.89Lx0.98Wx1.38H (in.)
Product + Packaging Weight: 0.64Kg (1.41 pounds)
Operating Temperature: -20°C / +50°C (-4°F / 122°F)
Cycles Tested: 300.000

Product FAQs

How strong is this bolt lock?

This lock is built to handle up to 2,600 pounds of holding force, thanks to its solid stainless steel bolt. That makes it a tough and reliable choice for securing doors in both residential and commercial settings.
What happens to the lock if the power goes out?

The VIS-DP102-FSE-LED is fail-secure, which means the bolt will lock in place during a power outage. This helps protect your property by keeping the door locked even if power is lost.
Can I adjust how long the door stays unlocked?

Yes. This lock comes with a time delay feature that lets you choose between 0, 3, or 6 seconds before it locks again. This gives you some control over how fast the door re-secures itself after unlocking.
Is this lock considered an electric deadbolt?

Yes, the VISIONIS DP102-FSE-LED is often called an electric deadbolt because it uses a motorized bolt to lock the door instead of a traditional key. It offers strong security with keyless control and smooth operation.
