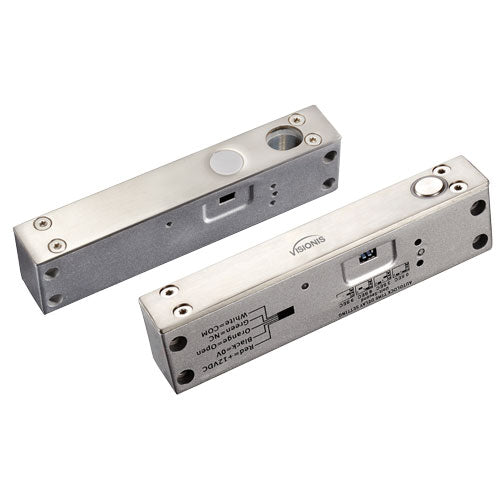

electric drop bolt door lock - VIS-DP104ND-FSA-LED
Electric drop bolt door lock dimensions - VIS-DP104ND-FSA-LED

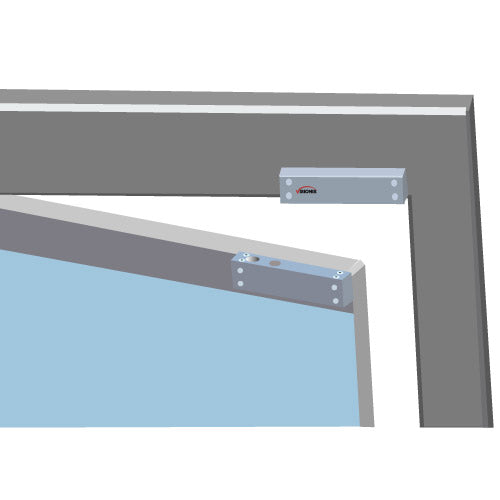

electric bolt lock for glass door mounting example illustration - VIS-DP104ND-FSA-LED
    Electric drop bolt lock for narrow doors with LED, fail-safe function, and 2200lbs holding force. VIS-DP104ND-FSA-LED VISIONIS
    electric drop bolt door lock - VIS-DP104ND-FSA-LED
    Electric drop bolt door lock dimensions - VIS-DP104ND-FSA-LED
    electric bolt lock for glass door mounting example illustration - VIS-DP104ND-FSA-LED
Electric drop bolt lock for narrow doors with LED, fail-safe function, and 2200lbs holding force. VIS-DP104ND-FSA-LED VISIONIS
electric drop bolt door lock - VIS-DP104ND-FSA-LED
Electric drop bolt door lock dimensions - VIS-DP104ND-FSA-LED
electric bolt lock for glass door mounting example illustration - VIS-DP104ND-FSA-LED
Electric drop bolt lock for narrow doors with LED, fail-safe function, and 2200lbs holding force. VIS-DP104ND-FSA-LED VISIONIS
electric drop bolt door lock - VIS-DP104ND-FSA-LED
Electric drop bolt door lock dimensions - VIS-DP104ND-FSA-LED
electric bolt lock for glass door mounting example illustration - VIS-DP104ND-FSA-LED
    Electric drop bolt lock for narrow doors with LED, fail-safe function, and 2200lbs holding force. VIS-DP104ND-FSA-LED VISIONIS
    electric drop bolt door lock - VIS-DP104ND-FSA-LED
    Electric drop bolt door lock dimensions - VIS-DP104ND-FSA-LED
    electric bolt lock for glass door mounting example illustration - VIS-DP104ND-FSA-LED
Electric drop bolt lock for narrow doors with LED, fail-safe function, and 2200lbs holding force. VIS-DP104ND-FSA-LED VISIONIS
electric drop bolt door lock - VIS-DP104ND-FSA-LED
Electric drop bolt door lock dimensions - VIS-DP104ND-FSA-LED
electric bolt lock for glass door mounting example illustration - VIS-DP104ND-FSA-LED

This PRODUCT has a 3 YEAR warranty with full access to tech support in the USA!

Description

The VISIONIS VIS-DP104ND-FSA-LED is a precision-engineered electric drop bolt lock built specifically for narrow doors. With a holding force of 2200 lbs (1000 kg), built-in LED indicator, and programmable time delay, this electric bolt lock provides dependable security in a compact form.

Designed for hidden or concealed installation, similar to shear locks, this model provides clean aesthetics without compromising on strength. The fail-safe operation ensures that in the event of a power failure, the electric deadbolt retracts automatically, unlocking the door—making it ideal for environments requiring fire safety compliance.

The VIS-DP104ND-FSA-LED includes a polished stainless steel faceplate, a 16mm diameter bolt with 13mm throw, and adjustable unlock delay of 0, 3, 6, or 9 seconds. It also features door status output (NO/COM) for integration with access control monitoring systems.

Key Features:

  • Compact electric drop bolt lock for narrow doors
  • 2200 lbs holding force (1000 kg) with stainless steel bolt
  • Fail-safe function: unlocks during power outage
  • Programmable time delay: 0, 3, 6, or 9 seconds
  • LED lock status indicator and door status signal output
  • Sleek design for hidden or shear-lock-style installations
  • Operates on DC12V or DC24V with low temperature surface operation
  • Tested for 500,000+ cycles for long-term reliability

This product doesn’t include a power supply. You might want to consider a kit that comes with one for an easier setup.



Check this product:  Visionis VIS-DP100-FSA Electric Drop Bolt Lock 1700lbs Dead Bolt with Time Delay Fail Safe Normally Closed

Characteristics

Model No. VIS-DP104ND-FSA-LED:

  • Fail Safe: Unlocks if power is lost
  • Face Plate: 150Lx25Wx37H (mm) – 5.90Lx0.98Wx1.46H (in.)
  • Bolt: 16mm (0.62in.) DIA, stainless steel 13mm (0.51 in.) throw
  • Voltage: DC12V (DC24V)
  • Start Current: 960mA
  • Standby Current: 180mA
  • Solid Bolt: polishing housing, 1000Kg (2200lbs) Holding Force
  • Suitable For: Electric Bolt For Narrow Door
  • Signal Output: Door status Output, NO/COM
  • Surface Temp.: Low Temperature
  • Induction Distance: 8mm (0.31 in.)
  • Operating temp.: -10~+55°C (14~131°F)
  • Operating Humidity: 0~90% (non-condensing)
  • Special Designed: Tested to 500000 operations
  • Face place material: Stainless Steel
  • Weight: 1.06kg (2.33 pounds)

Description

The VISIONIS VIS-DP104ND-FSA-LED is a precision-engineered electric drop bolt lock built specifically for narrow doors. With a holding force of 2200 lbs (1000 kg), built-in LED indicator, and programmable time delay, this electric bolt lock provides dependable security in a compact form.

Designed for hidden or concealed installation, similar to shear locks, this model provides clean aesthetics without compromising on strength. The fail-safe operation ensures that in the event of a power failure, the electric deadbolt retracts automatically, unlocking the door—making it ideal for environments requiring fire safety compliance.

The VIS-DP104ND-FSA-LED includes a polished stainless steel faceplate, a 16mm diameter bolt with 13mm throw, and adjustable unlock delay of 0, 3, 6, or 9 seconds. It also features door status output (NO/COM) for integration with access control monitoring systems.

Key Features:

  • Compact electric drop bolt lock for narrow doors
  • 2200 lbs holding force (1000 kg) with stainless steel bolt
  • Fail-safe function: unlocks during power outage
  • Programmable time delay: 0, 3, 6, or 9 seconds
  • LED lock status indicator and door status signal output
  • Sleek design for hidden or shear-lock-style installations
  • Operates on DC12V or DC24V with low temperature surface operation
  • Tested for 500,000+ cycles for long-term reliability

This product doesn’t include a power supply. You might want to consider a kit that comes with one for an easier setup.



Check this product:  Visionis VIS-DP100-FSA Electric Drop Bolt Lock 1700lbs Dead Bolt with Time Delay Fail Safe Normally Closed

Characteristics
Packaging of this product

Model No. VIS-DP104ND-FSA-LED:

  • Fail Safe: Unlocks if power is lost
  • Face Plate: 150Lx25Wx37H (mm) – 5.90Lx0.98Wx1.46H (in.)
  • Bolt: 16mm (0.62in.) DIA, stainless steel 13mm (0.51 in.) throw
  • Voltage: DC12V (DC24V)
  • Start Current: 960mA
  • Standby Current: 180mA
  • Solid Bolt: polishing housing, 1000Kg (2200lbs) Holding Force
  • Suitable For: Electric Bolt For Narrow Door
  • Signal Output: Door status Output, NO/COM
  • Surface Temp.: Low Temperature
  • Induction Distance: 8mm (0.31 in.)
  • Operating temp.: -10~+55°C (14~131°F)
  • Operating Humidity: 0~90% (non-condensing)
  • Special Designed: Tested to 500000 operations
  • Face place material: Stainless Steel
  • Weight: 1.06kg (2.33 pounds)
  • What type of door is the VIS-DP104ND-FSA-LED electric drop bolt lock designed for?

    This drop bolt lock is specifically built for narrow doors, making it ideal for installations where space is limited but high security is still required.

  • Is this lock fail-safe or fail-secure?

    The VIS-DP104ND-FSA-LED is a fail-safe lock, meaning it unlocks automatically when power is lost, allowing free egress during power outages or emergencies.

  • How much force can the electric bolt lock withstand?

    The lock delivers up to 2,200 lbs (1,000 kg) of holding force, thanks to its solid stainless steel construction—providing strong reinforcement for high-security needs.

  • Can I adjust how long these electric deadbolts stays open after it's triggered?

    Yes. The lock includes a time delay feature that can be set to 0, 3, 6, or 9 seconds, giving you flexibility in how quickly the door re-locks if it remains unopened.

  • Does this electric lock offer concealed or surface mounting?

    Depending on your installation preference, the lock can be mounted in a way that provides a “hidden” or flush appearance, similar to that of a shear lock, for a clean and secure look.
