This PRODUCT has a 3 YEAR warranty with full access to tech support in the USA!

Description

The VISIONIS VIS-DP100-FSA is a high-quality electric drop bolt lock that provides 1700 lbs (800 kg) of holding force, delivering secure and reliable protection for doors that require advanced access control. Designed for hidden or discreet installations, this electric deadbolt creates a seamless look while locking firmly into place when powered.

This electric bolt lock is fail-safe, meaning the bolt stays locked while power is on and automatically unlocks in the event of a power outage—ideal for safety and fire compliance in commercial environments. It features a 13mm stainless steel bolt with a 16mm out-throw and supports adjustable time delays (0, 3, or 6 seconds) with automatic relocking if the door is not opened.

Perfect for wooden, glass, or metal doors, the VIS-DP100-FSA supports DC12V–24V input and operates reliably in a wide temperature range. Paired with the UL-certified VIS-CP200 power supply, this lock is a dependable solution for high-security access control setups.

Key Features:

  • Electric drop bolt with 1700 lbs (800 kg) of holding force
  • Fail-safe function: unlocks automatically during power outage
  • Adjustable 0/3/6 sec time delay with 6-second auto relock
  • Continuous duty solenoid for round-the-clock operation

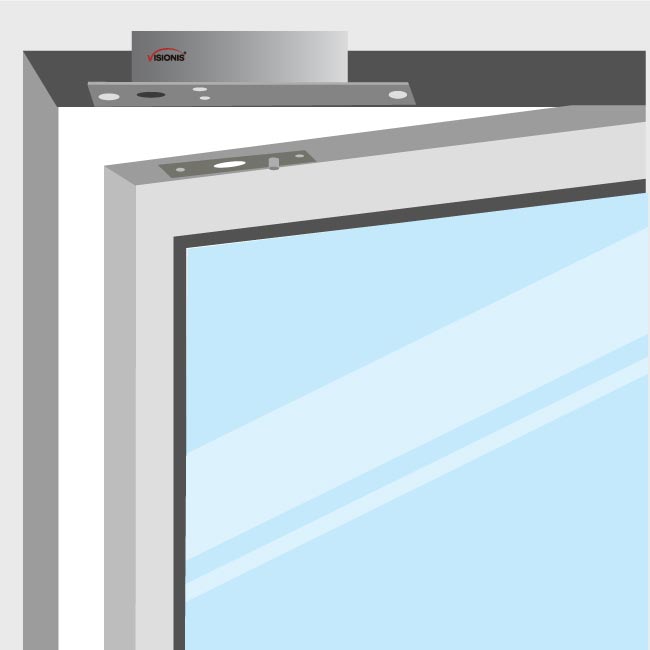

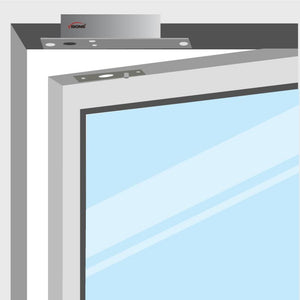

  • Hidden installation option for discreet, shear-lock-style mounting
  • Ideal for wood, glass, or metal doors
  • Operates on DC12V–24V, compatible with most access control systems
  • Tested for 300,000 cycles for long-term durability
  • Compatible with VIS-CP200 power supply (UL, CE, RoHS, FCC)

This product doesn’t include a power supply. You might want to consider a kit that comes with one for an easier setup.

Characteristics

Model No. VIS-DP100-FSA:

  • Voltage: DC12V - DC24V
  • Holding Force: 800Kg (1700lbs)
  • Current: Current: (DC12V) Start 1A, standby 0.11A
  • Solenoid: Continuous duty
  • Function: Fail Safe. N/C with power it’s lock

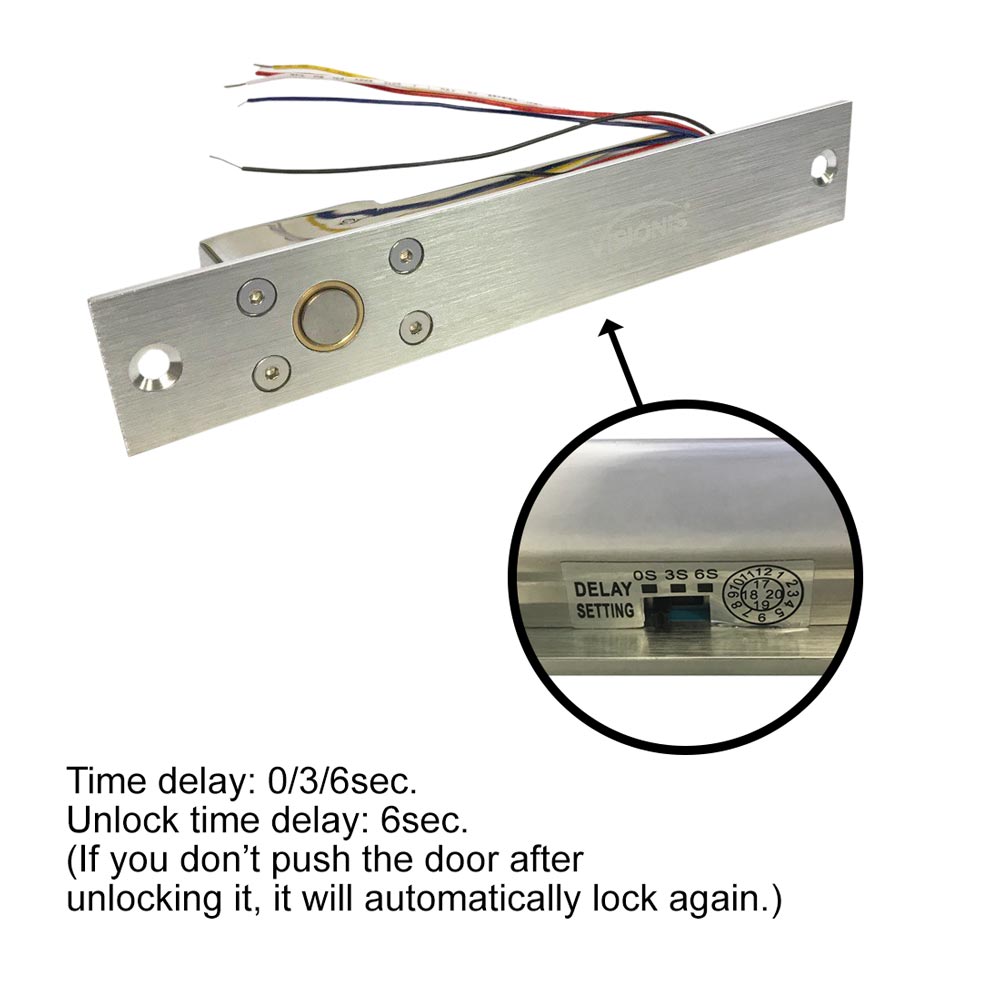

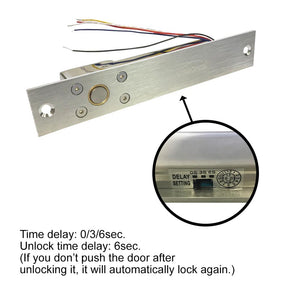

  • Time Delay: 0/3/6 sec; Unlock time delay: 6 sec (If do not push the door after unlocking, again automatically lock)
  • Bolt Diameter: 13mm stainless steel out throw 16mm

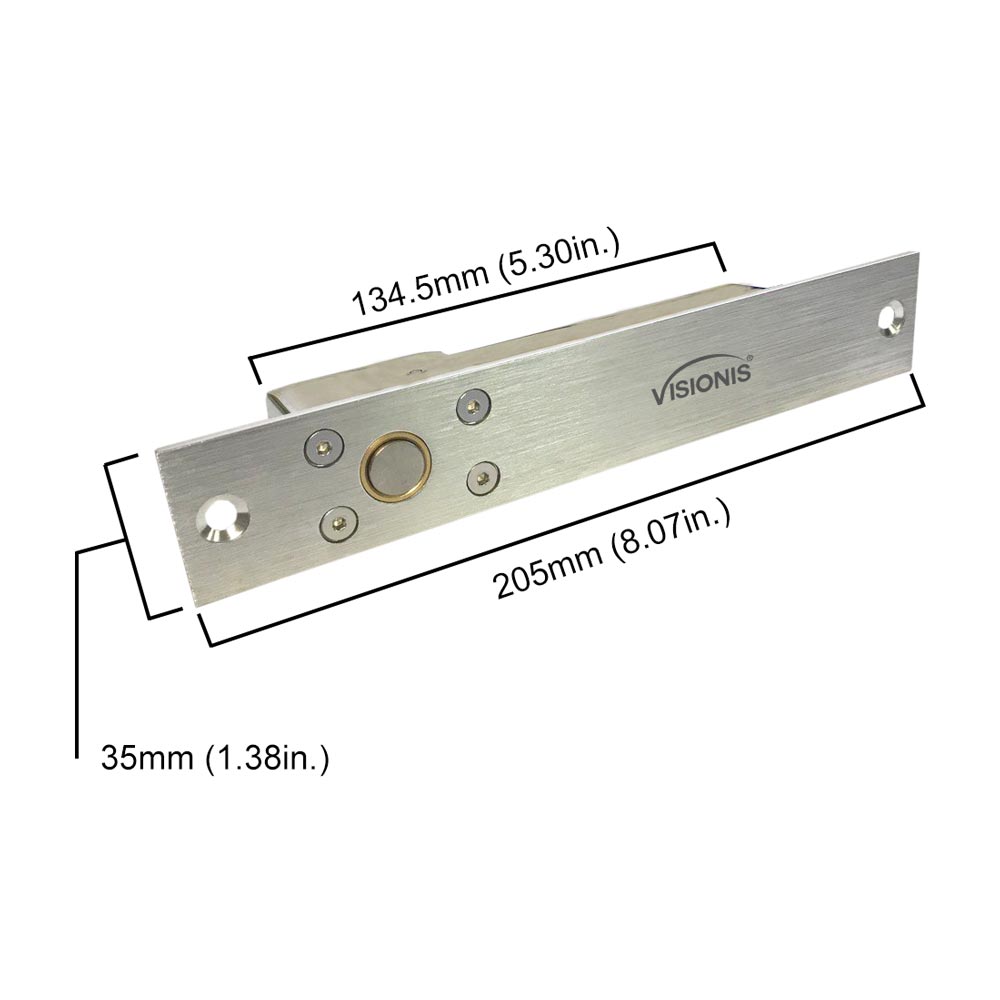

  • Size: 205Lx35Wx38H (mm) - 8.07Lx1.38Wx1.50H (in.)
  • Product + Packaging Weight: 0.73Kg (1.61 pounds)
  • Operating Temperature: -20°C / +50°C (-4°F / 122°F)
  • Cycles Tested: 300.000

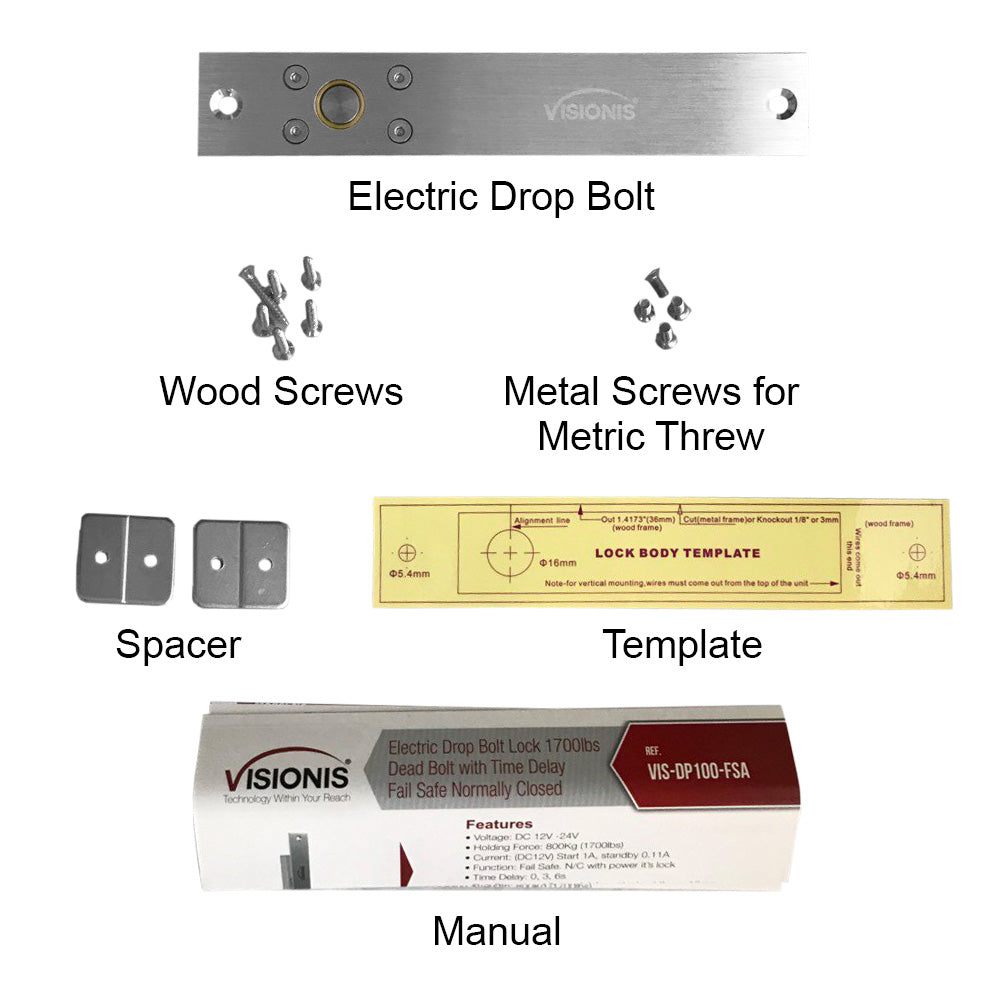

Packaging of this product

Description

The VISIONIS VIS-DP100-FSA is a high-quality electric drop bolt lock that provides 1700 lbs (800 kg) of holding force, delivering secure and reliable protection for doors that require advanced access control. Designed for hidden or discreet installations, this electric deadbolt creates a seamless look while locking firmly into place when powered.

This electric bolt lock is fail-safe, meaning the bolt stays locked while power is on and automatically unlocks in the event of a power outage—ideal for safety and fire compliance in commercial environments. It features a 13mm stainless steel bolt with a 16mm out-throw and supports adjustable time delays (0, 3, or 6 seconds) with automatic relocking if the door is not opened.

Perfect for wooden, glass, or metal doors, the VIS-DP100-FSA supports DC12V–24V input and operates reliably in a wide temperature range. Paired with the UL-certified VIS-CP200 power supply, this lock is a dependable solution for high-security access control setups.

Key Features:

  • Electric drop bolt with 1700 lbs (800 kg) of holding force
  • Fail-safe function: unlocks automatically during power outage
  • Adjustable 0/3/6 sec time delay with 6-second auto relock
  • Continuous duty solenoid for round-the-clock operation
  • Hidden installation option for discreet, shear-lock-style mounting
  • Ideal for wood, glass, or metal doors
  • Operates on DC12V–24V, compatible with most access control systems
  • Tested for 300,000 cycles for long-term durability
  • Compatible with VIS-CP200 power supply (UL, CE, RoHS, FCC)

This product doesn’t include a power supply. You might want to consider a kit that comes with one for an easier setup.

Characteristics
Packaging of this product

Model No. VIS-DP100-FSA:

  • Voltage: DC12V - DC24V
  • Holding Force: 800Kg (1700lbs)
  • Current: Current: (DC12V) Start 1A, standby 0.11A
  • Solenoid: Continuous duty
  • Function: Fail Safe. N/C with power it’s lock
  • Time Delay: 0/3/6 sec; Unlock time delay: 6 sec (If do not push the door after unlocking, again automatically lock)
  • Bolt Diameter: 13mm stainless steel out throw 16mm
  • Size: 205Lx35Wx38H (mm) - 8.07Lx1.38Wx1.50H (in.)
  • Product + Packaging Weight: 0.73Kg (1.61 pounds)
  • Operating Temperature: -20°C / +50°C (-4°F / 122°F)
  • Cycles Tested: 300.000
  • Is the VIS-DP100-FSA fail-safe or fail-secure?

    The VIS-DP100-FSA is a fail-safe lock, which means if the power goes out, the electric bolt lock will retract and unlock the door. This makes it a good choice for emergency exits or areas where safety is a concern.

  • How strong are these electric deadbolts?

    These locks provide up to 1,700 lbs of holding force using a 13mm stainless steel bolt, making it one of the stronger electric deadbolts for residential or commercial use.

  • Can I adjust how long the door stays unlocked?

    Yes. This model has a time delay feature that allows you to set the lock to automatically relock after 0, 3, or 6 seconds. If the door isn’t opened, it will lock again after 6 seconds.

  • Can this lock be hidden during installation?

    Yes. The VIS-DP100-FSA can be installed in a way that gives a “hidden” appearance, much like a shear lock. This is perfect for clean or modern door designs.

  • Does this lock work with both 12V and 24V systems?

    Yes. The VIS-DP100-FSA electric bolt supports both DC12V and DC24V, which makes it easy to use with many different access control setups.
