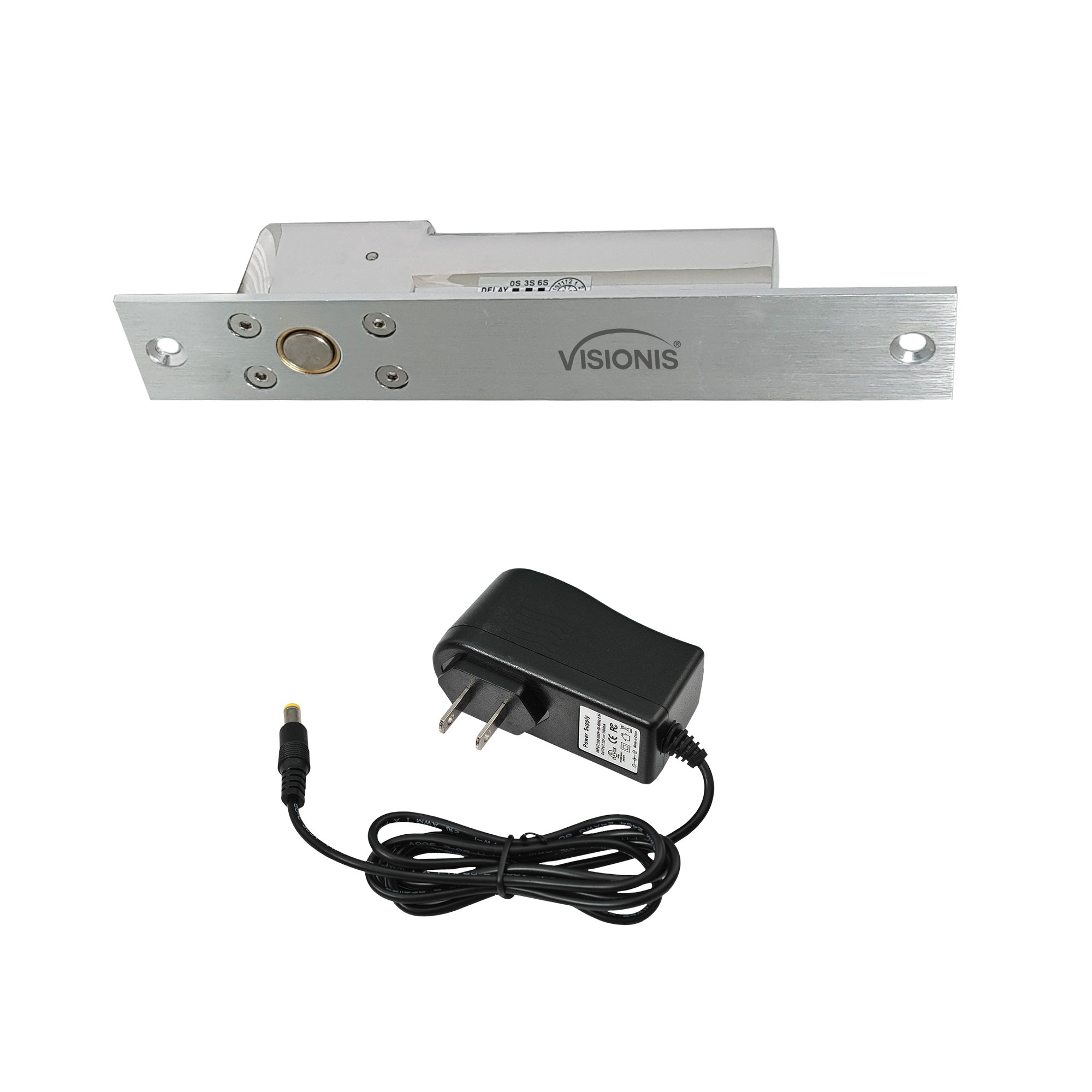

Electric Drop Bolt Lock (Deadbolt). 1700lbs (800Kg) of Holding Force - FPC-5385

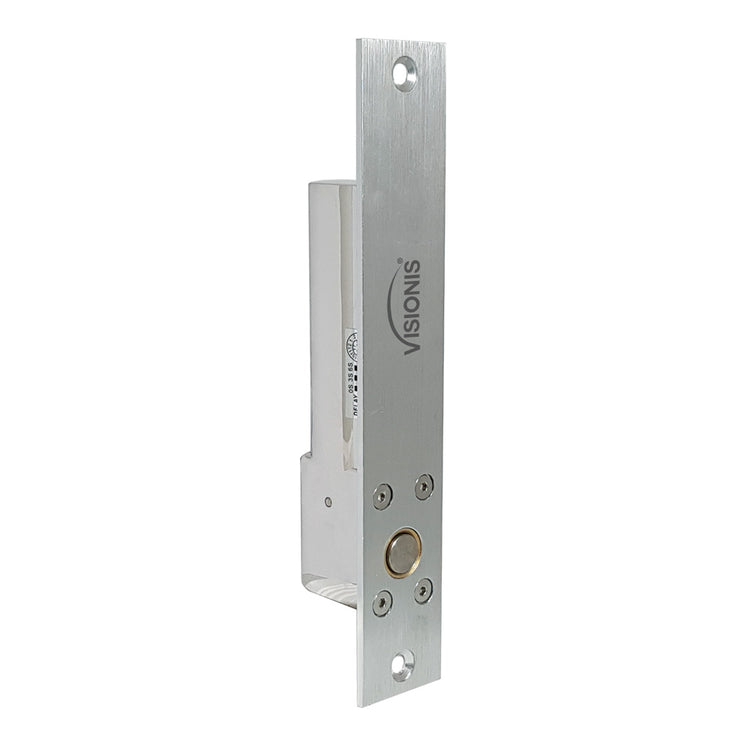

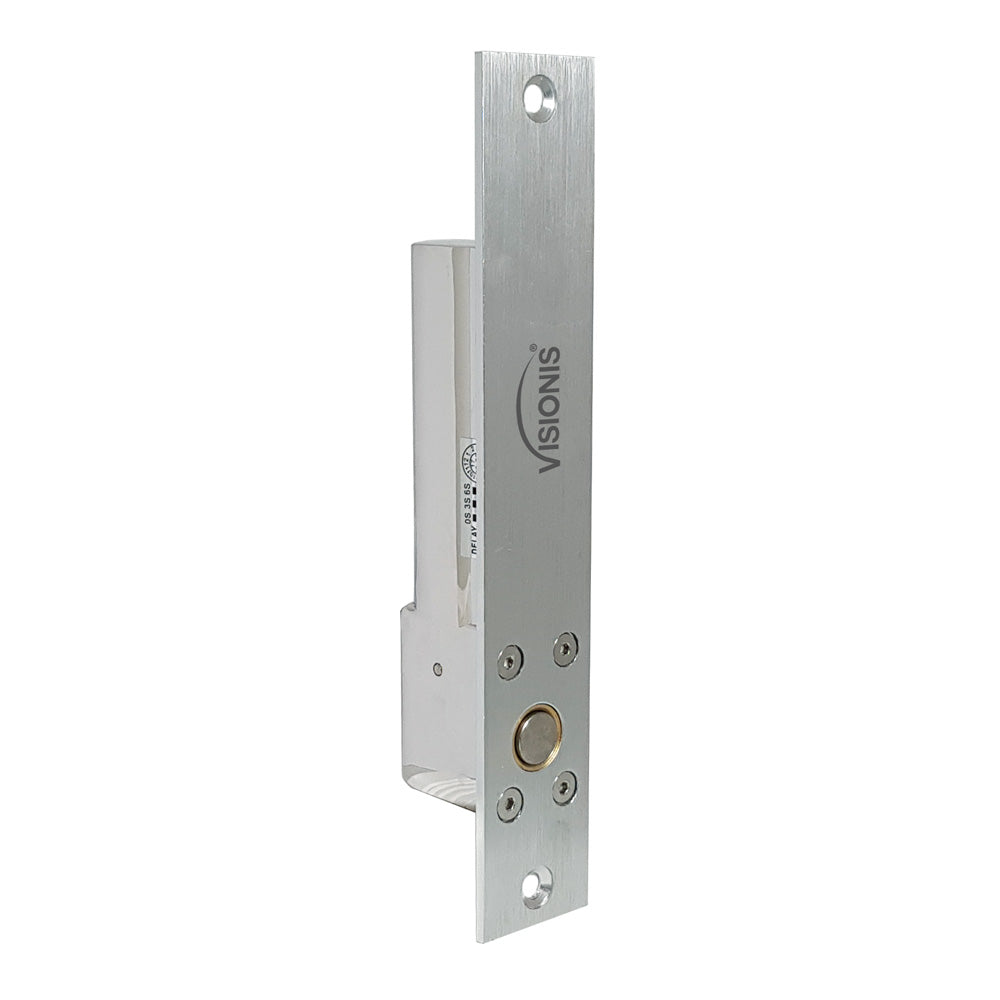

Electric drop bolt lock with 1700lb holding force and fail-safe function. VIS-DP100-FSA VISIONIS

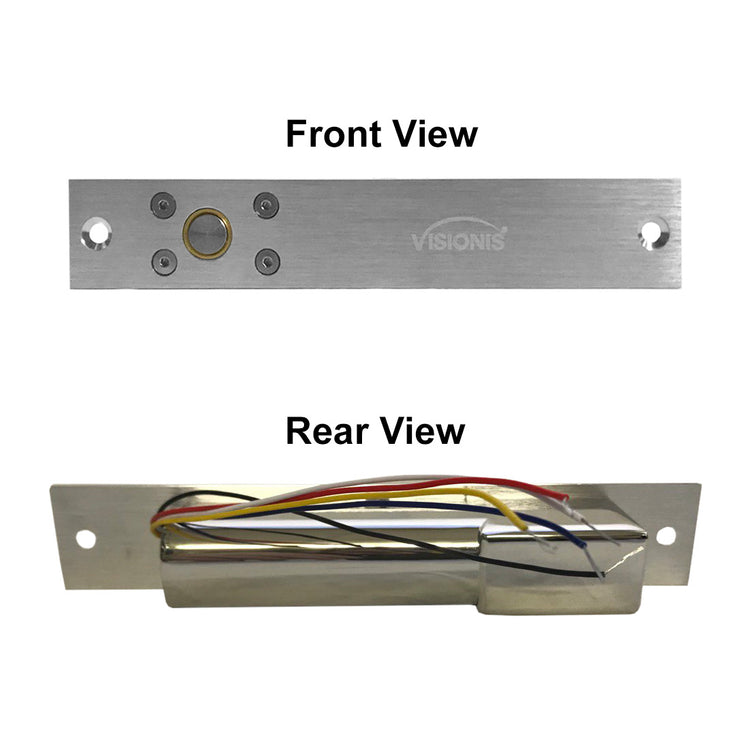

Electric bolt front and rear views - VIS-DP100-FSA Visionis

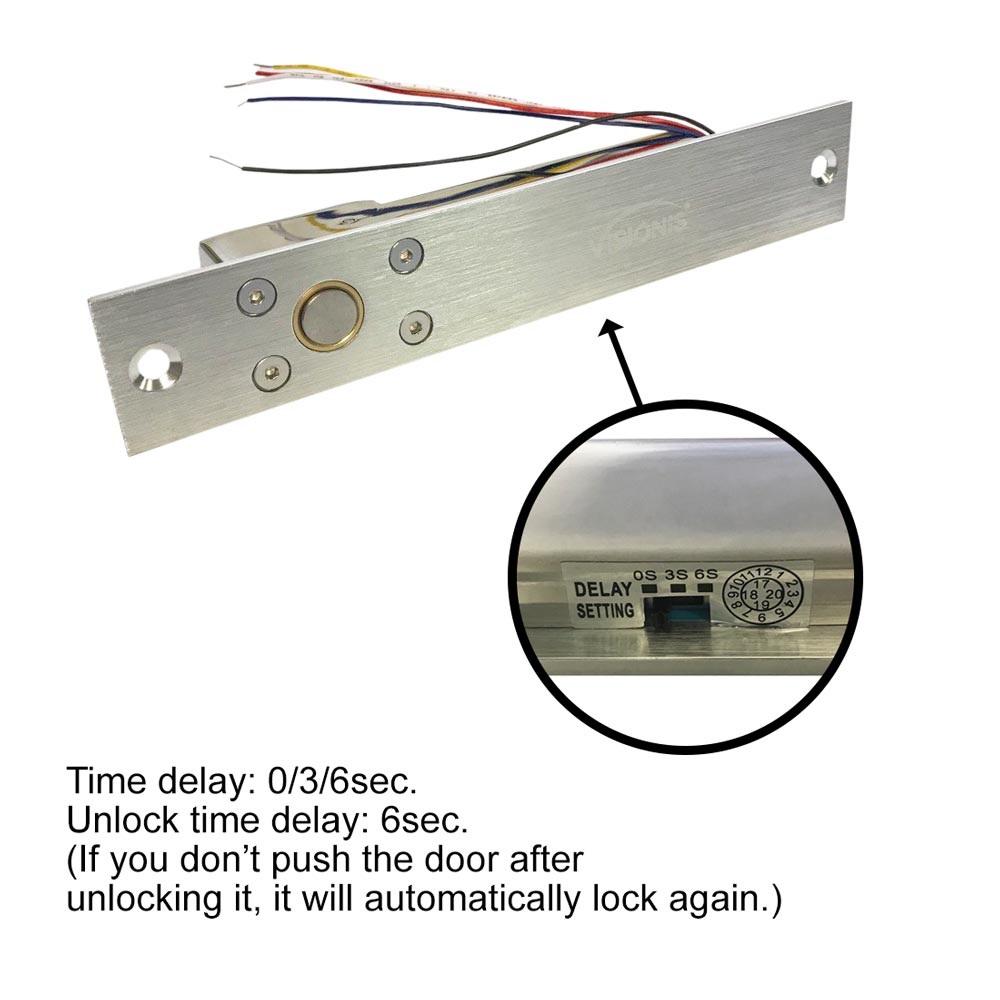

Bolt lock with time delay - VIS-DP100-FSA - Visionis

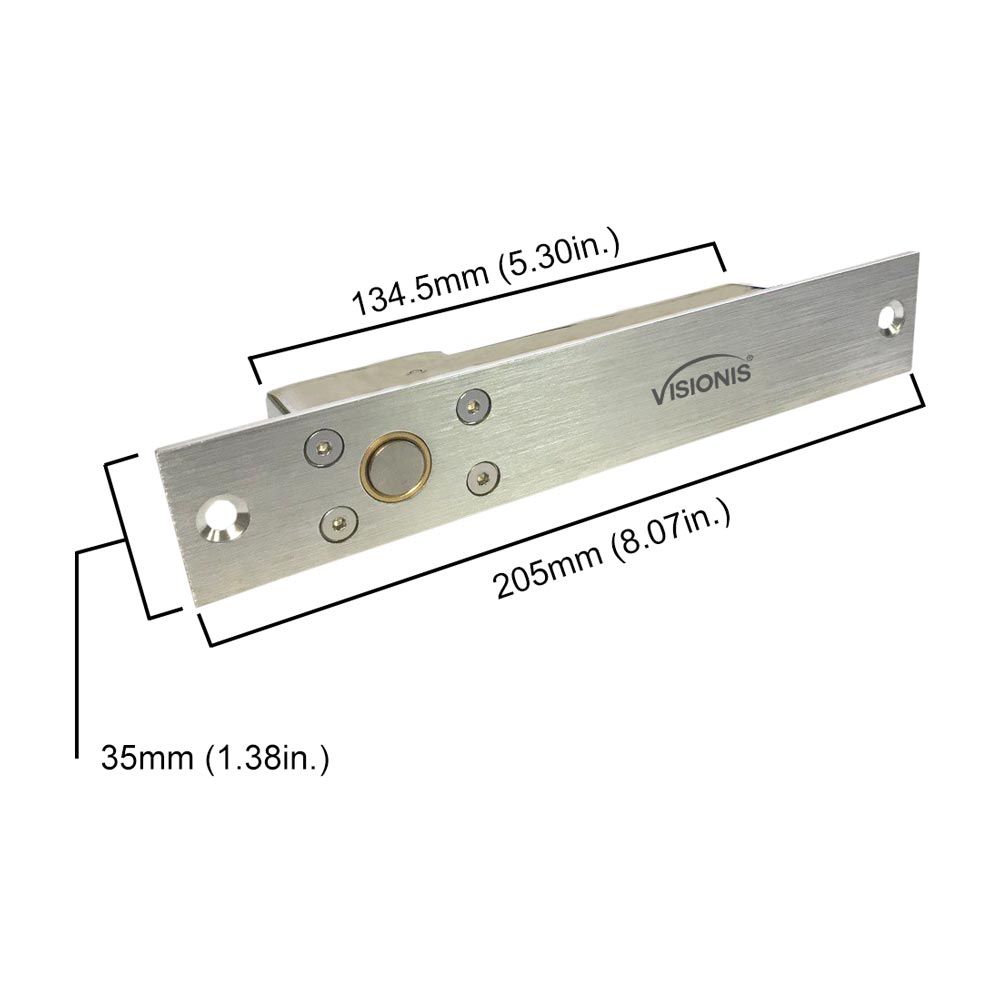

Electric bolt lock dimensions - VIS-DP100-FSA
Power Supply - VISCP100
    Electric Drop Bolt Lock (Deadbolt). 1700lbs (800Kg) of Holding Force - FPC-5385
    Electric drop bolt lock with 1700lb holding force and fail-safe function. VIS-DP100-FSA VISIONIS
    Electric bolt front and rear views - VIS-DP100-FSA Visionis
    Bolt lock with time delay - VIS-DP100-FSA - Visionis
    Electric bolt lock dimensions - VIS-DP100-FSA
    Power Supply - VISCP100
Electric Drop Bolt Lock (Deadbolt). 1700lbs (800Kg) of Holding Force - FPC-5385
Electric drop bolt lock with 1700lb holding force and fail-safe function. VIS-DP100-FSA VISIONIS
Electric bolt front and rear views - VIS-DP100-FSA Visionis
Bolt lock with time delay - VIS-DP100-FSA - Visionis
Electric bolt lock dimensions - VIS-DP100-FSA
Power Supply - VISCP100
Electric Drop Bolt Lock (Deadbolt). 1700lbs (800Kg) of Holding Force - FPC-5385
Electric drop bolt lock with 1700lb holding force and fail-safe function. VIS-DP100-FSA VISIONIS
Electric bolt front and rear views - VIS-DP100-FSA Visionis
Bolt lock with time delay - VIS-DP100-FSA - Visionis
Electric bolt lock dimensions - VIS-DP100-FSA
Power Supply - VISCP100
    Electric Drop Bolt Lock (Deadbolt). 1700lbs (800Kg) of Holding Force - FPC-5385
    Electric drop bolt lock with 1700lb holding force and fail-safe function. VIS-DP100-FSA VISIONIS
    Electric bolt front and rear views - VIS-DP100-FSA Visionis
    Bolt lock with time delay - VIS-DP100-FSA - Visionis
    Electric bolt lock dimensions - VIS-DP100-FSA
    Power Supply - VISCP100
Electric Drop Bolt Lock (Deadbolt). 1700lbs (800Kg) of Holding Force - FPC-5385
Electric drop bolt lock with 1700lb holding force and fail-safe function. VIS-DP100-FSA VISIONIS
Electric bolt front and rear views - VIS-DP100-FSA Visionis
Bolt lock with time delay - VIS-DP100-FSA - Visionis
Electric bolt lock dimensions - VIS-DP100-FSA
Power Supply - VISCP100

This PRODUCT has a 3 YEAR warranty with full access to tech support in the USA!

Description

The FPC-5385 kit includes the VISIONIS VIS-DP100-FSA drop bolt lock and a matching power supply, offering a dependable security solution for doors that need extra reinforcement. This fail-safe electric drop bolt lock delivers up to 1,700 lbs of holding force, keeping your door securely locked as long as power is supplied.

When powered, the bolt extends and locks into place, protecting the entry point with solid stainless steel strength. Its design allows for a clean, concealed installation, similar to a shear lock, giving your setup a modern and low-profile appearance.

As a fail-safe lock, the bolt automatically retracts during a power outage, allowing the door to unlock for safe exit. The included power supply makes setup quick and easy, so you can start securing your space right away.

Characteristics

Model No. VIS-DP100-FSA:

  • Voltage: DC12V - DC24V
  • Holding Force: 800Kg (1700lbs)
  • Current: Current: (DC12V) Start 1A, standby 0.11A
  • Solenoid: Continuous duty
  • Function: Fail Safe. N/C with power it’s lock
  • Time Delay: 0/3/6 sec; Unlock time delay: 6 sec (If do not push the door after unlocking, again automatically lock)
  • Bolt Diameter: 13mm stainless steel out throw 16mm
  • Size: 205Lx35Wx38H (mm) - 8.07Lx1.38Wx1.50H (in.)
  • Product + Packaging Weight: 0.73Kg (1.61 pounds)
  • Operating Temperature: -20°C / +50°C (-4°F / 122°F)
  • Cycles Tested: 300.000
Packaging of this product

Model No. VIS-CP200:

  • Cable Length: 1.2 meters (4 feet)
  • Input Voltage Range: AC90V-264V
  • Input Frequency Range: 50Hz-60Hz
  • Output Voltage Range: DC12V+/-5%
  • Output Current: 2A
  • Output Power: 24 Watts
  • Output Ripple&Noise: ≤46MV
  • Output Efficiency: ≥79%
  • Environment Operating: -30°C~45°C 20%~90%RH
  • Environment Storage Temp.: -40°C~85°C 10%~95%RH
  • Product Dimension: 87*36.5*70mm (3.42x1.43x2.75in.)
  • Product Weight: 116g
  • Certificate: UL, CE, RoHS, FCC
Description

The FPC-5385 kit includes the VISIONIS VIS-DP100-FSA drop bolt lock and a matching power supply, offering a dependable security solution for doors that need extra reinforcement. This fail-safe electric drop bolt lock delivers up to 1,700 lbs of holding force, keeping your door securely locked as long as power is supplied.

When powered, the bolt extends and locks into place, protecting the entry point with solid stainless steel strength. Its design allows for a clean, concealed installation, similar to a shear lock, giving your setup a modern and low-profile appearance.

As a fail-safe lock, the bolt automatically retracts during a power outage, allowing the door to unlock for safe exit. The included power supply makes setup quick and easy, so you can start securing your space right away.

  • Is the VIS-DP100-FSA fail-safe or fail-secure?

    The VIS-DP100-FSA is a fail-safe lock, which means if the power goes out, the electric bolt lock will retract and unlock the door. This makes it a good choice for emergency exits or areas where safety is a concern.

  • How strong are these electric deadbolts?

    These locks provide up to 1,700 lbs of holding force using a 13mm stainless steel bolt, making it one of the stronger electric deadbolts for residential or commercial use.

  • Can I adjust how long the door stays unlocked?

    Yes. This model has a time delay feature that allows you to set the lock to automatically relock after 0, 3, or 6 seconds. If the door isn’t opened, it will lock again after 6 seconds.

  • Can this lock be hidden during installation?

    Yes. The VIS-DP100-FSA can be installed in a way that gives a “hidden” appearance, much like a shear lock. This is perfect for clean or modern door designs.

  • Does this lock work with both 12V and 24V systems?

    Yes. The VIS-DP100-FSA electric bolt supports both DC12V and DC24V, which makes it easy to use with many different access control setups.
