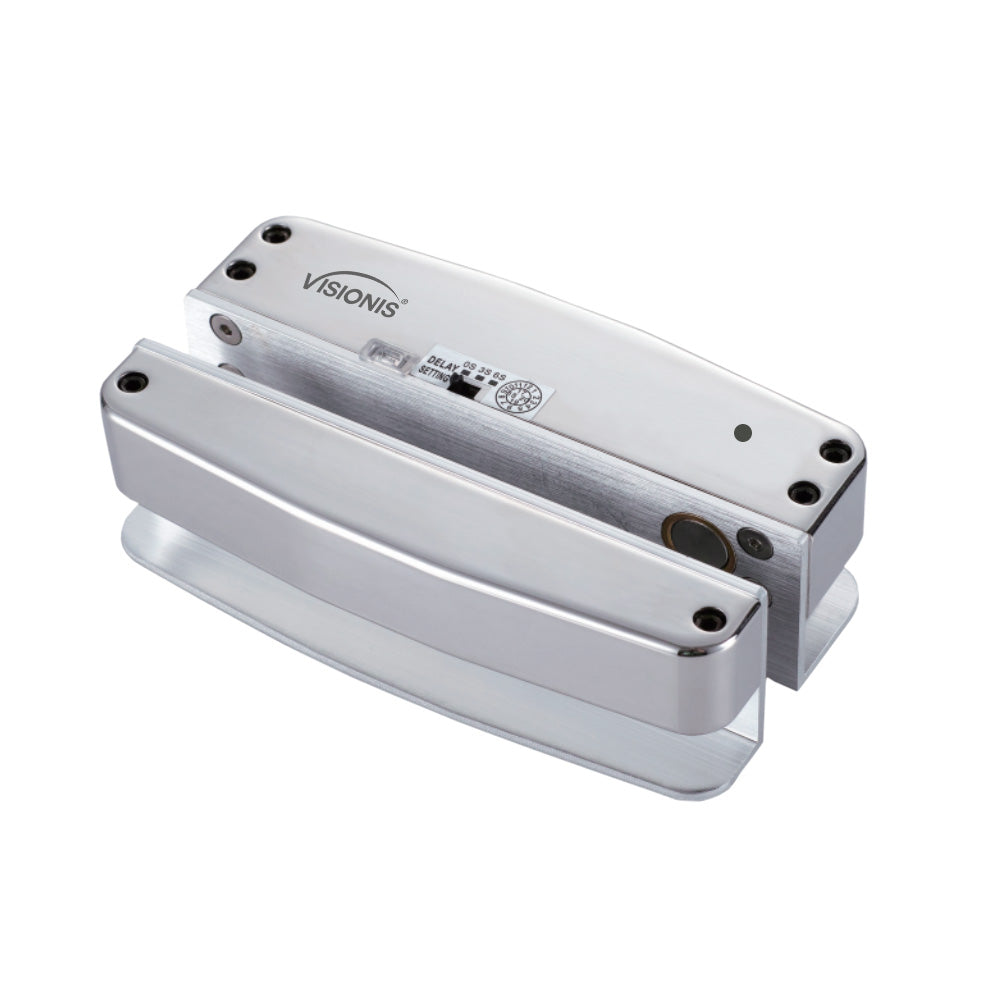

The VISIONIS VIS-DP105GD-FSA-LED is a premium-grade electric drop bolt lock designed specifically for frameless glass doors and glass frames. With a holding force of 1700 lbs (800 kg), built-in LED indicator, and adjustable time delay, this electric deadbolt delivers discreet and reliable protection for high-traffic glass entryways.

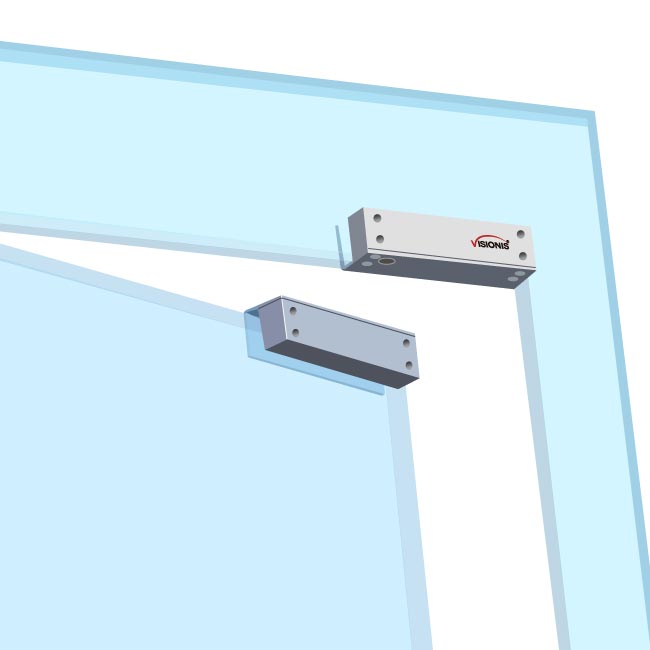

This model operates in fail-safe mode—meaning the bolt retracts and unlocks during a power failure for safety compliance. When powered, the solid drop bolt extends and locks into place, keeping the door secure. With its slim profile and bracket included, it can be installed to provide a "hidden" appearance, similar to a shear lock, maintaining the clean aesthetic of frameless glass.

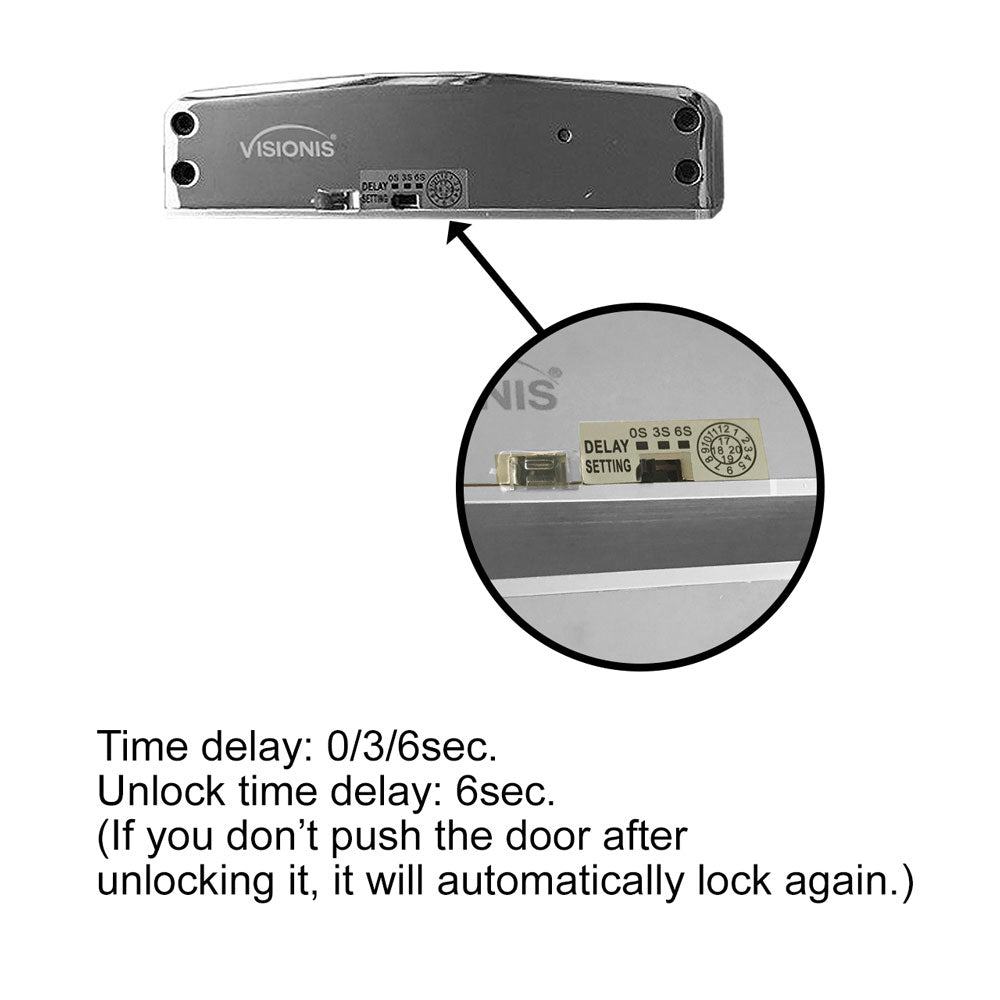

The VIS-DP105GD-FSA-LED supports 12V to 24V DC, includes a 6-second auto-relock function, and can be programmed with a 0, 3, or 6-second delay before locking. Tested for 500,000 cycles, this lock is built to last in demanding environments.
Key Features:
- Electric bolt lock designed for frameless glass doors and glass frames
- Provides 1700 lbs (800 kg) of holding force
- Fail-safe function: unlocks if power is lost
- Time delay settings: 0, 3, or 6 seconds + 6-second auto relock
- LED indicator shows real-time lock status
- Slim, concealed installation ideal for modern door designs
- Operates on DC12V–24V
- Built for durability—tested for 500,000 cycles
This product doesn’t include a power supply. You might want to consider a kit that comes with one for an easier setup.
The VISIONIS VIS-DP105GD-FSA-LED is a premium-grade electric drop bolt lock designed specifically for frameless glass doors and glass frames. With a holding force of 1700 lbs (800 kg), built-in LED indicator, and adjustable time delay, this electric deadbolt delivers discreet and reliable protection for high-traffic glass entryways.
This model operates in fail-safe mode—meaning the bolt retracts and unlocks during a power failure for safety compliance. When powered, the solid drop bolt extends and locks into place, keeping the door secure. With its slim profile and bracket included, it can be installed to provide a "hidden" appearance, similar to a shear lock, maintaining the clean aesthetic of frameless glass.
The VIS-DP105GD-FSA-LED supports 12V to 24V DC, includes a 6-second auto-relock function, and can be programmed with a 0, 3, or 6-second delay before locking. Tested for 500,000 cycles, this lock is built to last in demanding environments.
Key Features:
- Electric bolt lock designed for frameless glass doors and glass frames
- Provides 1700 lbs (800 kg) of holding force
- Fail-safe function: unlocks if power is lost
- Time delay settings: 0, 3, or 6 seconds + 6-second auto relock
- LED indicator shows real-time lock status
- Slim, concealed installation ideal for modern door designs
- Operates on DC12V–24V
- Built for durability—tested for 500,000 cycles
This product doesn’t include a power supply. You might want to consider a kit that comes with one for an easier setup.
-
Is this electric lock suitable for frameless glass doors?
-
What does “fail-safe” mean for these bolt lock locks?
-
How much force can this electric bolt lock withstand?
-
Is any software required to operate this electric bolt?
-
What is the time delay feature used for?
