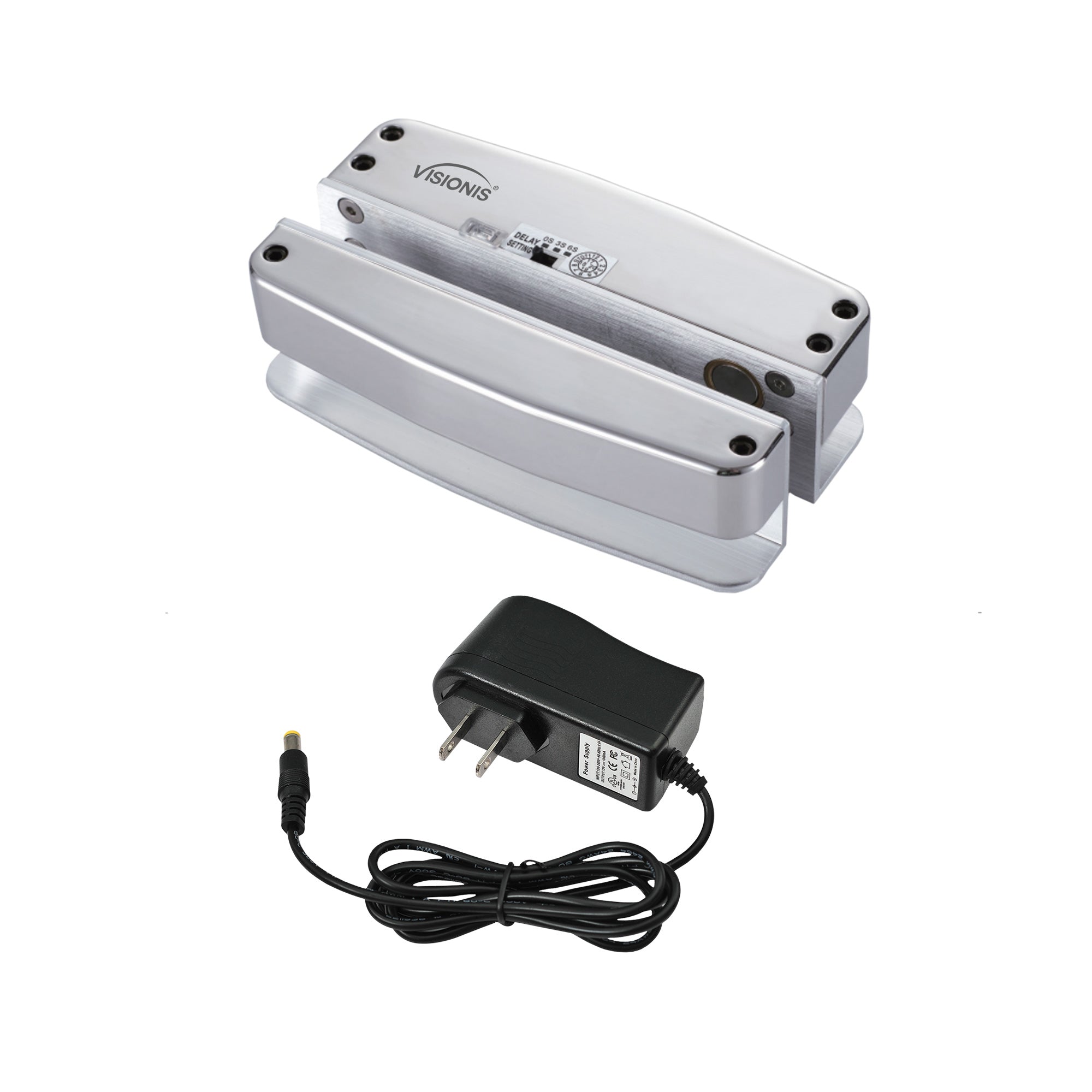

Kit Includes:

(1)

VIS-DP105GD-FSA-LED: Electric Drop Bolt Lock 1700lbs For Full Glass Door and Glass Frame With LED and Time Delay Fail Safe Normally Closed Deadbolt

VS-VISCP200: 12 Volt 2Amp Power Supply Transformer, UL Listed

Description

The 5389 kit has a Visionis DP105GD-FSA-LED normally closed drop bolt lock for glass doors and glass frames that provides 1700lbs of reinforcement with LED and time delay plus a power supply. The drop bolt locks into place, giving the protection needed to secure the door. Depending on how you want the lock installed, you will be able to give that “hidden” appearance, similar to the shear lock. When the drop bolt is given power, the bolt extends and locks into place.

This firmly secures the door as long as it has power going to it. This particular drop bolt is fail-safe; meaning that in the case of a power outage, the bolt will retract and the door will become unlocked. The power supply provided will allow you to hook it up right away.

Characteristics

Model No. VIS-DP105GD-FSA-LED:

Voltage: DC12V - DC24V
Holding Force: 800Kg (1700lbs)
Current: (DC12V): Working Current 110mA / Starting Current 1000mA
Function: Fail Safe. N/C with power it’s lock
Time Delay: 0/3/6 sec; Unlock time delay: 6 sec (If do not push the door after unlocking, again automatically lock)
Door Type: Suitable for fully frameless glass door (8~12mm thickness)
Size: Lock body: 145Lx44Wx38D (mm) - 5.70Lx1.73Wx1.50D (in.) Bracket: 145Lx44Wx26D (mm) - 5.70Lx1.73Wx1.02D (in.)
Product + Packaging Weight: 0.93Kg (2.05 pounds)
Operating Temperature: -20°C / +50°C (-4°F / 122°F)
Cycles Tested: 500.000

Model No. VISCP200:

Input Voltage Range: AC90V-264V
Input Frequency Range: 50Hz-60Hz
Output Voltage Range: DC12V+/-5%
Output Current: 2A
Output Power: 24 Watts
Output Ripple&Noise: ≤46MV
Output Efficiency: ≥79%
Environment Operating: -30°C~45°C 20%~90%RH
Environment Storage Temp.: -40°C~85°C 10%~95%RH
Product Dimension: 87*36.5*70mm (3.42x1.43x2.75in.)
Product Weight: 116g
Certificate: UL, CE, RoHS, FCC

Description

The 5389 kit has a Visionis DP105GD-FSA-LED normally closed drop bolt lock for glass doors and glass frames that provides 1700lbs of reinforcement with LED and time delay plus a power supply. The drop bolt locks into place, giving the protection needed to secure the door. Depending on how you want the lock installed, you will be able to give that “hidden” appearance, similar to the shear lock. When the drop bolt is given power, the bolt extends and locks into place.

This firmly secures the door as long as it has power going to it. This particular drop bolt is fail-safe; meaning that in the case of a power outage, the bolt will retract and the door will become unlocked. The power supply provided will allow you to hook it up right away.
