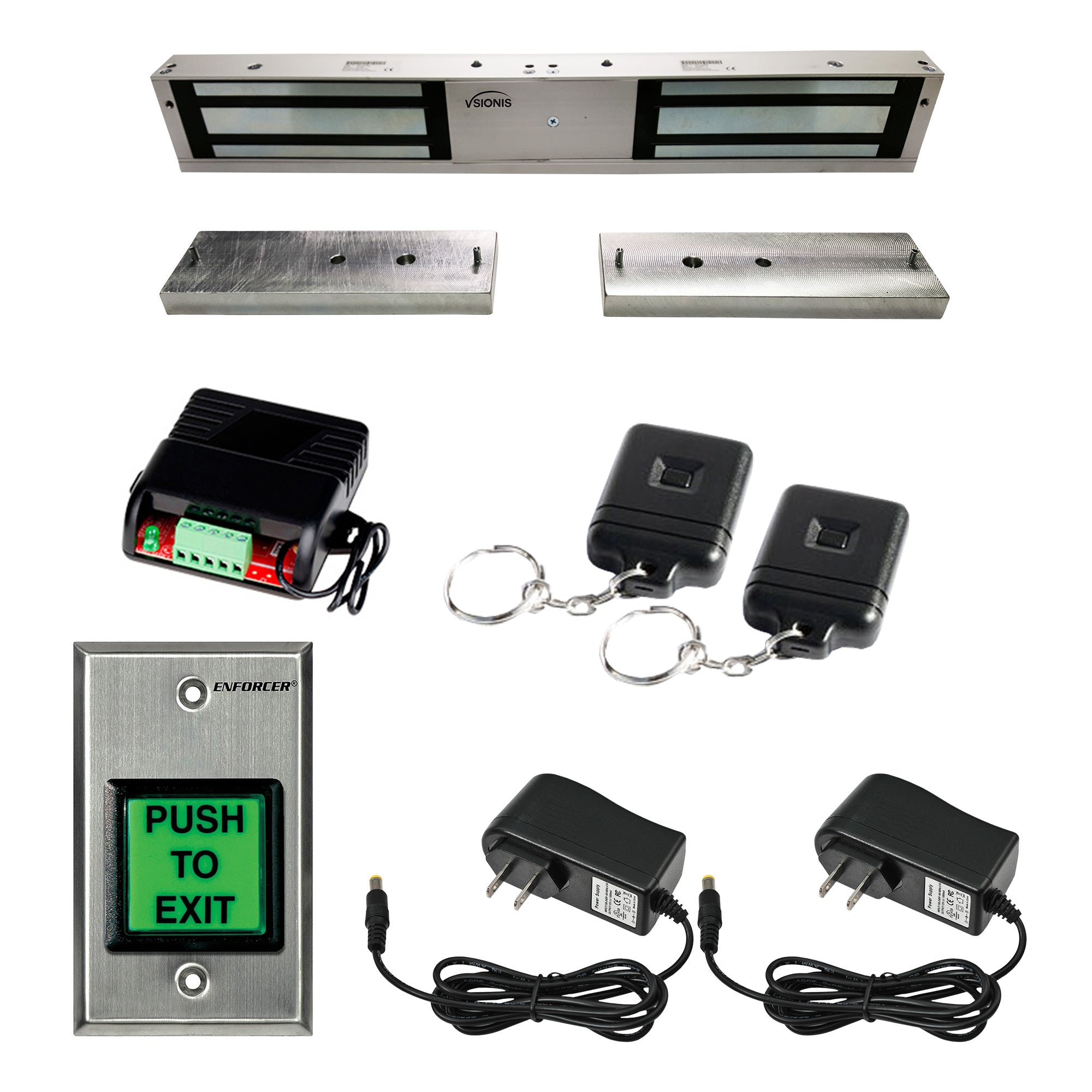

Kit Includes:

(1)
(1)
(2)
(1)
(2)
VIS-1200D-LED: Double Door Maglock. Up to 1200 lbs x2 (545 kg x2) of Holding Force. 12 VDC / 24 VDC
VIS-8004: 1 Channel RF Receiver 315MHz
VIS-8005: 1 Channel RF 315mhz Transmitter Remote Control
VIS-7000: Green Square Push to Exit Button for Door Access Control with LED Light, NC, COM and NO Outputs
VIS-CP200: 12 Volt 2Amp Power Supply Transformer, UL Listed
Description

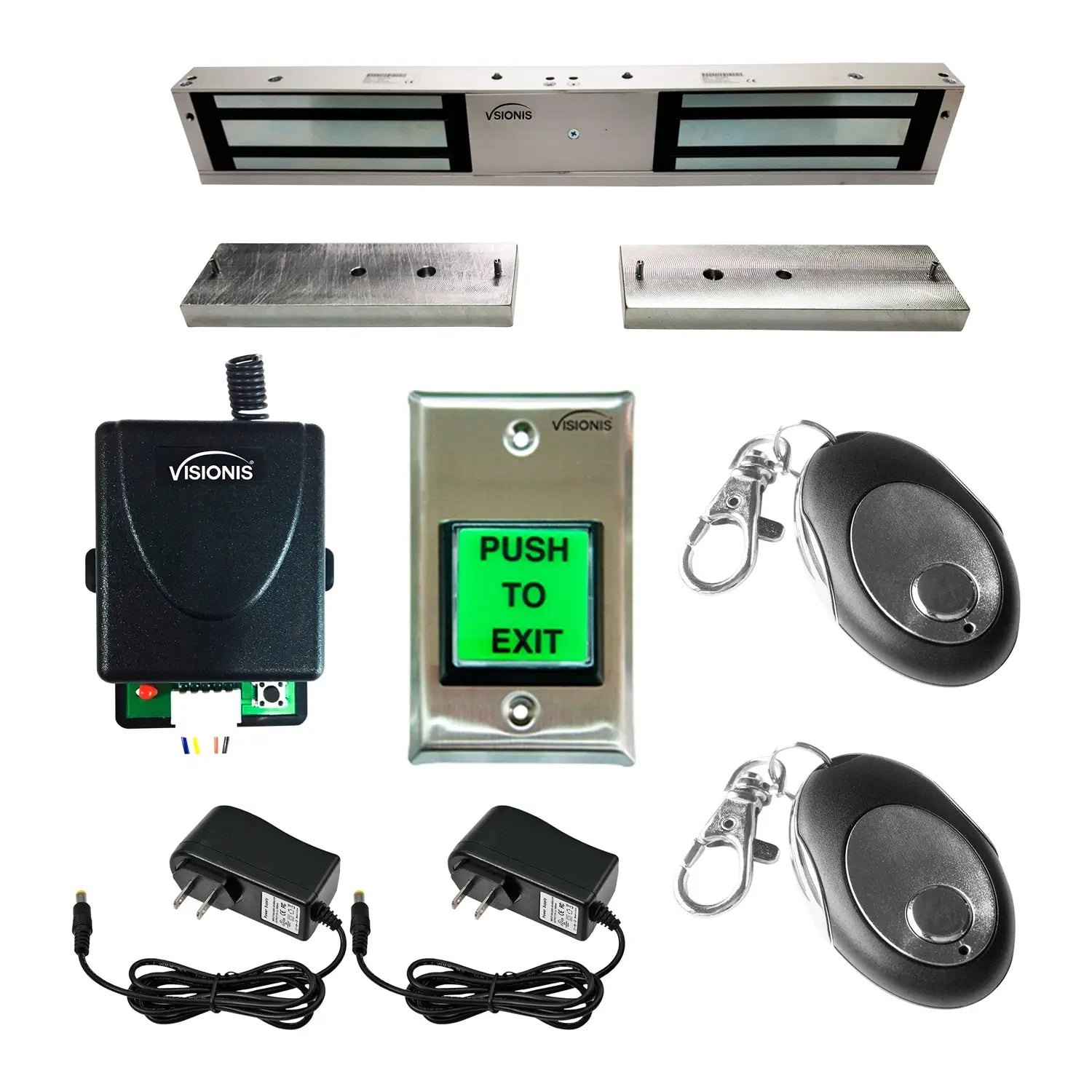

The VISIONIS FPC-5199 Kit is your comprehensive solution for single-door and double-door access control, offering enhanced security and convenience. This kit includes a double 1200lbs indoor electric magnetic lock (VIS-1200D-LED) with an integrated LED sensor for clear status indication, a 1-channel RF receiver (VIS-8004) operating at 315MHz, a compatible remote control transmitter (VIS-8005), a reliable push-to-exit button (VIS-7000) with LED illumination for easy operation, and a UL-listed 12V 2Amp power supply transformer (VIS-CP200) ensuring stable power delivery.

Perfect for both professional installations and DIY users, the FPC-5199 is designed for secure and seamless access management, making it an ideal choice for residential, commercial, or industrial applications. The electromagnetic lock ensures a strong 1200lbs holding force per side, supporting double-door security with unmatched reliability.

Characteristics

Model No. VIS-1200D-LED:

  • Voltage Input: 12 VDC / 24 VDC
  • Current Draw: A total of 1000mA for both locks
  • Holding Force: Up to 1200 lbs x2 (545 kg x2)
  • Hall Effect Contact : SPDT rated 2A at 24 VDC
  • Anti-Rust Surface Treatment: Blue Zinc Plating
  • Operating Temperature: 0~55° C (32~131° F)
  • Operating Humidity: 0~95% (non condensing)
  • Weight (Magnet): 5.0 kg (±1%)

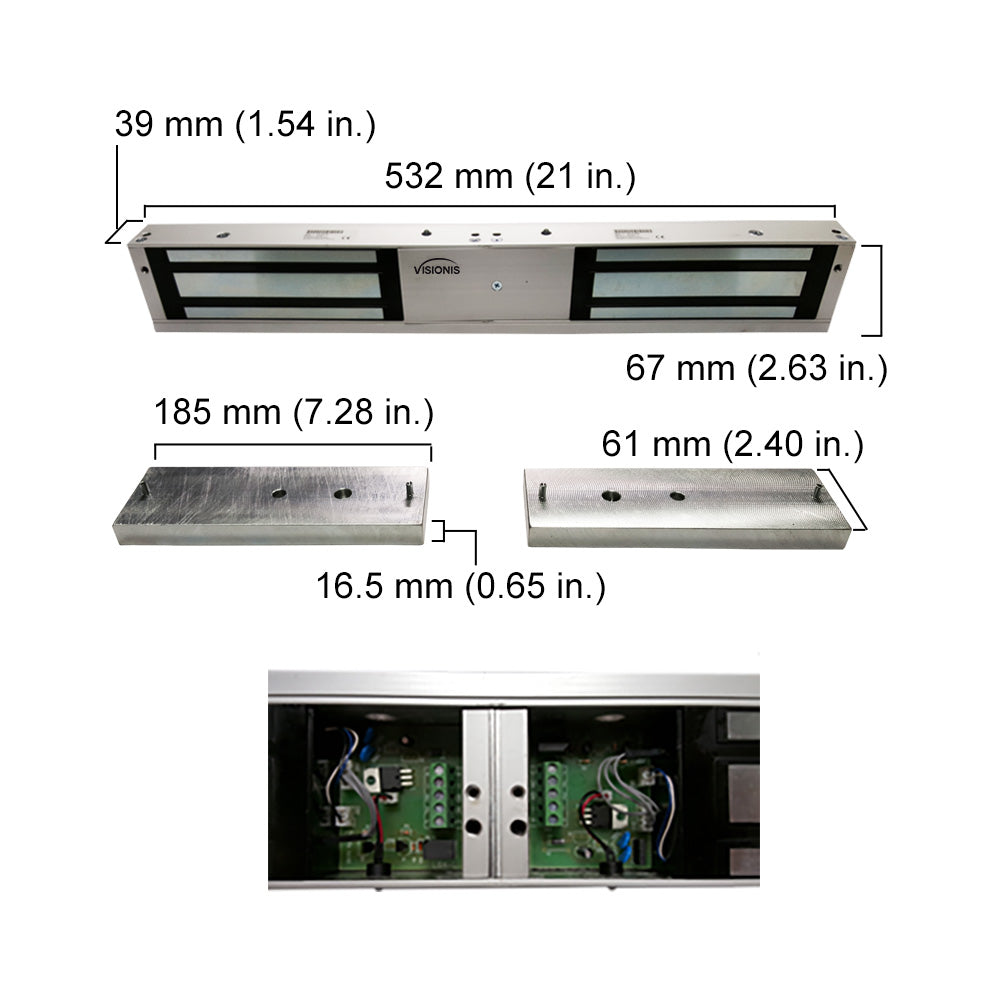

  • Dimensions:
    Magnet - (L) 532x(W)67x(T)39 mm - 21(L)x(W)2.63(T)1.54 in.
    Armature - (L) 185x(W)61x(T)16.5 mm - 7.28(L)x(W)2.40x(T)0.65 in.
Packaging of this product

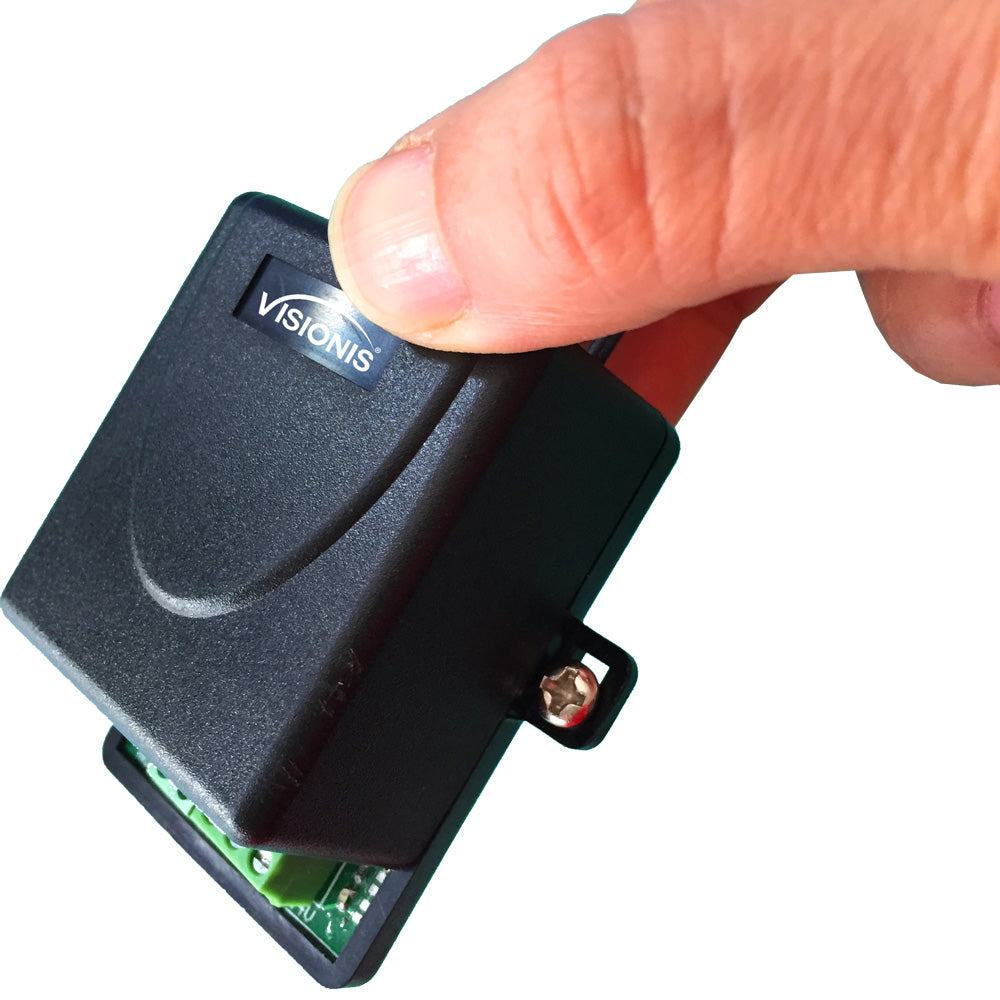

Model No. VIS-8004:

  • Operating Frequency: 315mhz
  • Number of Codes: 1,048,576
  • Data Format: PWM
  • Operating Voltage: +12V 24V
  • Operating Distance: Up to 160ft (50m) - The maximum range needs to be used in an open area. The distance will start to diminish based on some type of interference such as metal, concrete and others.
  • Operating Temperature: 0-70°C or 32 - 158°F
  • Current Draw: 19mA
  • Compatible Transmitter: VIS-8005
  • RF channels: One
  • No. of Remotes that are able to connect to one Receiver: Up to 50
  • Receiver Output: C dry contact (NO/NC/COM)
  • Receiver Output Functions: 4 (Default) 4 second momentary, latch, toggle (On/Off), press on function
  • Connectors: 5 screw Terminal (NO, COM, NC + -)
  • Case Construction: ABS Plastic
  • Dimensions: 62*43.5*30mm (2.44* 1.71*1.18 Inches)
  • Weight: 43g or 1.52 Ounces
  • Certifications: FCC
  • Antenna: Wire lead
  • Mounting Screws: Comes with two mounting screws
  • Wire Harness: Included
  • Power supply: Not included (only included in the form of kits.)
Packaging of this product

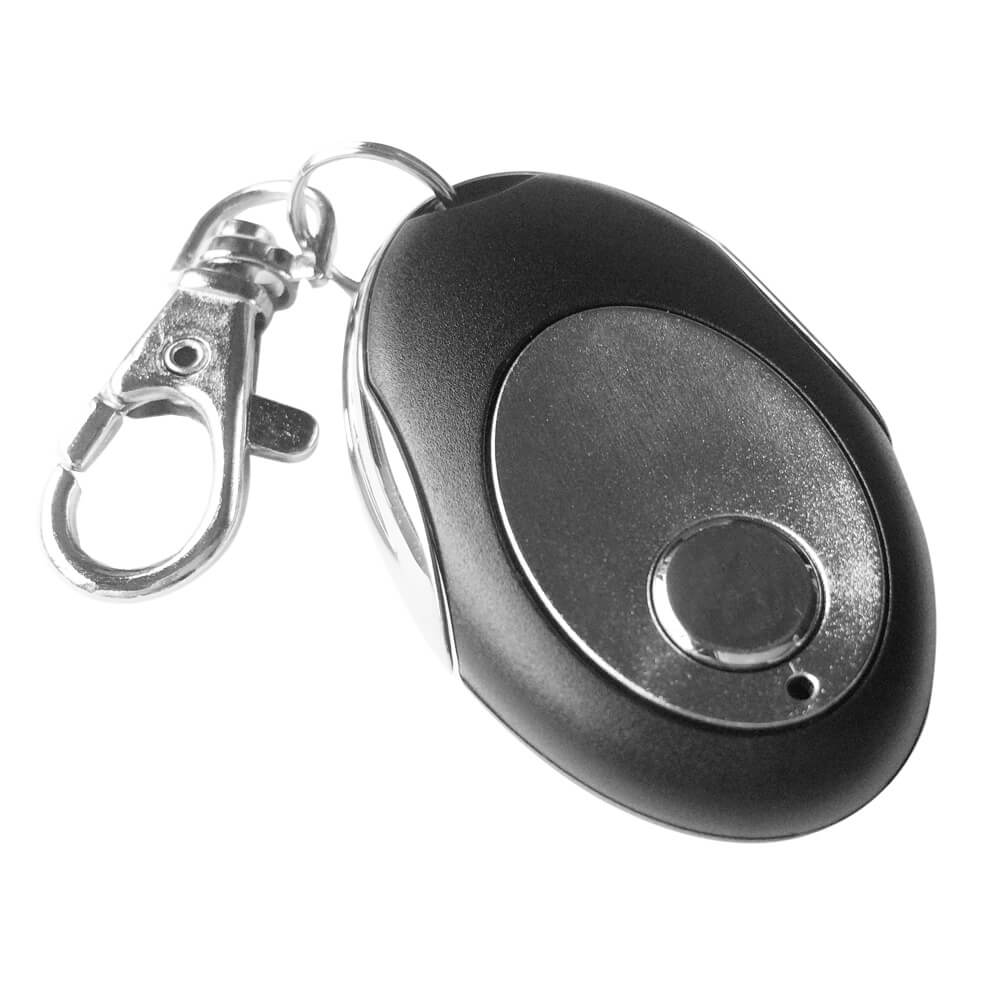

Model No. VIS-8005:

  • Frequency: 315mhz
  • Chip: 1527
  • Input Voltage: 6V
  • Button Quantity: 1 button
  • Input Power: 0.06W
  • Input Current: 0.01A
  • Up to 160ft (50m) - The maximum range needs to be used in an open area. The distance will start to diminish based on some type of interference such as metal, concrete and others.
Packaging of this product

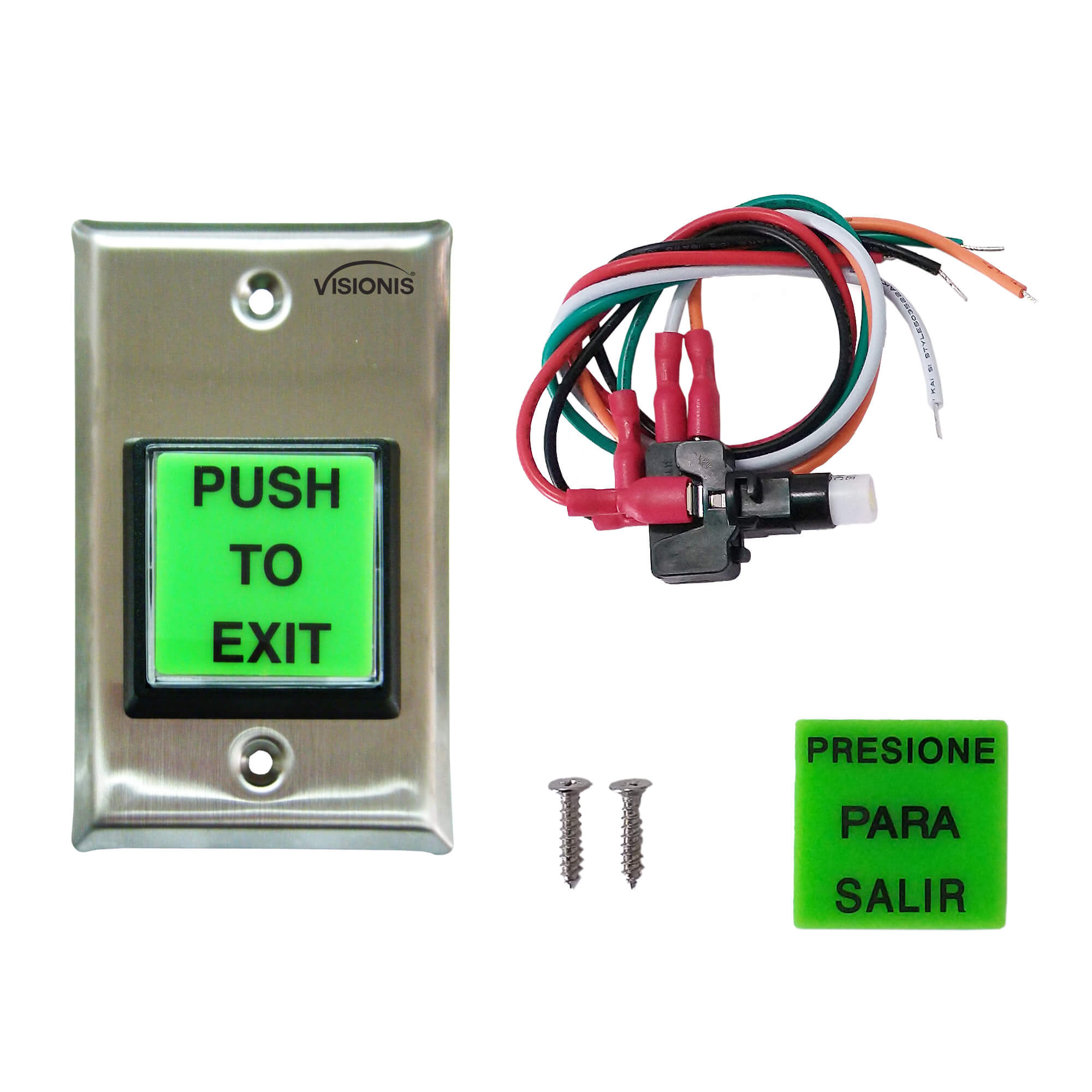

Model No. VIS-7000:

  • Output Contact: NC, COM, NO
  • Power: 12 VDC / 24 VDC
  • LED Indicator: Green LED (Standby)
  • Mechanical Life: 500,000 tests
  • Panel Hole Diameter: 25mm
  • Panel: Stainless steel 0.9mm thickness
  • Switch Material: Plastic
  • Operating Temperature: -20°C~+55°C (-4°F-131°F)
  • Operating Humidity: 0-95% (relative humidity)
  • Dimension Of Plate: 115L × 70W × 70H mm - 4.52L x 2.75W x 2.75H in.
  • Weight: 0.118kg
  • Attention: This exit button is meant for indoor use. This Exit button does not have a delay.
Packaging of this product

Model No. VIS-CP200:

  • Input Voltage Range: AC90V-264V
  • Input Frequency Range: 50Hz-60Hz
  • Output Voltage Range: DC12V+/-5%
  • Output Current: 2A
  • Output Power: 24 Watts
  • Output Ripple&Noise: ≤46MV
  • Output Efficiency: ≥79%
  • Environment Operating: -30°C~45°C 20%~90%RH
  • Environment Storage Temp.: -40°C~85°C 10%~95%RH
  • Product Dimension: 87*36.5*70mm (3.42x1.43x2.75in.)
  • Product Weight: 116g
  • Certificate: UL, CE, RoHS, FCC
Description

The VISIONIS FPC-5199 Kit is your comprehensive solution for single-door and double-door access control, offering enhanced security and convenience. This kit includes a double 1200lbs indoor electric magnetic lock (VIS-1200D-LED) with an integrated LED sensor for clear status indication, a 1-channel RF receiver (VIS-8004) operating at 315MHz, a compatible remote control transmitter (VIS-8005), a reliable push-to-exit button (VIS-7000) with LED illumination for easy operation, and a UL-listed 12V 2Amp power supply transformer (VIS-CP200) ensuring stable power delivery.

Perfect for both professional installations and DIY users, the FPC-5199 is designed for secure and seamless access management, making it an ideal choice for residential, commercial, or industrial applications. The electromagnetic lock ensures a strong 1200lbs holding force per side, supporting double-door security with unmatched reliability.

Download Datasheets and Manuals of this product

VIS-1200D-LED

VIS-8004

VIS-8005

VIS-7000

FPC-5199, FPC-5199-B
