Do these locks work with both 12V and 24V power supplies?

Yes, each lock is compatible with 12V and 24V DC inputs, making it adaptable to different setups.

Will I be able to tell if the magnetic lock is working by looking at it?

Yes, the maglock has a bright-colored status LED. It provides a clear indication of the lock status, so you know at a glance if the door is secured.Green = LockedRed = ReleasedOff = No input

Can these magnetic locks be installed on glass/sliding doors?

Yes, they can be installed on glass doors and they can be installed on sliding doors. You might need a proper bracket.

Double Door Maglock. Up to 1200 lbs VIS-1200D-LED Visionis

Double Maglock. Up to 1200 lbs VIS-1200D-LED Visionis

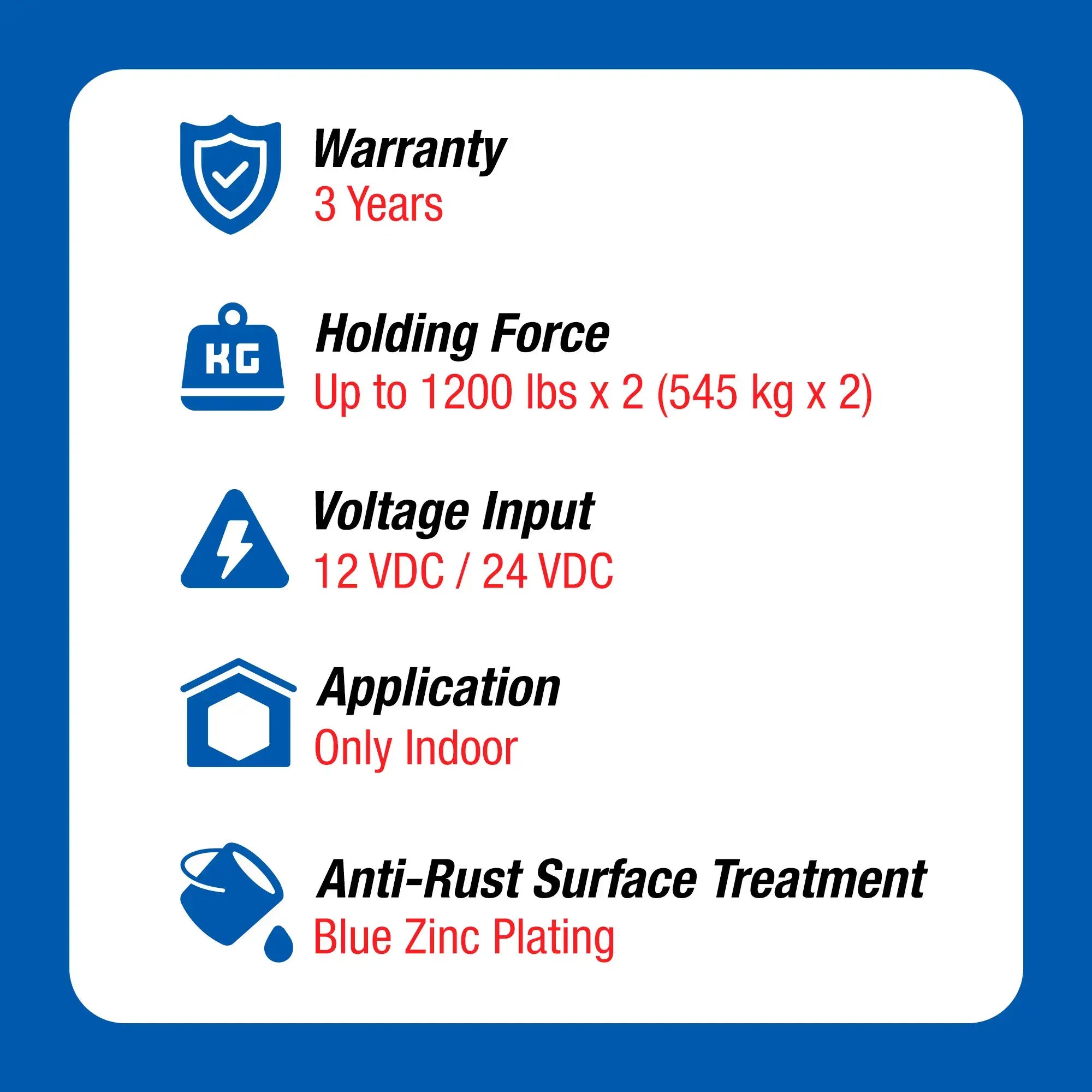

Double Door Maglock Features VIS-1200D-LED Visionis

Double Door Maglock REVIEWS. Up to 1200 lbs VIS-1200D-LED Visionis

Double door maglock. Up to 600 lbs VIS-1200D-LED Visionis

Double Door Magnetic Lock. Up to 600 lbs Dimensions VIS-1200D-LED Visionis

Description

IMPORTANT: This product doesn’t include a power supply. You can add this one to your purchase.

NOTE: This is a Fail Safe or Normally Close double door magnetic lock, meaning it will unlock without power. You can add a battery backup to keep the lock engaged in case of an outage.

Main Features

Holding Force

1200 lbs x 2 (545 kg x 2)

Voltage Input

12 VDC / 24 VDC

Applications

Indoor Only

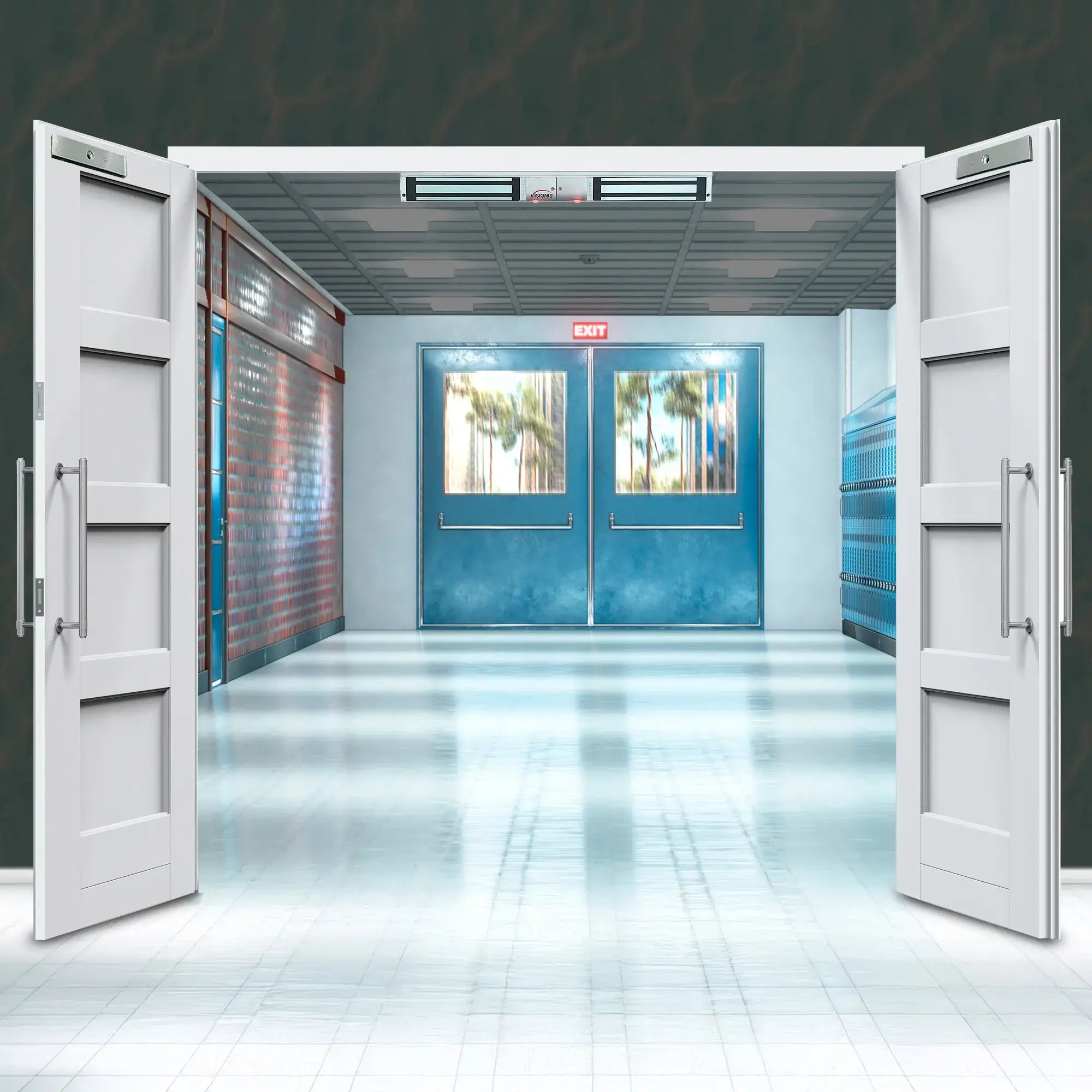

Double Door Maglock

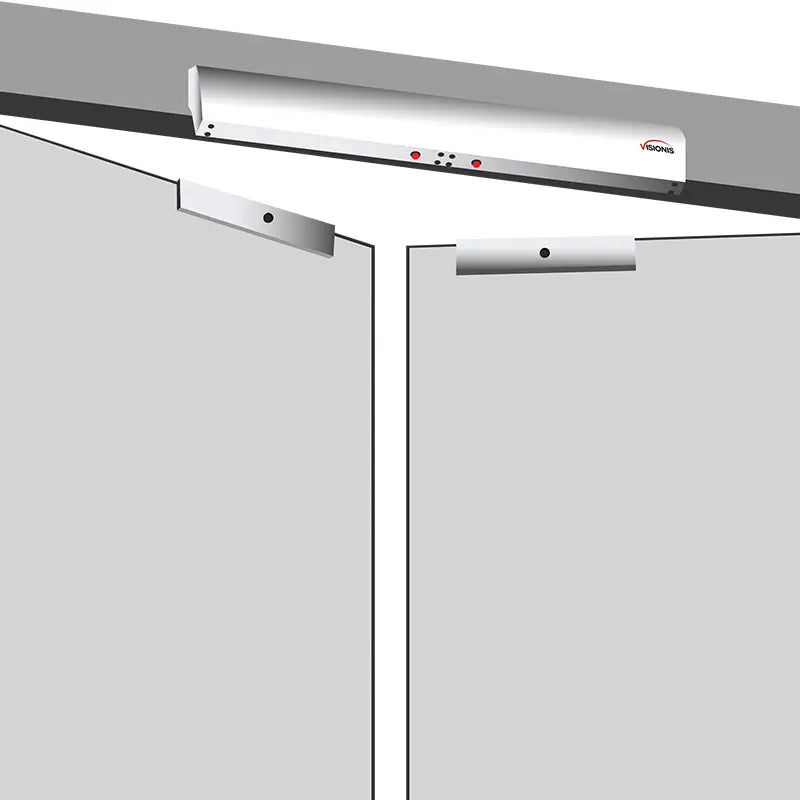

The VISIONIS VIS-1200D-LED is designed to keep your double doors secure with a 1200 lbs holding force per door (2,400 lbs total).

Whether you're securing a retail store, office, or commercial building, this lock provides strong and reliable protection, preventing unauthorized access with a firm electromagnetic hold.

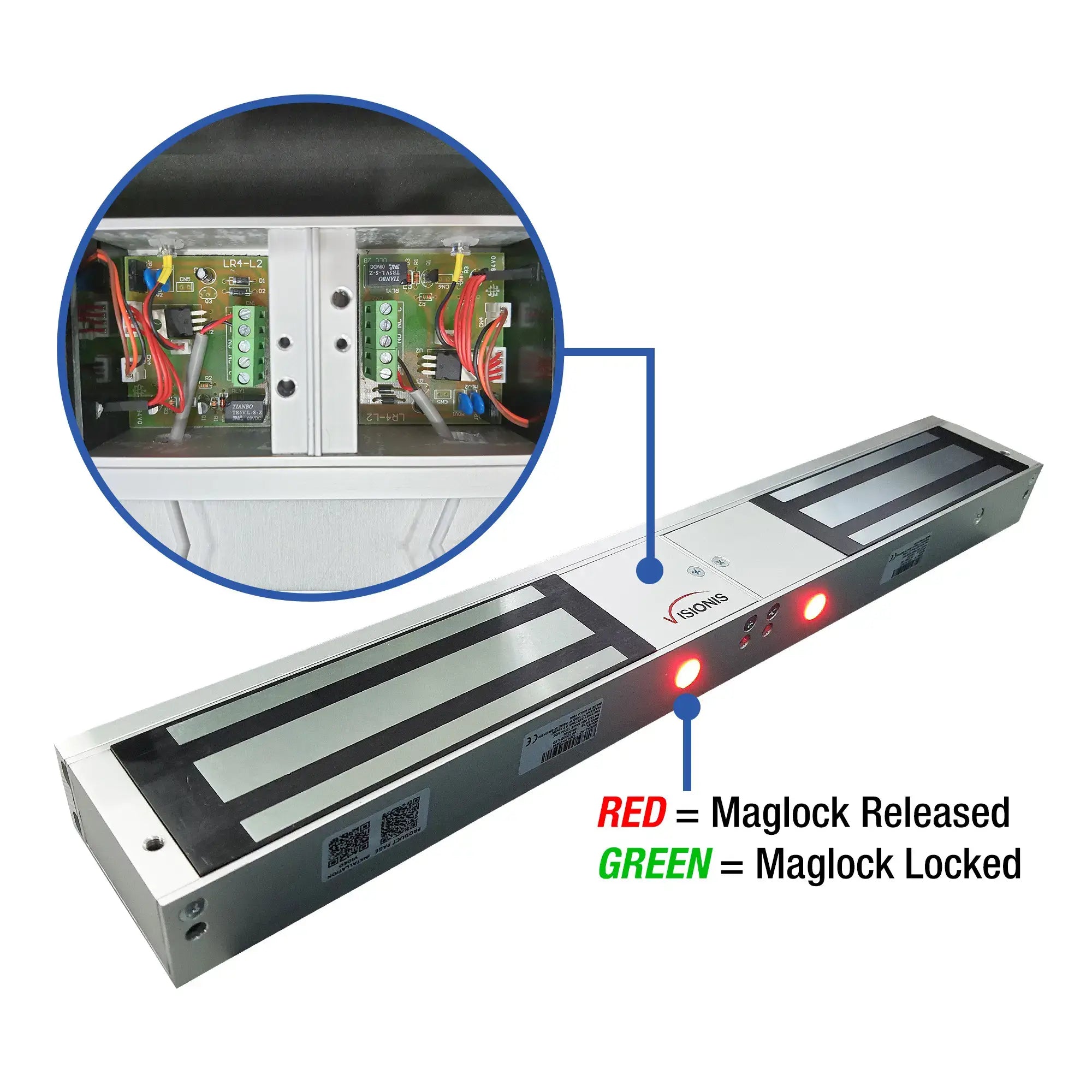

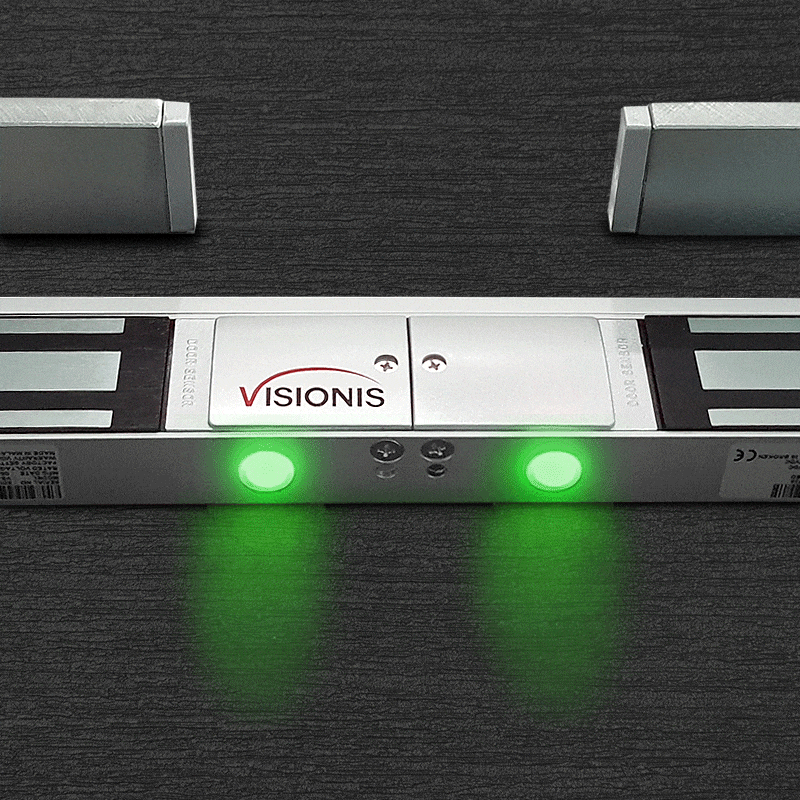

LED Indicators

Built-in LED indicators provide real-time lock status, adding an extra layer of control and convenience.

RED = Maglock Released

GREEN = Maglock Locked

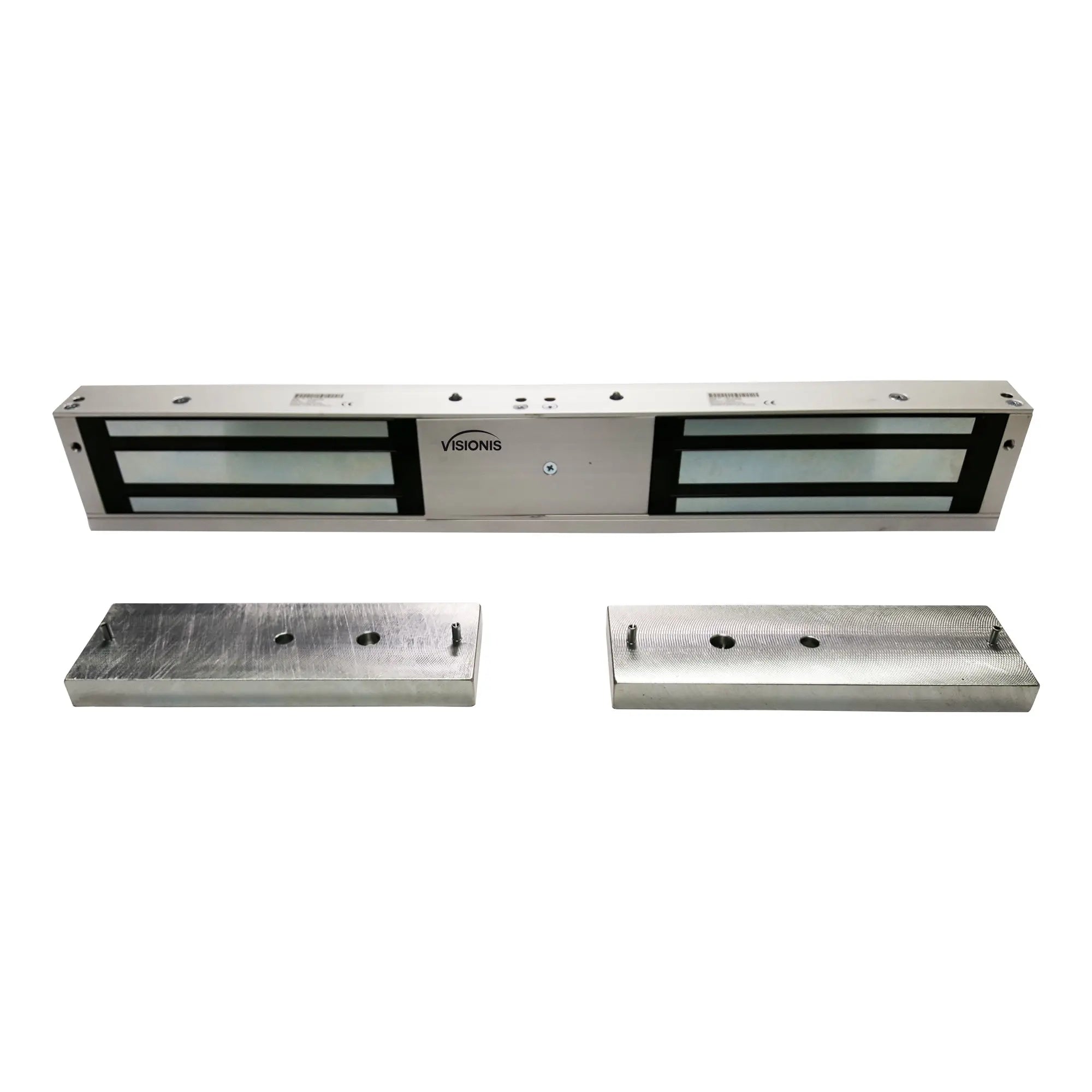

Double electromagnetic lock 1200lbs holding force

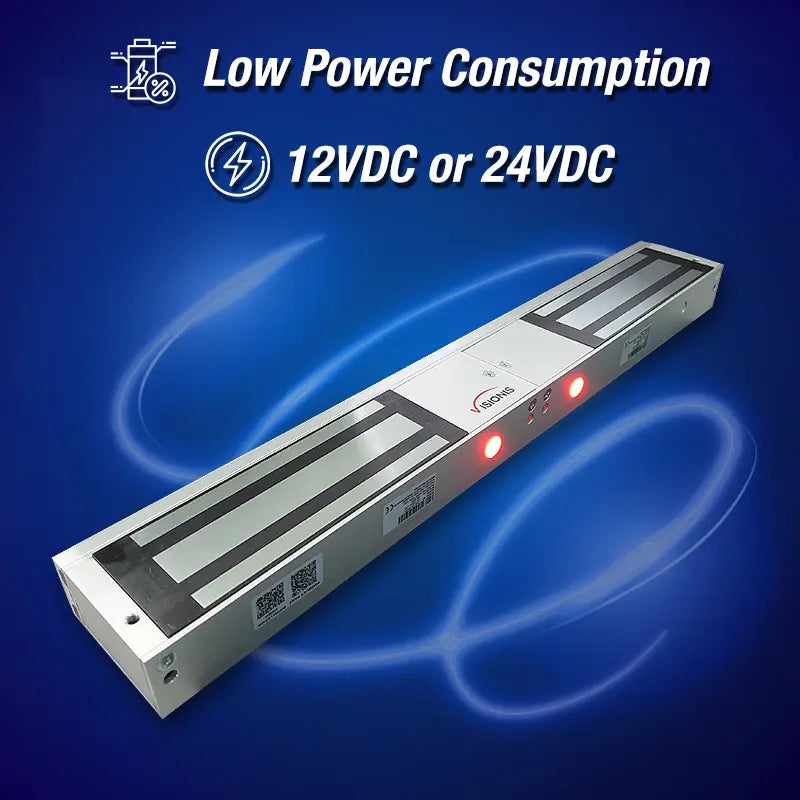

Energy-Efficient and Safe

This double maglock runs on 12VDC or 24VDC, allowing flexibility in power setup. Its low power consumption makes it cost-effective for continuous use, while surge and spike protection and anti-tamper features ensure durability and long-term reliability.

Double door maglock for access control VIS-1200D-LED Visionis

Characteristics

Model No. VIS-1200D-LED:

Voltage Input: 12 VDC / 24 VDC
Current Draw: A total of 1000mA for both locks
Holding Force: Up to 1200 lbs x2 (545 kg x2)
Hall Effect Contact : SPDT rated 2A at 24 VDC
Anti-Rust Surface Treatment: Blue Zinc Plating
Operating Temperature: 0~55° C (32~131° F)
Operating Humidity: 0~95% (non condensing)
Weight (Magnet): 5.0 kg (±1%)

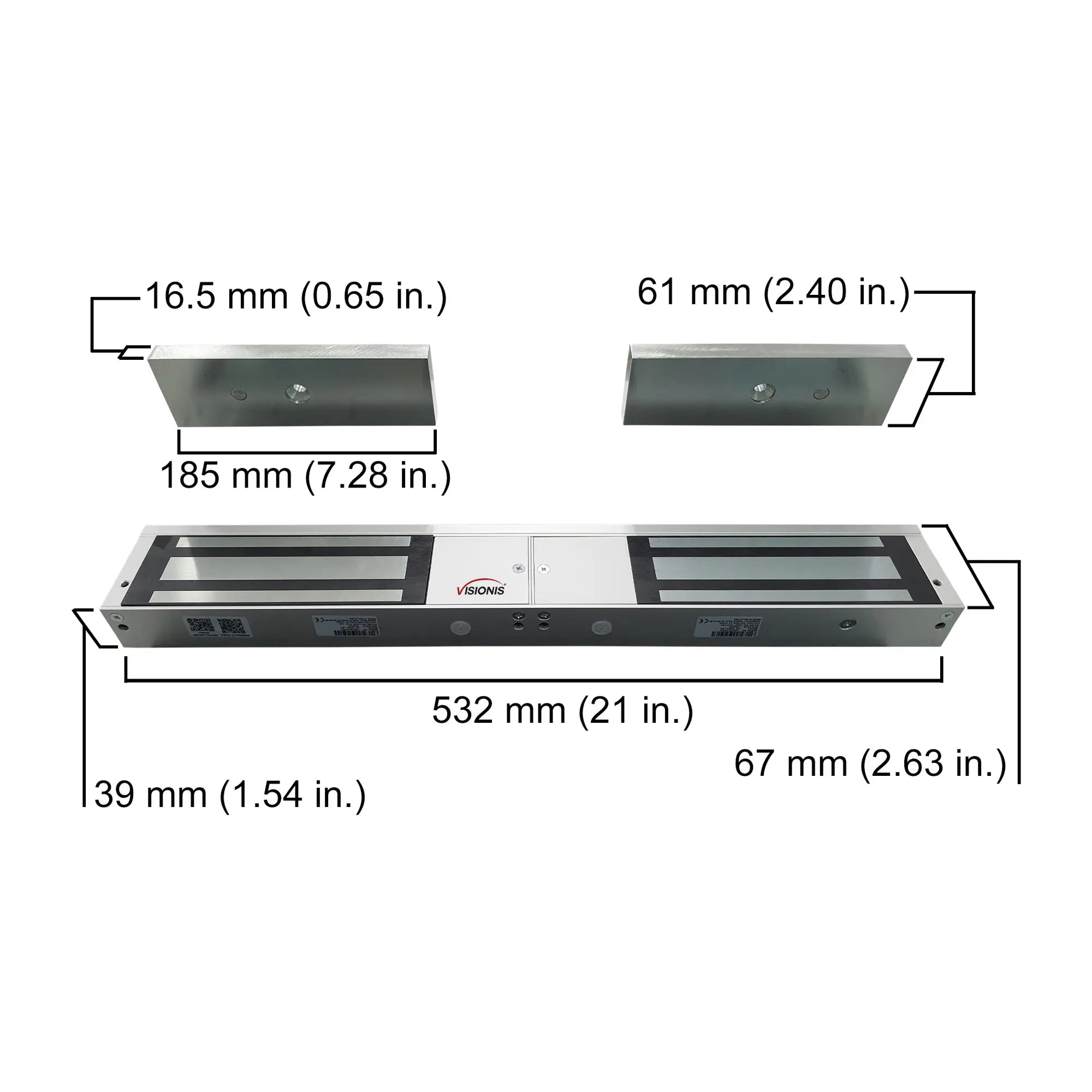

Dimensions:
Magnet - (L) 532x(W)67x(T)39 mm - 21(L)x(W)2.63(T)1.54 in.
Armature - (L) 185x(W)61x(T)16.5 mm - 7.28(L)x(W)2.40x(T)0.65 in.

Description

IMPORTANT: This product doesn’t include a power supply. You can add this one to your purchase.

NOTE: This is a Fail Safe or Normally Close double door magnetic lock, meaning it will unlock without power. You can add a battery backup to keep the lock engaged in case of an outage.

Characteristics

Model No. VIS-1200D-LED:

Voltage Input: 12 VDC / 24 VDC
Current Draw: A total of 1000mA for both locks
Holding Force: Up to 1200 lbs x2 (545 kg x2)
Hall Effect Contact : SPDT rated 2A at 24 VDC
Anti-Rust Surface Treatment: Blue Zinc Plating
Operating Temperature: 0~55° C (32~131° F)
Operating Humidity: 0~95% (non condensing)
Weight (Magnet): 5.0 kg (±1%)
Dimensions:
Magnet - (L) 532x(W)67x(T)39 mm - 21(L)x(W)2.63(T)1.54 in.
Armature - (L) 185x(W)61x(T)16.5 mm - 7.28(L)x(W)2.40x(T)0.65 in.

Product FAQs

Do these locks work with both 12V and 24V power supplies?

Yes, each lock is compatible with 12V and 24V DC inputs, making it adaptable to different setups.
Will I be able to tell if the magnetic lock is working by looking at it?

Yes, the maglock has a bright-colored status LED. It provides a clear indication of the lock status, so you know at a glance if the door is secured.

Green = Locked
Red = Released
Off = No input
Can these magnetic locks be installed on glass/sliding doors?

Yes, they can be installed on glass doors and they can be installed on sliding doors. You might need a proper bracket.
What happens to the maglock when the power goes out?

This is a Fail Safe or Normally Close lock, meaning it will unlock without power. You can add a battery backup to keep the lock engaged in case of an outage.
Does the magnetic lock make a noise when unlocking?

The maglock makes a sort of clicking noise when it unlocks. If you want a louder noise to identify when the door unlocks, you can add a buzzer to your system.
Does it have a time delay or timer function?

No, it doesn't.
Is this magnetic door lock kit weatherproof?

This model is designed for indoor use only. For outdoor use, look for weatherproof-rated maglocks.

Download Datasheets and Manuals of this product

VIS-1200D-LED

Visionis by Visionis

5.0

Indoor Double Door Maglock. Up to 1200 lbs x2 (545 kg x2) of Holding Force. LED Status Sensor. 12 VDC / 24 VDC - VIS-1200D-LED Visionis

UPC Code: 701980451782

⚡ Order before 2:00 PM EST on weekdays for same-day shipping

In Stock

Regular price: $185.37
Sale price: $185.37
Regular price

Shipping calculated at checkout.

Looking for something slightly different? Check out these variations:

Dual Voltage Selectable (12 VDC or 24 VDC)
Green/Red LED Indication for EM Lock Status
Magnet Dimensions: (L) 532x(W)67x(T)39 mm - 21(L)x(W)2.63(T)1.54 in.
Armature Plate Dimensions: (L) 185x(W)61x(T)16.5 mm - 7.28(L)x(W)2.40x(T)0.65 in.

Quantity:

Free US Shipping
To all 50 states

3 YEAR Warranty

30-Day Returns
No questions asked

Lifetime Phone Support
Mon–Fri 9am–6pm EST

ATTENTION:

Before purchasing, it is recommended that the customer checks with their local fire authority to see if there is any additional product they may need in order to comply with the local fire codes. We are not responsible for the improper installation of our product(s) or any type of fees that can be incurred by not complying with your local fire authority.
