Double door maglock with RF transmitters and receiver buzz-in kit - FPC-5199-B

Double Door Magnetic Lock. Up to 600 lbs Dimensions VIS-600D-LED Visionis

1 channel rf transmitter and receiver - VIS-8004

1 channel rf transmitter and receiver for Opening Doors, Garage Doors, and Gates - VIS-8004

Remote Control Transmitter 1 Channel 315MHz VIS-8005 Visionis

Dimensions green push to exit button - Visionis VIS-7000

Looking for something slightly different? Check out these variations:

This PRODUCT has a 3 YEAR warranty with full access to tech support in the USA!

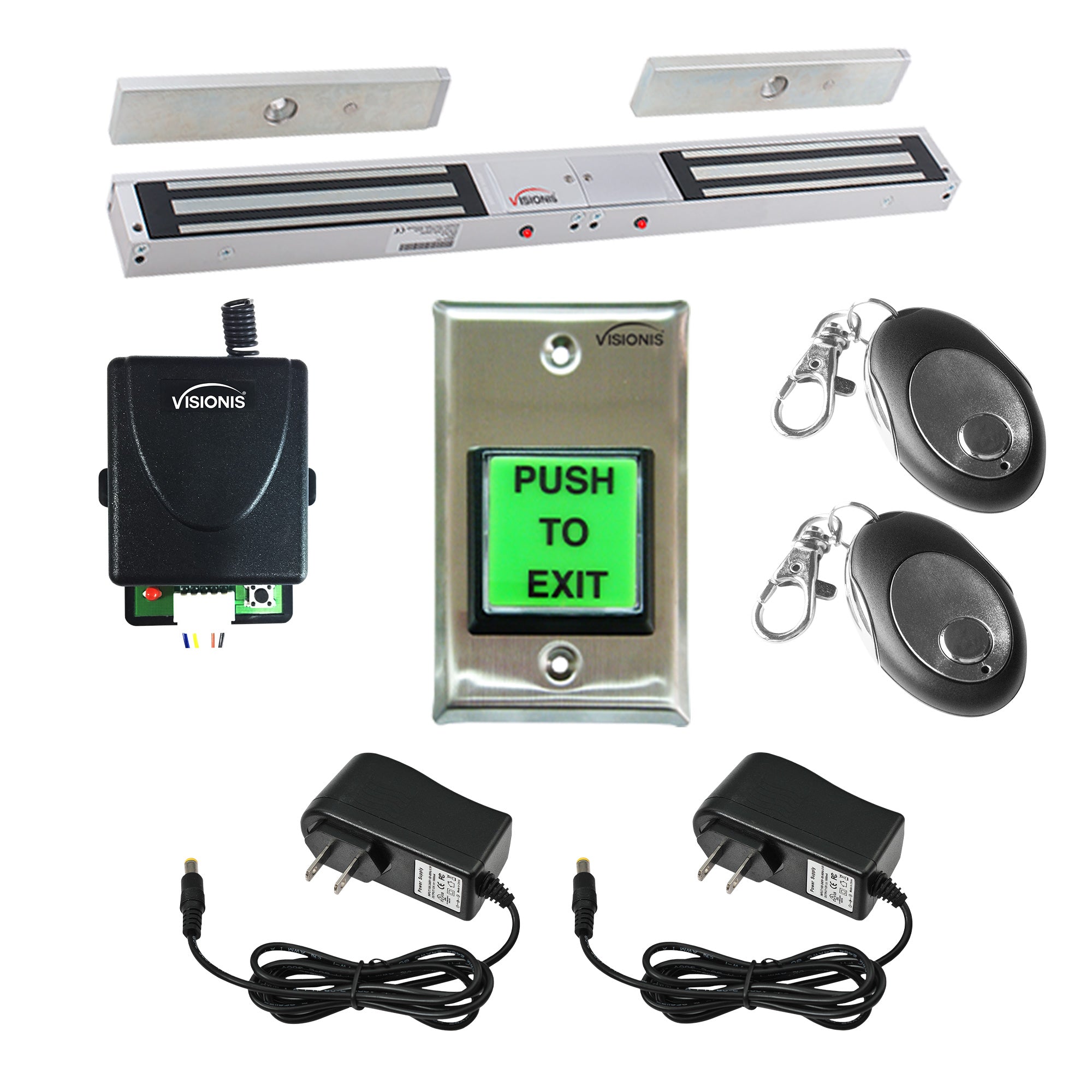

Kit Includes:

(1)

(2)

(1)

(2)

VIS-600D-LED: Double Door Maglock 600lbs With LED Sensor

VIS-8004: 1 Channel RF Receiver 315MHz

VIS-8005: 1 Channel RF 315mhz Transmitter Remote Control

VIS-7000: Green Square Push to Exit Button for Door Access Control with LED Light, NC, COM and NO Outputs

VIS-CP200: 12 Volt 2Amp Power Supply Transformer, UL Listed

Description

The VISIONIS FPC-5199-B Kit is your comprehensive solution for single-door and double-door access control, offering enhanced security and convenience. This kit includes a double 600lbs indoor electric magnetic lock (VIS-600D-LED) with an integrated LED sensor for clear status indication, a 1-channel RF receiver (VIS-8004) operating at 315MHz, a compatible remote control transmitter (VIS-8005), a reliable push-to-exit button (VIS-7000) with LED illumination for easy operation, and a UL-listed 12V 2Amp power supply transformer (VIS-CP200) ensuring stable power delivery.

Perfect for both professional installations and DIY users, the FPC-5199-B is designed for secure and seamless access management, making it an ideal choice for residential, commercial, or industrial applications. The electromagnetic lock ensures a strong 600lbs holding force per side, supporting double-door security with unmatched reliability.

Characteristics

Model No. VIS-600D-LED:

Size: 500Lx42Wx25H (mm) - 19.68Lx1.65Wx0.98H (in.)
Armature Plate Dimension: 180Lx38Wx11H (mm) - 7.08Lx1.50Wx0.43H (in.)
Holding Force: 600 lbs x 2 (272 kg x 2)
Input Voltage: 12 or 24VDC
Current: 12V/500mA*2 or 24V/250mA*2
Suitable: Wooden door, Glass door, Metal door, Fireproof door
Anti-Rust Surface Treatment: Blue Zinc Plating
Operating Temperature: 0~55° C ( 32~131° F)
Operating Humidity: 0~95% ( non condensing)
Weight: 3.8 kg (±1%) - 8.37 lbs

Model No. VIS-8004:

Operating Frequency: 315mhz
Number of Codes: 1,048,576
Data Format: PWM
Operating Voltage: +12V 24V
Operating Distance: Up to 160ft (50m) - The maximum range needs to be used in an open area. The distance will start to diminish based on some type of interference such as metal, concrete and others.
Operating Temperature: 0-70°C or 32 - 158°F
Current Draw: 19mA
Compatible Transmitter: VIS-8005
RF channels: One
No. of Remotes that are able to connect to one Receiver: Up to 50
Receiver Output: C dry contact (NO/NC/COM)
Receiver Output Functions: 4 (Default) 4 second momentary, latch, toggle (On/Off), press on function
Connectors: 5 screw Terminal (NO, COM, NC + -)
Case Construction: ABS Plastic
Dimensions: 62*43.5*30mm (2.44* 1.71*1.18 Inches)
Weight: 43g or 1.52 Ounces
Certifications: FCC
Antenna: Wire lead
Mounting Screws: Comes with two mounting screws
Wire Harness: Included
Power supply: Not included (only included in the form of kits.)

Model No. VIS-8005:

Frequency: 315mhz
Chip: 1527
Input Voltage: 6V
Button Quantity: 1 button
Input Power: 0.06W
Input Current: 0.01A
Up to 160ft (50m) - The maximum range needs to be used in an open area. The distance will start to diminish based on some type of interference such as metal, concrete and others.

Model No. VIS-7000:

Output Contact: NC, COM, NO
Power: 12 VDC / 24 VDC
LED Indicator: Green LED (Standby)
Mechanical Life: 500,000 tests
Panel Hole Diameter: 25mm
Panel: Stainless steel 0.9mm thickness
Switch Material: Plastic
Operating Temperature: -20°C~+55°C (-4°F-131°F)
Operating Humidity: 0-95% (relative humidity)
Dimension Of Plate: 115L × 70W × 70H mm - 4.52L x 2.75W x 2.75H in.
Weight: 0.118kg
Attention: This exit button is meant for indoor use. This Exit button does not have a delay.

Model No. VIS-CP200:

Cable Length: 1.2 meters (4 feet)
Input Voltage Range: AC90V-264V
Input Frequency Range: 50Hz-60Hz
Output Voltage Range: DC12V+/-5%
Output Current: 2A
Output Power: 24 Watts
Output Ripple&Noise: ≤46MV
Output Efficiency: ≥79%
Environment Operating: -30°C~45°C 20%~90%RH
Environment Storage Temp.: -40°C~85°C 10%~95%RH
Product Dimension: 87*36.5*70mm (3.42x1.43x2.75in.)
Product Weight: 116g
Certificate: UL, CE, RoHS, FCC

Description

Download Datasheets and Manuals of this product

FPC-5199, FPC-5199-B

Installation Diagram

VIS-600D-LED

VIS-8004

VIS-8005

Datasheet

VIS-7000

LET US HELP YOU WITH YOUR PURCHASE

Feel free to contact our dedicated support team if you have any questions or if you're ready to place an order.

I Need Help

Visionis by Visionis

Kit One Door Access Double Magnetic Lock. Up to 600 lbs x2 (272 kg x2) of Holding Force + Push to Exit Button + Wireless Receiver + 2 Control Remotes - FPC-5199-B Visionis

Translation missing: en.products.product.sku:FPC-5199-B

UPC Code: 602168925340 Weight: 14.0 lb

Regular price: $250.76
Sale price: $250.76
Regular price

Shipping calculated at checkout.

In Stock

Quantity:

Phone Life-Time Technical Support

30-Day No Questions Return Policy

*Free Shipping within the USA

Contact an Expert

Order Before 3:00pm EST on a week day and your order will be shipped out the same day

*Free shipping within the USA

Including Puerto Rico, Hawaii and Alaska

ATTENTION:

Before purchasing, it is recommended that the customer checks with their local fire authority to see if there is any additional product they may need in order to comply with the local fire codes. We are not responsible for the improper installation of our product(s) or any type of fees that can be incurred by not complying with your local fire authority.
