Description

The VISIONIS VIS-7028 is a stainless steel no-touch request to exit button with time delay slim size for door access control systems. This Request-to Exit Button may be connected to the request-to-exit input of any access control device or directly connected to an electromagnetic lock or electric strike device.

The VISIONIS line of door release exit buttons provides a reliable source of egress access-controlled opening devices in residential, commercial and industrial locations. They fit several applications needs such as in Offices, Banks, Gas Stations, Department Stores, and much more.

Characteristics

Model No. VIS-7028:

  • Contact Rating: 12VDC
  • Output Contact: NO/NC/COM
  • Detection Range: 5-15cm (1.96 - 5.90in.)
  • Power: 12VDC or 24VDC
  • LED Color: Blue (Stand by Mode), Green (Active/Open Mode)
  • Time Delay: 0.5~22s
  • Panel: 4mm (0.15) Thick Aluminium Alloy (CNC)
  • Suitable for: Hollow Door
  • Mechanical Life: 100.000 tests
  • Operating Temperature: -20°C~+55°C (14°F-131°F)
  • Operating Humidity: 0-95% (relative humidity)
  • Weight: 0.05kg
  • Dimensions: 90L × 35W × 25H mm - 3.54L x 1.37W x 0.98H in.
Description

The VISIONIS VIS-7028 is a stainless steel no-touch request to exit button with time delay slim size for door access control systems. This Request-to Exit Button may be connected to the request-to-exit input of any access control device or directly connected to an electromagnetic lock or electric strike device.

The VISIONIS line of door release exit buttons provides a reliable source of egress access-controlled opening devices in residential, commercial and industrial locations. They fit several applications needs such as in Offices, Banks, Gas Stations, Department Stores, and much more.

Characteristics

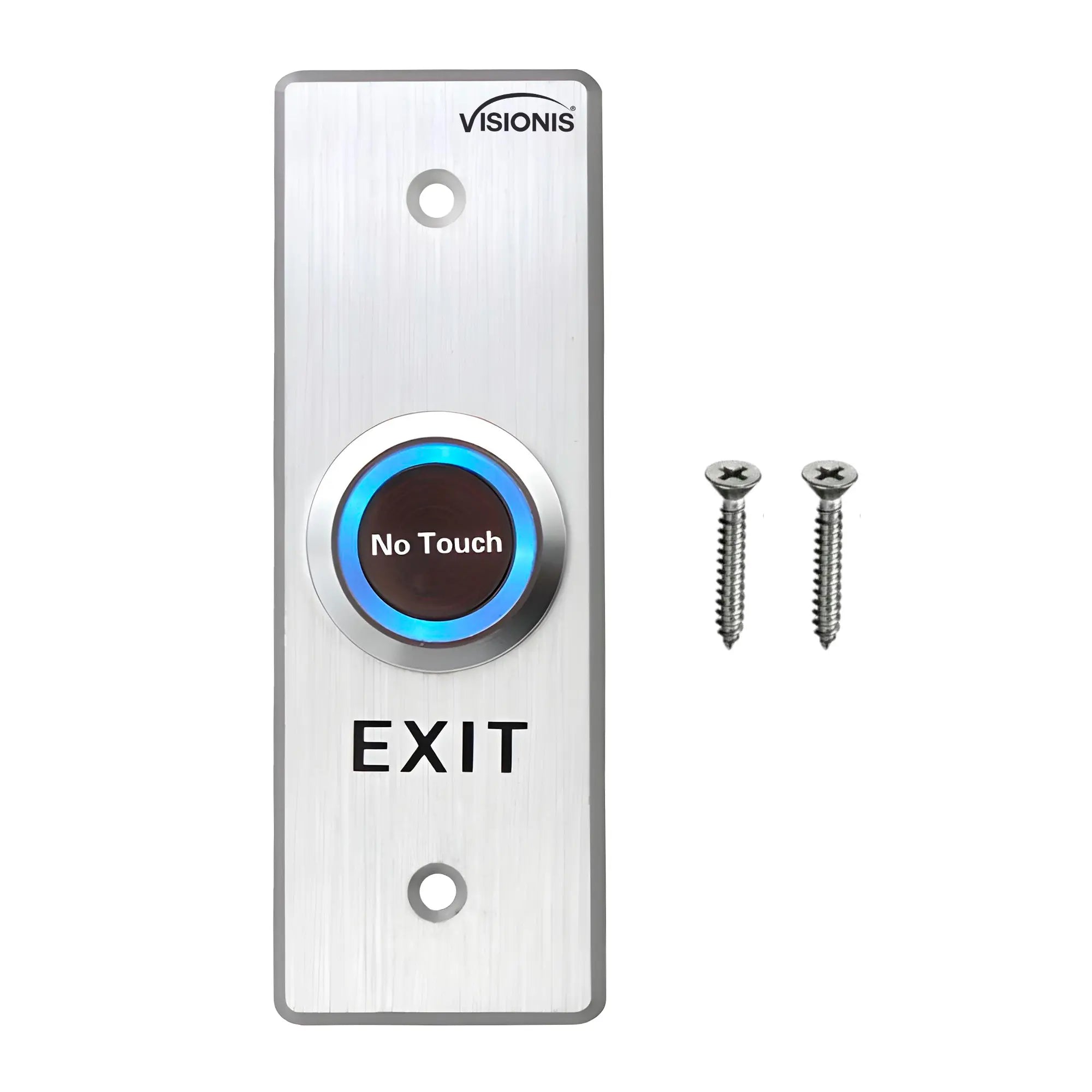

Packaging of this product

Model No. VIS-7028:

  • Contact Rating: 12VDC
  • Output Contact: NO/NC/COM
  • Detection Range: 5-15cm (1.96 - 5.90in.)
  • Power: 12VDC or 24VDC
  • LED Color: Blue (Stand by Mode), Green (Active/Open Mode)
  • Time Delay: 0.5~22s
  • Panel: 4mm (0.15) Thick Aluminium Alloy (CNC)
  • Suitable for: Hollow Door
  • Mechanical Life: 100.000 tests
  • Operating Temperature: -20°C~+55°C (14°F-131°F)
  • Operating Humidity: 0-95% (relative humidity)
  • Weight: 0.05kg
  • Dimensions: 90L × 35W × 25H mm - 3.54L x 1.37W x 0.98H in.

  • Does it have adjustable time delay?

    Yes! The Visionis VIS-7028 No Touch Exit Button does have an adjustable time delay:

    • Range: 0.5 to 22 seconds

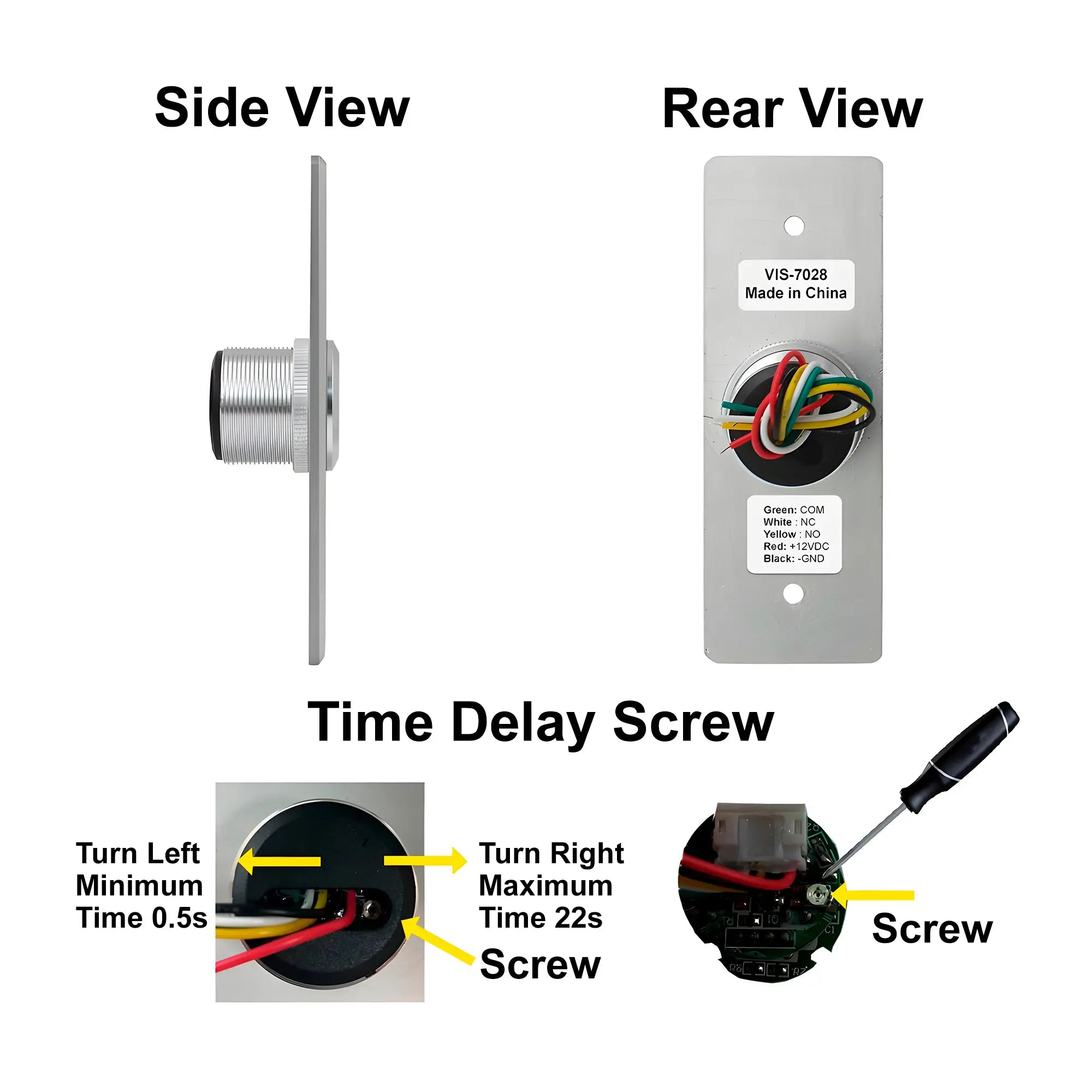

    • How to adjust: Using a small Phillips screwdriver on a tiny dial (potentiometer) located on the back of the unit
    • Note: The dial has no hard stop, so turn slowly and carefully to avoid damage. There's a small flat top on one side of the dial that corresponds to the min/max position as referenced in the instructions.

  • What is the detection range of the VIS-7028?

    The Visionis VIS-7028 No Touch Exit Button has an adjustable detection range of 5 to 15 cm (approximately 2 to 5.9 inches).
    This range is adjustable using a small dial (potentiometer) on the back of the unit, so you can fine-tune how close a hand needs to be to trigger the sensor.

  • Can it be used outdoors? Is it weatherproof?

    The Visionis VIS-7028 No Touch Exit Button is not weatherproof and is designed for indoor use only. You can check our outdoor/weatherproof models here.

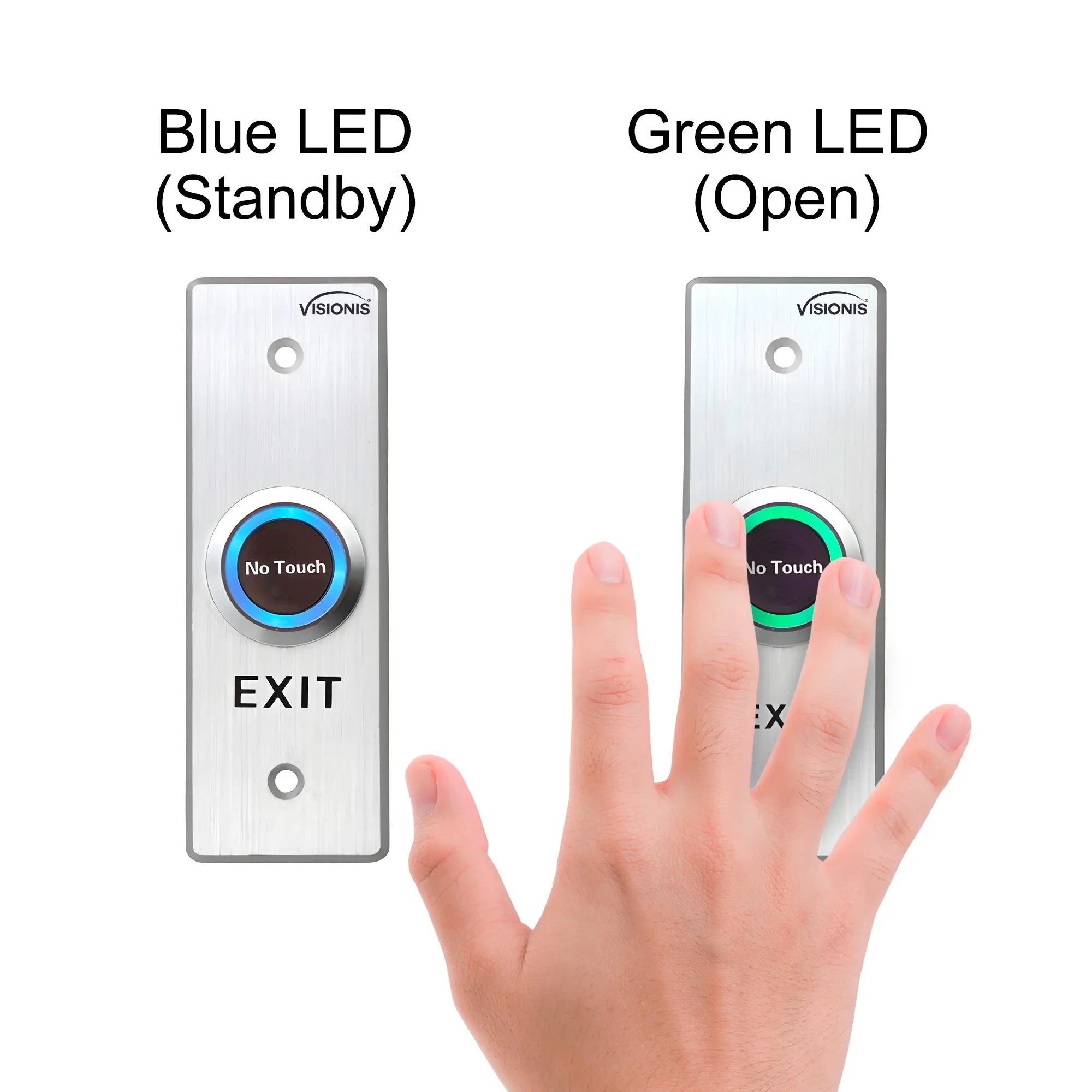

  • Does the LED color change when pressed?

    Yes! The Visionis VIS-7028 No Touch Exit Button does change LED color when activated:
    Blue — Standby mode (idle/waiting)
    Green — Active/Open mode (triggered when hand is detected)

  • How does the no-touch feature work on this exit button?

    Wave your hand within the 5 to 15 cm (1.96 to 5.90 inches) detection range to trigger the sensor and open the door. You do not need to physically touch the plate.

Download Datasheets and Manuals of this product

VIS-7028

Contact Us for Support
LET US HELP YOU WITH YOUR PURCHASE

Feel free to contact our dedicated support team if you have any questions or if you're ready to place an order.

I Need Help
Visionis by Visionis

No Touch Request to Exit Button with Timer Delay. Indoor Infrared Stainless Steel Slim Size with LED Light. NC, COM and NO Outputs - VIS-7028 Visionis

UPC Code: 709445353664

Certifications:

  • CE Certificate
⚡ Order before 2:00 PM EST on weekdays for same-day shipping

In Stock

$27.92
$27.92
Shipping calculated at checkout.

Looking for something slightly different? Check out these variations:
Free Shipping Icon

Free US Shipping
To all 50 states

Product Warranty

3 YEAR Warranty

Return Policy Icon

30-Day Returns
No questions asked

Phone Support Icon

Lifetime Phone Support
Mon–Fri 9am–6pm EST

ATTENTION:
Before purchasing, it is recommended that the customer checks with their local fire authority to see if there is any additional product they may need in order to comply with the local fire codes. We are not responsible for the improper installation of our product(s) or any type of fees that can be incurred by not complying with your local fire authority.
