Kit Includes:
(1)
(1)

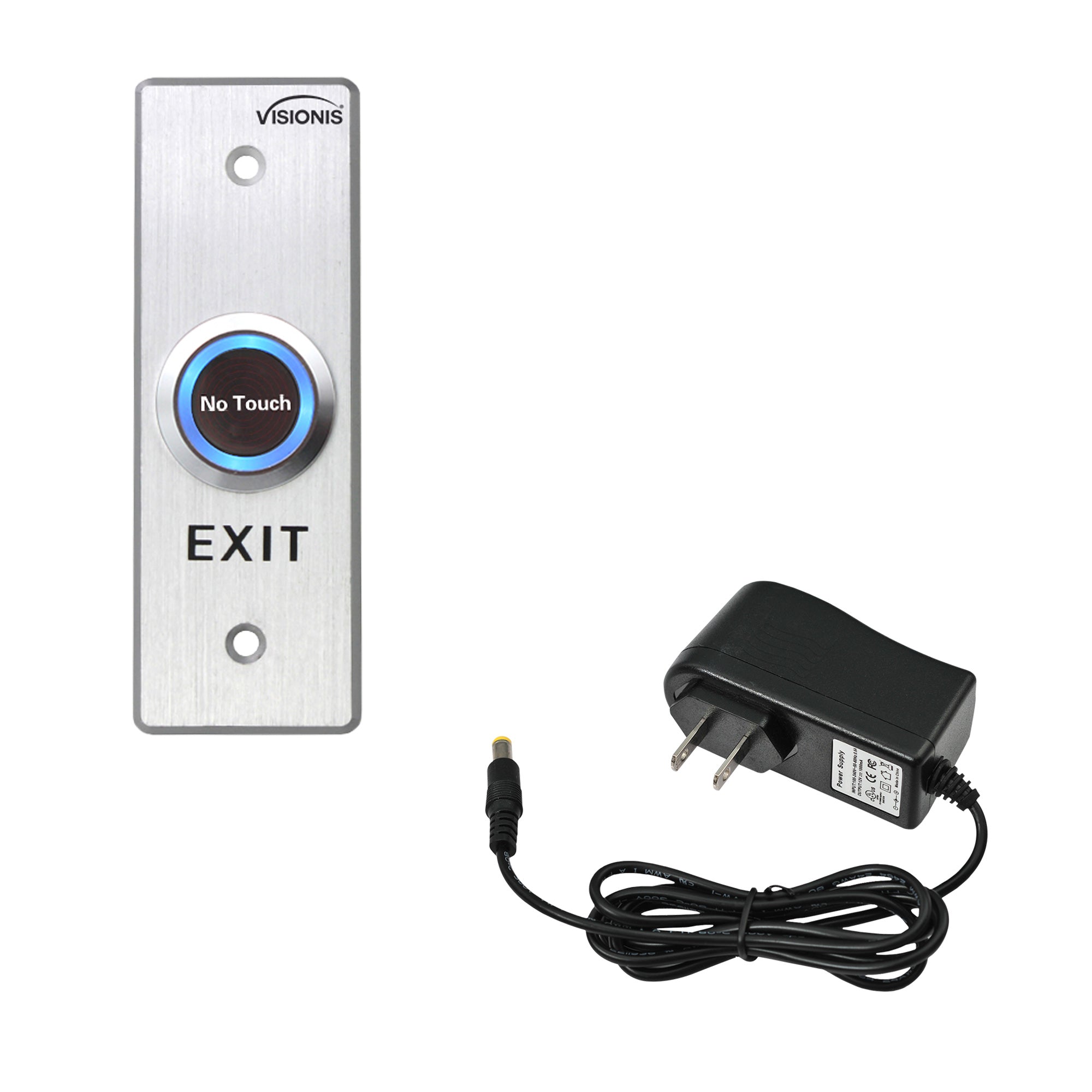

VIS-7028: Indoor Stainless Steel No Touch Infrared Request to Exit Button with Time Delay Slim Size LED Light NC COM and NO Outputs
VIS-CP200: 12 Volt 2Amp Power Supply Transformer, UL Listed
Description

The FPC-6319 kit has a Visionis 7028 slim size, stainless steel no-touch request to exit button for indoor use, and a power supply. With just the wave of your hand, the sensor will unlock the door. This exit button also has a release that can be programmed between 0.5~22s seconds. This door release exit button can be used for any access control application and is commonly used in offices, banks, and many more. They can also be used for secret rooms and DIY projects.

Characteristics

Model No. VIS-7028:

  • Contact Rating: 12VDC
  • Output Contact: NO/NC/COM
  • Detection Range: 5-15cm (1.96 - 5.90in.)
  • Power: 12VDC or 24VDC
  • LED Color: Blue (Stand by Mode), Green (Active/Open Mode)
  • Time Delay: 0.5~22s
  • Panel: 4mm (0.15) Thick Aluminium Alloy (CNC)
  • Suitable for: Hollow Door
  • Mechanical Life: 100.000 tests
  • Operating Temperature: -20°C~+55°C (14°F-131°F)
  • Operating Humidity: 0-95% (relative humidity)
  • Weight: 0.05kg

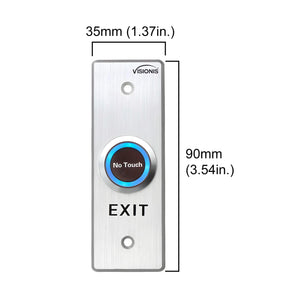

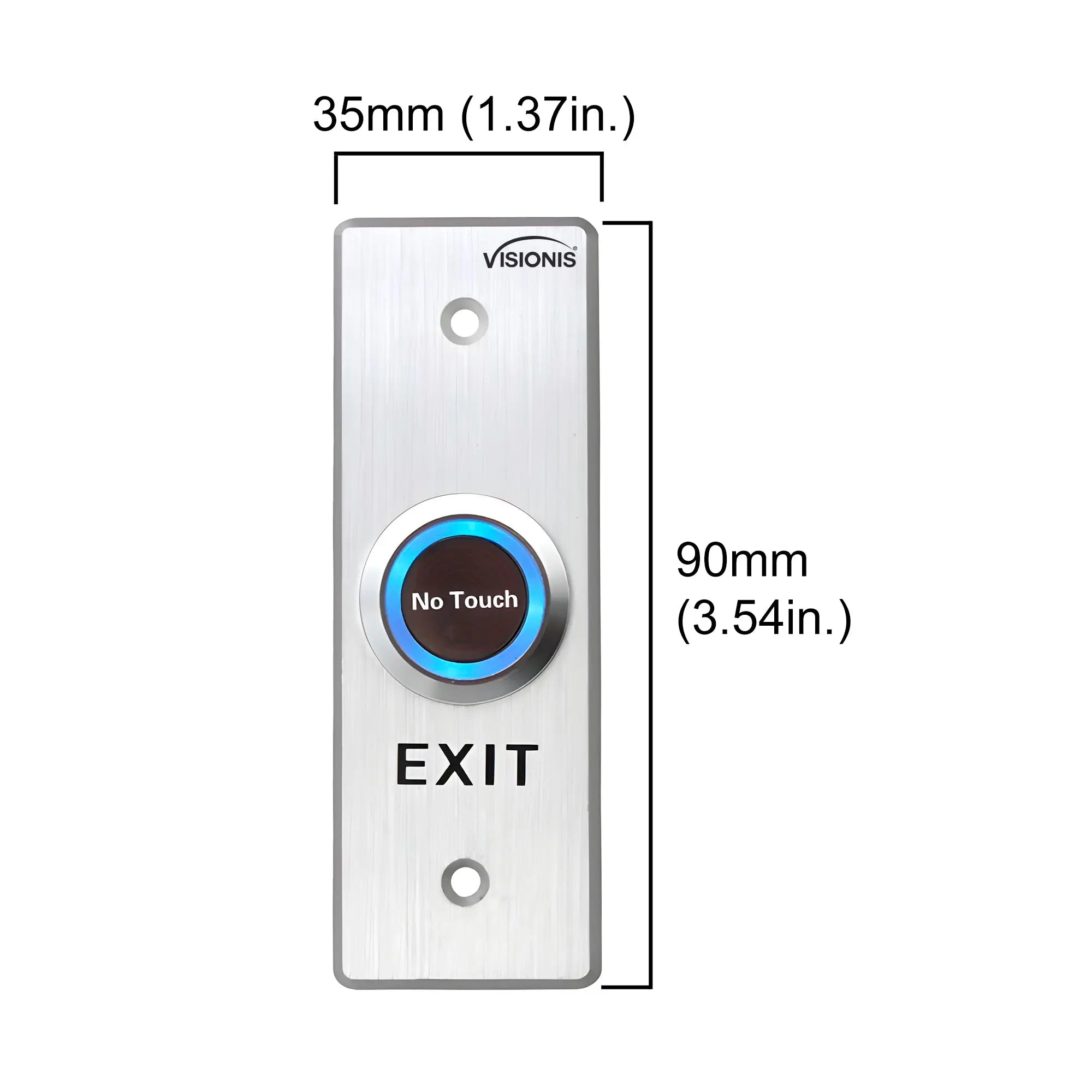

  • Dimensions: 90L × 35W × 25H mm - 3.54L x 1.37W x 0.98H in.

Model No. VIS-CP200:

  • Cable Length: 1.2 meters (4 feet)
  • Input Voltage Range: AC90V-264V
  • Input Frequency Range: 50Hz-60Hz
  • Output Voltage Range: DC12V+/-5%
  • Output Current: 2A
  • Output Power: 24 Watts
  • Output Ripple&Noise: ≤46MV
  • Output Efficiency: ≥79%
  • Environment Operating: -30°C~45°C 20%~90%RH
  • Environment Storage Temp.: -40°C~85°C 10%~95%RH
  • Product Dimension: 87*36.5*70mm (3.42x1.43x2.75in.)
  • Product Weight: 116g
  • Certificate: UL, CE, RoHS, FCC
Description

The FPC-6319 kit has a Visionis 7028 slim size, stainless steel no-touch request to exit button for indoor use, and a power supply. With just the wave of your hand, the sensor will unlock the door. This exit button also has a release that can be programmed between 0.5~22s seconds. This door release exit button can be used for any access control application and is commonly used in offices, banks, and many more. They can also be used for secret rooms and DIY projects.

  • Does it have adjustable time delay?

    Yes! The Visionis VIS-7028 No Touch Exit Button does have an adjustable time delay:

    • Range: 0.5 to 22 seconds
    • How to adjust: Using a small Phillips screwdriver on a tiny dial (potentiometer) located on the back of the unit
    • Note: The dial has no hard stop, so turn slowly and carefully to avoid damage. There's a small flat top on one side of the dial that corresponds to the min/max position as referenced in the instructions.

  • What is the detection range of the VIS-7028?

    The Visionis VIS-7028 No Touch Exit Button has an adjustable detection range of 5 to 15 cm (approximately 2 to 5.9 inches).
    This range is adjustable using a small dial (potentiometer) on the back of the unit, so you can fine-tune how close a hand needs to be to trigger the sensor.

  • Can it be used outdoors? Is it weatherproof?

    The Visionis VIS-7028 No Touch Exit Button is not weatherproof and is designed for indoor use only. You can check our outdoor/weatherproof models here.

  • Does the LED color change when pressed?

    Yes! The Visionis VIS-7028 No Touch Exit Button does change LED color when activated:
    Blue — Standby mode (idle/waiting)
    Green — Active/Open mode (triggered when hand is detected)

  • How does the no-touch feature work on this exit button?

    Wave your hand within the 5 to 15 cm (1.96 to 5.90 inches) detection range to trigger the sensor and open the door. You do not need to physically touch the plate.

Download Datasheets and Manuals of this product

VIS-7028
