Does it have adjustable time delay?

Yes! The Visionis VIS-7028 No Touch Exit Button does have an adjustable time delay:Range: 0.5 to 22 secondsHow to adjust: Using a small Phillips screwdriver on a tiny dial (potentiometer) located on the back of the unitNote: The dial has no hard stop, so turn slowly and carefully to avoid damage. There's a small flat top on one side of the dial that corresponds to the min/max position as referenced in the instructions.

What is the detection range of the VIS-7028?

The Visionis VIS-7028 No Touch Exit Button has an adjustable detection range of 5 to 15 cm (approximately 2 to 5.9 inches).This range is adjustable using a small dial (potentiometer) on the back of the unit, so you can fine-tune how close a hand needs to be to trigger the sensor.

Can it be used outdoors? Is it weatherproof?

The Visionis VIS-7028 No Touch Exit Button is not weatherproof and is designed for indoor use only. You can check our outdoor/weatherproof models here.

Does the LED color change when pressed?

Yes! The Visionis VIS-7028 No Touch Exit Button does change LED color when activated:Blue — Standby mode (idle/waiting)Green — Active/Open mode (triggered when hand is detected)

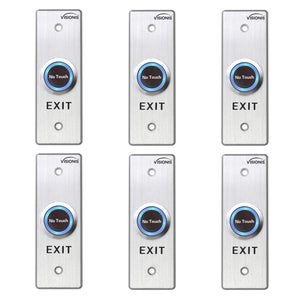

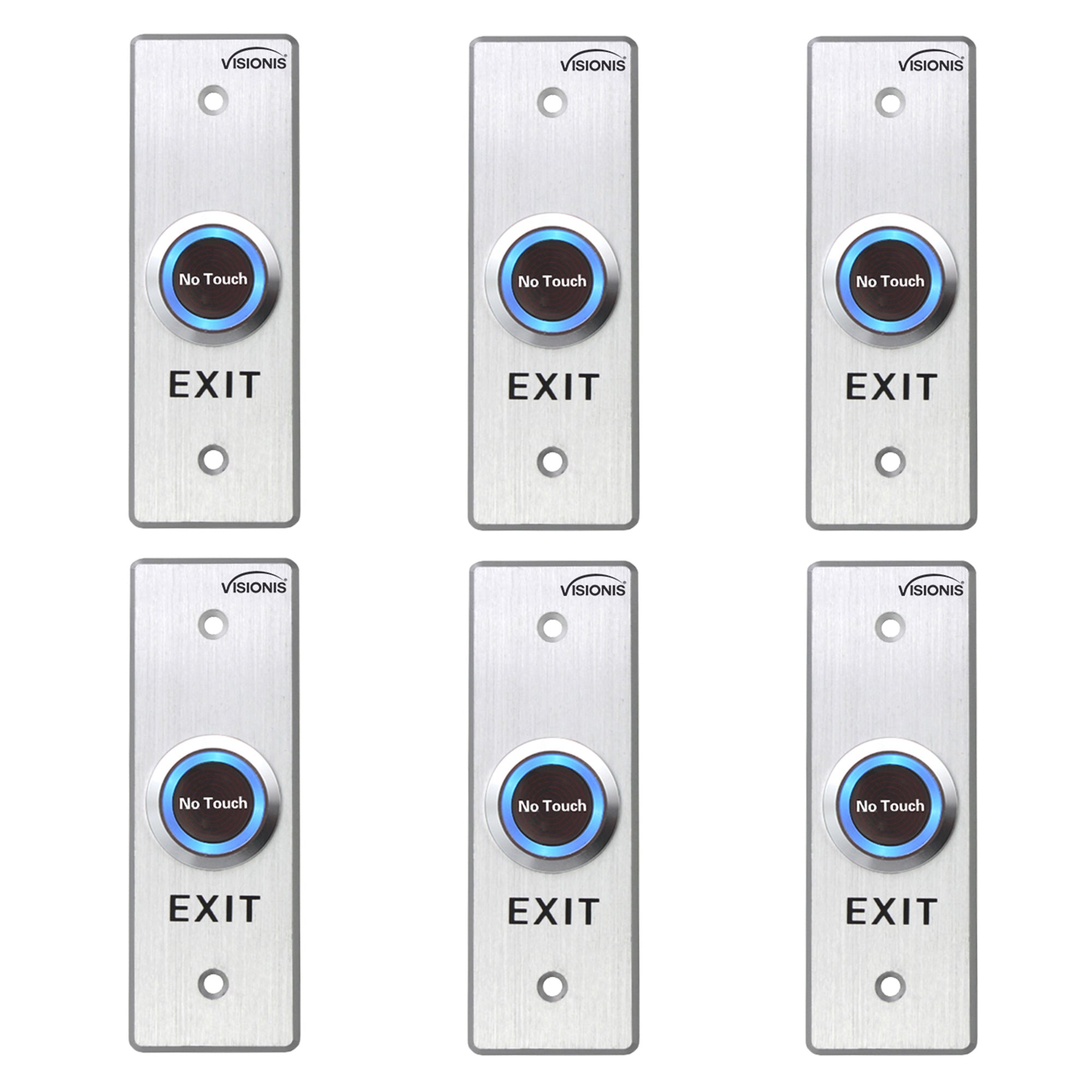

Pack of 6 No Touch Request To Exit Button with Timer Delay VIS-7028 - FPC-7563 Visionis

No touch request to exit button - VIS-7028 Visionis

No touch exit buttons with timer delay - VIS-7028 Visionis

Touchless door exit button side view and rear view - VIS-7028 Visionis

No touch button with timer delay - VIS-7028 Visionis

Kit Includes:

(6)

VIS-7028: Indoor Stainless Steel No Touch Infrared Request to Exit Button with Time Delay Slim Size LED Light NC COM and NO Outputs

Description

The VISIONIS VIS-7028 is a stainless steel no-touch request to exit button with time delay slim size for door access control systems. This Request-to Exit Button may be connected to the request-to-exit input of any access control device or directly connected to an electromagnetic lock or electric strike device.

The VISIONIS line of door release exit buttons provides a reliable source of egress access-controlled opening devices in residential, commercial and industrial locations. They fit several applications needs such as in Offices, Banks, Gas Stations, Department Stores, and much more.

Characteristics

Model No. VIS-7028:

Contact Rating: 12VDC
Output Contact: NO/NC/COM
Detection Range: 5-15cm (1.96 - 5.90in.)
Power: 12VDC or 24VDC
LED Color: Blue (Stand by Mode), Green (Active/Open Mode)
Time Delay: 0.5~22s
Panel: 4mm (0.15) Thick Aluminium Alloy (CNC)
Suitable for: Hollow Door
Mechanical Life: 100.000 tests
Operating Temperature: -20°C~+55°C (14°F-131°F)
Operating Humidity: 0-95% (relative humidity)
Weight: 0.05kg
Dimensions: 90L × 35W × 25H mm - 3.54L x 1.37W x 0.98H in.

Description

The VISIONIS VIS-7028 is a stainless steel no-touch request to exit button with time delay slim size for door access control systems. This Request-to Exit Button may be connected to the request-to-exit input of any access control device or directly connected to an electromagnetic lock or electric strike device.

The VISIONIS line of door release exit buttons provides a reliable source of egress access-controlled opening devices in residential, commercial and industrial locations. They fit several applications needs such as in Offices, Banks, Gas Stations, Department Stores, and much more.

Product FAQs

Does it have adjustable time delay?
Yes! The Visionis VIS-7028 No Touch Exit Button does have an adjustable time delay:
- Range: 0.5 to 22 seconds
- How to adjust: Using a small Phillips screwdriver on a tiny dial (potentiometer) located on the back of the unit
- Note: The dial has no hard stop, so turn slowly and carefully to avoid damage. There's a small flat top on one side of the dial that corresponds to the min/max position as referenced in the instructions.
What is the detection range of the VIS-7028?

The Visionis VIS-7028 No Touch Exit Button has an adjustable detection range of 5 to 15 cm (approximately 2 to 5.9 inches).
This range is adjustable using a small dial (potentiometer) on the back of the unit, so you can fine-tune how close a hand needs to be to trigger the sensor.
Can it be used outdoors? Is it weatherproof?

The Visionis VIS-7028 No Touch Exit Button is not weatherproof and is designed for indoor use only. You can check our outdoor/weatherproof models here.
Does the LED color change when pressed?

Yes! The Visionis VIS-7028 No Touch Exit Button does change LED color when activated:
Blue — Standby mode (idle/waiting)
Green — Active/Open mode (triggered when hand is detected)
How does the no-touch feature work on this exit button?

Wave your hand within the 5 to 15 cm (1.96 to 5.90 inches) detection range to trigger the sensor and open the door. You do not need to physically touch the plate.

Download Datasheets and Manuals of this product

VIS-7028

Visionis by Visionis

6 Pack No Touch Request To Exit Button with Timer Delay VIS-7028. Indoor Infrared Stainless Steel with Blue LED Light. Slim Size. NC, COM And NO Outputs - FPC-7563 Visionis
