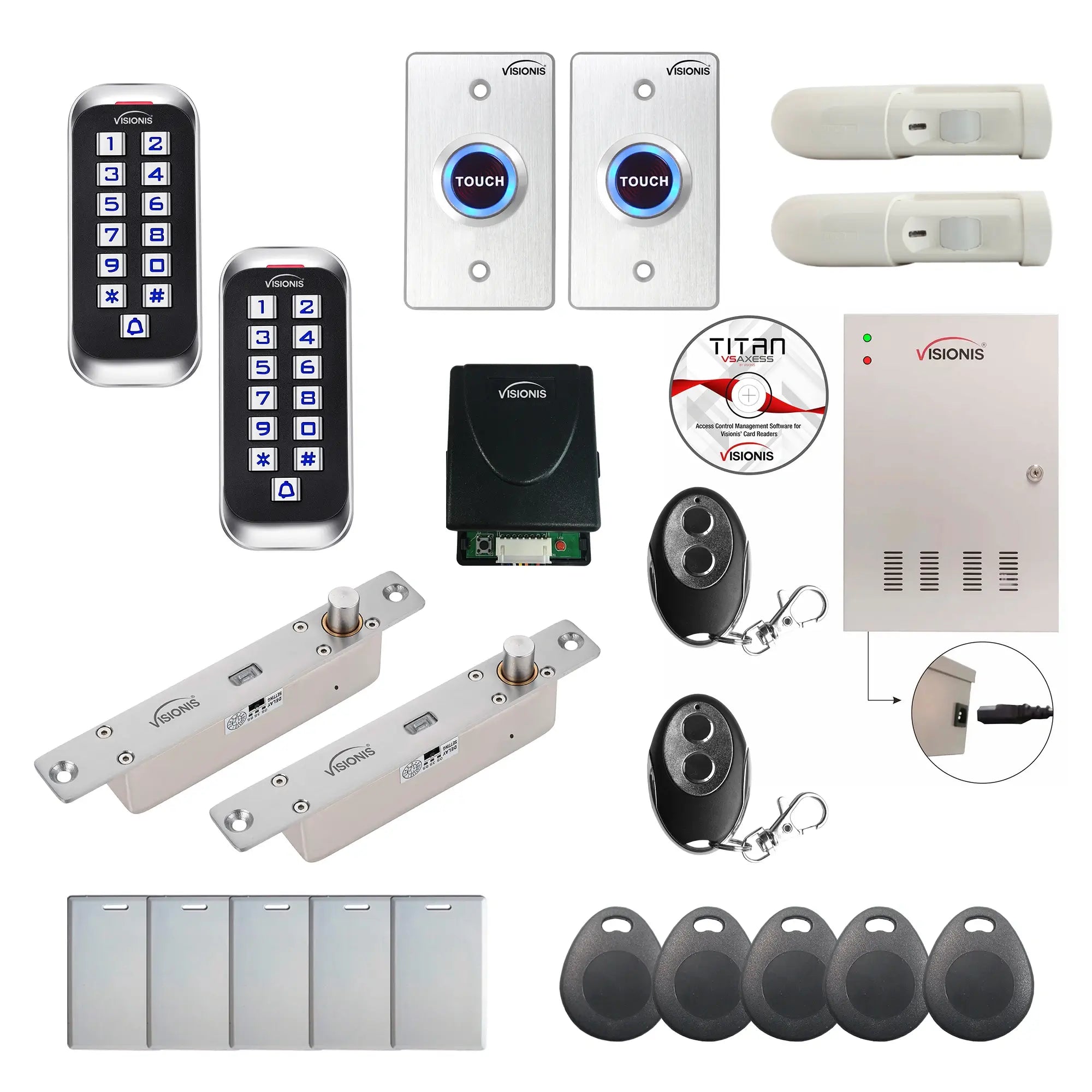

Model No. VIS-DP102-FSE-LED:

• Voltage: DC12V - DC24V
• Holding Force: 1200Kg (2600lbs)
• Current: (DC12V): Standby 110mA
• Function: Fail Secure. N/O with power it’s unlock
• Time Delay: 0/3/6 sec; Unlock time delay: 6 sec (If do not push the door after unlocking, again automatically lock)
• Bolt: SUS 304 solid stainless steel
• Size: 175Lx25Wx35H (mm) - 6.89Lx0.98Wx1.38H (in.)
• Product + Packaging Weight: 0.64Kg (1.41 pounds)
• Operating Temperature: -20°C / +50°C (-4°F / 122°F)
• Cycles Tested: 300.000

Model No. VIS-3005:

• Input voltage: DC 12V
• Idle current: ≤25mA
• Card Reading Distance: 2 - 3 cm (0.78 - 1.18 in.)
• Card Frequency: 125KHz for EM
• Card Transmission Format: Wiegand26
• Keypad Transmission Format: Keypad transmission format: 4bit, 8bit and Virtual card number
• Operating Temperature: -45°C ~ 55° C (-49°F ~ 131°F)
• Operating Humidity: 0%~95%
• Product Size: 133Lx59Wx26H (mm) - 5.23Lx2.32Wx1.02H (in.)
• Protection Level: IP68 - No ingress of dust; complete protection against contact (dust tight), and waterproof

Model No. VS-AXESS-2DLX-version2:

• Access Mode: It supports card, card+ password, card or password, password
• Event Type: Legal card, illegal card, anti-passback, exit button, password, threaten code
• Alarm Event Type: Door-magnet alarm, self-defined alarm, threaten code alarm
• Linkage Function: All event and alarm can linkage any or multiple relay output
• Access Group: 200 group
• Holiday Schedule: 300
• User Capacity: 20,000
• User Record Capacity: 70,000
• Reader Port: 2
• Exit Button Port: 2
• Door-magnet Port: 2
• Lock Output: 2
• Door-magnet Alarm Output: 1
• Self-defined Alarm Output: 1
• Self-defined Alarm Input: 2
• Communication Port: 10/100MTCP/IP, 1 extension RS485 communication port
• Input Protection: Opto-isolator protection
• Output Protection: Varistor Protection
• Extension Function: It supports LED displayer, alarm host and so on
• Video Recording and Snapshot: All Event and alarm can linkage any video to record or snapshot by software
• First Card: Any cards can be first card
• Multiple Cards: To open a door by multiple cards, manager can set 4 cards to open a door at most
• Remote Control: Any doors can be opened by center authentication
• Forced Control: User can open/close door forcibly
• Threaten Code: 6 digits password, it is used in some special situation
• Open by Password: Each of user have a group password
• Timed Normal Open: User can setup three time-segment to let door open timed
• Door Bolt Mode: It can open door by card during some special time
• Timed Invalidation for Exit Button: Exit button invalidation can be set for three time-segments
• Anti-passback: Two readers or all readers can be set in a group
• Temporary Card Quantity: All users can be set as temporary cards
• Self-defined Input/Output: User can self-define input/output function to relative relay
• Activate/dismiss security:
  By manually: Any user card can be appointed to activate/dismiss security function
  By software: Activate/dismiss security function can be realized by software
• Communication Security: Password encryption during data transmission
• Transmission Mode: It supports TCP, UDP, RTP and multicast mode
• Data Storage Mode: Cycled storage

Model No. VIS-7005:

• Contact Rating: 3A/12-24V
• Output Contact: NO/NC/COM
• Power: 12VDC - 24VDC
• LED Color: Blue (Stand by Mode), Green (Active/Open Mode)
• Panel: 4mm (0.15in.) Thick Aluminium alloy (CNC)
• Suitable for Door: Hollow Door
• Mechanical Life: 100.000 tests
• Operating Temperature: -20°C~+55°C (14°F-131°F)
• Operating Humidity: 0-95% (relative humidity)
• Weight: 0.065kg
• Dimension Of Plate: 86L × 50W × 25H mm - 3.38L x 1.96W x 0.98H in.

Model No. VIS-8007:

• Operating Frequency: 315mhz
• Number of Codes: 1,048,576
• Operating Voltage: DC12V
• Operating Distance: Up to 160ft (50m) – The maximum range needs to be used in an open area. The distance will start to diminish based on some type of interference such as metal, concrete and others.
• Operating Temperature: 0°C-70°C or 32°F - 158°F
• Current Draw: 19mA
• Compatible Transmitter: VIS-8008
• RF channels: Two
• No. of Remotes that are able to connect to one Receiver: Up to 50
• Case Construction: ABS Plastic
• Dimensions: 62*43.5*30mm (2.44* 1.71*1.18 Inches)
• Weight: 43g or 1.52 Ounces

Model No. VIS-8008:

• Frequency: 315 MHz
• Chip: 1527
• Input Voltage: 6V
• Button Quantity: 2 buttons
• Input Power: 0.06W
• Compatible Receiver: VIS-8007
• Input Current: 0.01A
• Operating Distance: Up to 160ft (50m) – The maximum range needs to be used in an open area. The distance will start to diminish based on some type of interference such as metal, concrete and others.

Model No. IrexPlus:

• Voltage: 12-30 Volts DC or AC
• Current Consumption: 8 mA standby, 25 mA (Relay+LED), 44 mA maximum (Buzzer+Relay+LED) at 12/24 VDC
• Relay Output: 1A @ 30 VDC or VAC, two form “C” contacts
• Tamper Output: 50 mA @ 30 volts DC or AC
• Detection System
• Mounting Height: 2.3m - 4.6m (7.5' - 15')
• Detection Range: Up to 2.4m (8')
• Dimensions (LxHxD): 177mm x 50mm x 45mm (7'' x 2'' x 1.8'')
• Weight: 0.15Kg (0.3lb)
• Colour: White or Black
• Environmental
• RFI Immunity: 30 V/m from 10MHz to 2GHz
• Operating & Storage Temperature: -20°C to 60°C (-4°F to 140°F)
