Entry and Deluxe Access Control Panels Main Features - VISIONIS

Four Doors + Network Access Control Panel + Controller Board With Cabinet VIS-AXESS-4D-ETL

Two Doors + Network Access Control Panel + Controller Board With Cabinet VIS-AXESS-2D-ETL

Dimensions Waterproof keypad for access control, Visionis VIS-3004, standalone, anti-vandal, Wiegand 26, EM card support

Standalone access control keypads, Visionis VIS-3004, IP68-rated waterproof keypad for indoor and outdoor use

Outdoor Access Control Keypad, Visionis VIS-3004, standalone anti-vandal metal design, wide layout, EM cards compatible

Dimensions. Request to exit button with LED lights for secure access control systems VISIONIS VIS-7005

This PRODUCT has a 3 YEAR warranty with full access to tech support in the USA!

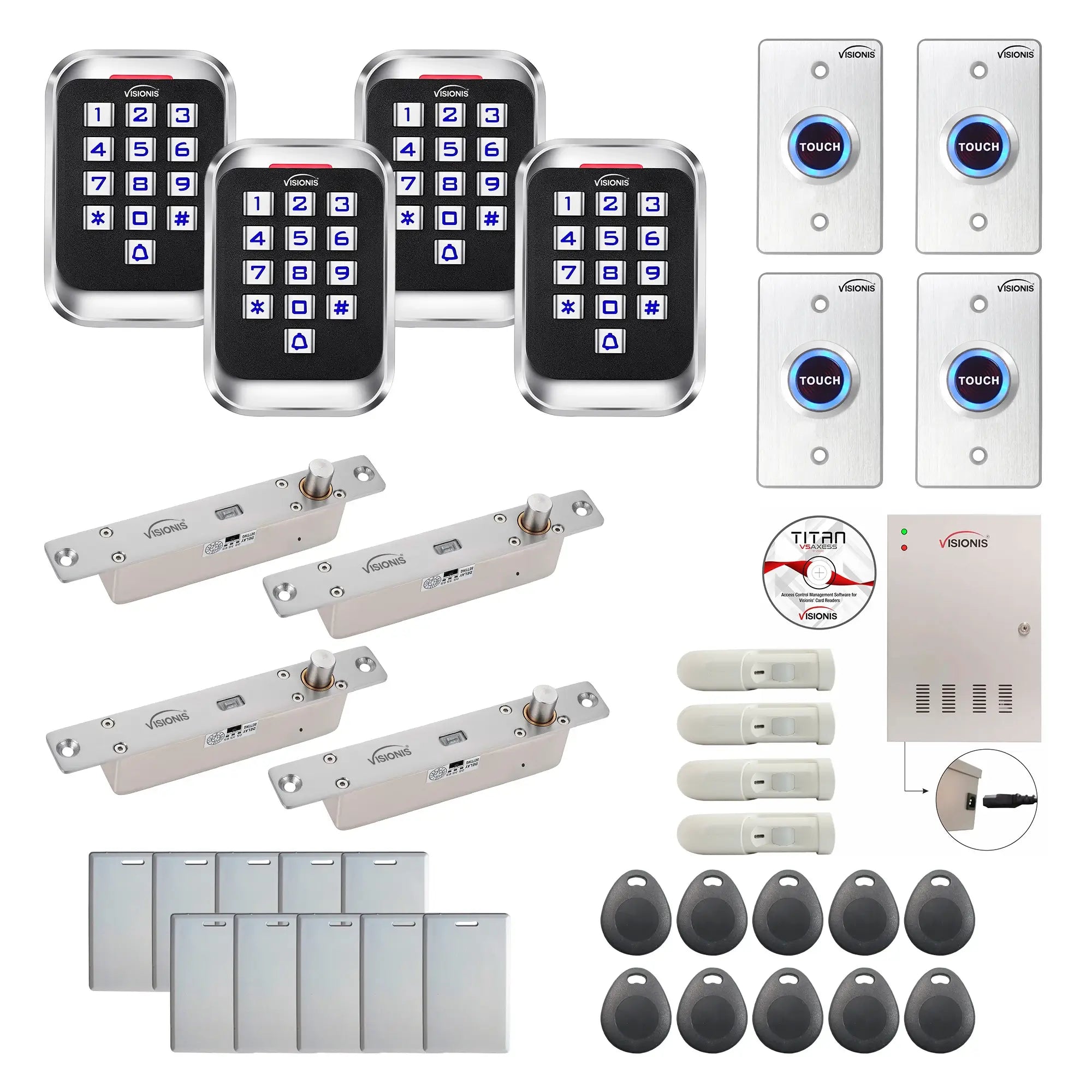

Kit Includes:

(4)

(1)

(4)

(10)

VIS-DP102-FSE-LED: Electric Drop Bolt Lock 2,600Lbs With LED and Time Delay Fail Secure Normally Open Dead Bolt

VIS-3004+: Access Control Indoor + Outdoor Rated IP68 Metal Anti Vandal Keypad + Reader Standalone with Mini Controller + Wiegand 26, Wide Design, No Software, EM Cards

VIS-AXESS-4D-ETL: Four Doors + Network Access Control Panel + Controller Board With Cabinet + TCP IP + Wiegand With Desktop Software + 20,000 Users, 70,000 Records

VIS-7005: Indoor Ultra Thin Push + Touch To Exit Button For Door Access Control With LED Light NC COM and NO Outputs

RK-700PRPW00A: Rokonet Risco Request to Exit PIR motion Sensor with Internal Buzzer and Relay Timer

VIS-PROXCARD: Access Control Proximity Contactless Smart Entry Card 1.8mm Thick 26 Bit 125khz

VIS-AKEYTAG: Access Control Proximity Contactless Smart Entry Keyfob 26 Bit 125khz

Description

Attention:

These access control panels (Version 2.0) are only compatible with access control panels (Version 2.0) and with the Titan VSAxess software. They are not compatible with access control panels (Version 1.0) nor with VSAxess software.
Includes CD software
Power supply and power cord included
Install wires are not included
This software is not compatible with MAC computers, only with Microsoft.

Characteristics

Model No. VIS-DP102-FSE-LED:

Voltage: DC12V - DC24V
Holding Force: 1200Kg (2600lbs)
Current: (DC12V): Standby 110mA
Function: Fail Secure. N/O with power it’s unlock
Time Delay: 0/3/6 sec; Unlock time delay: 6 sec (If do not push the door after unlocking, again automatically lock)
Bolt: SUS 304 solid stainless steel
Size: 175Lx25Wx35H (mm) - 6.89Lx0.98Wx1.38H (in.)
Product + Packaging Weight: 0.64Kg (1.41 pounds)
Operating Temperature: -20°C / +50°C (-4°F / 122°F)
Cycles Tested: 300.000

Model No. VIS-3004:

Input voltage: DC 12V
Idle current: ≤25mA
Card Reading Distance: 2 - 3 cm (0.78 - 1.18 in.)
Card Frequency: 125KHz for EM // 13.56MHz for MFR
Card Transmission Format: Wiegand 26
Keypad Transmission Format: 4bit, 8bit and Virtual card number
Operating Temperature: -45°C~55° C (-49°F ~ 131°F)
Operating Humidity: 0%~95%
Product Size: 118Lx81Wx26H (mm) - 4.64Lx3.18Wx1.02H (in.)
Protection Level: IP68 - No ingress of dust; complete protection against contact (dust tight), and waterproof

Model No. VIS-AXESS-4D-ETL-version2:

Arm 7 processor, RTOS system, new PCB circuit design
Advanced access control function, including multi-card, first card, interlock and anti-passback etc.
Multiple authentication mode, it supports card, password, card + code and fingerprint.
TCP/IP communication mode, there is 5 SOCKET port.
Optical coupling isolation protection, more stable
Record capacity can be extended, it can be 130,000pcs
Alarm linkage and relay self-defined.
Access Mode: It supports card, card+ password, card or password, password
Event Type: Legal card, illegal card, anti-passback, exit button, password, threaten code
Alarm Event Type: Door-magnet alarm, self-defined alarm, threaten code alarm
Linkage Function: All event and alarm can linkage any or multiple relay output
Access Group: 200 group
Holiday Schedule: 300
User Capacity: 20000
Record Capacity: 70000
Reader Port: 4
Exit Button Port: 4
Door-magnet Port: 4
Lock Output: 4
Door-magnet Alarm Output: 1
Self-defined Alarm Output: 1
Self-defined Alarm Input: 4
Communication Port: 10/100MTCP/IP, 1 extension RS485 communication port
Input Protection: Opto-isolator protection
Output Protection: Varistor Protection
Extension Function: It supports LED displayer, alarm host and so on

Model No. VIS-7005:

Contact Rating: 3A/12-24V
Output Contact: NO/NC/COM
Power: 12VDC - 24VDC
LED Color: Blue (Stand by Mode), Green (Active/Open Mode)
Panel: 4mm (0.15in.) Thick Aluminium alloy (CNC)
Suitable for Door: Hollow Door
Mechanical Life: 100.000 tests
Operating Temperature: -20°C~+55°C (14°F-131°F)
Operating Humidity: 0-95% (relative humidity)
Weight: 0.065kg
Dimension Of Plate: 86L × 50W × 25H mm - 3.38L x 1.96W x 0.98H in.

Model No. IrexPlus:

Voltage: 12-30 Volts DC or AC
Current Consumption: 8 mA standby, 25 mA (Relay+LED), 44 mA maximum (Buzzer+Relay+LED) at 12/24 VDC
Relay Output: 1A @ 30 VDC or VAC, two form “C” contacts
Tamper Output: 50 mA @ 30 volts DC or AC
Detection System
Mounting Height: 2.3m - 4.6m (7.5' - 15')
Detection Range: Up to 2.4m (8')
Dimensions (LxHxD): 177mm x 50mm x 45mm (7'' x 2'' x 1.8'')
Weight: 0.15Kg (0.3lb)
Colour: White or Black
Environmental
RFI Immunity: 30 V/m from 10MHz to 2GHz
Operating & Storage Temperature: -20°C to 60°C (-4°F to 140°F)

Description

Attention:

These access control panels (Version 2.0) are only compatible with access control panels (Version 2.0) and with the Titan VSAxess software. They are not compatible with access control panels (Version 1.0) nor with VSAxess software.
Includes CD software
Power supply and power cord included
Install wires are not included
This software is not compatible with MAC computers, only with Microsoft.

Compatible Software

TITAN VSAXESS is a powerful and complete Access control management software for Visionis products for a our second generation of Access Control Panels.

DOWNLOAD SOFTWARE

Screenshots Examples of the Software

Click the image to open a bigger version

Download Datasheets and Manuals of this product

LET US HELP YOU WITH YOUR PURCHASE

Feel free to contact our dedicated support team if you have any questions or if you're ready to place an order.

I Need Help

Visionis by Visionis

FPC-8267 Four Doors Access Control Electric Drop Bolt Fail Secure Time Attendance TCP/IP Wiegand Controller Box, Outdoor Keypad/Reader, Software Included, With PIR, 20,000 Users, 70,000 Records Kit

Translation missing: en.products.product.sku:FPC-8267

UPC Code: 655100121492 Weight: 19.0 lb

Regular price: $1,212.61
Sale price: $1,212.61
Regular price

Shipping calculated at checkout.

In Stock

Quantity:

Phone Life-Time Technical Support

30-Day No Questions Return Policy

*Free Shipping within the USA

Contact an Expert

Order Before 3:00pm EST on a week day and your order will be shipped out the same day

*Free shipping within the USA

Including Puerto Rico, Hawaii and Alaska

ATTENTION:

Before purchasing, it is recommended that the customer checks with their local fire authority to see if there is any additional product they may need in order to comply with the local fire codes. We are not responsible for the improper installation of our product(s) or any type of fees that can be incurred by not complying with your local fire authority.
