Features

• Arm 7 processor, RTOS system, new PCB circuit design
• Advanced access control function, including multi-card, first card, interlock and anti-passback etc.
• Multiple authentication mode, it supports card, password, card + code and fingerprint.
• TCP/IP communication mode, there is 5 SOCKET port.
• Optical coupling isolation protection, more stable
• Record capacity can be extended, it can be 130,000pcs
• Alarm linkage and relay self-defined.

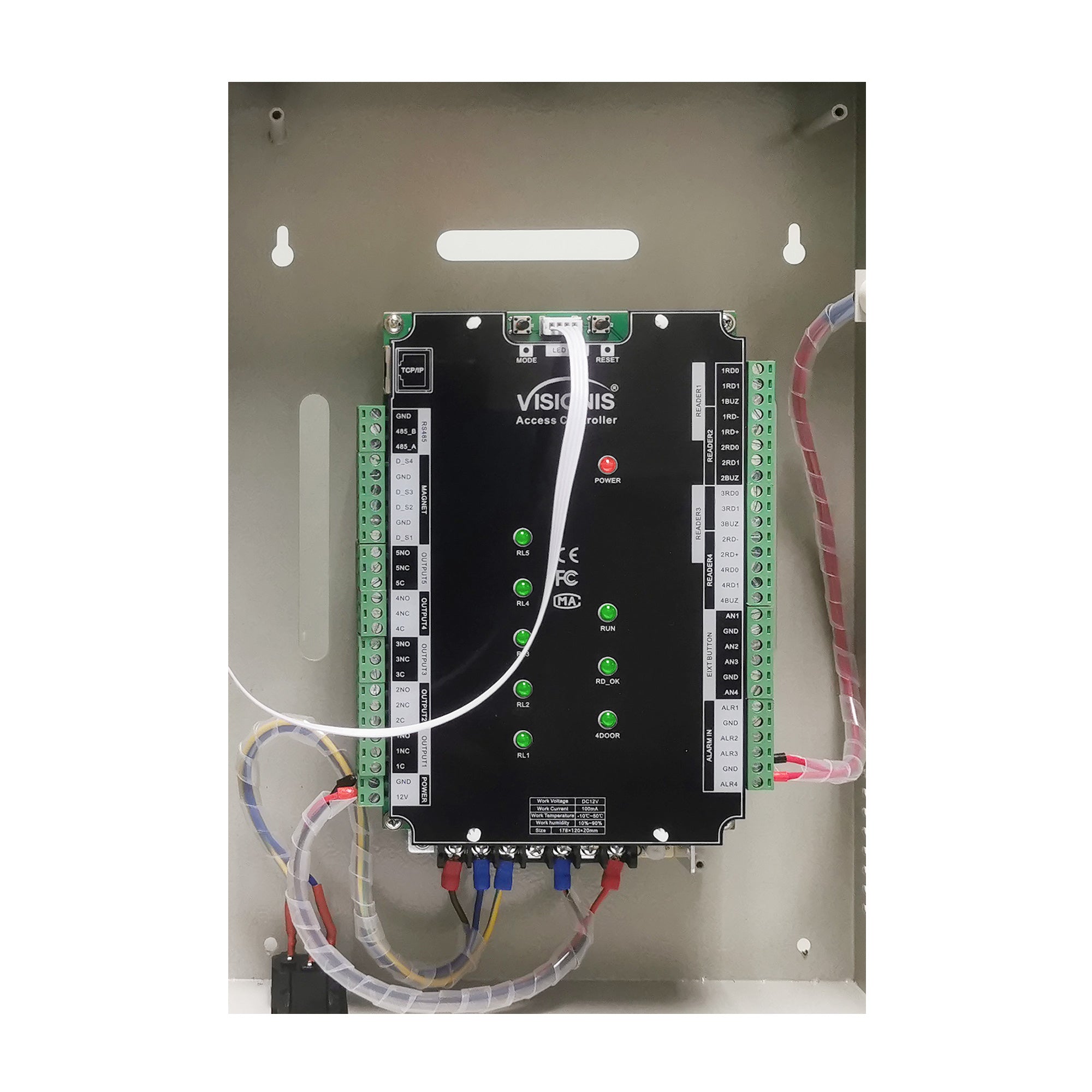

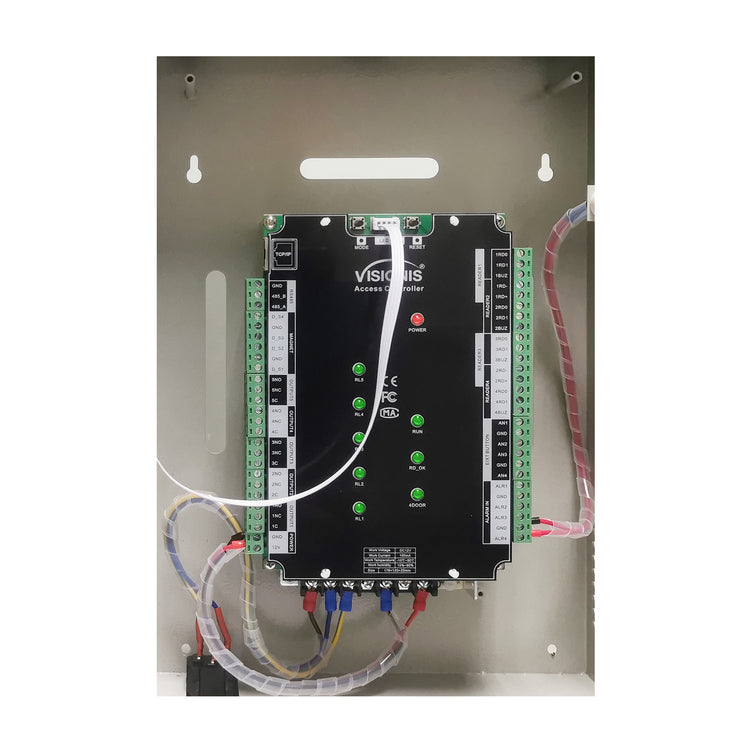

Hardware Design

• New design and new integration, it supports TCP/IP communication mode and have 5 SOCKET port.
• Large Capacity FLASH
• Multiple output and input Protection
• High/low temperature resistant design -20°C to +65°C (-4°F~+149°F)



Systemic Linkage Function

Abundant ports are reserved for future usage and add to multiple events linkage, it supports illegal card alarm linkage, alarm linkage to open door
etc.



Multiple Authentication Management

• Professional management function, manager can manage person access more efficiently and safe.
• Cancel normal open by card
• Multiple authentications
• Card failure and activate time.
• Access time segment setup



Economic Access C Management

This product can ensure the cost of project is low, but device access control function is perfect.

• First Card
• Multi-card Open
• Anti-passback
• Remote Control
• Multi-door interlock
• Threaten Code
• Normal Open Automatically



Powerful Software

When access controller work with TITAN VSAxess software, it can achieve more complex security function. Such as, access data search, employee shift, attendance statistics.

• Access Control and video device linkage
• Attendance
• On-line access control
• Real-time Remote monitoring



Attention:

• IMPORTANT: These access control panels (Version 2.0) are only compatible with access control panels (Version 2.0) and with the Titan VSAxess software. They are not compatible with access control panels (Version 1.0) nor with VSAxess software.

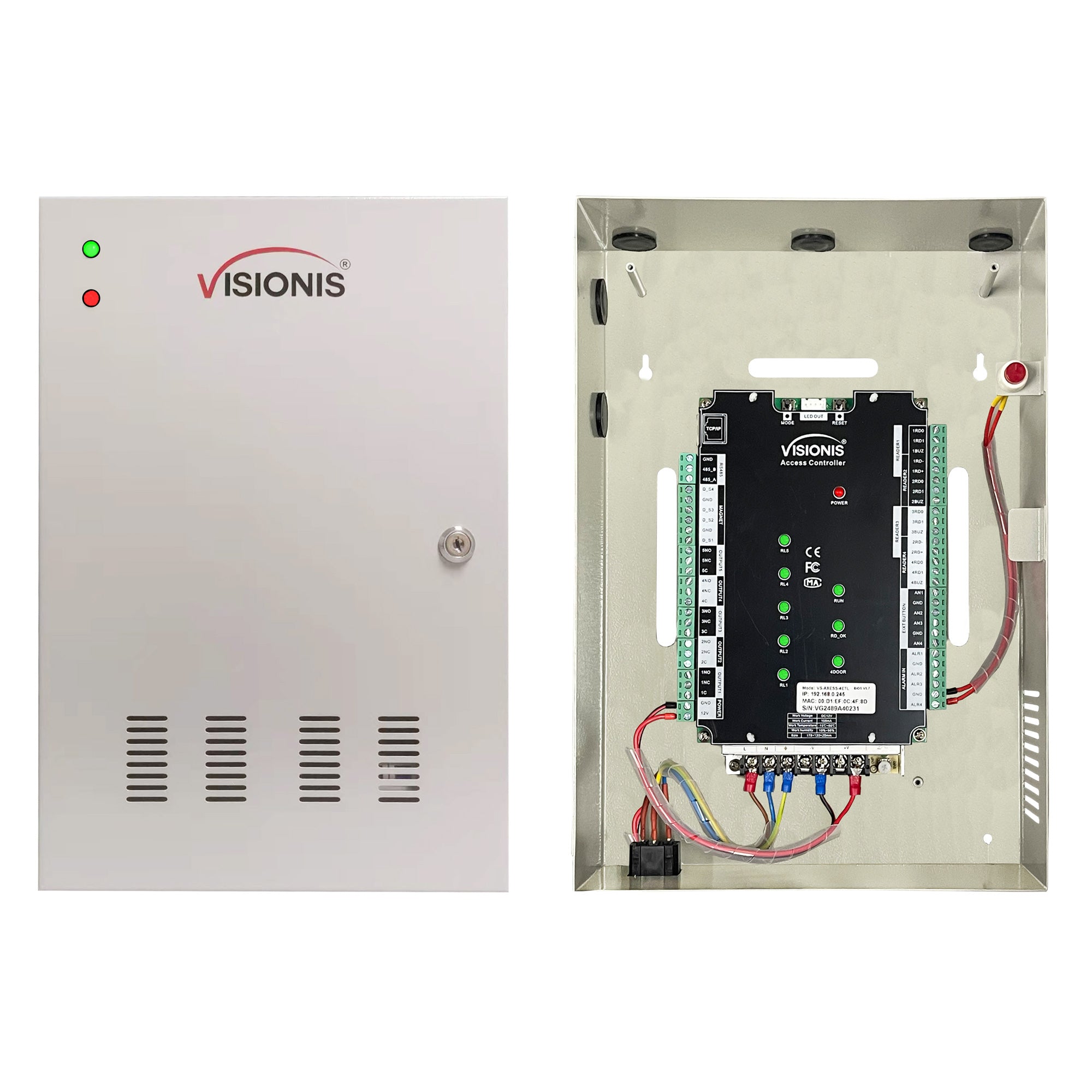

• Metal box is included.
• 12V 8.5 Amp Power supply included.
• Power cord included.
• Battery backup is not included. For this device you can purchase a UPS device for battery backup, this is the same device that you usually purchase to give battery backup to your desktop computer. At the moment we do not sell such device.
• No cable included for install.
• Software USB is 100% included in this product.
• The software is not compatible with MAC computers, only with Microsoft.

---
