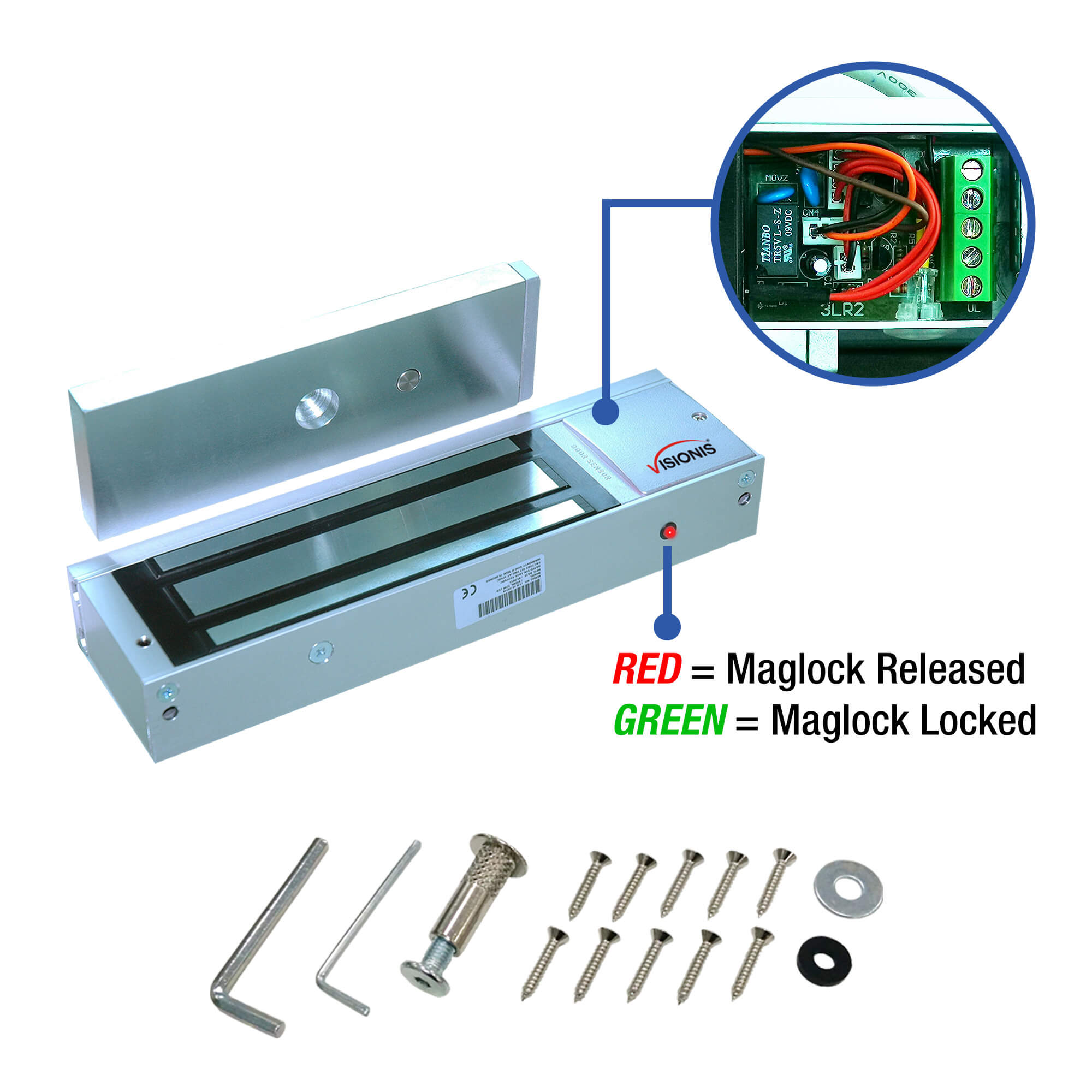

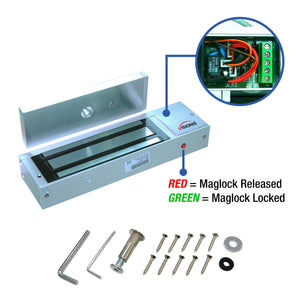

Model No. VIS-ML1200LED:

• Voltage Input: 12 VDC / 24 VDC
• Current Draw: 12V / 500mA ; 24V / 250mA (±5%)
• Holding Force: Up to 1200 lbs (545 kg)
• Hall Effect Contact: SPDT rated 2A at 24 VDC
• Magnetic Contact Rating: 28 VDC, 0.2A, 5W
• Anti-Rust Surface Treatment: Blue Zinc Plating
• Operating Temperature: 0~55° C (32~131° F)
• Weight (Magnet): 2.5 kg (±1%)

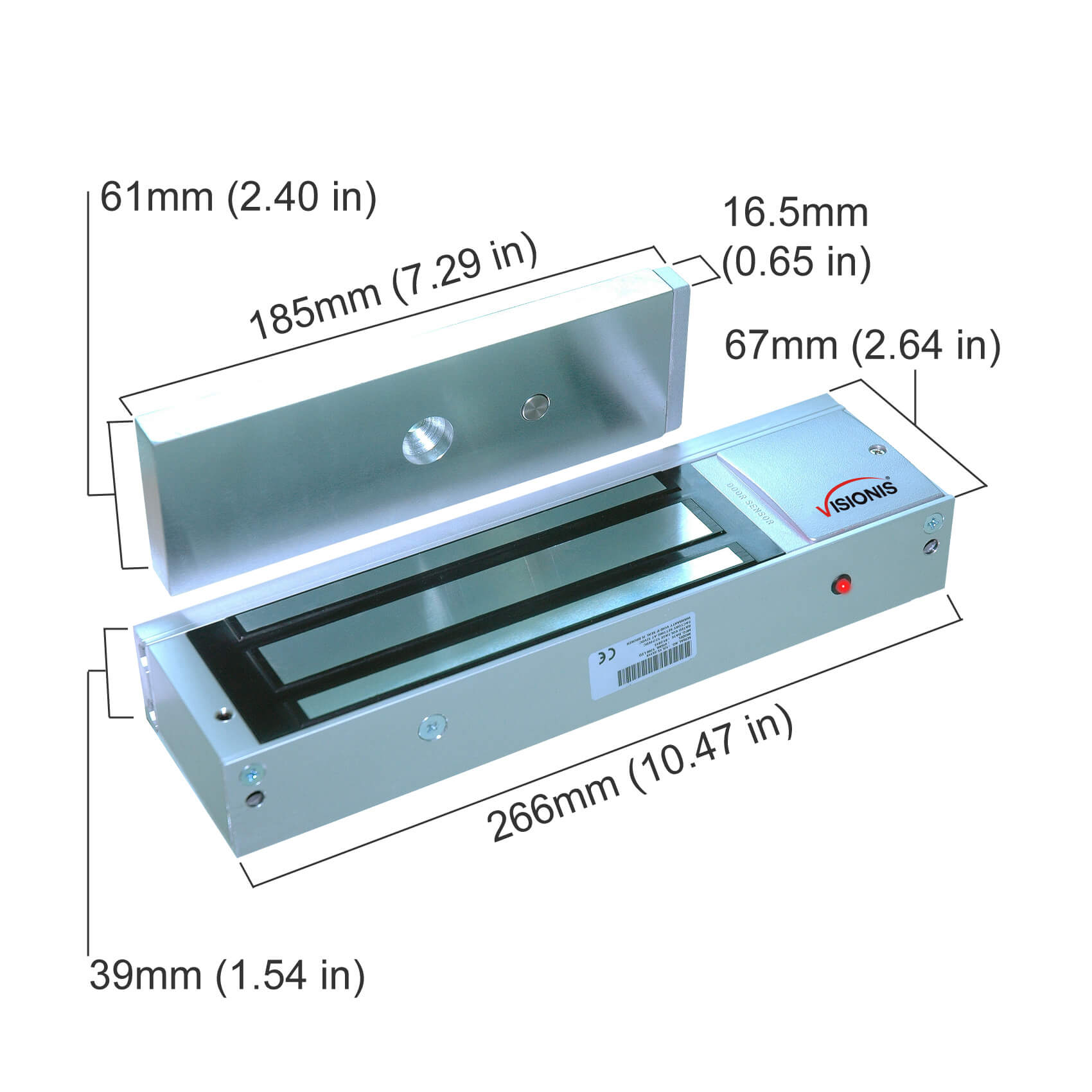

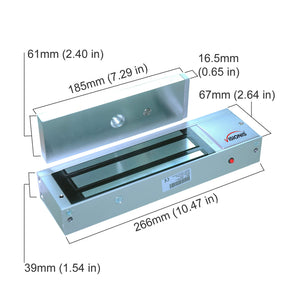

• Dimensions: Magnet - (L)266x(W)67x(T)39 mm Armature - (L)185x(W)61x(T)16.5 mm
• Green/Red LED Indication for EM Lock Status

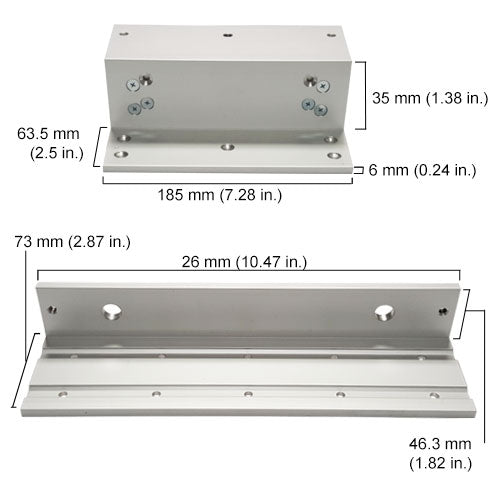

Model No. VIS-ZL1200:

• L and Z bracket for 1200lbs electromagnetic lock

Model No. VIS-3000:

• Input Voltage: DC 12V
• Idle Current: ≤25mA
• Card Reading Distance: 2 - 3 cm (0.78 - 1.18 in.)
• Card Frequency: 125KHz for EM // 13.56MHz for MFR
• Card Transmission Format: Wiegand 26
• Keypad Transmission Format: 4bit, 8bit and Virtual card number
• Operating Temperature: -45°C ～55° C (-49°F ～131°F)
• Operating Humidity: 0%～95%
• Product Size: 118Lx81Wx21H (mm) - 4.64Lx3.18Wx0.82H (in.)
• Protection Level: IP68 - No ingress of dust; complete protection against contact (dust tight), and waterproof

Model No. VS-AXESS-2D-ETL-version2:

• Arm 7 processor, RTOS system, new PCB circuit design
• Advanced access control function, including multi-card, first card, interlock and anti-passback etc.
• Multiple authentication mode, it supports card, password, card + code and fingerprint.
• TCP/IP communication mode, there is 5 SOCKET port.
• Optical coupling isolation protection, more stable
• Record capacity can be extended, it can be 130,000pcs
• Alarm linkage and relay self-defined.
• Access Mode: It supports card, card+ password, card or password, password
• Event Type: Legal card, illegal card, anti-passback, exit button, password, threaten code
• Alarm Event Type: Door-magnet alarm, self-defined alarm, threaten code alarm
• Linkage Function: All event and alarm can linkage any or multiple relay output
• Access Group: 200 group
• Holiday Schedule: 300
• User Capacity: 20000
• Record Capacity: 70000
• Reader Port: 2
• Exit Button Port: 2
• Door-magnet Port: 2
• Lock Output: 2
• Door-magnet Alarm Output: 1
• Self-defined Alarm Output: 1
• Self-defined Alarm Input: 2
• Communication Port: 10/100MTCP/IP, 1 extension RS485 communication port
• Input Protection: Opto-isolator protection
• Output Protection: Varistor Protection
• Extension Function: It supports LED displayer, alarm host and so on

Model No. VIS-8007:

• Operating Frequency: 315mhz
• Number of Codes: 1,048,576
• Operating Voltage: DC12V
• Operating Distance: Up to 160ft (50m) – The maximum range needs to be used in an open area. The distance will start to diminish based on some type of interference such as metal, concrete and others.
• Operating Temperature: 0°C-70°C or 32°F - 158°F
• Current Draw: 19mA
• Compatible Transmitter: VIS-8008
• RF channels: Two
• No. of Remotes that are able to connect to one Receiver: Up to 50
• Case Construction: ABS Plastic
• Dimensions: 62*43.5*30mm (2.44* 1.71*1.18 Inches)
• Weight: 43g or 1.52 Ounces

Model No. VIS-8008:

• Frequency: 315 MHz
• Chip: 1527
• Input Voltage: 6V
• Button Quantity: 2 buttons
• Input Power: 0.06W
• Compatible Receiver: VIS-8007
• Input Current: 0.01A
• Operating Distance: Up to 160ft (50m) – The maximum range needs to be used in an open area. The distance will start to diminish based on some type of interference such as metal, concrete and others.

Model No. VIS-7005:

• Contact Rating: 3A/12-24V
• Output Contact: NO/NC/COM
• Power: 12VDC - 24VDC
• LED Color: Blue (Stand by Mode), Green (Active/Open Mode)
• Panel: 4mm (0.15in.) Thick Aluminium alloy (CNC)
• Suitable for Door: Hollow Door
• Mechanical Life: 100.000 tests
• Operating Temperature: -20°C~+55°C (14°F-131°F)
• Operating Humidity: 0-95% (relative humidity)
• Weight: 0.065kg
• Dimension Of Plate: 86L × 50W × 25H mm - 3.38L x 1.96W x 0.98H in.

Model No. IrexPlus:

• Voltage: 12-30 Volts DC or AC
• Current Consumption: 8 mA standby, 25 mA (Relay+LED), 44 mA maximum (Buzzer+Relay+LED) at 12/24 VDC
• Relay Output: 1A @ 30 VDC or VAC, two form “C” contacts
• Tamper Output: 50 mA @ 30 volts DC or AC
• Detection System
• Mounting Height: 2.3m - 4.6m (7.5' - 15')
• Detection Range: Up to 2.4m (8')
• Dimensions (LxHxD): 177mm x 50mm x 45mm (7'' x 2'' x 1.8'')
• Weight: 0.15Kg (0.3lb)
• Colour: White or Black
• Environmental
• RFI Immunity: 30 V/m from 10MHz to 2GHz
• Operating & Storage Temperature: -20°C to 60°C (-4°F to 140°F)
