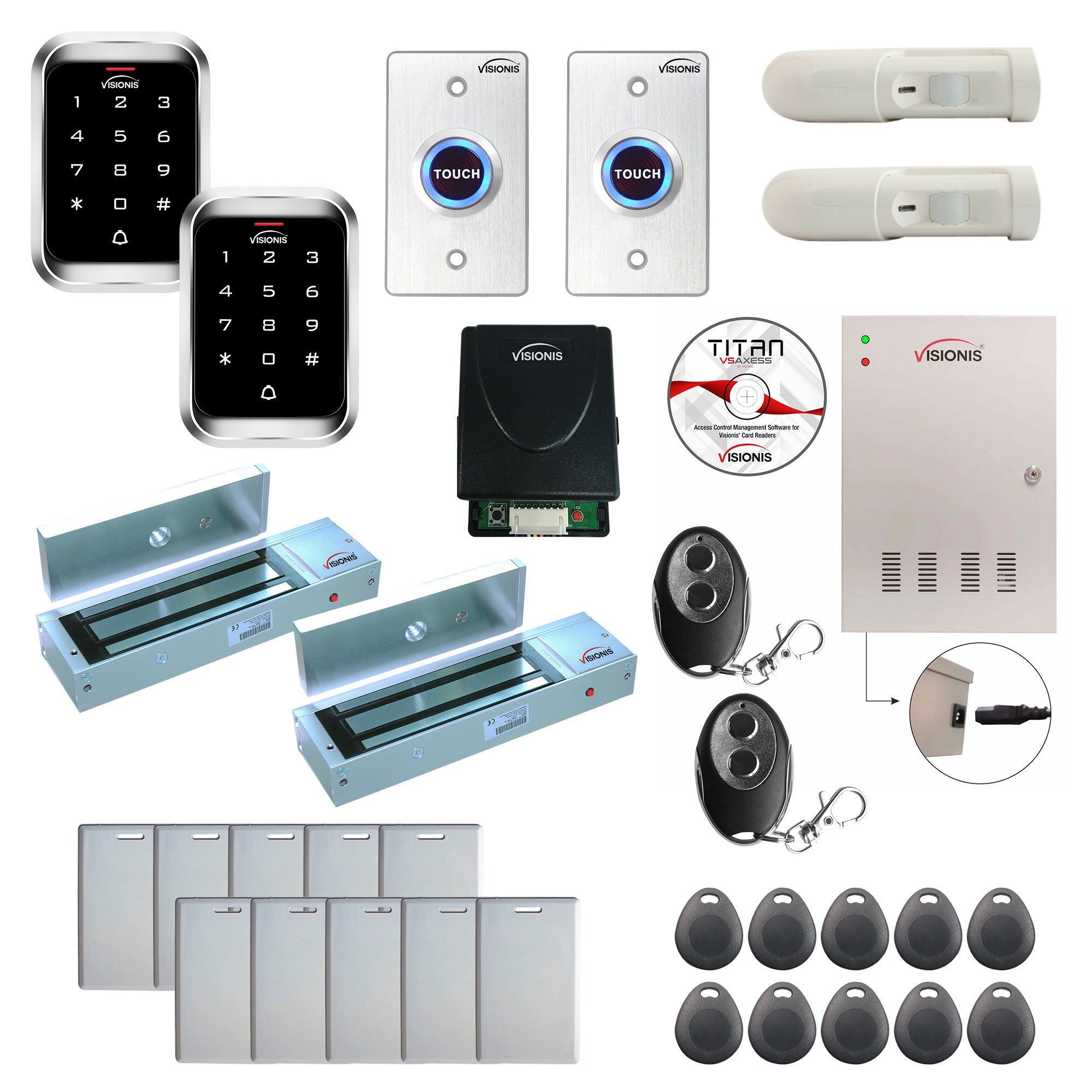

Office access control system with 1200 lbs Magnetic Door Locks, Software, push to exit button and controller - FPC-7931

Entry and Deluxe Access Control Panels Main Features - VISIONIS

Visionis ETL Access Control Panel Wiring - VIS-AXESS-2D-ETL, VIS-AXESS-4D-ETL

Visionis TITAN VSAXESS Access Control Desktop Software

Indoor Maglock Installation (VIS-ML300LED, VIS-ML600LED, VIS-ML1200LED) - FPC Security

Two Doors + Network Access Control Panel + Controller Board With Cabinet VIS-AXESS-2D-ETL

Two Doors + Network Access Control Panel + Controller Board With Cabinet VIS-AXESS-4D-ETL

Dimensions 1200lb Indoor Electromagnetic Lock with LED Sensor VIS-ML1200LED

1200 lbs Magnetic door lock with LED Sensor - VIS-ML1200LED Visionis

Dimensions Outdoor access control keypad, Visionis VIS-3000, IP68 anti-vandal metal, standalone use

Waterproof keypad and card reader VIS-3000 Visionis

Outdoor standalone keypad and card reader VIS-3000 Visionis

2 Channel RF transmitter and receiver. For Opening Doors, Garage Doors, and Gates - VIS-8007 Visionis

2 channel RF transmitter for wireless receiver VIS-8007 - VIS-8008 Visionis

PIR sensor dimensions for request to exit applications in access control - AL-OD22

Looking for something slightly different? Check out these variations:

This PRODUCT has a 3 YEAR warranty with full access to tech support in the USA!

Kit Includes:

(2)

(1)

(2)

(10)

VIS-ML1200LED: 1200lb Indoor Electromagnetic Lock with LED Sensor

VIS-3000: Standalone Keypad and Card Reader. Indoor + Outdoor Rated IP68 Metal Anti Vandal Digital Touch Keypad.

VIS-AXESS-2D-ETL: Two Doors + Network Access Control Panel + Controller Board With Cabinet + TCP IP + Wiegand With Desktop Software + 20,000 Users, 70,000 Records

VIS-8007: 2 Channels RF Receiver 315MHz

VIS-8008: 2 Channels RF 315MHz Transmitter remote control

VIS-7005: Indoor Ultra Thin Push + Touch To Exit Button For Door Access Control With LED Light NC COM and NO Outputs

AL-OD22: Request To Exit Motion Sensor PIR With Adjustable Time Relay

FPC-5267: Pack of Proximity Cards, 125kHz, 26-Bit

FPC-5274: Pack of RFID Proximity Key Fobs, 125kHz, 26-Bit

Description

Attention:

These access control panels (Version 2.0) are only compatible with access control panels (Version 2.0) and with the Titan VSAxess software. They are not compatible with access control panels (Version 1.0) nor with VSAxess software.
Includes CD software
Power supply and power cord included
Install wires are not included
This software is not compatible with MAC computers, only with Microsoft.

Characteristics

Model No. VIS-ML1200LED:

Voltage Input: 12 VDC / 24 VDC
Current Draw: 12V / 500mA ; 24V / 250mA (±5%)
Holding Force: Up to 1200 lbs (545 kg)
Hall Effect Contact: SPDT rated 2A at 24 VDC
Magnetic Contact Rating: 28 VDC, 0.2A, 5W
Anti-Rust Surface Treatment: Blue Zinc Plating
Operating Temperature: 0~55° C (32~131° F)
Weight (Magnet): 2.5 kg (±1%)
Dimensions: Magnet - (L)266x(W)67x(T)39 mm Armature - (L)185x(W)61x(T)16.5 mm
Green/Red LED Indication for EM Lock Status

Model No. VIS-3000:

Supports up to 2,000 users. (If connected to the mini controller VIS-MINI-CNTRL, the capacity is limited to 1,000 users)
Input Voltage: DC 12V
Idle Current: ≤25mA
Card Reading Distance: 2 - 3 cm (0.78 - 1.18 in.)
Card Frequency: 125KHz for EM // 13.56MHz for MFR
Input & Output: Wiegand26
Keypad Transmission Format: 4bit, 8bit and Virtual card number
Operating Temperature: -45°C ～55° C (-49°F ～131°F)
Operating Humidity: 0%～95%
Product Size: 118Lx81Wx21H (mm) - 4.64Lx3.18Wx0.82H (in.)
Protection Level: IP68 - No ingress of dust; complete protection against contact (dust tight), and waterproof
Support external wired doorbell

Model No. VIS-AXESS-2D-ETL-version2:

Arm 7 processor, RTOS system, new PCB circuit design
Advanced access control function, including multi-card, first card, interlock and anti-passback etc.
Multiple authentication mode, it supports card, password, card + code and fingerprint.
TCP/IP communication mode, there is 5 SOCKET port.
Optical coupling isolation protection, more stable
Record capacity can be extended, it can be 130,000pcs
Alarm linkage and relay self-defined.
Access Mode: It supports card, card+ password, card or password, password
Event Type: Legal card, illegal card, anti-passback, exit button, password, threaten code
Alarm Event Type: Door-magnet alarm, self-defined alarm, threaten code alarm
Linkage Function: All event and alarm can linkage any or multiple relay output
Access Group: 200 group
Holiday Schedule: 300
User Capacity: 20000
Record Capacity: 70000
Reader Port: 2
Exit Button Port: 2
Door-magnet Port: 2
Lock Output: 2
Door-magnet Alarm Output: 1
Self-defined Alarm Output: 1
Self-defined Alarm Input: 2
Communication Port: 10/100MTCP/IP, 1 extension RS485 communication port
Input Protection: Opto-isolator protection
Output Protection: Varistor Protection
Extension Function: It supports LED displayer, alarm host and so on

Model No. VIS-8007:

Operating Frequency: 315mhz
Number of Codes: 1,048,576
Operating Voltage: DC12V
Operating Distance: Up to 160ft (50m) – The maximum range needs to be used in an open area. The distance will start to diminish based on some type of interference such as metal, concrete and others.
Operating Temperature: 0°C-70°C or 32°F - 158°F
Current Draw: 19mA
Compatible Transmitter: VIS-8008
RF channels: Two
No. of Remotes that are able to connect to one Receiver: Up to 50
Case Construction: ABS Plastic
Dimensions: 62*43.5*30mm (2.44* 1.71*1.18 Inches)
Weight: 43g or 1.52 Ounces

Model No. VIS-8008:

Frequency: 315 MHz
Chip: 1527
Input Voltage: 6V
Button Quantity: 2 buttons
Input Power: 0.06W
Compatible Receiver: VIS-8007
Input Current: 0.01A
Operating Distance: Up to 160ft (50m) – The maximum range needs to be used in an open area. The distance will start to diminish based on some type of interference such as metal, concrete and others.

Model No. VIS-7005:

Contact Rating: 3A/12-24V
Output Contact: NO/NC/COM
Power: 12VDC - 24VDC
LED Color: Blue (Stand by Mode), Green (Active/Open Mode)
Panel: 4mm (0.15in.) Thick Aluminium alloy (CNC)
Suitable for Door: Hollow Door
Mechanical Life: 100.000 tests
Operating Temperature: -20°C~+55°C (14°F-131°F)
Operating Humidity: 0-95% (relative humidity)
Weight: 0.065kg
Dimension Of Plate: 86L × 50W × 25H mm - 3.38L x 1.96W x 0.98H in.

Model No. AL-OD22 :

Supply Voltage: 12-24VDC or VAC
Supply Current: 18-30mA@12-24VDC,45-80mA@12-24VAC
Relay Output: 2C Contact(N.C/N.O), 24VDC 1A Max.
Detection Type: Passive infrared
Relay Hold Time: 0.5-64 seconds
LED Indication: Red
Operating Temp: -14° F to 131° F(-10° Cto55°C)
Weight: 0. 4Ib (0. 18kg)
Range Coverage: 12x5 ft at 7ft high,30x12 ft at 15 ft high (Adjustment)
Humidity: 0-95% non-condensing
Dimensions: 6.53"Wx1. 57"Hx1. 53"0 ( 166x40x39mm)

Description

Attention:

These access control panels (Version 2.0) are only compatible with access control panels (Version 2.0) and with the Titan VSAxess software. They are not compatible with access control panels (Version 1.0) nor with VSAxess software.
Includes CD software
Power supply and power cord included
Install wires are not included
This software is not compatible with MAC computers, only with Microsoft.

Compatible Software

TITAN VSAXESS is a powerful and complete Access control management software for Visionis products for a our second generation of Access Control Panels.

DOWNLOAD SOFTWARE

Screenshots Examples of the Software

Click the image to open a bigger version

Download Datasheets and Manuals of this product

FPC-7929, FPC-7930, FPC-7931, FPC-7932, FPC-7933, FPC-7934

Installation Diagram

VIS-ML1200LED

VIS-AXESS-2D-ETL

VIS-3000

VIS-7005

VIS-8007

VIS-8008

Datasheet

AL-OD22

VIS-PROXCARD

Datasheet

VIS-KEYTAG / VIS-KEYTAG-BLUE

Datasheet
