This PRODUCT has a 3 YEAR warranty with full access to tech support in the USA!

Description

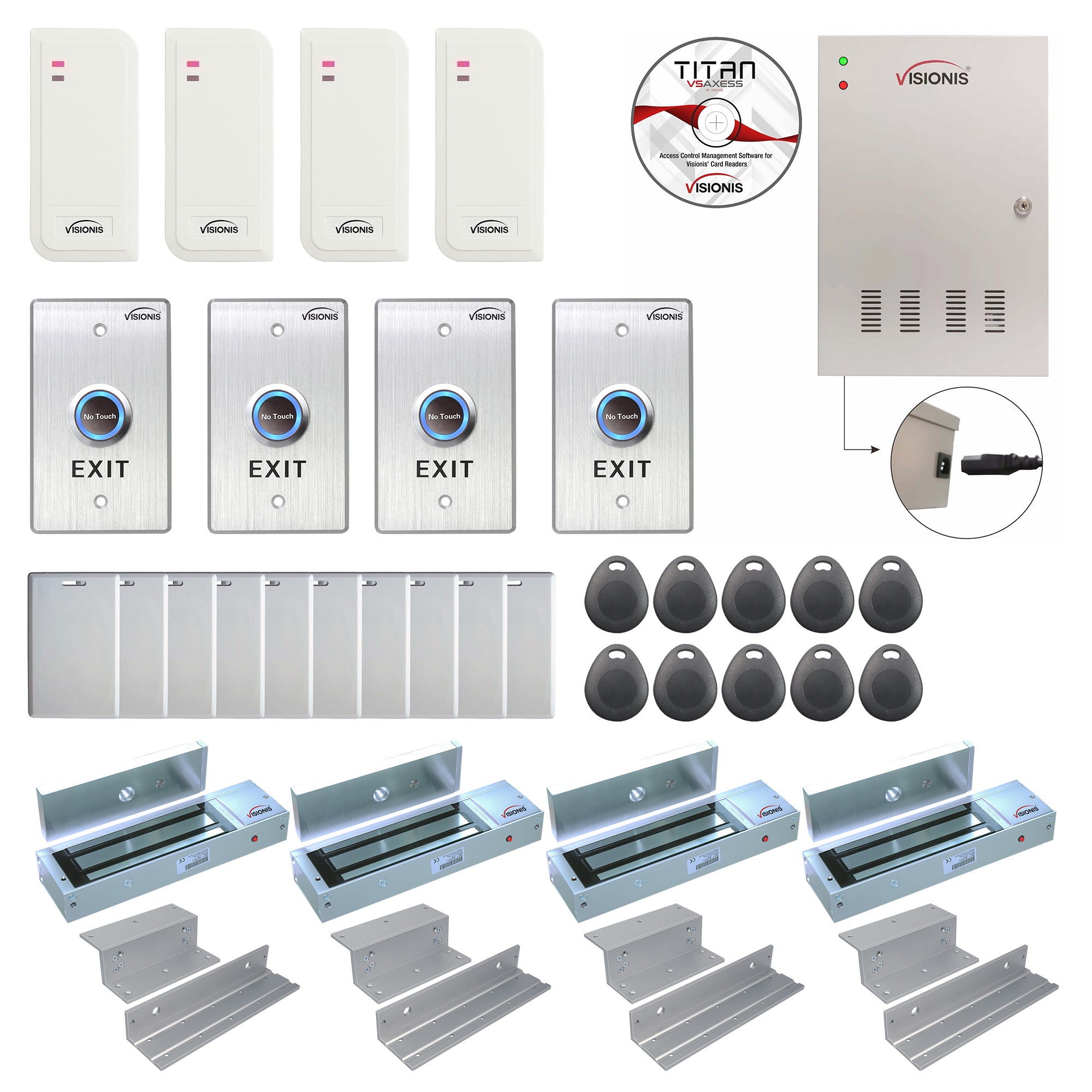

The 6554 kit is a four-door access control system with time and attendance. The kit comes with an outdoor IP66 Wiegand only reader, maglock, bracket, and a no-touch exit button for each door plus a four-door network access control TCP/IP controller, proximity cards, and key tags. The controller comes with software that provides time and attendance, real time of who came in and who came out, a reporting system to view all events and a door restriction system.

The controller works through TCP/IP network communication. It supports Wiegand interface for accessing card reader and supports W26/W34. The system supports various card types such as normal, disabled, blacklist, patrol, visitor, duress, super card, and more. It has a tamper proof alarm for the reader and several alarms for unsecured door, forced entry, door opening, duress, and invalid card attempts. In addition, it supports online and offline operating mode with time synchronization via NTP, manual or automatic method.

The electromagnetic lock (commonly referred to as a “maglock”) is installed beneath the top of the door frame to make sure that the door remains closed and locked. With the VISML1200LED, you have up to 1200lbs of force protecting the door, which means it would take above 1200lbs of force to open the door if someone wanted to force entry. The LED light on the maglock helps you identify when the maglock is locked and unlocked. When the light is red, the maglock is locked. When the light is green, the maglock is unlocked.

The reader is a slim Wiegand output proximity reader. It is waterproof and works with IP66. It has Wiegand 26-37 bits output with a default of 26 bits. You can only use EM cards with this product. Mifare cards and other types of cards may not be compatible. It has reading range of 7cm (2.75 in.) and a working temperature ranging from -40F to 140F. The proximity cards and key tags in this kit can be programmed to the reader quickly to use right away. If you need more, you can always order extra cards or tags.

The no touch request to exit button (VIS-7013) is for indoor use. With just the wave of your hand, the sensor will unlock the door. This exit button also has a release that can be programmed between 0.5-22 seconds. The LED light on the button helps you recognize when it is on standby (blue), sensation (green), or off. It has an adjustable range of 5-15cm (1.96 – 5.90in.) so you can pick your distance of detection.



Attention:

  • IMPORTANT: These access control panels (Version 2.0) are only compatible with access control panels (Version 2.0) and with the Titan VSAxess software. They are not compatible with access control panels (Version 1.0) nor with VSAxess software.
  • Includes CD software
  • Power supply and power cord included
  • Install wires are not included
  • This software is not compatible with MAC computers, only with Microsoft.
Characteristics

Model No. VIS-ML1200LED:

  • Voltage Input: 12 VDC / 24 VDC
  • Current Draw: 12V / 500mA ; 24V / 250mA (±5%)
  • Holding Force: Up to 1200 lbs (545 kg)
  • Hall Effect Contact: SPDT rated 2A at 24 VDC
  • Magnetic Contact Rating: 28 VDC, 0.2A, 5W
  • Anti-Rust Surface Treatment: Blue Zinc Plating
  • Operating Temperature: 0~55° C (32~131° F)
  • Weight (Magnet): 2.5 kg (±1%)
  • Dimensions: Magnet - (L)266x(W)67x(T)39 mm Armature - (L)185x(W)61x(T)16.5 mm
  • Green/Red LED Indication for EM Lock Status
Packaging of this product

Model No. VIS-ZL1200:

  • L and Z bracket for 1200lbs electromagnetic lock
Packaging of this product

Model No. VIS-3101:

  • Color: White
  • Operating Voltage: 9~24V DC
  • Frequency: 125KHz
  • Card Type: EM card
  • Reading Distance: 7 cm (2.75 in.)
  • Output Format: Wiegand 26 bits (26~37 bits available upon request)
  • Operating Temperature: -40°C ~ 60°C (-40°F ~ 140°F)
  • Standby Current: < 25mA
  • Operating Humidity: 10%~95% RH
  • Index of Protection: IP66
  • Dimensions: 102L x 48W x 20H (mm) – 4.01L x 1.88W x 0.78H (in.)

Model No. VS-AXESS-4D-ETL-version2:

  • Arm 7 processor, RTOS system, new PCB circuit design
  • Advanced access control function, including multi-card, first card, interlock and anti-passback etc.
  • Multiple authentication mode, it supports card, password, card + code and fingerprint.
  • TCP/IP communication mode, there is 5 SOCKET port.
  • Optical coupling isolation protection, more stable
  • Record capacity can be extended, it can be 130,000pcs
  • Alarm linkage and relay self-defined.
  • Access Mode: It supports card, card+ password, card or password, password
  • Event Type: Legal card, illegal card, anti-passback, exit button, password, threaten code
  • Alarm Event Type: Door-magnet alarm, self-defined alarm, threaten code alarm
  • Linkage Function: All event and alarm can linkage any or multiple relay output
  • Access Group: 200 group
  • Holiday Schedule: 300
  • User Capacity: 20000
  • Record Capacity: 70000
  • Reader Port: 4
  • Exit Button Port: 4
  • Door-magnet Port: 4
  • Lock Output: 4
  • Door-magnet Alarm Output: 1
  • Self-defined Alarm Output: 1
  • Self-defined Alarm Input: 4
  • Communication Port: 10/100MTCP/IP, 1 extension RS485 communication port
  • Input Protection: Opto-isolator protection
  • Output Protection: Varistor Protection
  • Extension Function: It supports LED displayer, alarm host and so on

Model No. VIS-7013:

  • Contact Rating: 12-24V, 3A
  • Output Contact: NO/NC/COM
  • Detection Range: 5-15cm (1.96 - 5.90in.), Adjustable
  • Power: 12VDC or 24VDC
  • LED Color: Blue (Stand by Mode), Green (Active/Open Mode)
  • Time Delay: 0.5~22s
  • Panel: 4mm (0.15) Thick Aluminium Alloy (CNC)
  • Suitable for: Hollow Door
  • Mechanical Life: 100.000 tests
  • Operating Temperature: -20°C~+55°C (14°F-131°F)
  • Operating Humidity: 0-95% (relative humidity)
  • Weight: 0.105kg
  • Dimensions: 115L × 70W × 25H mm - 4.52L x 2.75W x 0.98H in.
Packaging of this product
Description

The 6554 kit is a four-door access control system with time and attendance. The kit comes with an outdoor IP66 Wiegand only reader, maglock, bracket, and a no-touch exit button for each door plus a four-door network access control TCP/IP controller, proximity cards, and key tags. The controller comes with software that provides time and attendance, real time of who came in and who came out, a reporting system to view all events and a door restriction system.

The controller works through TCP/IP network communication. It supports Wiegand interface for accessing card reader and supports W26/W34. The system supports various card types such as normal, disabled, blacklist, patrol, visitor, duress, super card, and more. It has a tamper proof alarm for the reader and several alarms for unsecured door, forced entry, door opening, duress, and invalid card attempts. In addition, it supports online and offline operating mode with time synchronization via NTP, manual or automatic method.

The electromagnetic lock (commonly referred to as a “maglock”) is installed beneath the top of the door frame to make sure that the door remains closed and locked. With the VISML1200LED, you have up to 1200lbs of force protecting the door, which means it would take above 1200lbs of force to open the door if someone wanted to force entry. The LED light on the maglock helps you identify when the maglock is locked and unlocked. When the light is red, the maglock is locked. When the light is green, the maglock is unlocked.

The reader is a slim Wiegand output proximity reader. It is waterproof and works with IP66. It has Wiegand 26-37 bits output with a default of 26 bits. You can only use EM cards with this product. Mifare cards and other types of cards may not be compatible. It has reading range of 7cm (2.75 in.) and a working temperature ranging from -40F to 140F. The proximity cards and key tags in this kit can be programmed to the reader quickly to use right away. If you need more, you can always order extra cards or tags.

The no touch request to exit button (VIS-7013) is for indoor use. With just the wave of your hand, the sensor will unlock the door. This exit button also has a release that can be programmed between 0.5-22 seconds. The LED light on the button helps you recognize when it is on standby (blue), sensation (green), or off. It has an adjustable range of 5-15cm (1.96 – 5.90in.) so you can pick your distance of detection.



Attention:

  • IMPORTANT: These access control panels (Version 2.0) are only compatible with access control panels (Version 2.0) and with the Titan VSAxess software. They are not compatible with access control panels (Version 1.0) nor with VSAxess software.
  • Includes CD software
  • Power supply and power cord included
  • Install wires are not included
  • This software is not compatible with MAC computers, only with Microsoft.

Compatible Software

TITAN VSAXESS is a powerful and complete Access control management software for Visionis products for a our second generation of Access Control Panels.

DOWNLOAD SOFTWARE

Screenshots Examples of the Software

Click the image to open a bigger version

Download Datasheets and Manuals of this product

Contact Us for Support

LET US HELP YOU WITH YOUR PURCHASE

Feel free to contact our dedicated support team if you have any questions or if you're ready to place an order.

I Need Help
Visionis by Visionis

Visionis FPC-6554 Four Doors Access Control TCP/IP Wiegand For In Swing Door Electric 1200lbs Mag Lock Controller Box + Indoor/Outdoor Card Reader + Software Included + 20,000 Users Kit

Translation missing: en.products.product.sku:FPC-6554

UPC Code: 726679358449
Product Weight: 58.0 lb
Regular price
$945.95
Sale price
$945.95
Regular price
Shipping calculated at checkout.
Contact an Expert
Return Policy
NOTE
Order Before 3:00pm EST on a week day and your order will be shipped out the same day
Free Shipping
Free shipping with in the USA
Including Puerto Rico, Hawaii and Alaska
ATTENTION:
Before purchasing, it is recommended that the customer checks with their local fire authority to see if there is any additional product they may need in order to comply with the local fire codes. We are not responsible for the improper installation of our product(s) or any type of fees that can be incurred by not complying with your local fire authority.
