Dimensions Proximity card reader, Visionis VIS-3101, IP66-rated white access control reader for outdoor use

Visionis VIS-3101 Proximity Reader with Wiegand, white waterproof card reader for access control systems

Waterproof card reader, Visionis VIS-3101, white proximity reader for indoor and outdoor security

Card reader with wiegand protocol for access control panel

Below are more variations of this product:

This PRODUCT has a 3 YEAR warranty with full access to tech support in the USA!

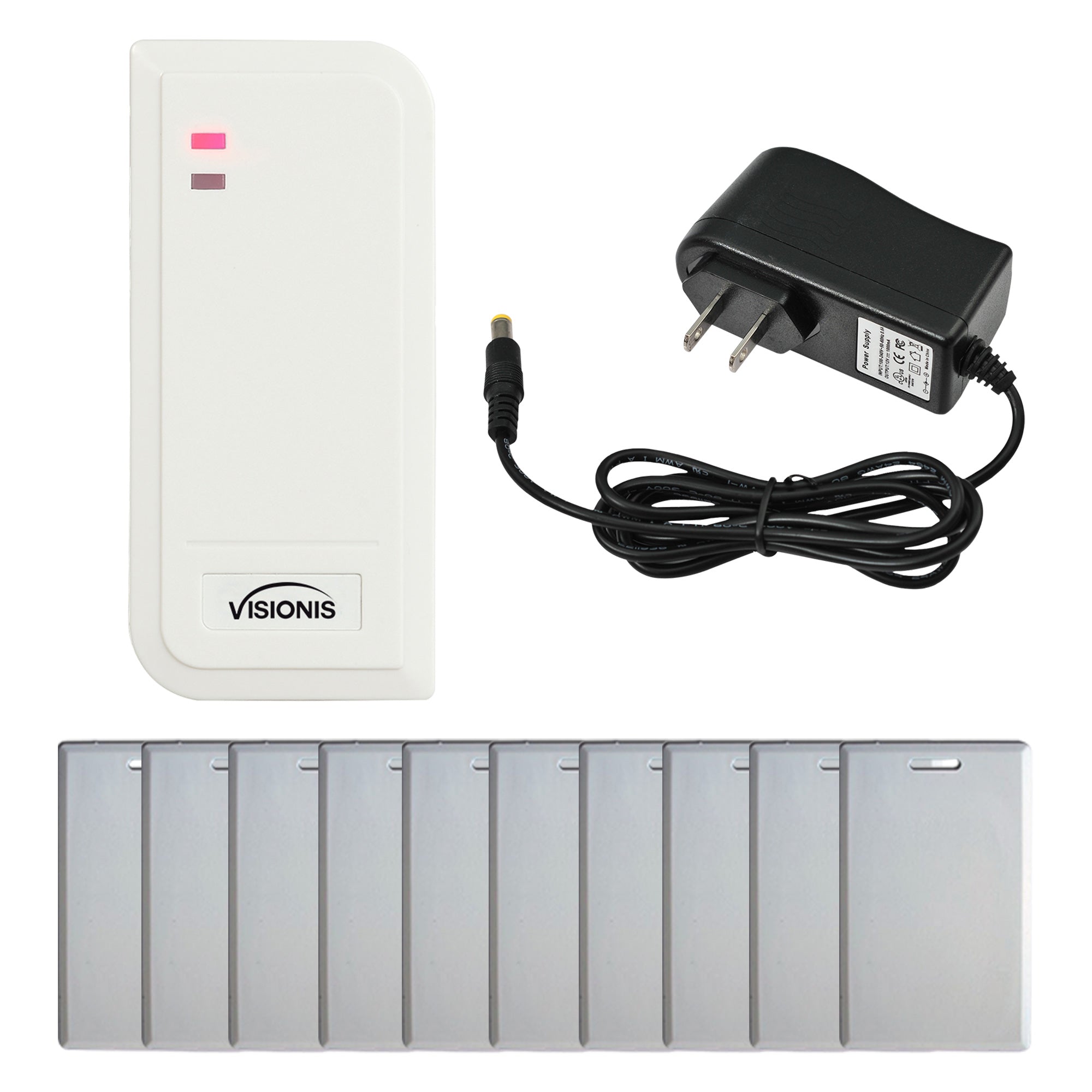

Kit Includes:

(1)

(10)

(1)

VIS-3101: Access Control White Outdoor IP66 Card Reader Only Compatible With Wiegand 26 Bit

VS-VIS-APROXCARD/26: Access Control Proximity Contactless Smart Entry Card 1.8mm Thick 26 Bit 125khz

VS-VISCP200: 12 Volt 2Amp Power Supply Transformer, UL Listed

Description

The 6438 kit has a Visionis 3101 is a white weather-proof reader that is hardwired and ONLY for use with a Wiegand controller system plus 10 proximity cards and a power supply. The readers users are determined by the controller that is being used. This IP66 card reader works specifically with Wiegand 26 bit. The reader is designed for easy operation and high reliability for your access control system. It is built to withstand extreme temperatures, which allows it to work both indoor and outdoor.

Attention:

This reader will only work with Wiegand Protocol Access Controllers. This will not work by itself.
You can only use EM cards with this product. Mifare cards and other type of cards from other brands may not be compatible.
This is a hardwire reader.

Characteristics

Model No. VIS-3101:

Color: White
Operating Voltage: 9~24V DC
Frequency: 125KHz
Card Type: EM card
Reading Distance: 7 cm (2.75 in.)
Output Format: Wiegand 26 bits (26~37 bits available upon request)
Operating Temperature: -40°C ~ 60°C (-40°F ~ 140°F)
Standby Current: < 25mA
Operating Humidity: 10%~95% RH
Index of Protection: IP66
Dimensions: 102L x 48W x 20H (mm) – 4.01L x 1.88W x 0.78H (in.)

Model No. VISCP200:

Input Voltage Range: AC90V-264V
Input Frequency Range: 50Hz-60Hz
Output Voltage Range: DC12V+/-5%
Output Current: 2A
Output Power: 24 Watts
Output Ripple&Noise: ≤46MV
Output Efficiency: ≥79%
Environment Operating: -30°C~45°C 20%~90%RH
Environment Storage Temp.: -40°C~85°C 10%~95%RH
Product Dimension: 87*36.5*70mm (3.42x1.43x2.75in.)
Product Weight: 116g
Certificate: UL, CE, RoHS, FCC

Description

The 6438 kit has a Visionis 3101 is a white weather-proof reader that is hardwired and ONLY for use with a Wiegand controller system plus 10 proximity cards and a power supply. The readers users are determined by the controller that is being used. This IP66 card reader works specifically with Wiegand 26 bit. The reader is designed for easy operation and high reliability for your access control system. It is built to withstand extreme temperatures, which allows it to work both indoor and outdoor.

Attention:

This reader will only work with Wiegand Protocol Access Controllers. This will not work by itself.
You can only use EM cards with this product. Mifare cards and other type of cards from other brands may not be compatible.
This is a hardwire reader.

Download Datasheets and Manuals of this product
