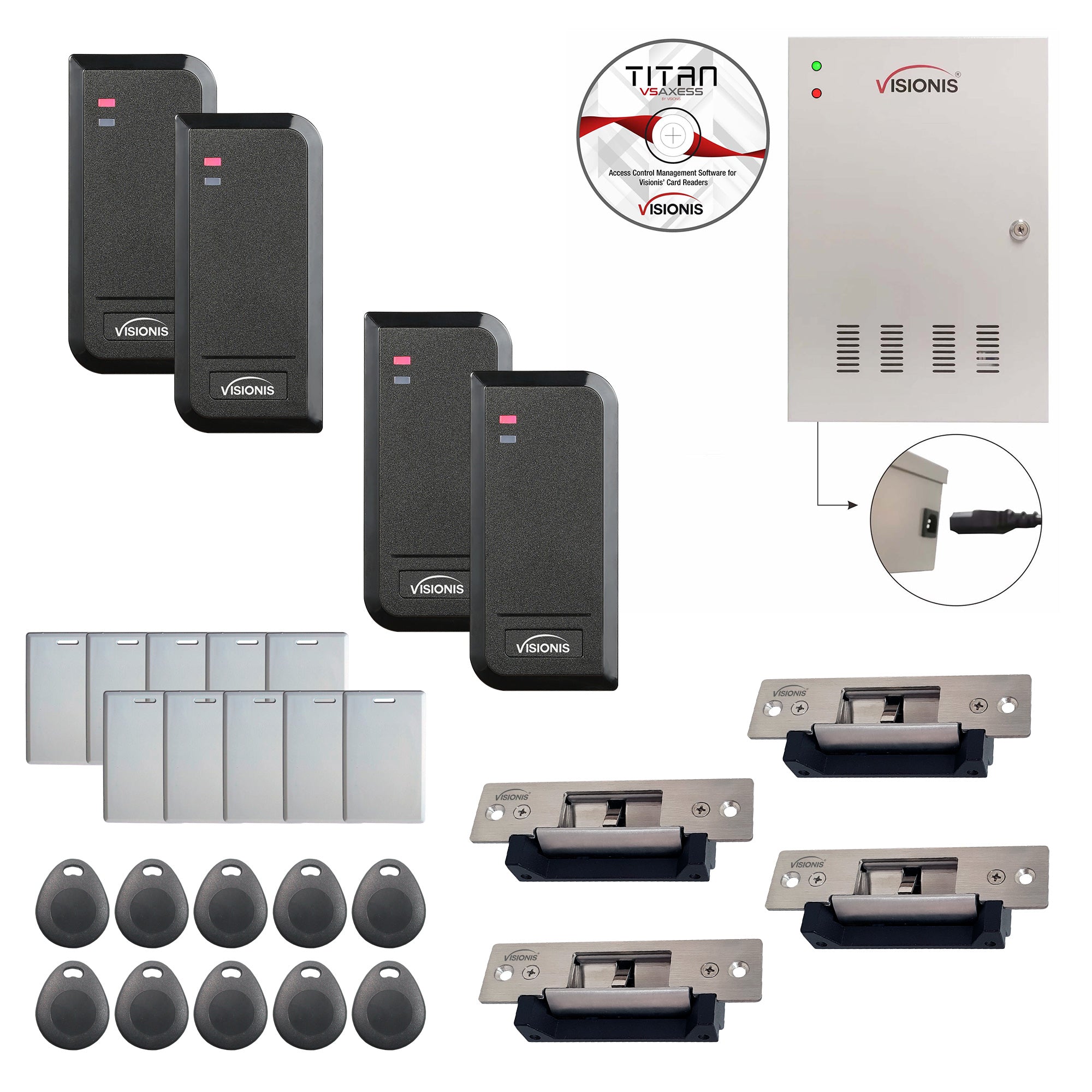

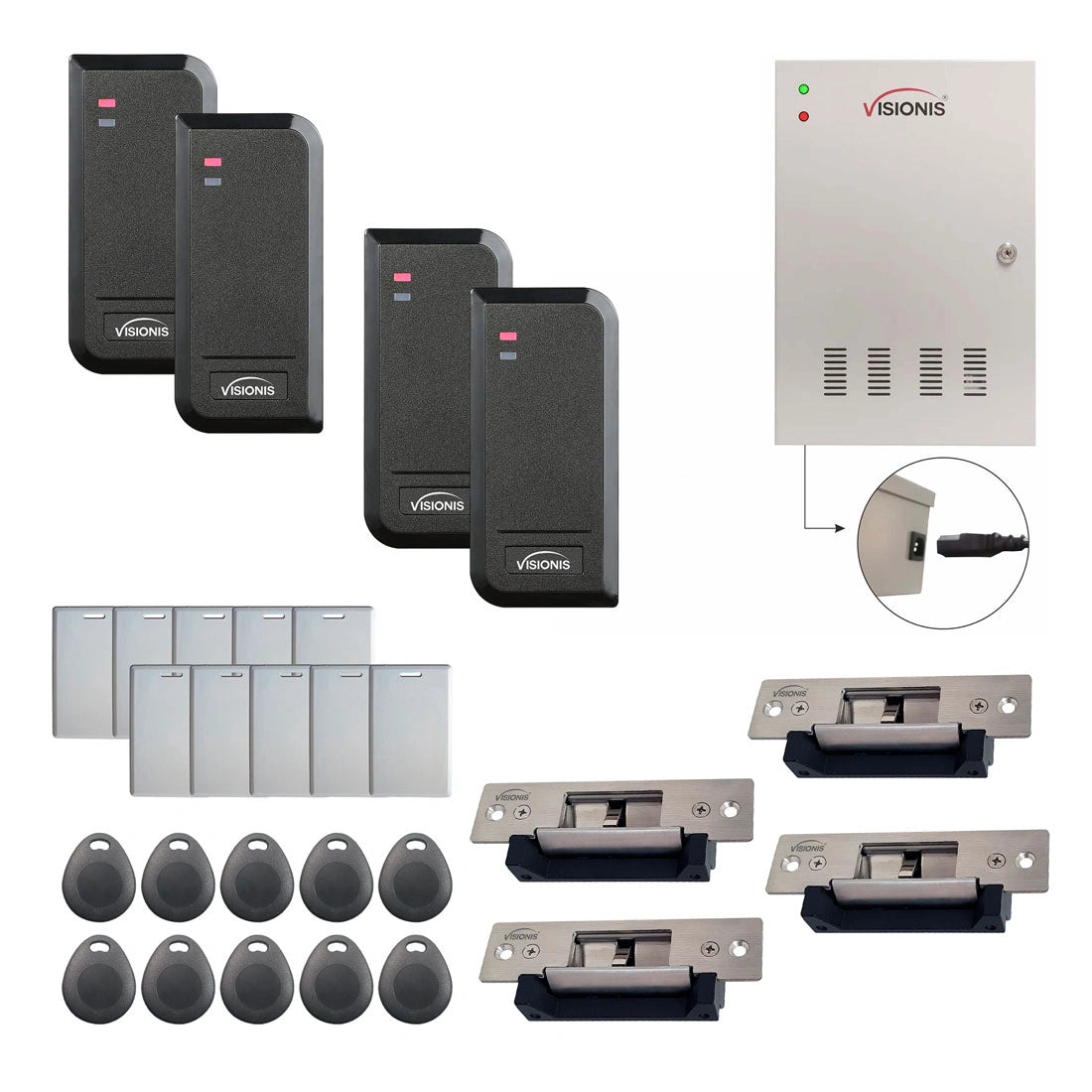

The 6224 kit is a four-door access control system with time and attendance. The kit comes with an outdoor IP66 Wiegand only reader, electric strike plus a two-door network access control TCP/IP controller, proximity cards, and key tags. The controller comes with software that provides time and attendance, real time of who came in and who came out, a reporting system to view all events and a door restriction system.

The controller works with a 32-bit high speed processor and works through TCP/IP network communication. It supports Wiegand interface for accessing card reader and supports W26/W34. The system supports various card types such as normal, disabled, blacklist, patrol, visitor, duress, super card, and more. It has a tamper proof alarm for the reader and several alarms for unsecured door, forced entry, door opening, duress, and invalid card attempts. In addition, it supports online and offline operating mode with time synchronization via NTP, manual or automatic method.

The Visionis EL104-FSESA is an electric strike lock that is interchangeable between two settings. It can be fail safe normally closed or fail secure normally open. This strike provides 2200lbs of reinforcement. This model can be used on wood, metal, and PVC doors. Whether it is for a simple or advanced access control system, this strike suits multiple security needs and is reliable. The strike is installed within your door frame and used to secure your door for your access purposes. As mentioned, this electric strike is interchangeable between fail safe and fail secure. Fail safe means that in the case of a power outage, the latch will disengage, and the door will become unlocked. Fail secure means that in the case of a power outage, the latch will engage, and the door will become locked.

The reader is a slim Wiegand output proximity reader. It is waterproof and works with IP66. It has Wiegand 26-37 bits output with a default of 26 bits. You can only use EM cards with this product. Mifare cards and other types of cards may not be compatible. It has reading range of 7cm (2.75 in.) and a working temperature ranging from -40F to 140F. The proximity cards and key tags in this kit can be programmed to the reader quickly to use right away. If you need more, you can always order extra cards or tags.



Attention:

• IMPORTANT: These access control panels (Version 2.0) are only compatible with access control panels (Version 2.0) and with the Titan VSAxess software. They are not compatible with access control panels (Version 1.0) nor with VSAxess software.
• Comes with Standard USA Size for the electric strike (VIS-EL104-FSESA)
• Includes CD software
• Power supply and power cord included
• Install wires are not included
• This software is not compatible with MAC computers, only with Microsoft.
