This PRODUCT has a 3 YEAR warranty with full access to tech support in the USA!

Description

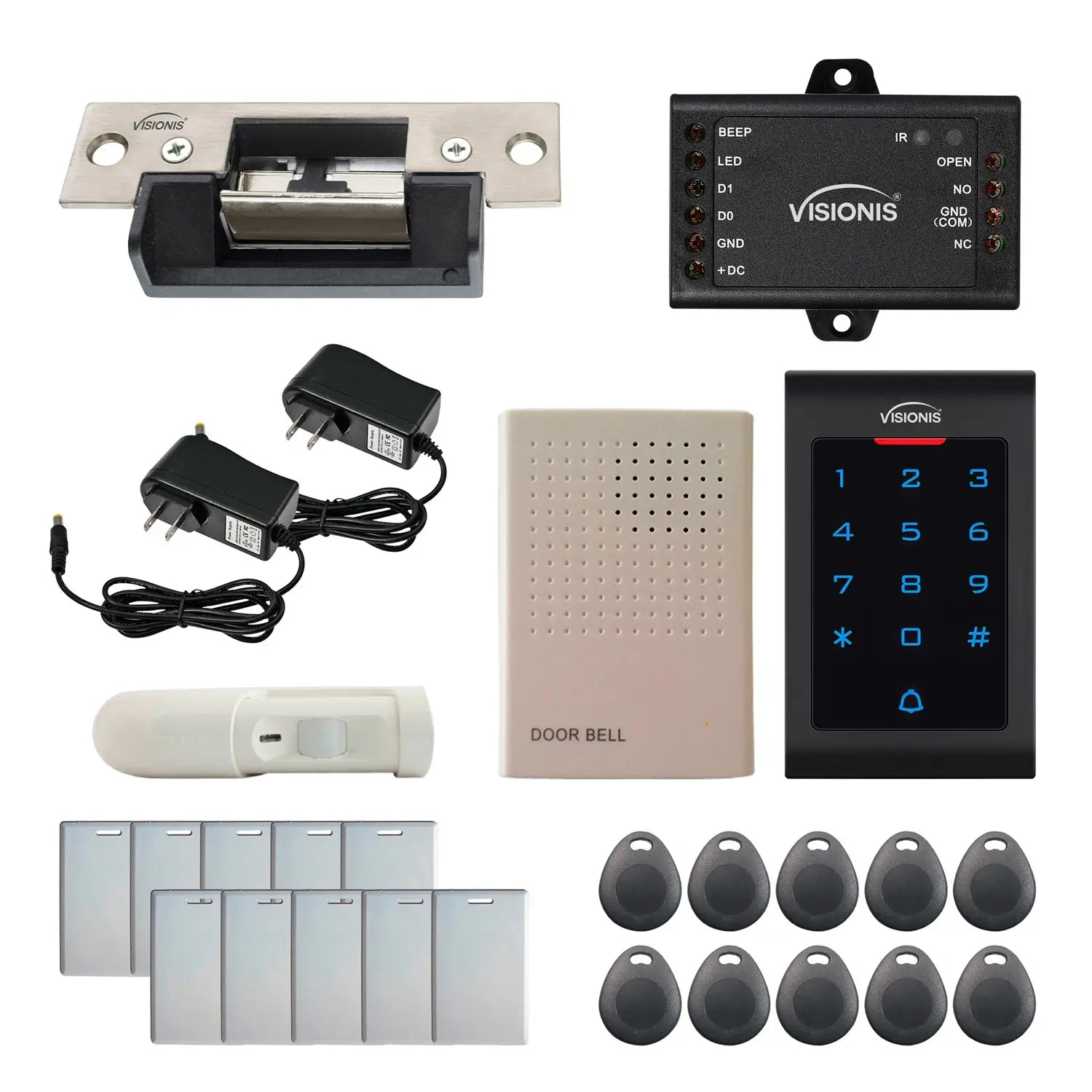

The 5559 kit is a one door electric strike access control kit for door entry with request to exit motions sensor. The strike in this kit is fail safe and normally closed. The rubber lining on this strike is to prevent static electricity. This system is mainly used to give access to a certain room, office or building (depending on your application) to certain people. With the indoor keypad, the VIS-3002, you can gain access through three different options. You can enter a pin code onto the keypad, use a proximity card, and/or use a proximity key tag.

This keypad will allow up to 1000 users through either of the three access options. Since this is a standalone system, meaning that there is no software, it is recommended for you to keep a record of all personnel and their assigned user ID with key code, key card or key tag. On the keypad, you will notice a doorbell towards the right hand side. This will allow people from the outside to ring the doorbell and notify those inside that there is someone wanting to come in. Once someone has entered a programmed code, card, or tag, the maglock will disengage and allow for entrance. The lock will then engage again and remain closed until it is unlocked by one of the three access options.

The popular applications for this kit is for offices, commercial buildings or any room that needs restricted access. The request to exit PIR included in the kit allows for the door to unlock when it senses motion within 2.4m.

The VIS-MINI-CNTRL is a mini single door control panel that can work with any Wiegand 26~37 bits output reader. It uses Atmel microcontroller to assure stable performance, and it is equipped with an infrared remote control for easy operation. The VIS-MINI-CNTRL supports 1,000 users.



IMPORTANT:

  • Professional installation is recommended.
  • For better security the VIS-MINI-CNTRL needs to be installed inside the facility in a restricted area. This device becomes the hub of this standalone application and all the credentials are being stored on the device while no information is stored on the reader itself. Additional recommendations for added security is to add the controller within an enclosure.
  • If the keypad/card reader (entry device) is tampered with, the door will remain locked. The mini controller is the one controlling and securing your locking device.
  • The VIS-MINI-CNTRL offers a more secure option to provide additional security to all type of standalone access control products.
Characteristics

Model No. VIS-EL102-FSA:

  • Lock Size: 124Lx46Wx39H (mm) - 4.88Lx1.81Wx1.53H (in.)
  • Holding Strength: 350kg (770 pounds)
  • Voltage: 12VDC
  • Current: 200 - 230 mA
  • Feature: Fail Safe. N/C with power it’s lock
  • Microswitch / Monitoring / 305: Yes
  • Suitable For: Wooden Door, Metal Door, PVC Door
  • Connections: Power supply: No polarity (Polarity if a diode is installed).
    Microswitch: COM contact, NC contact, NO contact.
  • Cycles Tested: 300.000
  • Operating Temperature: -15°C / +40°C (5°F / 104°F)
  • Solenoid: Continuously duty
  • Product + Packaging Weight: 0.39kg (0.86 pounds)

Model No. VIS-3002:

  • Input Voltage: DC 12V
  • Idle Current: ≤25mA
  • Card Reading Distance: 2 - 3 cm (0.78 - 1.18 in.)
  • Card Frequency: 125KHz for EM // 13.56MHz for MFR
  • Card Transmission Format: Wiegand26
  • Keypad Transmission Format: 4bit, 8bit and Virtual card number
  • Operating Temperature: -45°C ~ 55° C (-49°F ~ 131°F)
  • Operating Humidity: 0%~95%
  • Product Size: 116Lx71Wx22H (mm) - 4.56Lx2.79Wx0.86H (in.)
Packaging of this product

Model No. VIS-MINI-CNTRL:

  • User Capacity: 1,000
  • Operating Voltage: 9~24V DC
  • Idle Current: < 20mA
  • Relay One: (NO, NC, Common)
  • Adjustable Relay Output Time: 1~99 Seconds (5 seconds default)
  • Lock Output Load: 2 Amp Maximum
  • Wiegand Interface Input: Wiegand 26~37 bits
  • Wiegand Interface Output: Wiegand 26~37 bits (for user transfer)
  • Environment: Indoor
  • Operating Temperature: -40°C~60°C (-40°F~140°F)
  • Operating Humidity: 0 ~ 90%RH
  • Physical: ABS Shell
  • Dimensions: L65 x W54 x H19 (mm) - L2.56 x W2.13 x H0.75 (in.)
  • Unit Weight: 40g
  • Shipping Weight: 100g

Model No. VIS-8006:

  • External hardwire doorbell for Keypad/Reader Access Control
  • Dimensions: L87xW62xH23 mm or L3.43xW2.44xH0.90 Inches
Packaging of this product

Model No. IrexPlus:

  • Voltage: 12-30 Volts DC or AC
  • Current Consumption: 8 mA standby, 25 mA (Relay+LED), 44 mA maximum (Buzzer+Relay+LED) at 12/24 VDC
  • Relay Output: 1A @ 30 VDC or VAC, two form “C” contacts
  • Tamper Output: 50 mA @ 30 volts DC or AC
  • Detection System
  • Mounting Height: 2.3m - 4.6m (7.5' - 15')
  • Detection Range: Up to 2.4m (8')
  • Dimensions (LxHxD): 177mm x 50mm x 45mm (7'' x 2'' x 1.8'')
  • Weight: 0.15Kg (0.3lb)
  • Colour: White or Black
  • Environmental
  • RFI Immunity: 30 V/m from 10MHz to 2GHz
  • Operating & Storage Temperature: -20°C to 60°C (-4°F to 140°F)

Model No. VISCP200:

  • Input Voltage Range: AC90V-264V
  • Input Frequency Range: 50Hz-60Hz
  • Output Voltage Range: DC12V+/-5%
  • Output Current: 2A
  • Output Power: 24 Watts
  • Output Ripple&Noise: ≤46MV
  • Output Efficiency: ≥79%
  • Environment Operating: -30°C~45°C 20%~90%RH
  • Environment Storage Temp.: -40°C~85°C 10%~95%RH
  • Product Dimension: 87*36.5*70mm (3.42x1.43x2.75in.)
  • Product Weight: 116g
  • Certificate: UL, CE, RoHS, FCC
Description

The 5559 kit is a one door electric strike access control kit for door entry with request to exit motions sensor. The strike in this kit is fail safe and normally closed. The rubber lining on this strike is to prevent static electricity. This system is mainly used to give access to a certain room, office or building (depending on your application) to certain people. With the indoor keypad, the VIS-3002, you can gain access through three different options. You can enter a pin code onto the keypad, use a proximity card, and/or use a proximity key tag.

This keypad will allow up to 1000 users through either of the three access options. Since this is a standalone system, meaning that there is no software, it is recommended for you to keep a record of all personnel and their assigned user ID with key code, key card or key tag. On the keypad, you will notice a doorbell towards the right hand side. This will allow people from the outside to ring the doorbell and notify those inside that there is someone wanting to come in. Once someone has entered a programmed code, card, or tag, the maglock will disengage and allow for entrance. The lock will then engage again and remain closed until it is unlocked by one of the three access options.

The popular applications for this kit is for offices, commercial buildings or any room that needs restricted access. The request to exit PIR included in the kit allows for the door to unlock when it senses motion within 2.4m.

The VIS-MINI-CNTRL is a mini single door control panel that can work with any Wiegand 26~37 bits output reader. It uses Atmel microcontroller to assure stable performance, and it is equipped with an infrared remote control for easy operation. The VIS-MINI-CNTRL supports 1,000 users.



IMPORTANT:

  • Professional installation is recommended.
  • For better security the VIS-MINI-CNTRL needs to be installed inside the facility in a restricted area. This device becomes the hub of this standalone application and all the credentials are being stored on the device while no information is stored on the reader itself. Additional recommendations for added security is to add the controller within an enclosure.
  • If the keypad/card reader (entry device) is tampered with, the door will remain locked. The mini controller is the one controlling and securing your locking device.
  • The VIS-MINI-CNTRL offers a more secure option to provide additional security to all type of standalone access control products.
