Below are more variations of this product:
- FPC-5541: 1,700lbs Electric Drop Bolt Fail Safe - $150.48
- FPC-5542: 2,600lbs Electric Drop Bolt Fail Secure - $164.47
- FPC-5543: 2,600lb Electric Drop Bolt F. Secure, Key Cylinder - $208.51
- FPC-5544: 2,200lbs Electric Drop Bolt F. Safe, Narrow Doors - $165.95
- FPC-5545: 2,200lbs Electric Drop Bolt F. Safe For Glass Door - $160.00
This PRODUCT has a 3 YEAR warranty with full access to tech support in the USA!

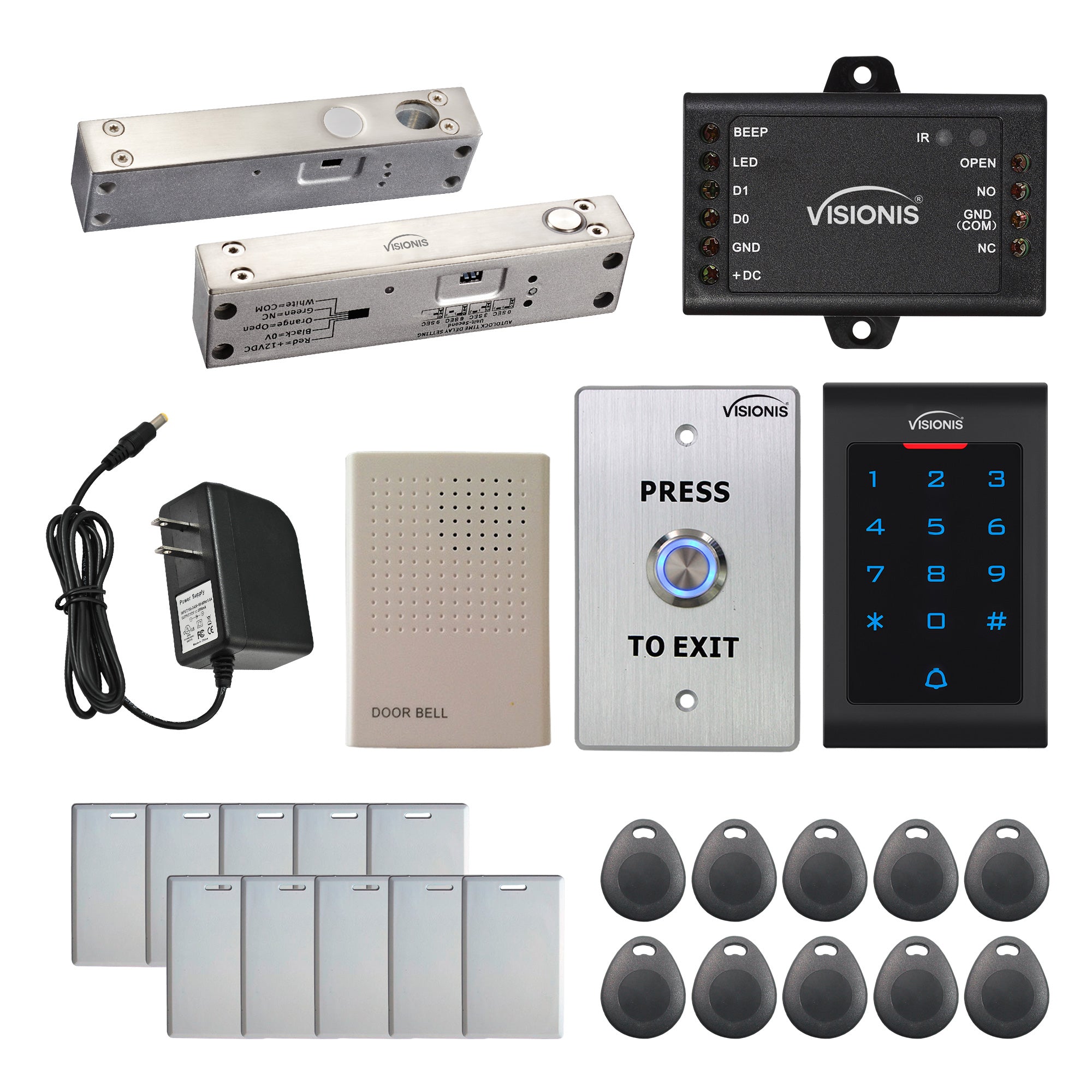

Kit Includes:
The 5544 kit is a one door dropbolt access control kit. This system is mainly used to give access to a certain room, office or building (depending on your application) to certain people. The Visionis DP104ND-FSA-LED is a quality normally closed drop bolt lock for narrow doors that provides 2200lbs of reinforcement with LED and time delay. The drop bolt locks into place, giving the protection needed to secure the door. Depending on how you want the lock installed, you will be able to give that “hidden” appearance, similar to the shear lock. When the drop bolt is given power, the bolt extends and locks into place. This firmly secures the door as long as it has power going to it. With the time delay feature, you can set your delay to either 0, 3, 6, or 9 seconds. This particular drop bolt is Fail safe; meaning that in the case of a power outage, the bolt will retract and the door will become unlocked.
With the indoor keypad, the VIS-3002, you can gain access through three different options. You can enter a pin code onto the keypad, use a proximity card, and/or use a proximity key tag. This keypad will allow up to 1000 users through either of the three access options. Since this is a standalone system, meaning that there is no software, it is recommended for you to keep a record of all personnel and their assigned user ID with key code, key card or key tag. On the keypad, you will notice a doorbell towards the right hand side. This will allow people from the outside to ring the doorbell and notify those inside that there is someone wanting to come in. Once someone has entered a programmed code, card, or tag, the dropbolt will disengage and allow for entrance. The dropbolt will then engage again and remain closed until it is unlocked by one of the three access options.
The VIS-7001 exit button will allow those from within the facility to exit when they push the button. Through the indoor keypad, you can program your delay from 0 to 99 seconds. The meaning of having a delay is setting a time until the dropbolt engages again. The popular applications for this kit is for offices, commercial buildings or any room that needs restricted access.
The VIS-MINI-CNTRL is a mini single door control panel that can work with any Wiegand 26~37 bits output reader. It uses Atmel microcontroller to assure stable performance, and it is equipped with an infrared remote control for easy operation. The VIS-MINI-CNTRL supports 1,000 users.
The 5544 kit is a one door dropbolt access control kit. This system is mainly used to give access to a certain room, office or building (depending on your application) to certain people. The Visionis DP104ND-FSA-LED is a quality normally closed drop bolt lock for narrow doors that provides 2200lbs of reinforcement with LED and time delay. The drop bolt locks into place, giving the protection needed to secure the door. Depending on how you want the lock installed, you will be able to give that “hidden” appearance, similar to the shear lock. When the drop bolt is given power, the bolt extends and locks into place. This firmly secures the door as long as it has power going to it. With the time delay feature, you can set your delay to either 0, 3, 6, or 9 seconds. This particular drop bolt is Fail safe; meaning that in the case of a power outage, the bolt will retract and the door will become unlocked.
With the indoor keypad, the VIS-3002, you can gain access through three different options. You can enter a pin code onto the keypad, use a proximity card, and/or use a proximity key tag. This keypad will allow up to 1000 users through either of the three access options. Since this is a standalone system, meaning that there is no software, it is recommended for you to keep a record of all personnel and their assigned user ID with key code, key card or key tag. On the keypad, you will notice a doorbell towards the right hand side. This will allow people from the outside to ring the doorbell and notify those inside that there is someone wanting to come in. Once someone has entered a programmed code, card, or tag, the dropbolt will disengage and allow for entrance. The dropbolt will then engage again and remain closed until it is unlocked by one of the three access options.
The VIS-7001 exit button will allow those from within the facility to exit when they push the button. Through the indoor keypad, you can program your delay from 0 to 99 seconds. The meaning of having a delay is setting a time until the dropbolt engages again. The popular applications for this kit is for offices, commercial buildings or any room that needs restricted access.
The VIS-MINI-CNTRL is a mini single door control panel that can work with any Wiegand 26~37 bits output reader. It uses Atmel microcontroller to assure stable performance, and it is equipped with an infrared remote control for easy operation. The VIS-MINI-CNTRL supports 1,000 users.
Download Datasheets and Manuals of this product
LET US HELP YOU WITH YOUR PURCHASE
Feel free to contact our dedicated support team if you have any questions or if you're ready to place an order.
I Need HelpFPC-5544 One Door Access Control 2,200lbs Electric Drop Bolt Fail Safe Time Delay For Narrow Door + Indoor Use Only Keypad / Reader Standalone With Mini Controller + Wiegand 26, No Software, EM Card
