What does “fail-secure” mean for this electric bolt lock?

“Fail-secure” means the door will stay locked during a power outage. The bolt only unlocks when it gets power, which helps keep your building secure even if the power goes out.

How strong are these electric locks?

This lock can handle up to 2,600 pounds of pressure, making it a great option for securing heavy or high-use doors.

Can I unlock the door without electricity?

Yes. This model includes a key cylinder, so you can manually unlock the door with a key if needed.

Can I control how long the door stays unlocked?

Yes. You can set a time delay of 0, 3, or 6 seconds, so the door doesn’t lock again right away. If no one opens the door after unlocking, it will lock again after 6 seconds.

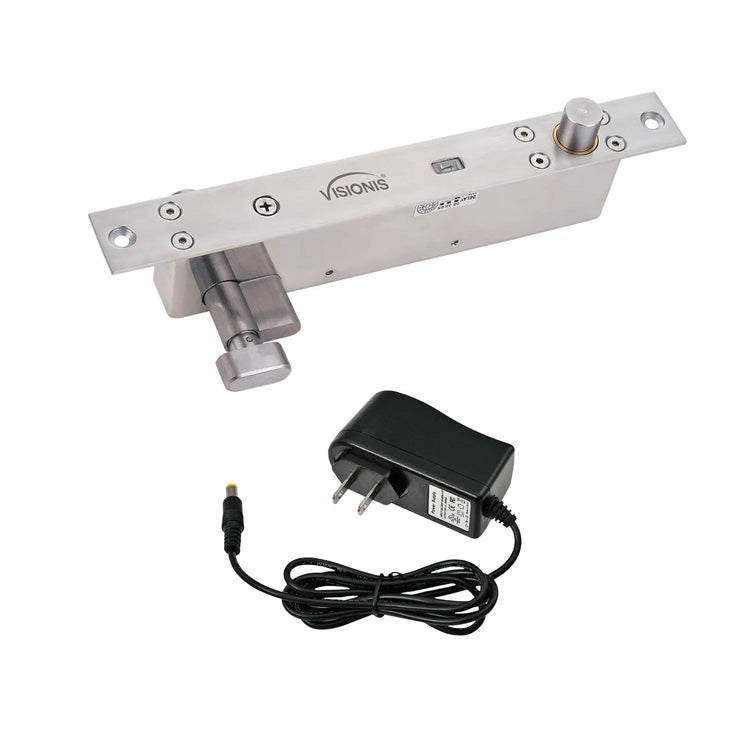

Electric Bolt Lock 2,600lbs With Key Cylinder and LED - FPC-5387

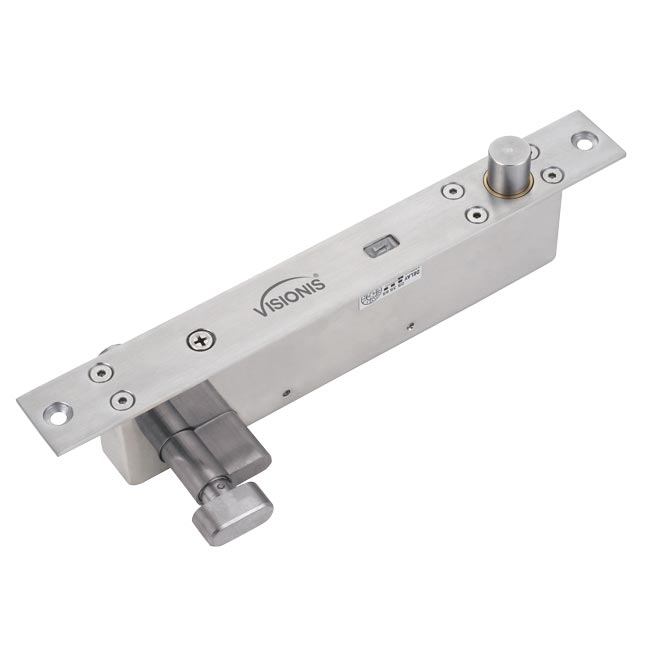

Electric drop bolt lock with 2600lb holding force, LED indicator, and key cylinder override. VIS-DP103WCY-FSE-LED VISIONIS

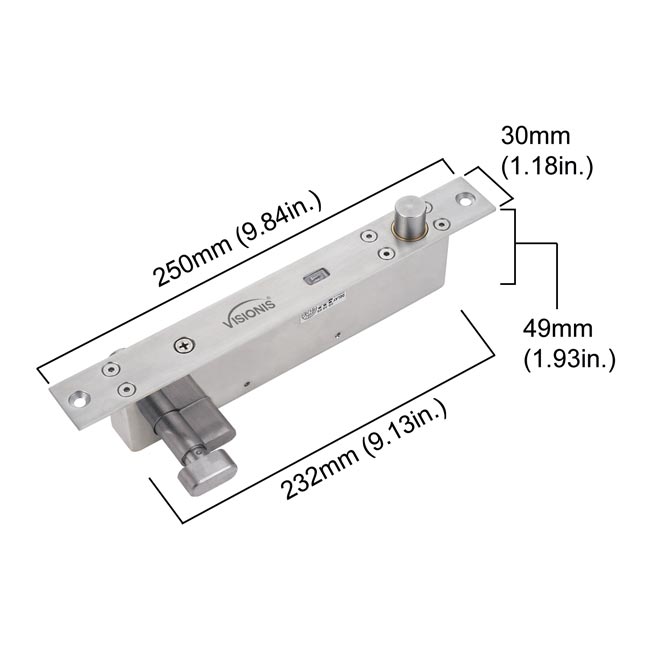

Electric bolt lock dimensions - VIS-DP103WCY-FSE-LED

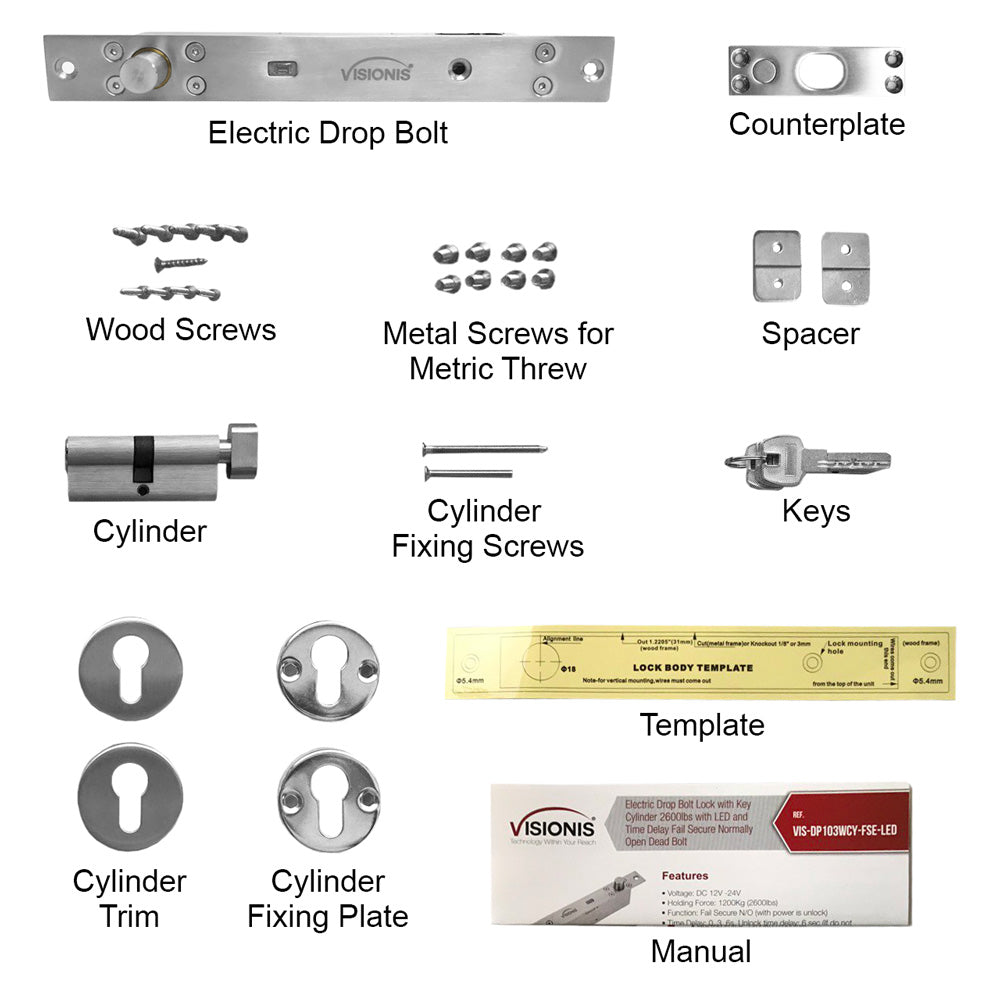

Electric deadbolt items included in the box - VIS-DP103WCY-FSE-LED

Looking for something slightly different? Check out these variations:

This PRODUCT has a 3 YEAR warranty with full access to tech support in the USA!

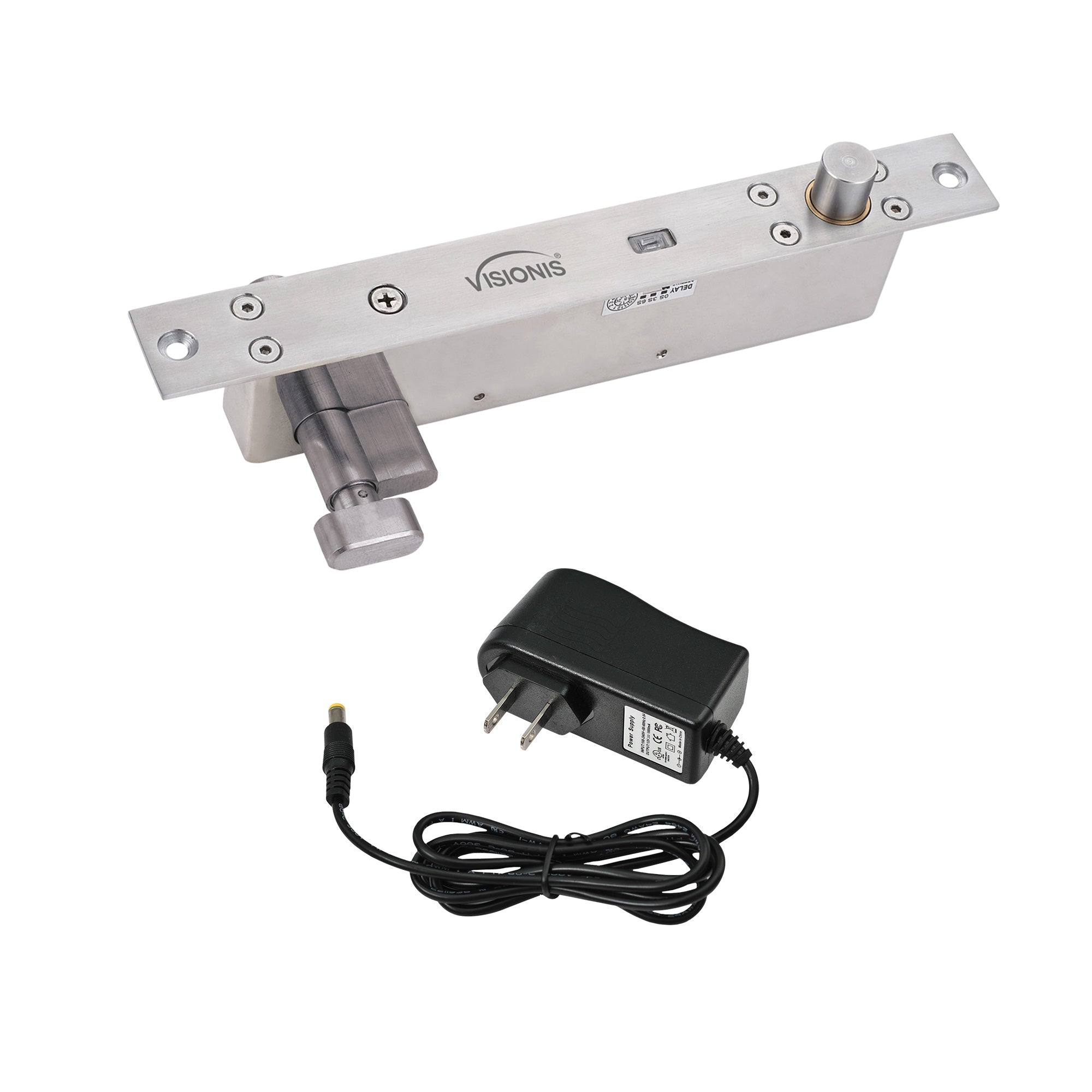

Kit Includes:

(1)

VIS-DP103WCY-FSE-LED: Electric Drop Bolt lock with Key Cylinder 2,600lbs With LED and Time Delay Fail Secure Normally Open Dead Bolt

VIS-CP200: 12 Volt 2Amp Power Supply Transformer, UL Listed

Description

The FPC-5387 kit includes the VISIONIS VIS-DP103WCY-FSE-LED drop bolt lock, designed for high-security applications. This fail-secure, normally open lock offers a powerful 2,600 lbs of holding force, and comes equipped with a built-in key cylinder, LED indicator, adjustable time delay, and a power supply for easy installation.

When powered, the stainless steel bolt extends and locks securely into place, reinforcing the door and providing reliable protection. Its design allows for a discreet or “hidden” installation, much like a shear lock, making it ideal for clean, modern setups.

The time delay function lets you choose between 0, 3, or 6 seconds of delay before the lock engages, offering flexible control. As a fail-secure device, the bolt remains locked during a power outage, ensuring continued security. The included power supply allows for a fast and straightforward setup right out of the box.

Characteristics

Model No. VIS-DP103WCY-FSE-LED:

Voltage: DC12V - DC24V
Holding Force: 1200Kg (2600lbs)
Current: (DC12V): Standby 150mA
Function: Fail Secure. N/O with power it’s unlock
Time Delay: 0/3/6 sec; Unlock time delay: 6 sec (If do not push the door after unlocking, again automatically lock)
Bolt: SUS 304 solid stainless steel
Size: 250Lx30Wx49H (mm) - 9.84Lx1.18Wx1.93H (in.)
Product + Packaging Weight: 1.46Kg (3.22 pounds)
Operating Temperature: -20°C / +50°C (-4°F / 122°F)
Cycles Tested: 300.000

Model No. VIS-CP200:

Cable Length: 1.2 meters (4 feet)
Input Voltage Range: AC90V-264V
Input Frequency Range: 50Hz-60Hz
Output Voltage Range: DC12V+/-5%
Output Current: 2A
Output Power: 24 Watts
Output Ripple&Noise: ≤46MV
Output Efficiency: ≥79%
Environment Operating: -30°C~45°C 20%~90%RH
Environment Storage Temp.: -40°C~85°C 10%~95%RH
Product Dimension: 87*36.5*70mm (3.42x1.43x2.75in.)
Product Weight: 116g
Certificate: UL, CE, RoHS, FCC

Description

The FPC-5387 kit includes the VISIONIS VIS-DP103WCY-FSE-LED drop bolt lock, designed for high-security applications. This fail-secure, normally open lock offers a powerful 2,600 lbs of holding force, and comes equipped with a built-in key cylinder, LED indicator, adjustable time delay, and a power supply for easy installation.

When powered, the stainless steel bolt extends and locks securely into place, reinforcing the door and providing reliable protection. Its design allows for a discreet or “hidden” installation, much like a shear lock, making it ideal for clean, modern setups.

The time delay function lets you choose between 0, 3, or 6 seconds of delay before the lock engages, offering flexible control. As a fail-secure device, the bolt remains locked during a power outage, ensuring continued security. The included power supply allows for a fast and straightforward setup right out of the box.

Product FAQs

What does “fail-secure” mean for this electric bolt lock?

“Fail-secure” means the door will stay locked during a power outage. The bolt only unlocks when it gets power, which helps keep your building secure even if the power goes out.
How strong are these electric locks?

This lock can handle up to 2,600 pounds of pressure, making it a great option for securing heavy or high-use doors.
Can I unlock the door without electricity?

Yes. This model includes a key cylinder, so you can manually unlock the door with a key if needed.
Can I control how long the door stays unlocked?

Yes. You can set a time delay of 0, 3, or 6 seconds, so the door doesn’t lock again right away. If no one opens the door after unlocking, it will lock again after 6 seconds.
Can this electric bolts be hidden in the door frame?

Yes. These electric bolts are designed to be installed in a way that gives them a clean, hidden look, similar to shear locks. This is perfect if you're looking for a modern, low-profile appearance on your doors.

Download Datasheets and Manuals of this product

VIS-DP103WCY-FSE-LED

LET US HELP YOU WITH YOUR PURCHASE

Feel free to contact our dedicated support team if you have any questions or if you're ready to place an order.

I Need Help

Visionis by Visionis

Electric Drop Bolt Lock 2,600lbs With Key Cylinder and LED. Time Delay. Fail Secure Normally Open + Power Supply - FPC-5387

Translation missing: en.products.product.sku:FPC-5387

UPC Code: 614961170490 Weight: 3.0 lb
