Below are more variations of this product:

This PRODUCT has a 3 YEAR warranty with full access to tech support in the USA!

Kit Includes:

(1)

(4)

(1)

VIS-8007: 2 Channels RF Receiver 315MHz

VIS-8008: 2 Channels RF 315MHz Transmitter remote control

VS-VISCP200: 12 Volt 2Amp Power Supply Transformer, UL Listed

Characteristics

Model No. VIS-8007:

Operating Frequency: 315mhz
Number of Codes: 1,048,576
Operating Voltage: DC12V
Operating Distance: Up to 160ft (50m) – The maximum range needs to be used in an open area. The distance will start to diminish based on some type of interference such as metal, concrete and others.
Operating Temperature: 0°C-70°C or 32°F - 158°F
Current Draw: 19mA
Compatible Transmitter: VIS-8008
RF channels: Two
No. of Remotes that are able to connect to one Receiver: Up to 50
Case Construction: ABS Plastic
Dimensions: 62*43.5*30mm (2.44* 1.71*1.18 Inches)
Weight: 43g or 1.52 Ounces

Model No. VIS-8008:

Frequency: 315 MHz
Chip: 1527
Input Voltage: 6V
Button Quantity: 2 buttons
Input Power: 0.06W
Compatible Receiver: VIS-8007
Input Current: 0.01A
Operating Distance: Up to 160ft (50m) – The maximum range needs to be used in an open area. The distance will start to diminish based on some type of interference such as metal, concrete and others.

Model No. VISCP200:

Input Voltage Range: AC90V-264V
Input Frequency Range: 50Hz-60Hz
Output Voltage Range: DC12V+/-5%
Output Current: 2A
Output Power: 24 Watts
Output Ripple&Noise: ≤46MV
Output Efficiency: ≥79%
Environment Operating: -30°C~45°C 20%~90%RH
Environment Storage Temp.: -40°C~85°C 10%~95%RH
Product Dimension: 87*36.5*70mm (3.42x1.43x2.75in.)
Product Weight: 116g
Certificate: UL, CE, RoHS, FCC

Download Datasheets and Manuals of this product

VIS-8007

VIS-8008

Datasheet

Visionis by Visionis

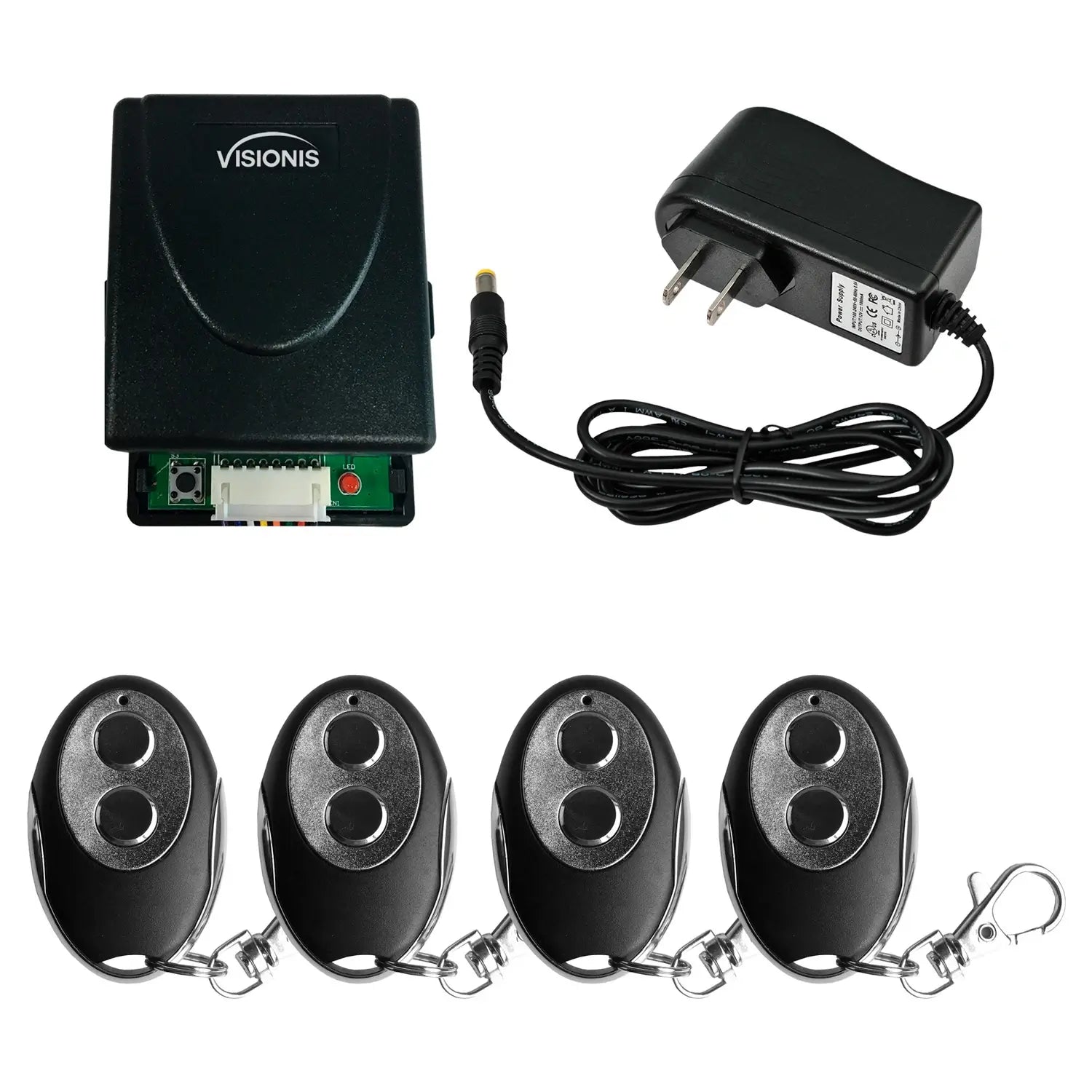

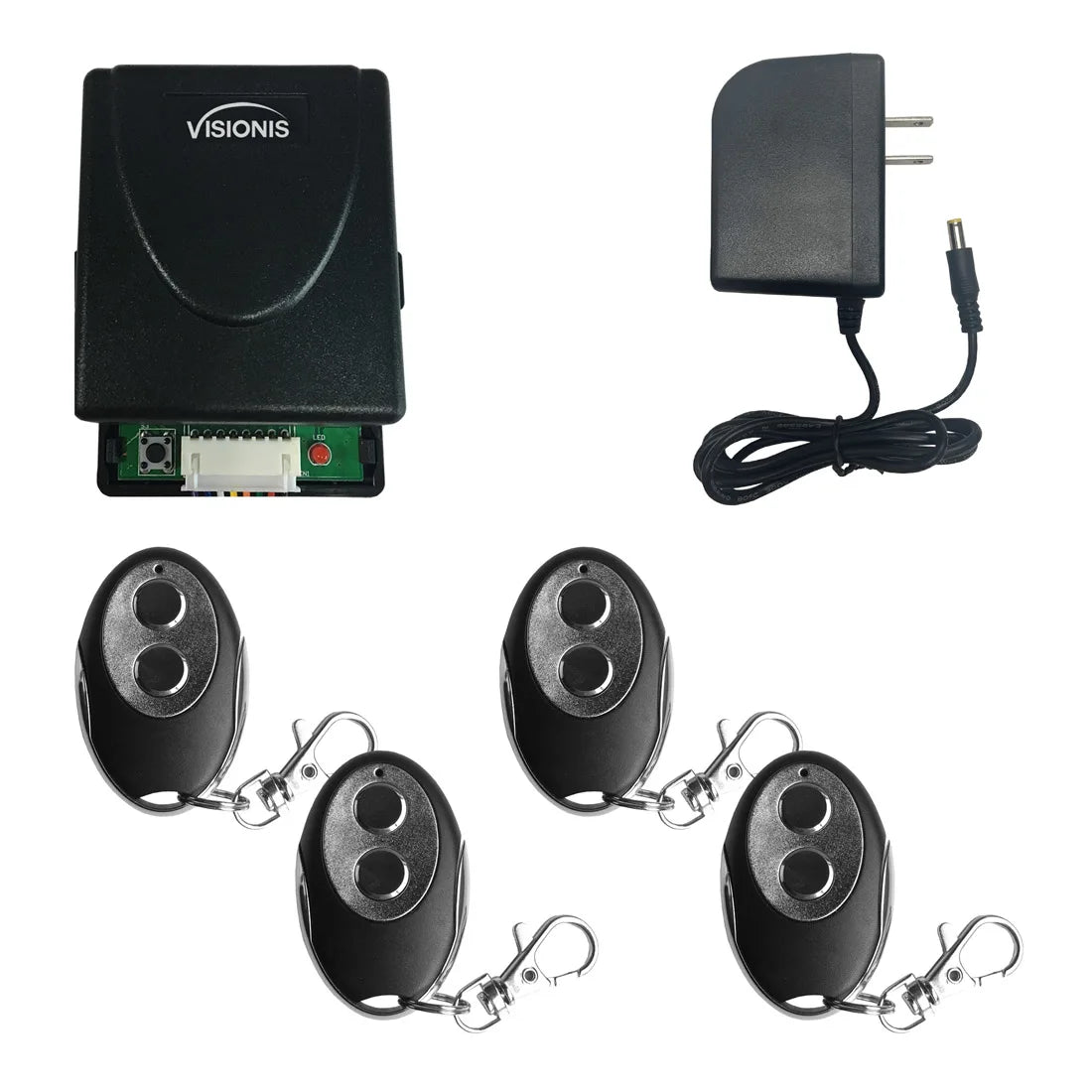

Visionis FPC-5370 4 Mini 315Mhz Wireless Fixed Code Remote With Two Channel RF Receiver And Power Supply Kit

Name: Visionis FPC-5370 4 Mini 315Mhz Wireless Fixed Code Remote With Two Channel RF Receiver And Power Supply Kit
Brand: Visionis
SKU: FPC-5370
Price: 72.15 USD
Availability: InStock

Translation missing: en.products.product.sku:FPC-5370

UPC Code: 723980159420

Product Weight: 2.0 lb

Regular price: $72.15
Sale price: $72.15
Regular price

Shipping calculated at checkout.

In Stock

Quantity:

Phone Life-Time Technical Support

30-Day No Questions Return Policy

*Free Shipping within the USA

Contact an Expert

NOTE

Order Before 3:00pm EST on a week day and your order will be shipped out the same day

*Free shipping within the USA

Including Puerto Rico, Hawaii and Alaska

ATTENTION:

Before purchasing, it is recommended that the customer checks with their local fire authority to see if there is any additional product they may need in order to comply with the local fire codes. We are not responsible for the improper installation of our product(s) or any type of fees that can be incurred by not complying with your local fire authority.
