This PRODUCT has a 3 YEAR warranty with full access to tech support in the USA!

Kit Includes:

(1)

(2)

(1)

VIS-8007: 2 Channels RF Receiver 315MHz

VIS-8008: 2 Channels RF 315MHz Transmitter remote control

VIS-CP200: 12 Volt 2Amp Power Supply Transformer, UL Listed

Description

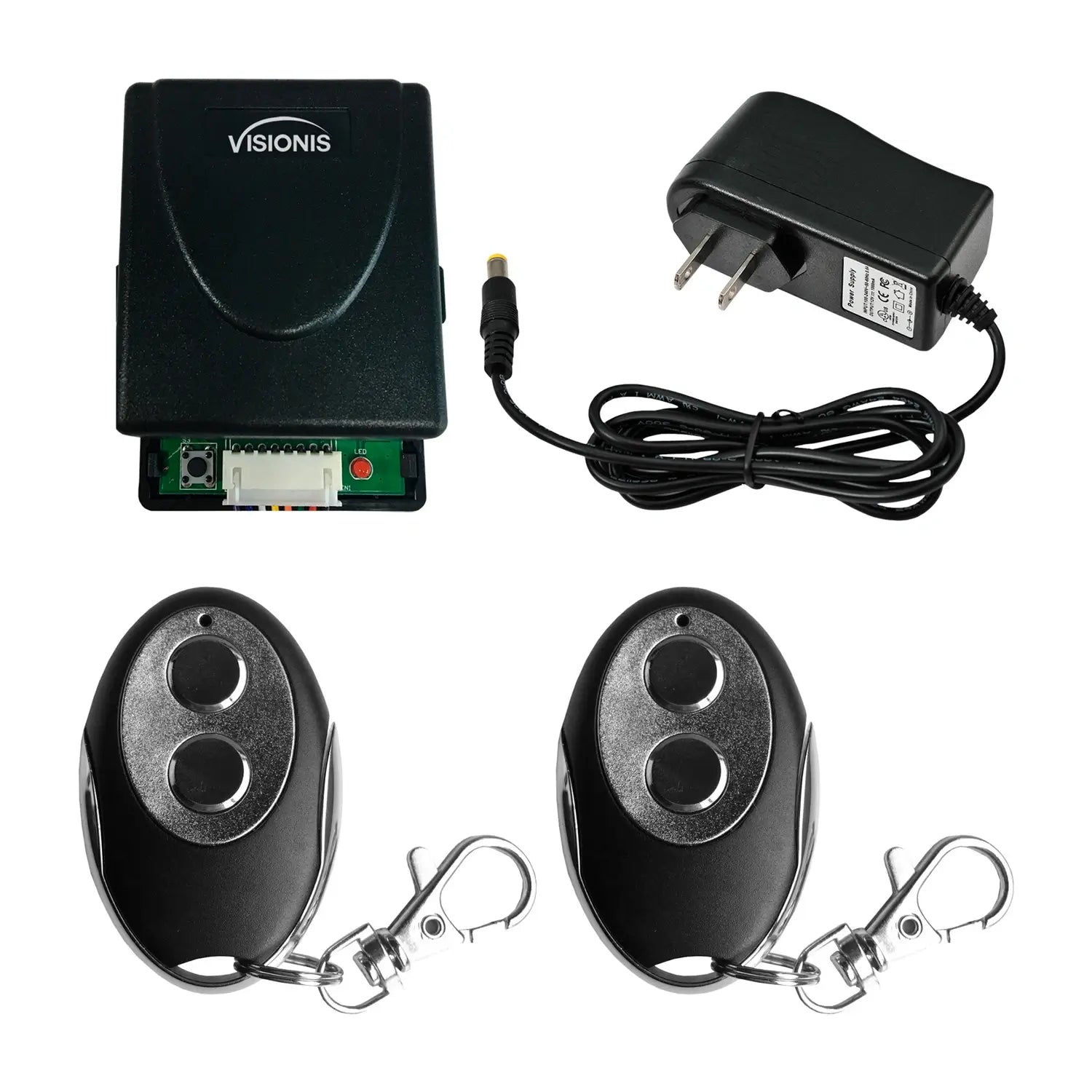

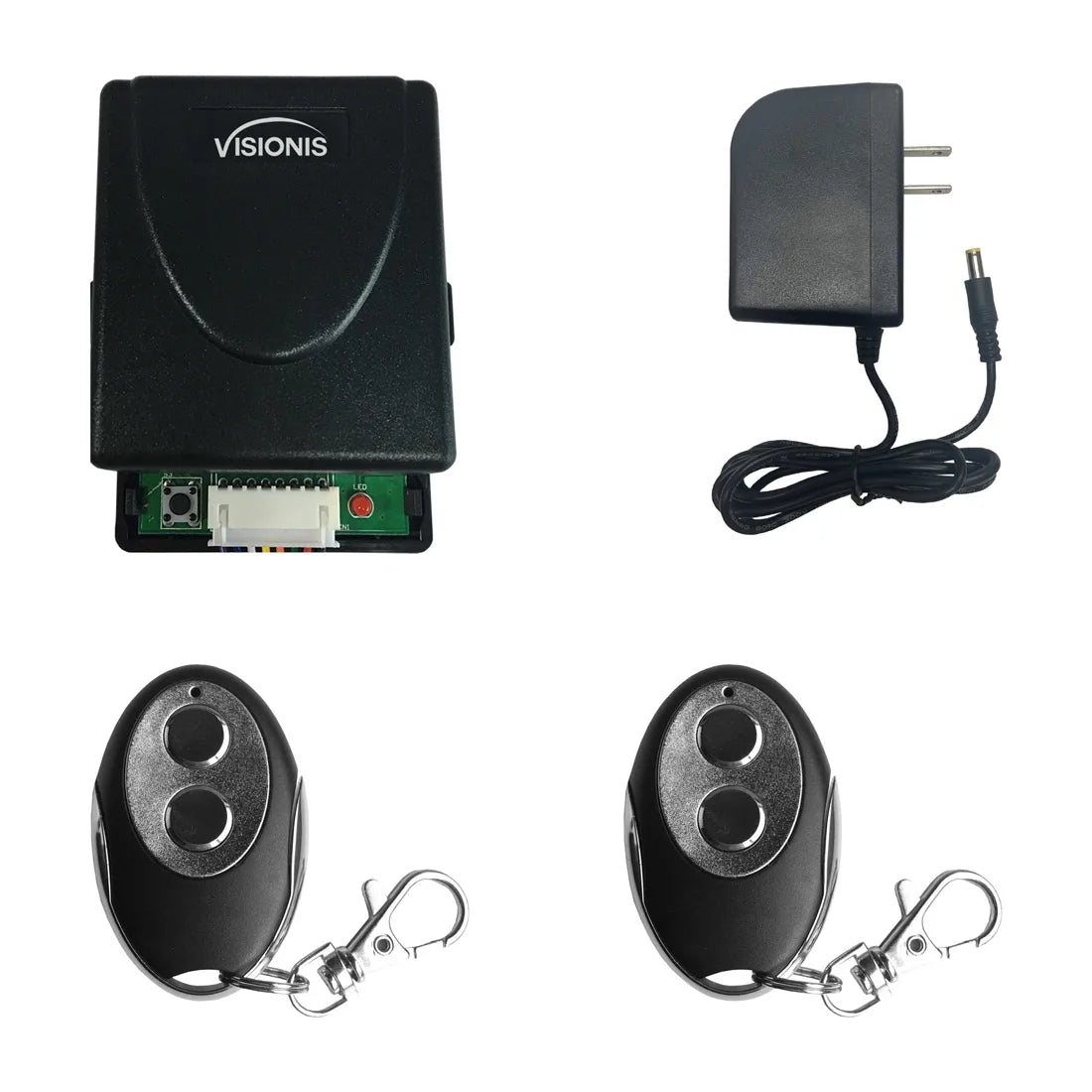

The FPC-5369 kit is a wireless remote and receiver kit. This kit, that brings 2 VIS-8005 wireless remotes, allows you to use for any project that you need that requires anything to be turned on or off. Some examples are access control, garage doors, lights, jacuzzi’s, etc.

Using this simple system, you will be able to control whatever application you choose to use this for by the click of a button. The remote communicates with the wireless receiver, which can program up to 50 remotes, and it has a range of 160 feet.

There are two main features on the receiver that will allow you to program the wireless receiver in two different ways.

Characteristics

Model No. VIS-8007:

Operating Frequency: 315mhz
Number of Codes: 1,048,576
Operating Voltage: DC12V
Operating Distance: Up to 160ft (50m) – The maximum range needs to be used in an open area. The distance will start to diminish based on some type of interference such as metal, concrete and others.
Operating Temperature: 0°C-70°C or 32°F - 158°F
Current Draw: 19mA
Compatible Transmitter: VIS-8008
RF channels: Two
No. of Remotes that are able to connect to one Receiver: Up to 50
Case Construction: ABS Plastic
Dimensions: 62*43.5*30mm (2.44* 1.71*1.18 Inches)
Weight: 43g or 1.52 Ounces

Model No. VIS-8008:

Frequency: 315 MHz
Chip: 1527
Input Voltage: 6V
Button Quantity: 2 buttons
Input Power: 0.06W
Compatible Receiver: VIS-8007
Input Current: 0.01A
Operating Distance: Up to 160ft (50m) – The maximum range needs to be used in an open area. The distance will start to diminish based on some type of interference such as metal, concrete and others.

Model No. VIS-CP200:

Input Voltage Range: AC90V-264V
Input Frequency Range: 50Hz-60Hz
Output Voltage Range: DC12V+/-5%
Output Current: 2A
Output Power: 24 Watts
Output Ripple&Noise: ≤46MV
Output Efficiency: ≥79%
Environment Operating: -30°C~45°C 20%~90%RH
Environment Storage Temp.: -40°C~85°C 10%~95%RH
Product Dimension: 87*36.5*70mm (3.42x1.43x2.75in.)
Product Weight: 116g
Certificate: UL, CE, RoHS, FCC

Description

The FPC-5369 kit is a wireless remote and receiver kit. This kit, that brings 2 VIS-8005 wireless remotes, allows you to use for any project that you need that requires anything to be turned on or off. Some examples are access control, garage doors, lights, jacuzzi’s, etc.

Using this simple system, you will be able to control whatever application you choose to use this for by the click of a button. The remote communicates with the wireless receiver, which can program up to 50 remotes, and it has a range of 160 feet.

There are two main features on the receiver that will allow you to program the wireless receiver in two different ways.

Download Datasheets and Manuals of this product

VIS-8007

VIS-8008

Datasheet
