This PRODUCT has a 3 YEAR warranty with full access to tech support in the USA!

Description

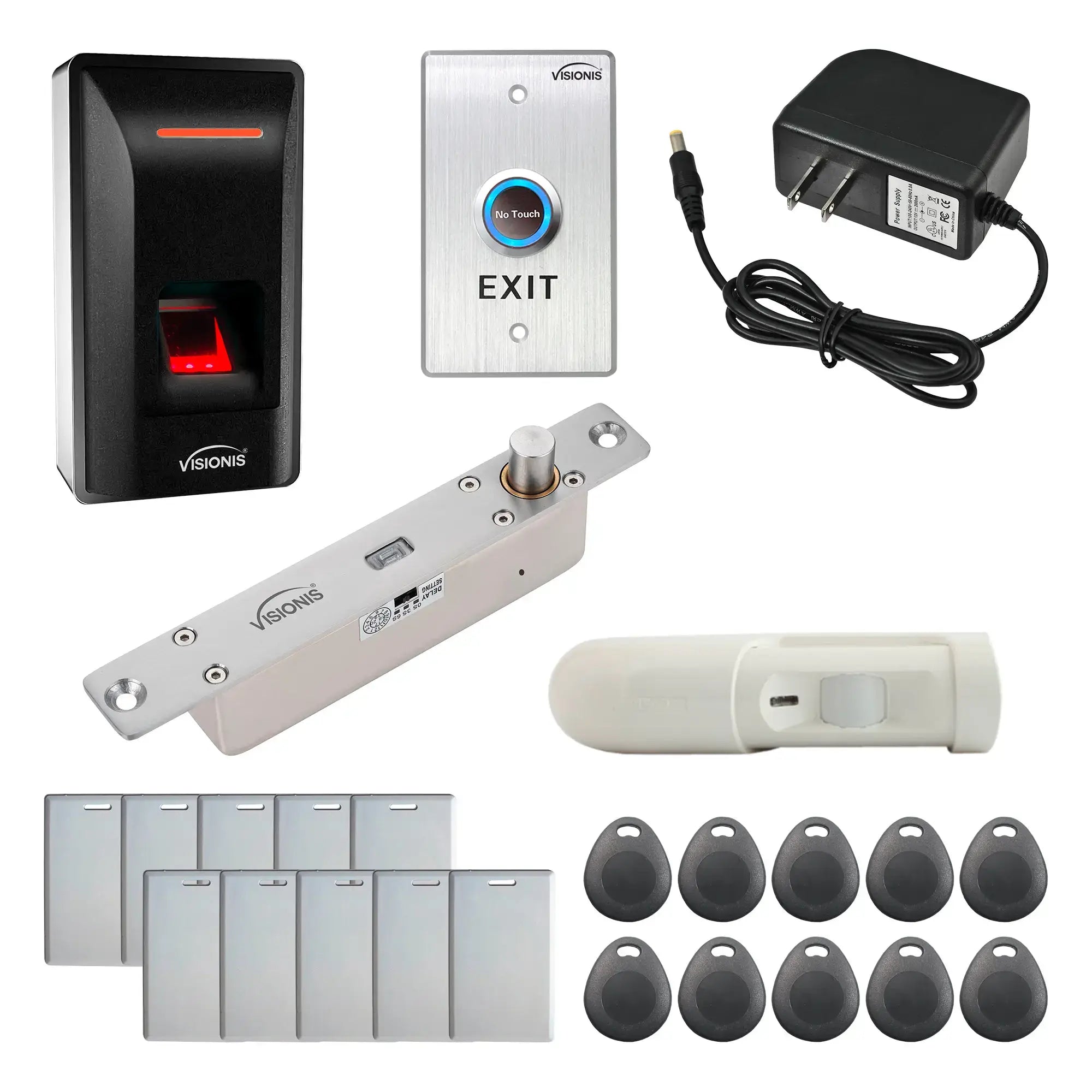

The FPC-9264 is a comprehensive one-door access control system designed for high-security environments requiring biometric access and precise door locking. This kit includes a heavy-duty electric drop bolt lock with 2600lbs holding force, a standalone biometric fingerprint reader, a PIR motion detector, and a no-touch request-to-exit button—making it ideal for offices, secure facilities, and restricted access points.

The VIS-DP102-FSE-LED drop bolt lock is built from solid SUS 304 stainless steel and delivers an impressive 2600lbs (1200kg) of holding force. Designed with a fail-secure function, it remains locked without power and includes an automatic relock feature after 6 seconds if the door remains unopened. With a sleek, compact size and durable construction, it’s tested for 300,000 cycles and suitable for both commercial and industrial use.

At the core of the system is the VIS-3031 biometric reader, which supports RFID and fingerprint recognition for up to 3,000 users and stores 70,000 access records. It features TCP/IP connectivity, Wiegand 26–34 support, and integrates seamlessly with access control software for real-time monitoring, time and attendance tracking, and robust security management.

To complete the system, the VIS-7013 no-touch exit button provides a hygienic and convenient exit solution with an adjustable range of 5–15cm and programmable delay up to 22 seconds. A PIR motion detector (Model AL-OD22) adds an extra layer of hands-free functionality, offering adjustable detection coverage and reliable relay output.

Characteristics

Model No. VIS-DP102-FSE-LED:

  • Voltage: DC12V - DC24V
  • Holding Force: 1200Kg (2600lbs)
  • Current: (DC12V): Standby 110mA
  • Function: Fail Secure. N/O with power it’s unlock

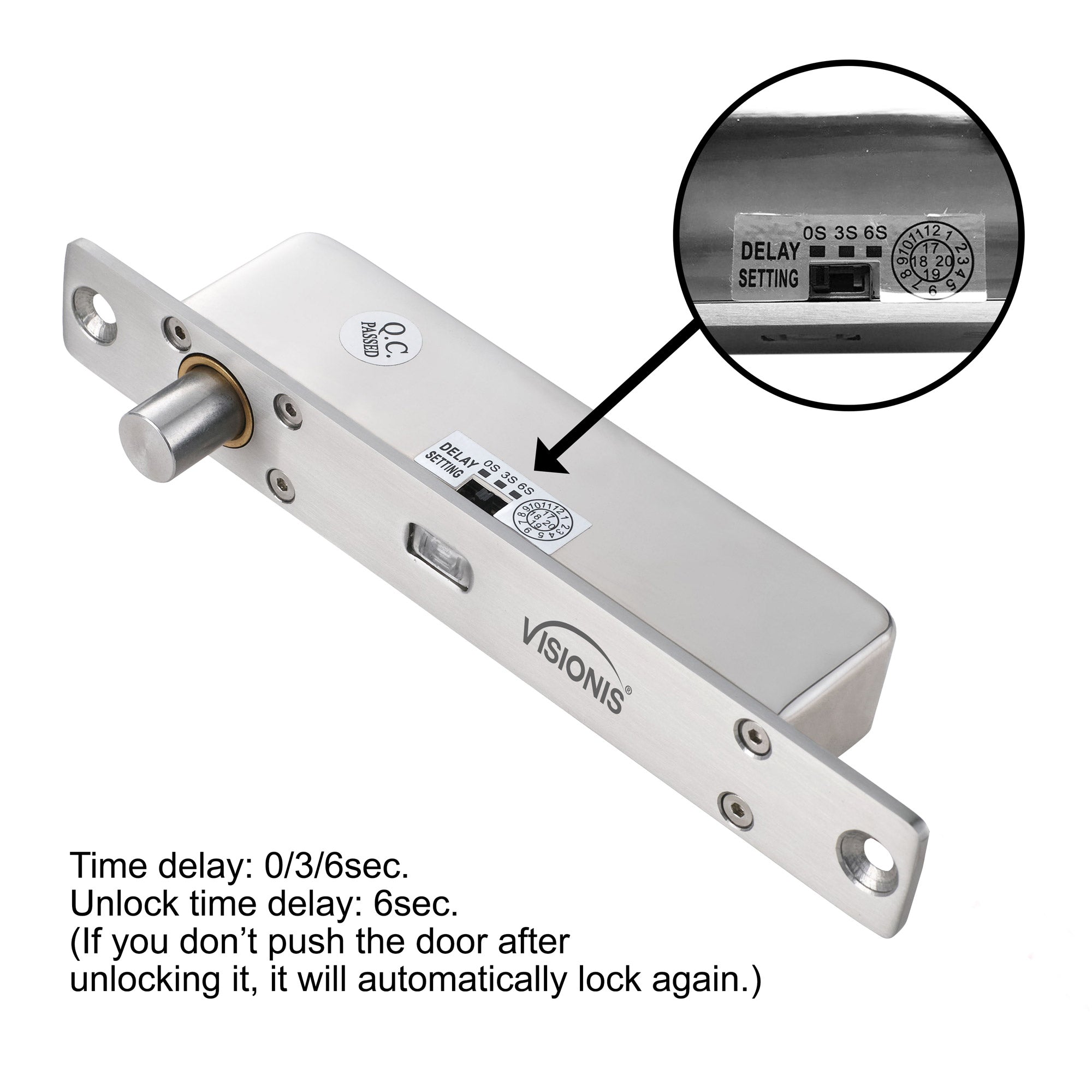

  • Time Delay: 0/3/6 sec; Unlock time delay: 6 sec (If do not push the door after unlocking, again automatically lock)
  • Bolt: SUS 304 solid stainless steel

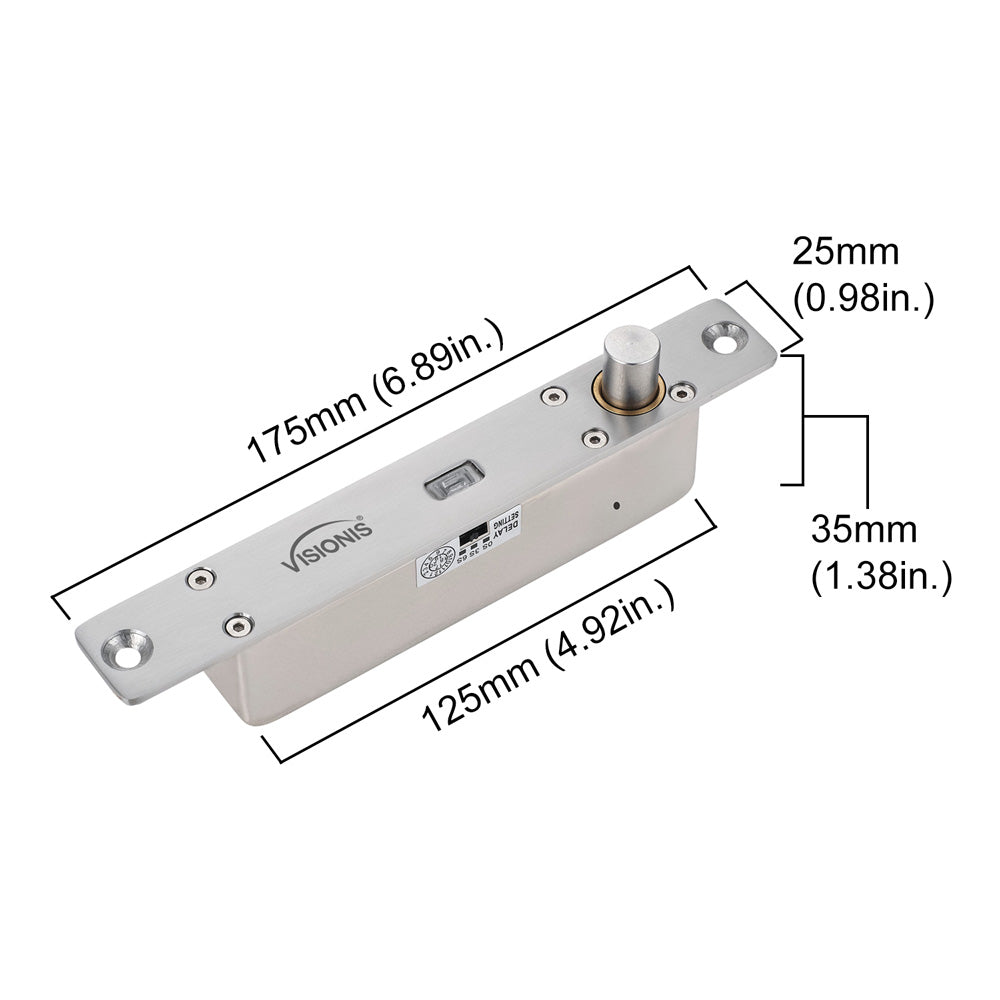

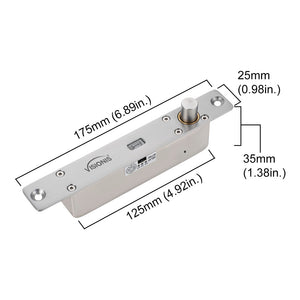

  • Size: 175Lx25Wx35H (mm) - 6.89Lx0.98Wx1.38H (in.)
  • Product + Packaging Weight: 0.64Kg (1.41 pounds)
  • Operating Temperature: -20°C / +50°C (-4°F / 122°F)
  • Cycles Tested: 300.000
Packaging of this product

Model No. VIS-3031:

  • Standalone Application: The unit needs to be connected to the ethernet so you can use the software and add fingerprints.
  • Communication: TCP/IP
  • Working Voltage: DC12V±10%/1A
  • Users / Records: 3.000 / 70.000
  • Recognition Mode: RFID Fingerprint
  • Wiegand Input: 1
  • Wiegand: 26 - 34
  • Exit Button Input: 1
  • Door-magnet Input: 1
  • Alarm Output / Input: 1 / 1
  • Lock Control Output: 1
  • Refusal Rate: < 0.01%
  • Fales Rate: < 0.0001%
  • Working Humidity: 20% ~ 60%
  • Working Temperature: -10°C ~ 45°C (14°F ~ 113°F)
  • Size: 122Lx77Wx45H (mm) - 4.80Lx3.03Wx1.77H (in.)

Model No. VIS-7013:

  • Contact Rating: 12-24V, 3A
  • Output Contact: NO/NC/COM
  • Detection Range: 5-15cm (1.96 - 5.90in.), Adjustable
  • Power: 12VDC or 24VDC
  • LED Color: Blue (Stand by Mode), Green (Active/Open Mode)
  • Time Delay: 0.5~22s
  • Panel: 4mm (0.15) Thick Aluminium Alloy (CNC)
  • Suitable for: Hollow Door
  • Mechanical Life: 100.000 tests
  • Operating Temperature: -20°C~+55°C (14°F-131°F)
  • Operating Humidity: 0-95% (relative humidity)
  • Weight: 0.105kg
  • Dimensions: 115L × 70W × 25H mm - 4.52L x 2.75W x 0.98H in.
Packaging of this product

Model No. AL-OD22 :

  • Supply Voltage: 12-24VDC or VAC
  • Supply Current: 18-30mA@12-24VDC,45-80mA@12-24VAC
  • Relay Output: 2C Contact(N.C/N.O), 24VDC 1A Max.
  • Detection Type: Passive infrared
  • Relay Hold Time: 0.5-64 seconds
  • LED Indication: Red
  • Operating Temp: -14° F to 131° F(-10° Cto55°C)
  • Weight: 0. 4Ib (0. 18kg)
  • Range Coverage: 12x5 ft at 7ft high,30x12 ft at 15 ft high (Adjustment)
  • Humidity: 0-95% non-condensing
  • Dimensions: 6.53"Wx1. 57"Hx1. 53"0 ( 166x40x39mm)

Model No. VIS-CP200:

  • Input Voltage Range: AC90V-264V
  • Input Frequency Range: 50Hz-60Hz
  • Output Voltage Range: DC12V+/-5%
  • Output Current: 2A
  • Output Power: 24 Watts
  • Output Ripple&Noise: ≤46MV
  • Output Efficiency: ≥79%
  • Environment Operating: -30°C~45°C 20%~90%RH
  • Environment Storage Temp.: -40°C~85°C 10%~95%RH
  • Product Dimension: 87*36.5*70mm (3.42x1.43x2.75in.)
  • Product Weight: 116g
  • Certificate: UL, CE, RoHS, FCC
Description

The FPC-9264 is a comprehensive one-door access control system designed for high-security environments requiring biometric access and precise door locking. This kit includes a heavy-duty electric drop bolt lock with 2600lbs holding force, a standalone biometric fingerprint reader, a PIR motion detector, and a no-touch request-to-exit button—making it ideal for offices, secure facilities, and restricted access points.

The VIS-DP102-FSE-LED drop bolt lock is built from solid SUS 304 stainless steel and delivers an impressive 2600lbs (1200kg) of holding force. Designed with a fail-secure function, it remains locked without power and includes an automatic relock feature after 6 seconds if the door remains unopened. With a sleek, compact size and durable construction, it’s tested for 300,000 cycles and suitable for both commercial and industrial use.

At the core of the system is the VIS-3031 biometric reader, which supports RFID and fingerprint recognition for up to 3,000 users and stores 70,000 access records. It features TCP/IP connectivity, Wiegand 26–34 support, and integrates seamlessly with access control software for real-time monitoring, time and attendance tracking, and robust security management.

To complete the system, the VIS-7013 no-touch exit button provides a hygienic and convenient exit solution with an adjustable range of 5–15cm and programmable delay up to 22 seconds. A PIR motion detector (Model AL-OD22) adds an extra layer of hands-free functionality, offering adjustable detection coverage and reliable relay output.

Download Datasheets and Manuals of this product

VIS-DP102-FSE-LED

VIS-3031

VIS-7013

AL-OD22

VIS-PROXCARD

VIS-KEYTAG / VIS-KEYTAG-BLUE
