This PRODUCT has a 3 YEAR warranty with full access to tech support in the USA!

Description

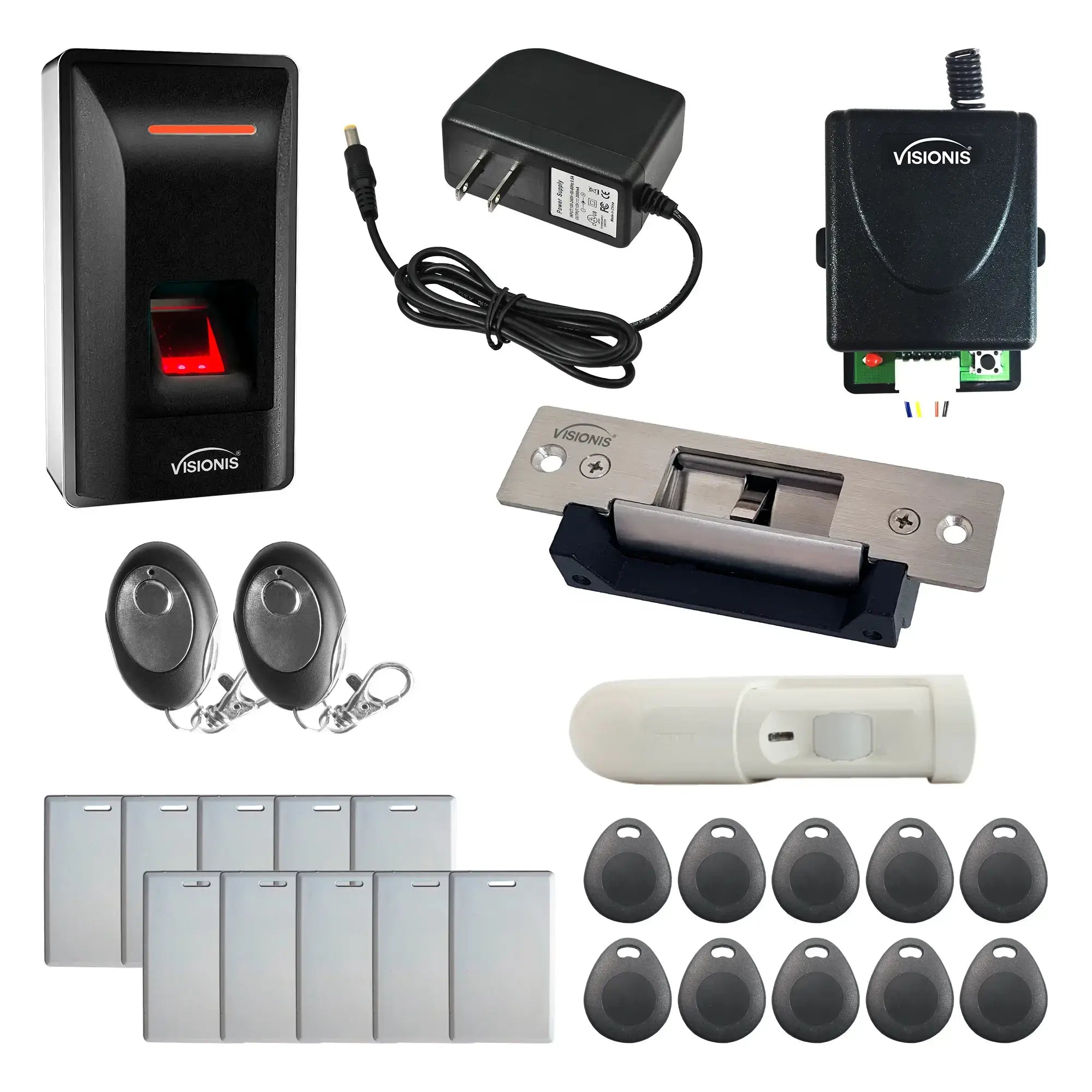

The FPC-9261 is a comprehensive one-door access control system designed for high-security environments requiring biometric access and precise door locking. This kit includes a heavy-duty electric strike with 770lbs holding force, a standalone biometric fingerprint reader, a PIR motion detector, and a wireless receiver—making it ideal for offices, secure facilities, and restricted access points.

At the core of the system is the VIS-3031 biometric reader, which supports RFID and fingerprint recognition for up to 3,000 users and stores 70,000 access records. It features TCP/IP connectivity, Wiegand 26–34 support, and integrates seamlessly with access control software for real-time monitoring, time and attendance tracking, and robust security management.

To complete the system, the VIS-7013 no-touch exit button provides a hygienic and convenient exit solution with an adjustable range of 5–15cm and programmable delay up to 22 seconds. A PIR motion detector (Model AL-OD22) adds an extra layer of hands-free functionality, offering adjustable detection coverage and reliable relay output.

The VIS-8004 and VIS-8005 combo offers long-range wireless door control—perfect for remote entry or emergency overrides. Supports up to 50 remotes and multiple output modes (momentary, toggle, latch).

Characteristics

Model No. VIS-EL104-FSESA:

  • Lock Size: 124.6Lx32.3H (mm) - 4.90Lx1.27H (in.)
  • Holding Strength: 350kg (770 pounds)
  • Voltage: 12VDC
  • Current: 12VDC - 280mA // 24VDC - 140mA
  • Feature: Fail Safe and Fail Secure Adjustable
  • Suitable For: Wooden Door, Metal Door, PVC Door
  • Cycles Tested: 300.000
  • Operating Temperature: -15°C / +40°C (5°F / 104°F)
  • Product + Packaging Weight: 0.50kg (1.10 pounds)

Model No. VIS-3031:

  • Standalone Application: The unit needs to be connected to the ethernet so you can use the software and add fingerprints.
  • Communication: TCP/IP
  • Working Voltage: DC12V±10%/1A
  • Users / Records: 3.000 / 70.000
  • Recognition Mode: RFID Fingerprint
  • Wiegand Input: 1
  • Wiegand: 26 - 34
  • Exit Button Input: 1
  • Door-magnet Input: 1
  • Alarm Output / Input: 1 / 1
  • Lock Control Output: 1
  • Refusal Rate: < 0.01%
  • Fales Rate: < 0.0001%
  • Working Humidity: 20% ~ 60%
  • Working Temperature: -10°C ~ 45°C (14°F ~ 113°F)
  • Size: 122Lx77Wx45H (mm) - 4.80Lx3.03Wx1.77H (in.)

Model No. VIS-8004:

  • Operating Frequency: 315mhz
  • Number of Codes: 1,048,576
  • Data Format: PWM
  • Operating Voltage: +12V 24V
  • Operating Distance: Up to 160ft (50m) - The maximum range needs to be used in an open area. The distance will start to diminish based on some type of interference such as metal, concrete and others.
  • Operating Temperature: 0-70°C or 32 - 158°F
  • Current Draw: 19mA
  • Compatible Transmitter: VIS-8005
  • RF channels: One
  • No. of Remotes that are able to connect to one Receiver: Up to 50
  • Receiver Output: C dry contact (NO/NC/COM)
  • Receiver Output Functions: 4 (Default) 4 second momentary, latch, toggle (On/Off), press on function
  • Connectors: 5 screw Terminal (NO, COM, NC + -)
  • Case Construction: ABS Plastic
  • Dimensions: 62*43.5*30mm (2.44* 1.71*1.18 Inches)
  • Weight: 43g or 1.52 Ounces
  • Certifications: FCC
  • Antenna: Wire lead
  • Mounting Screws: Comes with two mounting screws
  • Wire Harness: Included
  • Power supply: Not included (only included in the form of kits.)
Packaging of this product

Model No. VIS-8005:

  • Frequency: 315mhz
  • Chip: 1527
  • Input Voltage: 6V
  • Button Quantity: 1 button
  • Input Power: 0.06W
  • Input Current: 0.01A
  • Up to 160ft (50m) - The maximum range needs to be used in an open area. The distance will start to diminish based on some type of interference such as metal, concrete and others.
Packaging of this product

Model No. AL-OD22 :

  • Supply Voltage: 12-24VDC or VAC
  • Supply Current: 18-30mA@12-24VDC,45-80mA@12-24VAC
  • Relay Output: 2C Contact(N.C/N.O), 24VDC 1A Max.
  • Detection Type: Passive infrared
  • Relay Hold Time: 0.5-64 seconds
  • LED Indication: Red
  • Operating Temp: -14° F to 131° F(-10° Cto55°C)
  • Weight: 0. 4Ib (0. 18kg)
  • Range Coverage: 12x5 ft at 7ft high,30x12 ft at 15 ft high (Adjustment)
  • Humidity: 0-95% non-condensing
  • Dimensions: 6.53"Wx1. 57"Hx1. 53"0 ( 166x40x39mm)

Model No. VIS-CP200:

  • Cable Length: 1.2 meters (4 feet)
  • Input Voltage Range: AC90V-264V
  • Input Frequency Range: 50Hz-60Hz
  • Output Voltage Range: DC12V+/-5%
  • Output Current: 2A
  • Output Power: 24 Watts
  • Output Ripple&Noise: ≤46MV
  • Output Efficiency: ≥79%
  • Environment Operating: -30°C~45°C 20%~90%RH
  • Environment Storage Temp.: -40°C~85°C 10%~95%RH
  • Product Dimension: 87*36.5*70mm (3.42x1.43x2.75in.)
  • Product Weight: 116g
  • Certificate: UL, CE, RoHS, FCC
Description

The FPC-9261 is a comprehensive one-door access control system designed for high-security environments requiring biometric access and precise door locking. This kit includes a heavy-duty electric strike with 770lbs holding force, a standalone biometric fingerprint reader, a PIR motion detector, and a wireless receiver—making it ideal for offices, secure facilities, and restricted access points.

At the core of the system is the VIS-3031 biometric reader, which supports RFID and fingerprint recognition for up to 3,000 users and stores 70,000 access records. It features TCP/IP connectivity, Wiegand 26–34 support, and integrates seamlessly with access control software for real-time monitoring, time and attendance tracking, and robust security management.

To complete the system, the VIS-7013 no-touch exit button provides a hygienic and convenient exit solution with an adjustable range of 5–15cm and programmable delay up to 22 seconds. A PIR motion detector (Model AL-OD22) adds an extra layer of hands-free functionality, offering adjustable detection coverage and reliable relay output.

The VIS-8004 and VIS-8005 combo offers long-range wireless door control—perfect for remote entry or emergency overrides. Supports up to 50 remotes and multiple output modes (momentary, toggle, latch).

Download Datasheets and Manuals of this product

VIS-EL104-FSESA

VIS-3031

VIS-8004

VIS-8005

AL-OD22

VIS-PROXCARD

VIS-KEYTAG / VIS-KEYTAG-BLUE
