This PRODUCT has a 3 YEAR warranty with full access to tech support in the USA!

Description

The Visionis VIS-EL101-FSA is a normally closed electric strike lock that provides 770lbs of reinforcement.

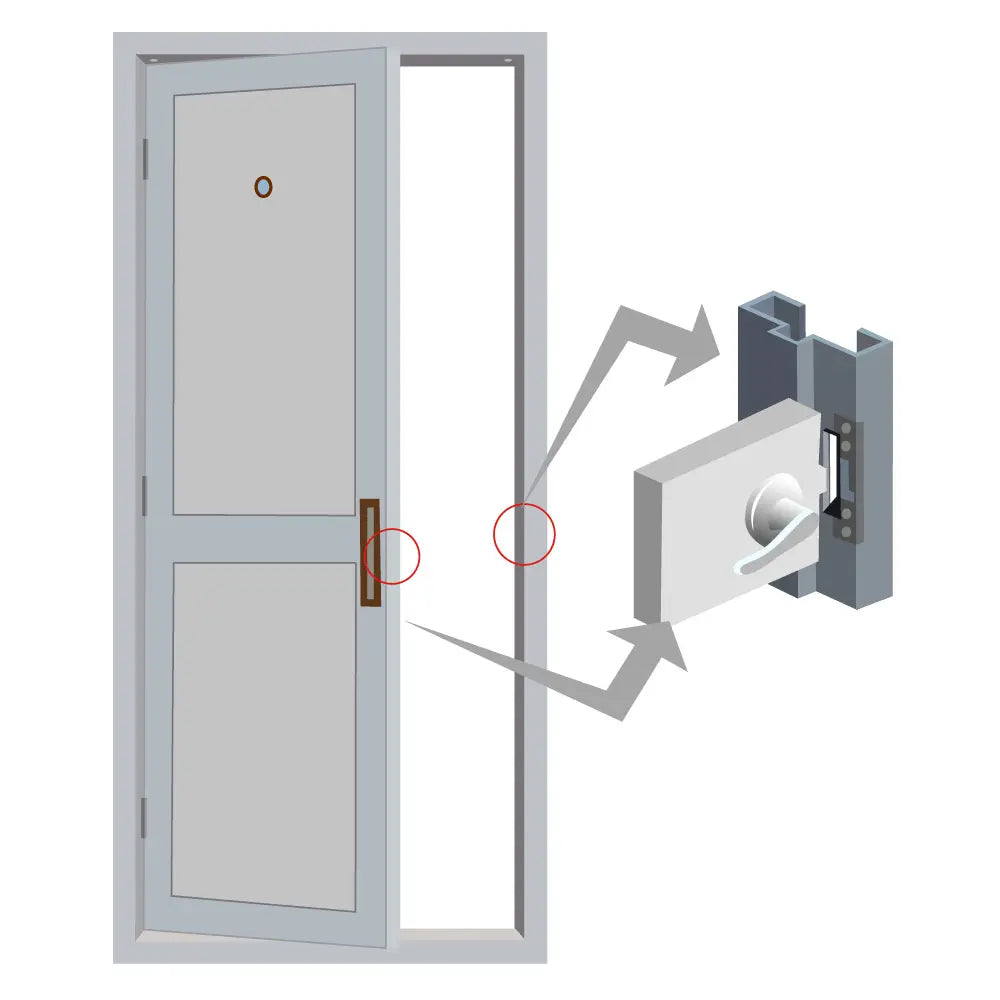

This model can be used on wood, metal, and PVC doors. Whether it is for a simple or advanced access control system, this strike suits multiple security needs and is reliable. The strike is installed within your door frame and used to secure your door for your access purposes.

Electric strikes are great for doors, small enclosures, or any area door you would like to give added security to at any time. This particular electric strike is fail-safe; meaning that in the case of a power outage, the latch will disengage and the door will become unlocked.

This product doesn’t include a power supply. You might want to consider a kit that comes with one for an easier setup.


This product belongs to the Locking Devices



If you need a Fail Secure option, check out this Electric Strike

Characteristics

Model No. VIS-EL101-FSA:

  • Lock Size: 150Lx40W34H (mm) - 5.90Lx1.57Wx1.34H (in.)
  • Holding Strength: 350kg (770 pounds)
  • Voltage: 12VDC
  • Current: 200 - 230 mA
  • Feature: Fail Safe. N/C with power it’s lock
  • Microswitch / Monitoring / 305 Yes
  • Suitable For: Wooden Door, Metal Door, PVC Door
  • Connections:
    Power supply: No polarity (Polarity if a diode is installed).
    Microswitch: COM contact, NC contact, NO contact.
  • Cycles Tested: 300.000
  • Operating Temperature: -15°C / +40°C (5°F / 104°F)
  • Solenoid: Continuously duty
  • Product + Packaging Weight: 0.31kg (0.68 pounds)

Description

The Visionis VIS-EL101-FSA is a normally closed electric strike lock that provides 770lbs of reinforcement.

This model can be used on wood, metal, and PVC doors. Whether it is for a simple or advanced access control system, this strike suits multiple security needs and is reliable. The strike is installed within your door frame and used to secure your door for your access purposes.

Electric strikes are great for doors, small enclosures, or any area door you would like to give added security to at any time. This particular electric strike is fail-safe; meaning that in the case of a power outage, the latch will disengage and the door will become unlocked.

This product doesn’t include a power supply. You might want to consider a kit that comes with one for an easier setup.


This product belongs to the Locking Devices



If you need a Fail Secure option, check out this Electric Strike

Characteristics
Packaging of this product

Model No. VIS-EL101-FSA:

  • Lock Size: 150Lx40W34H (mm) - 5.90Lx1.57Wx1.34H (in.)
  • Holding Strength: 350kg (770 pounds)
  • Voltage: 12VDC
  • Current: 200 - 230 mA
  • Feature: Fail Safe. N/C with power it’s lock
  • Microswitch / Monitoring / 305 Yes
  • Suitable For: Wooden Door, Metal Door, PVC Door
  • Connections:
    Power supply: No polarity (Polarity if a diode is installed).
    Microswitch: COM contact, NC contact, NO contact.
  • Cycles Tested: 300.000
  • Operating Temperature: -15°C / +40°C (5°F / 104°F)
  • Solenoid: Continuously duty
  • Product + Packaging Weight: 0.31kg (0.68 pounds)
  • What door types is this electric strike compatible with?

    It is designed for wood, metal, and PVC doors, making it a versatile option for both residential and commercial installations

  • Is this door strike weatherproof?

    No, this electric strike is not weatherproof. It is designed specifically for indoor use.

  • Does it have a built-in alarm?

    No, this electric door strike does not have a built-in audible alarm.

  • Can this be used for commercial purposes?

    Yes, this door strike model is ideal for commercial use, offering 770 lbs holding force, fail-secure functionality, perfect for securing interior doors in offices, retail, or restricted areas.

Download Datasheets and Manuals of this product

VIS-EL101-FSA

Contact Us for Support

LET US HELP YOU WITH YOUR PURCHASE

Feel free to contact our dedicated support team if you have any questions or if you're ready to place an order.

I Need Help
Visionis by Visionis

Electric Door Strike for Wood and Metal Door. 770lbs (350kg) Holding Strength. Stainless Steel. 12V Fail Safe Normally Closed. VIS-EL101-FSA Visionis

Translation missing: en.products.product.sku:VIS-EL101-FSA

UPC Code: 723980159826 Weight: 2.0 lb
  • CE Certificate

  • This model can be used on wood, metal, and PVC doors.
  • Fail Safe. N/C with power it’s lock
  • Holding Strength: 350kg (770 pounds)
  • Voltage: 12VDC

THIS PRODUCT DOES NOT INCLUDE A POWER SUPPLY
