What door types is this electric strike compatible with?

It is designed for wood, metal, and PVC doors, making it a versatile option for both residential and commercial installations

Is this door strike weatherproof?

No, this electric strike is not weatherproof. It is designed specifically for indoor use.

Does it have a built-in alarm?

No, this electric door strike does not have a built-in audible alarm.

Can this be used for commercial purposes?

Yes, this door strike model is ideal for commercial use, offering 770 lbs holding force, fail-secure functionality, perfect for securing interior doors in offices, retail, or restricted areas.

Door strike for door access control - VIS-EL100-FSE Visionis

Electric Strikes for Door Access Control

Electric door strike reviews - VIS-EL100-FSE Visionis

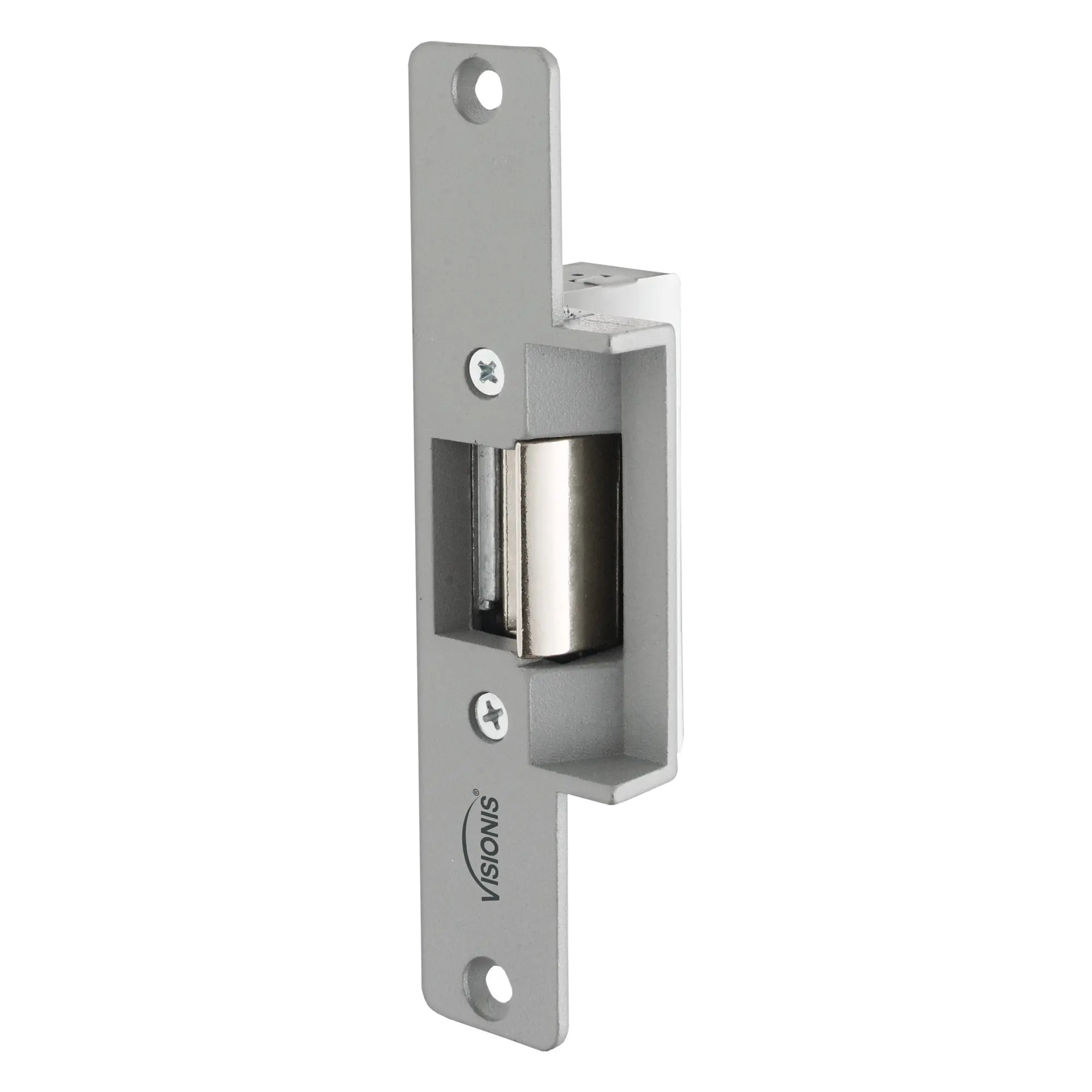

Electric strike for door access control - VIS-EL100-FSE Visionis

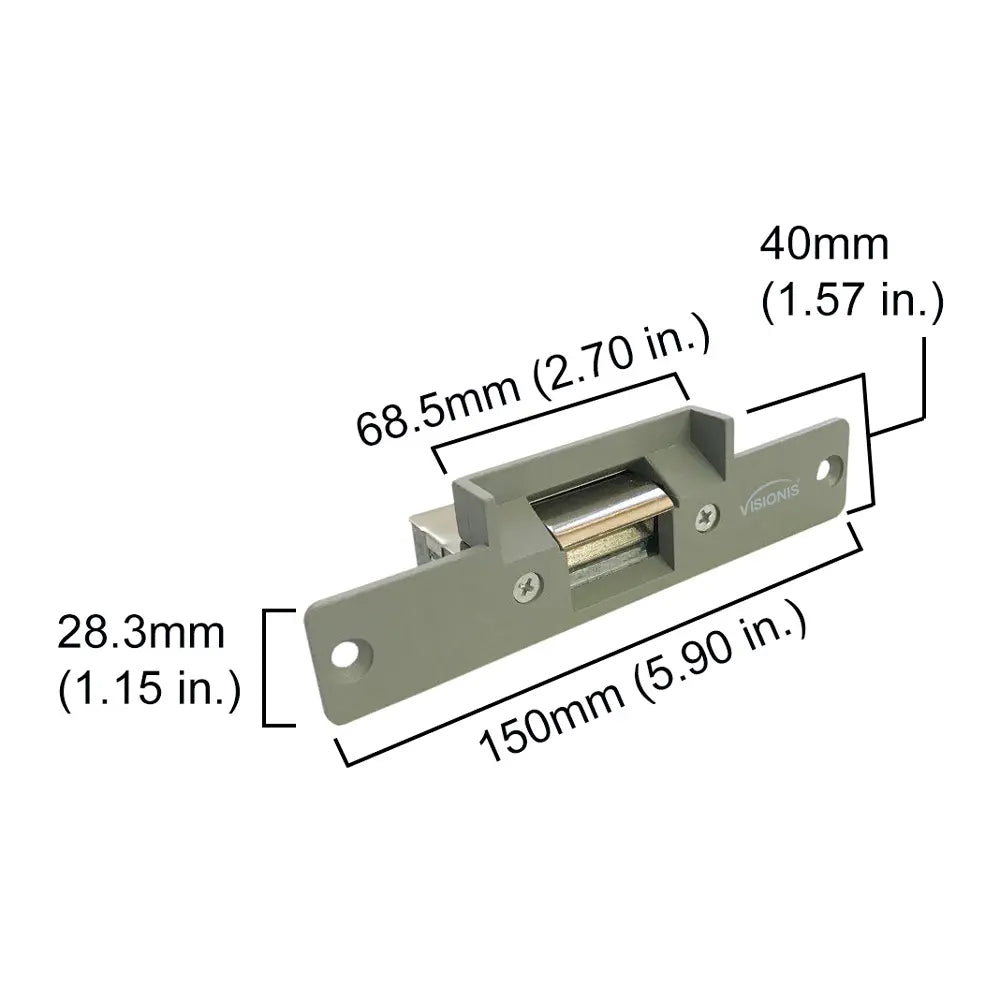

Electric door strike dimensions - VIS-EL100-FSE Visionis

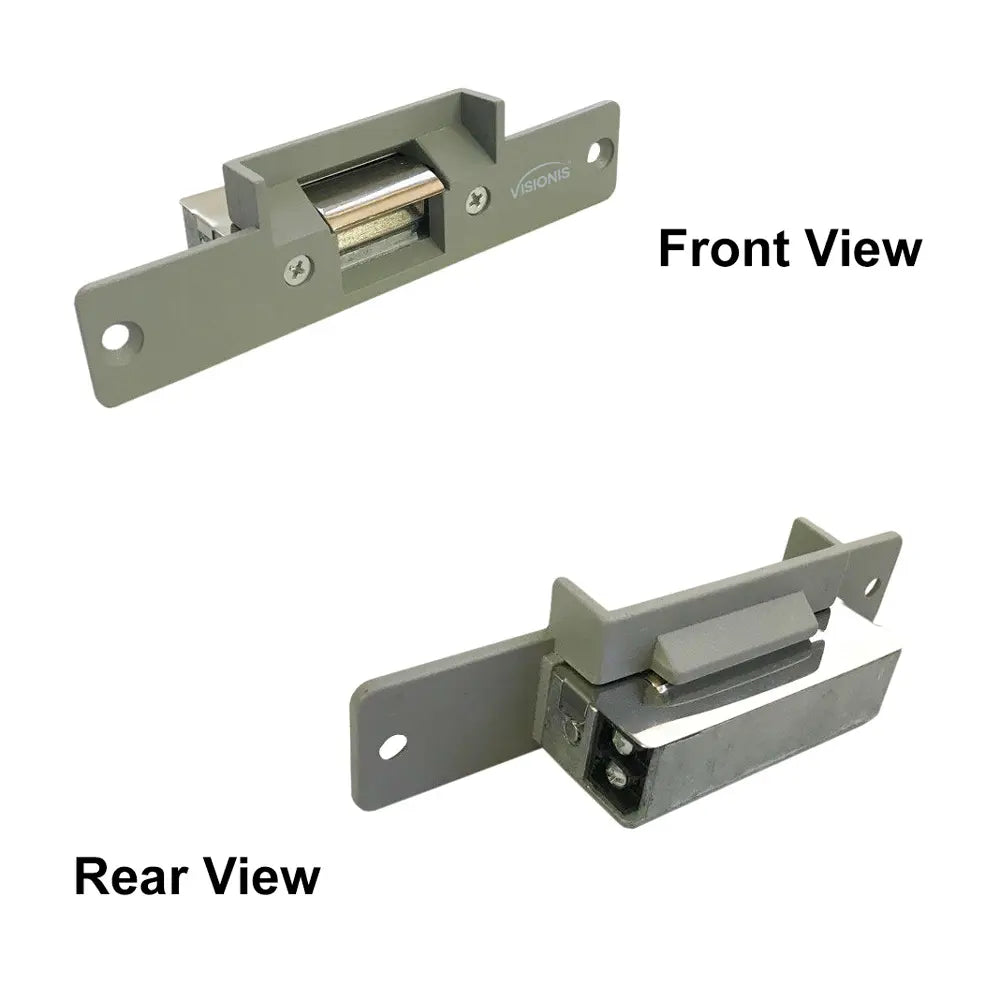

Electric door strike front a rear view - VIS-EL100-FSE Visionis

Electric door strike for access control systems - VIS-EL100-FSE Visionis

Looking for something slightly different? Check out these variations:

This PRODUCT has a 3 YEAR warranty with full access to tech support in the USA!

Description

The Visionis VIS-EL100-FSE is a normally open electric strike lock that provides 770lbs of reinforcement made from stainless steel. This model can be used on wood, metal, and PVC doors.

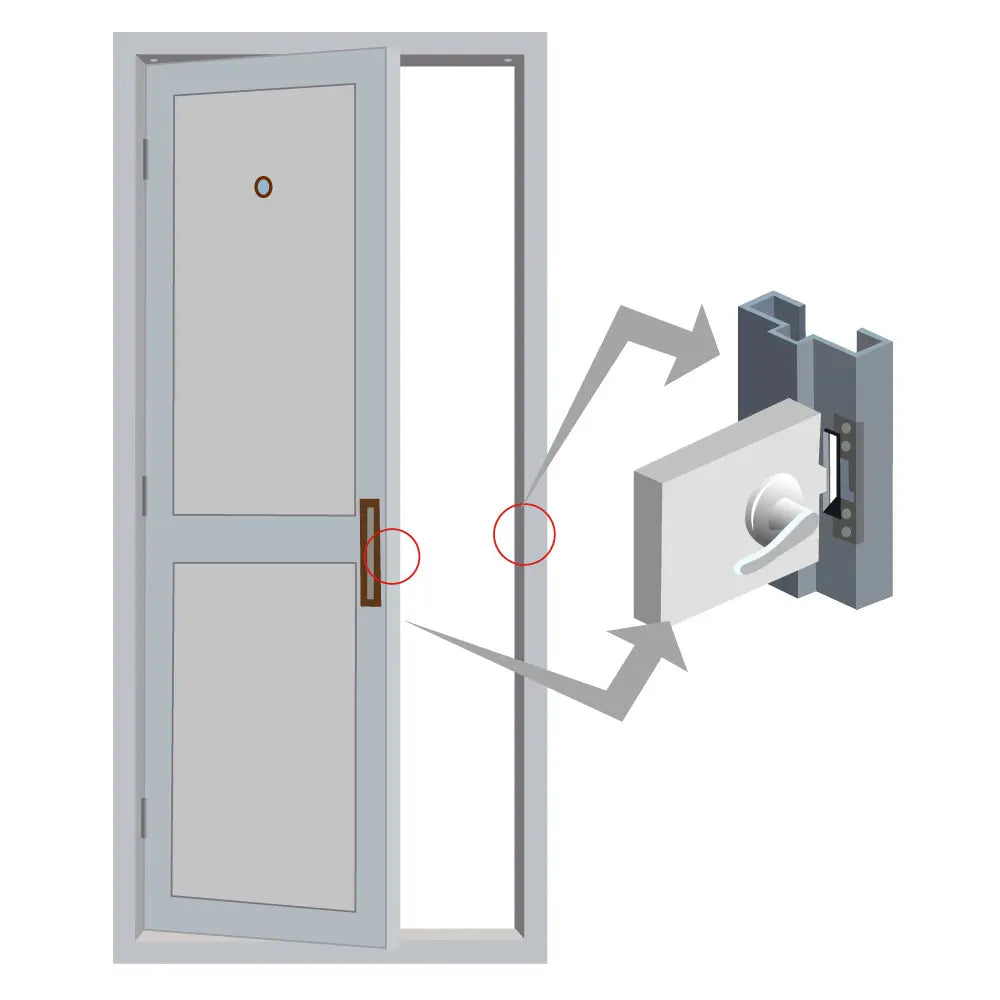

Whether it is for a simple or advanced access control system, this strike suits multiple security needs and is reliable. The strike is installed within your door frame and used to secure your door for your access purposes.

Electric strikes are great for doors, small enclosures, or any area door you would like to give added security to at any time. This particular electric strike is fail-secure; meaning that in the case of a power outage, the latch will engage and the door will become locked.

This product doesn’t include a power supply. You might want to consider a kit that comes with one for an easier setup.

Check out this Fail Safe Normally Closed of this electric strike model, the VIS-EL101-FSA.

This product belongs to the Locking Devices

Characteristics

Model No. VIS-EL100-FSE:

Lock Size: 150Lx40W34H (mm) - 5.90Lx1.57Wx1.34H (in.)
Holding Strength: 350kg (770 pounds)
Voltage: 12VDC
Current: 180 - 200 mA
Feature: Fail Secure. N/O with power is unlock
Microswitch / Monitoring / 305: Yes
Suitable For: Wooden Door, Metal Door, PVC Door
Connections:

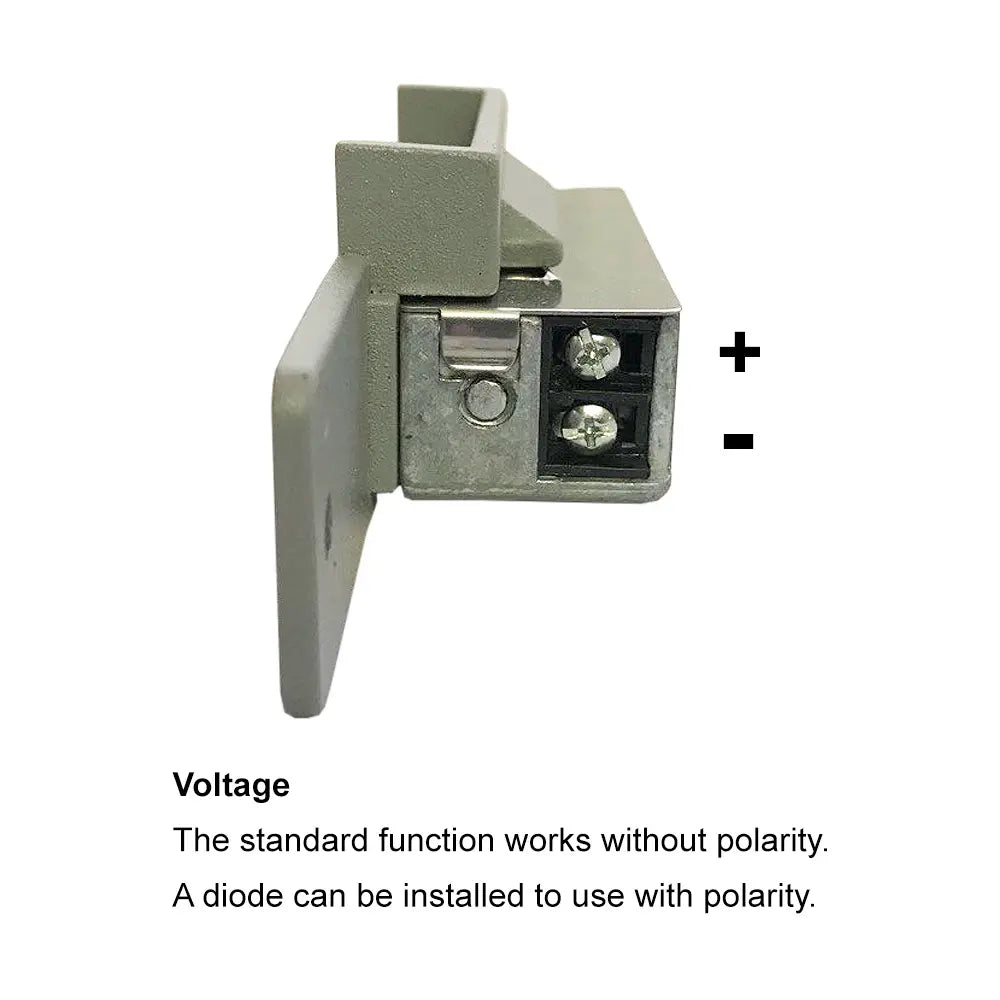

Power supply: No polarity (Polarity if a diode is installed).
Microswitch: COM contact, NC contact, NO contact.
Cycles Tested: 300.000
Operating Temperature: -15°C / +40°C (5°F / 104°F)
Solenoid: Continuously duty
Product + Packaging Weight: 0.31kg (0.68 pounds)

Description

The Visionis VIS-EL100-FSE is a normally open electric strike lock that provides 770lbs of reinforcement made from stainless steel. This model can be used on wood, metal, and PVC doors.

Whether it is for a simple or advanced access control system, this strike suits multiple security needs and is reliable. The strike is installed within your door frame and used to secure your door for your access purposes.

Electric strikes are great for doors, small enclosures, or any area door you would like to give added security to at any time. This particular electric strike is fail-secure; meaning that in the case of a power outage, the latch will engage and the door will become locked.

This product doesn’t include a power supply. You might want to consider a kit that comes with one for an easier setup.

Check out this Fail Safe Normally Closed of this electric strike model, the VIS-EL101-FSA.

This product belongs to the Locking Devices

Characteristics

Model No. VIS-EL100-FSE:

Lock Size: 150Lx40W34H (mm) - 5.90Lx1.57Wx1.34H (in.)
Holding Strength: 350kg (770 pounds)
Voltage: 12VDC
Current: 180 - 200 mA
Feature: Fail Secure. N/O with power is unlock
Microswitch / Monitoring / 305: Yes
Suitable For: Wooden Door, Metal Door, PVC Door
Connections:
Power supply: No polarity (Polarity if a diode is installed).
Microswitch: COM contact, NC contact, NO contact.
Cycles Tested: 300.000
Operating Temperature: -15°C / +40°C (5°F / 104°F)
Solenoid: Continuously duty
Product + Packaging Weight: 0.31kg (0.68 pounds)

Product FAQs

What door types is this electric strike compatible with?

It is designed for wood, metal, and PVC doors, making it a versatile option for both residential and commercial installations
Is this door strike weatherproof?

No, this electric strike is not weatherproof. It is designed specifically for indoor use.
Does it have a built-in alarm?

No, this electric door strike does not have a built-in audible alarm.
Can this be used for commercial purposes?

Yes, this door strike model is ideal for commercial use, offering 770 lbs holding force, fail-secure functionality, perfect for securing interior doors in offices, retail, or restricted areas.
