What door types is this electric strike compatible with?

It is designed for wood, metal, and PVC doors, making it a versatile option for both residential and commercial installations

Is this door strike weatherproof?

No, this electric strike is not weatherproof. It is designed specifically for indoor use.

Does it have a built-in alarm?

No, this electric door strike does not have a built-in audible alarm.

Can this be used for commercial purposes?

Yes, this door strike model is ideal for commercial use, offering 770 lbs holding force, fail-secure functionality, perfect for securing interior doors in offices, retail, or restricted areas.

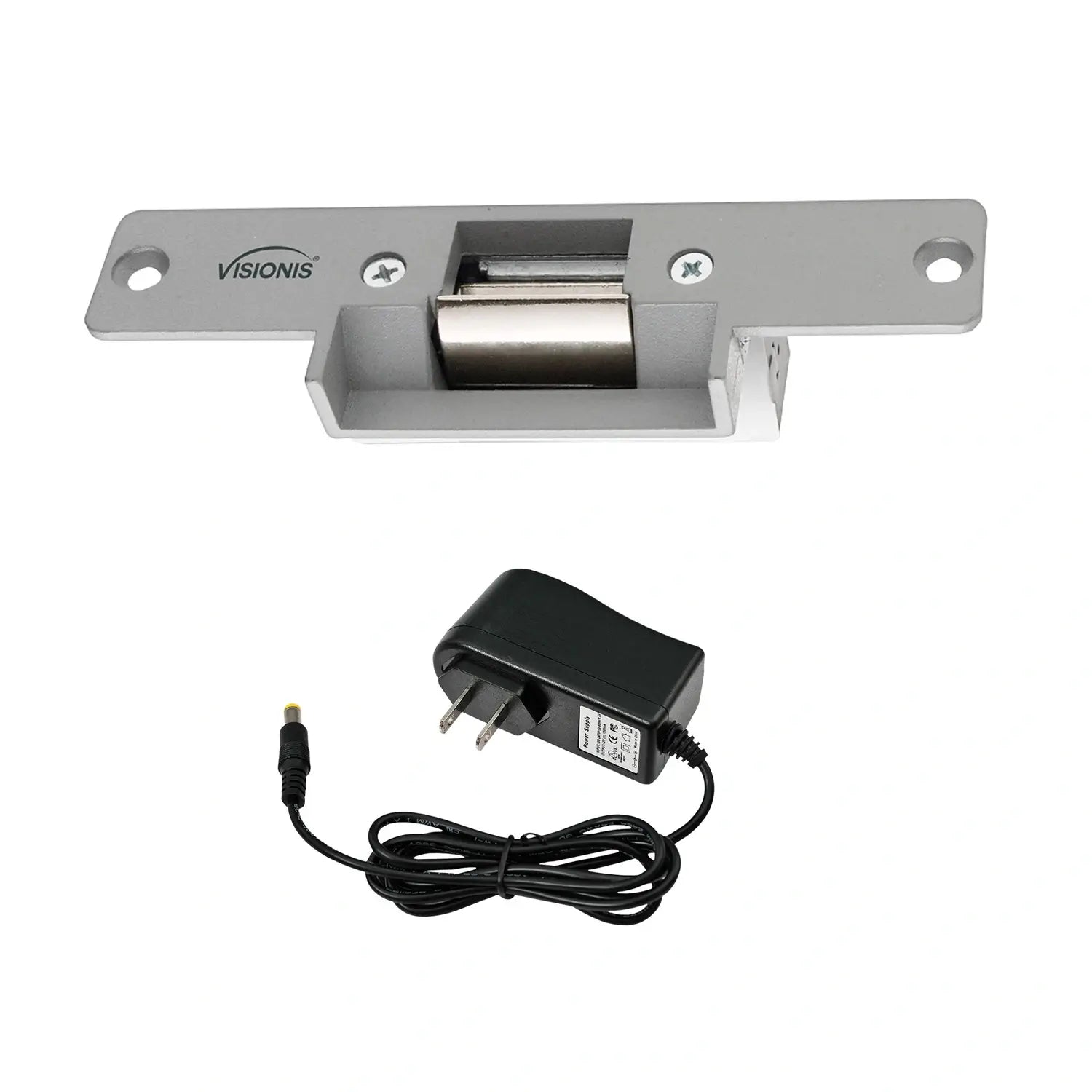

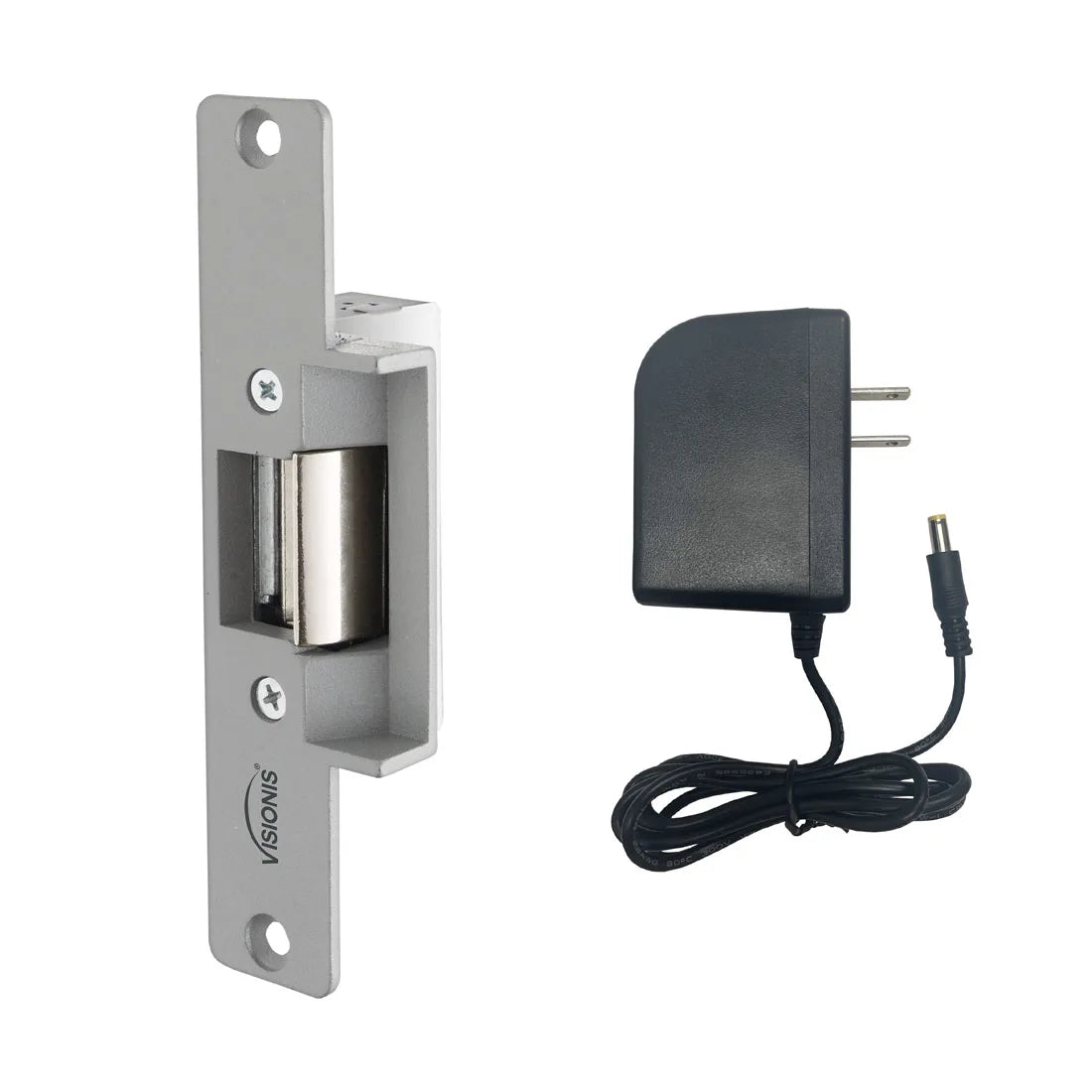

Electric door strike VIS-EL100-FSE with power supply

Electric Strikes for Door Access Control

Electric door strike dimensions - VIS-EL100-FSE Visionis

Electric door strike front a rear view - VIS-EL100-FSE Visionis

Electric door strike for access control systems - VIS-EL100-FSE Visionis

Electric strike for door access control - VIS-EL100-FSE Visionis

Kit Includes:

(1)

VIS-EL100-FSE: 770lbs Stainless Steel Electric Door Strike for Wood and Metal Doors 12V Fail Secure Normally Open

VIS-CP200: 12 Volt 2Amp Power Supply Transformer, UL Listed

Description

The FPC-5390 electric door strike kit has a Visionis EL100-FSE normally open electric strike lock made from stainless steel that provides 770lbs of reinforcement plus a power supply.

This model can be used on wood, metal, and PVC doors. Whether it is for a simple or advanced access control system, this strike suits multiple security needs and is reliable. The strike is installed within your door frame and used to secure your door for your access purposes.

Electric strikes are great for doors, small enclosures, or any area door you would like to give added security to at any time. This particular electric strike is fail-secure; meaning that in the case of a power outage, the latch will engage and the door will become locked.

The power supply provided will allow you to hook it up right away.

Characteristics

Model No. VIS-EL100-FSE:

Lock Size: 150Lx40W34H (mm) - 5.90Lx1.57Wx1.34H (in.)
Holding Strength: 350kg (770 pounds)
Voltage: 12VDC
Current: 180 - 200 mA
Feature: Fail Secure. N/O with power is unlock
Microswitch / Monitoring / 305: Yes
Suitable For: Wooden Door, Metal Door, PVC Door
Connections:
Power supply: No polarity (Polarity if a diode is installed).
Microswitch: COM contact, NC contact, NO contact.
Cycles Tested: 300.000
Operating Temperature: -15°C / +40°C (5°F / 104°F)
Solenoid: Continuously duty
Product + Packaging Weight: 0.31kg (0.68 pounds)

Model No. VIS-CP200:

Cable Length: 1.2 meters (4 feet)
Input Voltage Range: AC90V-264V
Input Frequency Range: 50Hz-60Hz
Output Voltage Range: DC12V+/-5%
Output Current: 2A
Output Power: 24 Watts
Output Ripple&Noise: ≤46MV
Output Efficiency: ≥79%
Environment Operating: -30°C~45°C 20%~90%RH
Environment Storage Temp.: -40°C~85°C 10%~95%RH
Product Dimension: 87*36.5*70mm (3.42x1.43x2.75in.)
Product Weight: 116g
Certificate: UL, CE, RoHS, FCC

Description

The FPC-5390 electric door strike kit has a Visionis EL100-FSE normally open electric strike lock made from stainless steel that provides 770lbs of reinforcement plus a power supply.

This model can be used on wood, metal, and PVC doors. Whether it is for a simple or advanced access control system, this strike suits multiple security needs and is reliable. The strike is installed within your door frame and used to secure your door for your access purposes.

Electric strikes are great for doors, small enclosures, or any area door you would like to give added security to at any time. This particular electric strike is fail-secure; meaning that in the case of a power outage, the latch will engage and the door will become locked.

The power supply provided will allow you to hook it up right away.

Product FAQs

What door types is this electric strike compatible with?

It is designed for wood, metal, and PVC doors, making it a versatile option for both residential and commercial installations
Is this door strike weatherproof?

No, this electric strike is not weatherproof. It is designed specifically for indoor use.
Does it have a built-in alarm?

No, this electric door strike does not have a built-in audible alarm.
Can this be used for commercial purposes?

Yes, this door strike model is ideal for commercial use, offering 770 lbs holding force, fail-secure functionality, perfect for securing interior doors in offices, retail, or restricted areas.

Download Datasheets and Manuals of this product

VIS-EL100-FSE

Visionis by Visionis

5.0

Electric Door Strike for Wood and Metal Door. 770lbs (350kg) Holding Strength. Stainless Steel. 12V Fail Secure Normally Open + Power Supply - FPC-5390

UPC Code: 614961170520

⚡ Order before 2:00 PM EST on weekdays for same-day shipping

In Stock

Regular price: $69.11
Sale price: $69.11
Regular price

Shipping calculated at checkout.

Looking for something slightly different? Check out these variations:

This model can be used on wood, metal, and PVC doors.
Fail Secure. N/O with power is unlock
Holding Strength: 350kg (770 pounds)
Voltage: 12VDC

Quantity:

Free US Shipping
To all 50 states

3 YEAR Warranty

30-Day Returns
No questions asked

Lifetime Phone Support
Mon–Fri 9am–6pm EST

ATTENTION:

Before purchasing, it is recommended that the customer checks with their local fire authority to see if there is any additional product they may need in order to comply with the local fire codes. We are not responsible for the improper installation of our product(s) or any type of fees that can be incurred by not complying with your local fire authority.
