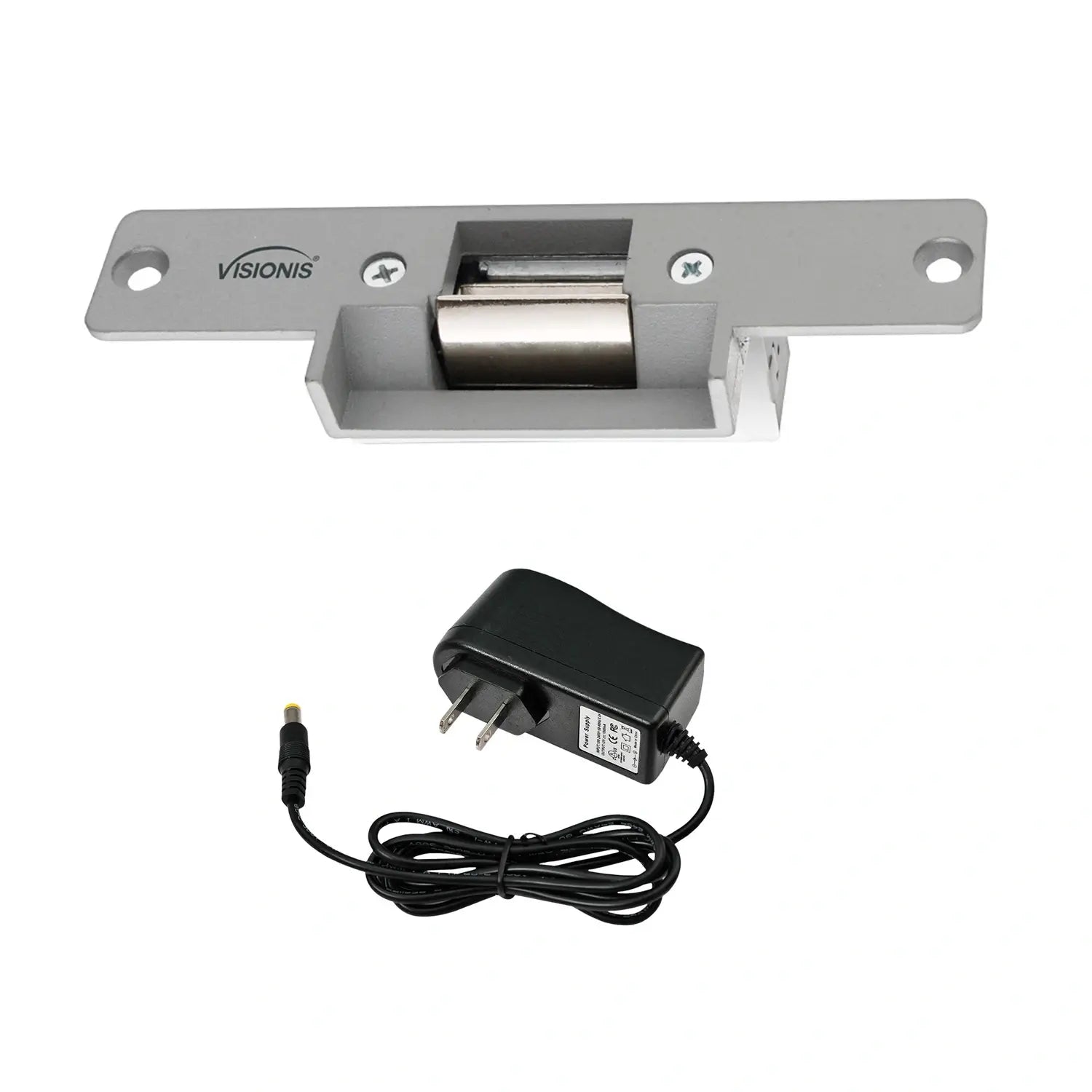

Electric door strike VIS-EL102-FSA with power supply kit - FPC-5391
Electric Strikes for Door Access Control
Electric door strike dimensions - VIS-EL101-FSA Visionis
Electric strike front and rear view - VIS-EL101-FSA Visionis
Door strike 12V Fail Safe for Access Control - VIS-EL101-FSA Visionis
Power Supply - VISCP100
    Electric door strike VIS-EL102-FSA with power supply kit - FPC-5391
    Electric Strikes for Door Access Control
    Electric door strike dimensions - VIS-EL101-FSA Visionis
    Electric strike front and rear view - VIS-EL101-FSA Visionis
    Door strike 12V Fail Safe for Access Control - VIS-EL101-FSA Visionis
    Power Supply - VISCP100
Electric door strike VIS-EL102-FSA with power supply kit - FPC-5391
Electric Strikes for Door Access Control
Electric door strike dimensions - VIS-EL101-FSA Visionis
Electric strike front and rear view - VIS-EL101-FSA Visionis
Door strike 12V Fail Safe for Access Control - VIS-EL101-FSA Visionis
Power Supply - VISCP100
Electric door strike VIS-EL102-FSA with power supply kit - FPC-5391
Electric Strikes for Door Access Control
Electric door strike dimensions - VIS-EL101-FSA Visionis
Electric strike front and rear view - VIS-EL101-FSA Visionis
Door strike 12V Fail Safe for Access Control - VIS-EL101-FSA Visionis
Power Supply - VISCP100
    Electric door strike VIS-EL102-FSA with power supply kit - FPC-5391
    Electric Strikes for Door Access Control
    Electric door strike dimensions - VIS-EL101-FSA Visionis
    Electric strike front and rear view - VIS-EL101-FSA Visionis
    Door strike 12V Fail Safe for Access Control - VIS-EL101-FSA Visionis
    Power Supply - VISCP100
Electric door strike VIS-EL102-FSA with power supply kit - FPC-5391
Electric Strikes for Door Access Control
Electric door strike dimensions - VIS-EL101-FSA Visionis
Electric strike front and rear view - VIS-EL101-FSA Visionis
Door strike 12V Fail Safe for Access Control - VIS-EL101-FSA Visionis
Power Supply - VISCP100

This PRODUCT has a 3 YEAR warranty with full access to tech support in the USA!

Description

The FPC-5391 electric door strike kit has a Visionis EL101-FSA normally closed electric strike lock that provides 770lbs of reinforcement plus a power supply.

This model can be used on wood, metal, and PVC doors. Whether it is for a simple or advanced access control system, this strike suits multiple security needs and is reliable. The strike is installed within your door frame and used to secure your door for your access purposes.

Electric strikes are great for doors, small enclosures, or any area door you would like to give added security to at any time. This particular electric strike is fail-safe; meaning that in the case of a power outage, the latch will disengage and the door will become unlocked.

The power supply provided will allow you to hook it up right away.

Characteristics

Model No. VIS-EL101-FSA:

  • Lock Size: 150Lx40W34H (mm) - 5.90Lx1.57Wx1.34H (in.)
  • Holding Strength: 350kg (770 pounds)
  • Voltage: 12VDC
  • Current: 200 - 230 mA
  • Feature: Fail Safe. N/C with power it’s lock
  • Microswitch / Monitoring / 305 Yes
  • Suitable For: Wooden Door, Metal Door, PVC Door
  • Connections:
    Power supply: No polarity (Polarity if a diode is installed).
    Microswitch: COM contact, NC contact, NO contact.
  • Cycles Tested: 300.000
  • Operating Temperature: -15°C / +40°C (5°F / 104°F)
  • Solenoid: Continuously duty
  • Product + Packaging Weight: 0.31kg (0.68 pounds)

Model No. VIS-CP200:

  • Cable Length: 1.2 meters (4 feet)
  • Input Voltage Range: AC90V-264V
  • Input Frequency Range: 50Hz-60Hz
  • Output Voltage Range: DC12V+/-5%
  • Output Current: 2A
  • Output Power: 24 Watts
  • Output Ripple&Noise: ≤46MV
  • Output Efficiency: ≥79%
  • Environment Operating: -30°C~45°C 20%~90%RH
  • Environment Storage Temp.: -40°C~85°C 10%~95%RH
  • Product Dimension: 87*36.5*70mm (3.42x1.43x2.75in.)
  • Product Weight: 116g
  • Certificate: UL, CE, RoHS, FCC
Description

The FPC-5391 electric door strike kit has a Visionis EL101-FSA normally closed electric strike lock that provides 770lbs of reinforcement plus a power supply.

This model can be used on wood, metal, and PVC doors. Whether it is for a simple or advanced access control system, this strike suits multiple security needs and is reliable. The strike is installed within your door frame and used to secure your door for your access purposes.

Electric strikes are great for doors, small enclosures, or any area door you would like to give added security to at any time. This particular electric strike is fail-safe; meaning that in the case of a power outage, the latch will disengage and the door will become unlocked.

The power supply provided will allow you to hook it up right away.

  • What door types is this electric strike compatible with?

    It is designed for wood, metal, and PVC doors, making it a versatile option for both residential and commercial installations

  • Is this door strike weatherproof?

    No, this electric strike is not weatherproof. It is designed specifically for indoor use.

  • Does it have a built-in alarm?

    No, this electric door strike does not have a built-in audible alarm.

  • Can this be used for commercial purposes?

    Yes, this door strike model is ideal for commercial use, offering 770 lbs holding force, fail-secure functionality, perfect for securing interior doors in offices, retail, or restricted areas.

Download Datasheets and Manuals of this product

VIS-EL101-FSA

Contact Us for Support

LET US HELP YOU WITH YOUR PURCHASE

Feel free to contact our dedicated support team if you have any questions or if you're ready to place an order.

I Need Help
Visionis by Visionis

Electric Door Strike for Wood and Metal Door. 770lbs (350kg) Holding Strength. Stainless Steel. 12V Fail Safe Normally Closed + Power Supply - FPC-5391

Translation missing: en.products.product.sku:FPC-5391

UPC Code: 614961170537 Weight: 2.0 lb

  • This model can be used on wood, metal, and PVC doors.
  • Fail Safe. N/C with power it’s lock
  • Holding Strength: 350kg (770 pounds)
  • Voltage: 12VDC

Regular price
$43.90
Sale price
$43.90
Regular price
Shipping calculated at checkout.

In Stock

Phone Support Icon

Phone Life-Time Technical Support

Return Policy Icon

30-Day No Questions Return Policy

Free Shipping Icon

*Free Shipping within the USA

Contact an Expert
Return Policy
NOTE
Order Before 3:00pm EST on a week day and your order will be shipped out the same day
Free Shipping
*Free shipping within the USA
Including Puerto Rico, Hawaii and Alaska
ATTENTION:
Before purchasing, it is recommended that the customer checks with their local fire authority to see if there is any additional product they may need in order to comply with the local fire codes. We are not responsible for the improper installation of our product(s) or any type of fees that can be incurred by not complying with your local fire authority.
