This PRODUCT has a 3 YEAR warranty with full access to tech support in the USA!

Description

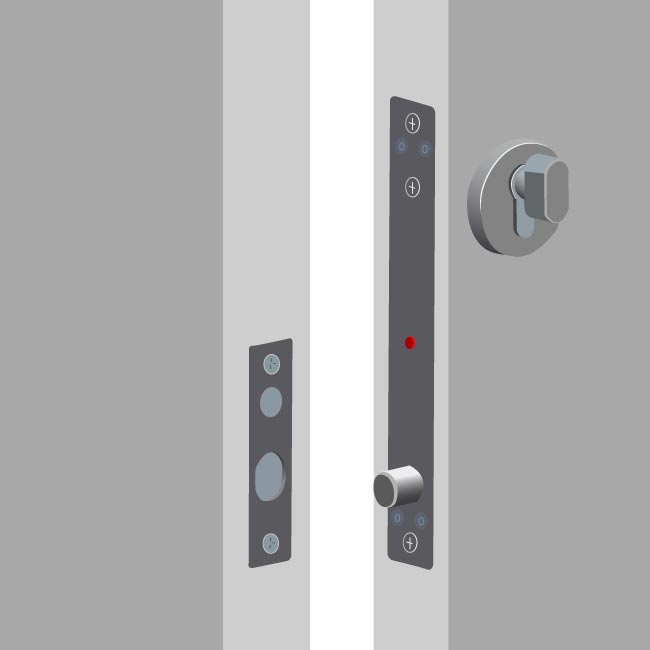

The Visionis DP103WCY-FSE-LED is a quality normally open drop bolt lock that provides 2600lbs of reinforcement with key cylinder, LED, and time delay. The drop bolt locks into place, giving the protection needed to secure the door. Depending on how you want the lock installed, you will be able to give that “hidden” appearance, similar to the shear lock. When the drop bolt is given power, the bolt extends and locks into place. This firmly secures the door as long as it has power going to it. With the time delay feature, you can set your delay to either 0, 3, or 6 seconds. This particular drop bolt is fail-secure; meaning that in the case of a power outage, the bolt will extract and the door will become locked.

(these products do not include a power supply)



This product belongs to the Looking Devices



Check out this product: VIS-DP105GD-FSA-LED Electric Drop Bolt Lock 1700lbs For Full Glass Door and Glass Frame With LED and Time Delay Fail Safe Normally Closed Deadbolt

Characteristics

Model No. VIS-DP103WCY-FSE-LED:

  • Voltage: DC12V - DC24V
  • Holding Force: 1200Kg (2600lbs)
  • Current: (DC12V): Standby 150mA
  • Function: Fail Secure. N/O with power it’s unlock

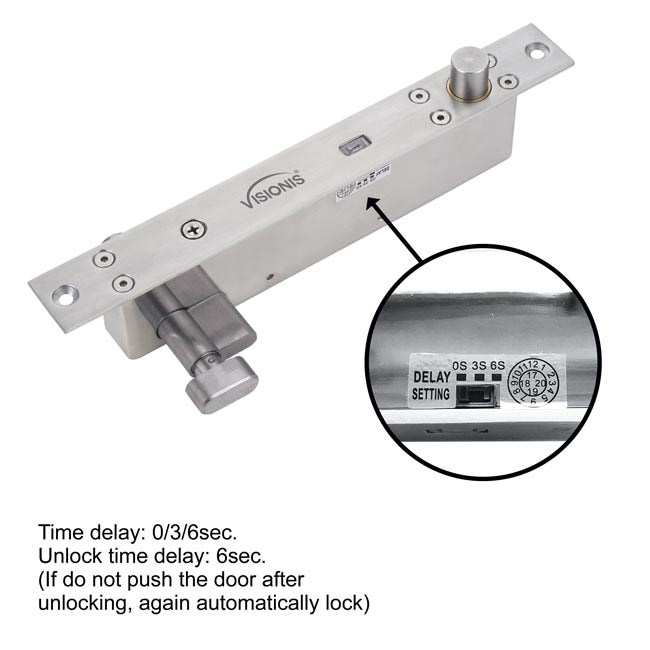

  • Time Delay: 0/3/6 sec; Unlock time delay: 6 sec (If do not push the door after unlocking, again automatically lock)
  • Bolt: SUS 304 solid stainless steel
  • Size: 250Lx30Wx49H (mm) - 9.84Lx1.18Wx1.93H (in.)
  • Product + Packaging Weight: 1.46Kg (3.22 pounds)
  • Operating Temperature: -20°C / +50°C (-4°F / 122°F)
  • Cycles Tested: 300.000
Packaging of this product

Description

The Visionis DP103WCY-FSE-LED is a quality normally open drop bolt lock that provides 2600lbs of reinforcement with key cylinder, LED, and time delay. The drop bolt locks into place, giving the protection needed to secure the door. Depending on how you want the lock installed, you will be able to give that “hidden” appearance, similar to the shear lock. When the drop bolt is given power, the bolt extends and locks into place. This firmly secures the door as long as it has power going to it. With the time delay feature, you can set your delay to either 0, 3, or 6 seconds. This particular drop bolt is fail-secure; meaning that in the case of a power outage, the bolt will extract and the door will become locked.

(these products do not include a power supply)



This product belongs to the Looking Devices



Check out this product: VIS-DP105GD-FSA-LED Electric Drop Bolt Lock 1700lbs For Full Glass Door and Glass Frame With LED and Time Delay Fail Safe Normally Closed Deadbolt

Characteristics
Packaging of this product

Model No. VIS-DP103WCY-FSE-LED:

  • Voltage: DC12V - DC24V
  • Holding Force: 1200Kg (2600lbs)
  • Current: (DC12V): Standby 150mA
  • Function: Fail Secure. N/O with power it’s unlock
  • Time Delay: 0/3/6 sec; Unlock time delay: 6 sec (If do not push the door after unlocking, again automatically lock)
  • Bolt: SUS 304 solid stainless steel
  • Size: 250Lx30Wx49H (mm) - 9.84Lx1.18Wx1.93H (in.)
  • Product + Packaging Weight: 1.46Kg (3.22 pounds)
  • Operating Temperature: -20°C / +50°C (-4°F / 122°F)
  • Cycles Tested: 300.000

Download Datasheets and Manuals of this product

VIS-DP103WCY-FSE-LED

Contact Us for Support

LET US HELP YOU WITH YOUR PURCHASE

Feel free to contact our dedicated support team if you have any questions or if you're ready to place an order.

I Need Help
Visionis by Visionis

Visionis VIS-DP103WCY-FSE-LED - Electric Drop Bolt lock with Key Cylinder 2,600lbs With LED and Time Delay Fail Secure Normally Open Dead Bolt

Translation missing: en.products.product.sku:VIS-DP103WCY-FSE-LED

UPC Code: 723980159789
Product Weight: 1.0 lb
  • CE Certificate
