This PRODUCT has a 3 YEAR warranty with full access to tech support in the USA!

Description

Attention:

  • Includes CD software
  • Power supply and power cord included
  • Install wires are not included
  • This software is not compatible with MAC computers, only with Microsoft.
  • The VIS-3022 is a hardwire Keypad/Reader, this is not by any means a wireless product and can not be confused with the VIS-8009 or VIS-8010.
  • This kit will only allow up to 65 pin users, This is only for the pin option on the keypad but you can use up to 10,000 users using card or Keyfob.
Characteristics

Model VIS-ML300LED:

  • Voltage Input: 12 VDC / 24 VDC
  • Current Draw: 12V / 300mA ; 24V / 150mA (±5%)
  • Holding Force: Up to 300 lbs (136 kg)
  • Anti-Rust Surface Treatment: Blue Zinc Plating
  • Operating Temperature: 0~55° C ( 32~131° F)
  • Operating Humidity: 0~95% ( non condensing)
  • Weight ( Magnet): 0.6 kg (±1%)
  • Dimensions: Magnet - (L)210x(W)35x(T)21 mm Armature - (L)130x(W)33x(T)11 mm
  • Green/Red LED Indication for EM Lock Status
Packaging of this product

Model No. VIS-3022:

  • Operating Voltage: DC 12V±10%
  • Card Reading Distance: 3-6 cm (1.18 - 2.36in.)
  • Active Current: >60mA
  • Idle Current: 25±5 mA
  • Lock Output Load Max: Max 3A
  • Alarm Output Load Max: Max 20A
  • Operating Temperature: -45°C ~ 60°C (-49°F ~ 140°F)
  • Operating Humidity: 10%- 90% RH
  • Adjustable Alarm Time: 0- 3 minutes
  • Wiegand Interface: Wiegand 26 bit
  • Wiring Connections: Electric Lock, Exit Button, External Alarm, External reader
  • Dimensions: 100*68*22mm (3.93*2.67*0.86in.)

Model No. VS-AXESS-2D-ETL-version2:

  • Arm 7 processor, RTOS system, new PCB circuit design
  • Advanced access control function, including multi-card, first card, interlock and anti-passback etc.
  • Multiple authentication mode, it supports card, password, card + code and fingerprint.
  • TCP/IP communication mode, there is 5 SOCKET port.
  • Optical coupling isolation protection, more stable
  • Record capacity can be extended, it can be 130,000pcs
  • Alarm linkage and relay self-defined.
  • Access Mode: It supports card, card+ password, card or password, password
  • Event Type: Legal card, illegal card, anti-passback, exit button, password, threaten code
  • Alarm Event Type: Door-magnet alarm, self-defined alarm, threaten code alarm
  • Linkage Function: All event and alarm can linkage any or multiple relay output
  • Access Group: 200 group
  • Holiday Schedule: 300
  • User Capacity: 20000
  • Record Capacity: 70000
  • Reader Port: 2
  • Exit Button Port: 2
  • Door-magnet Port: 2
  • Lock Output: 2
  • Door-magnet Alarm Output: 1
  • Self-defined Alarm Output: 1
  • Self-defined Alarm Input: 2
  • Communication Port: 10/100MTCP/IP, 1 extension RS485 communication port
  • Input Protection: Opto-isolator protection
  • Output Protection: Varistor Protection
  • Extension Function: It supports LED displayer, alarm host and so on

Model No. VIS-7013:

  • Contact Rating: 12-24V, 3A
  • Output Contact: NO/NC/COM
  • Detection Range: 5-15cm (1.96 - 5.90in.), Adjustable
  • Power: 12VDC or 24VDC
  • LED Color: Blue (Stand by Mode), Green (Active/Open Mode)
  • Time Delay: 0.5~22s
  • Panel: 4mm (0.15) Thick Aluminium Alloy (CNC)
  • Suitable for: Hollow Door
  • Mechanical Life: 100.000 tests
  • Operating Temperature: -20°C~+55°C (14°F-131°F)
  • Operating Humidity: 0-95% (relative humidity)
  • Weight: 0.105kg
  • Dimensions: 115L × 70W × 25H mm - 4.52L x 2.75W x 0.98H in.
Packaging of this product
Description

Attention:

  • Includes CD software
  • Power supply and power cord included
  • Install wires are not included
  • This software is not compatible with MAC computers, only with Microsoft.
  • The VIS-3022 is a hardwire Keypad/Reader, this is not by any means a wireless product and can not be confused with the VIS-8009 or VIS-8010.
  • This kit will only allow up to 65 pin users, This is only for the pin option on the keypad but you can use up to 10,000 users using card or Keyfob.

Compatible Software

TITAN VSAXESS is a powerful and complete Access control management software for Visionis products for a our second generation of Access Control Panels.

DOWNLOAD SOFTWARE

Screenshots Examples of the Software

Click the image to open a bigger version

Download Datasheets and Manuals of this product

Contact Us for Support

LET US HELP YOU WITH YOUR PURCHASE

Feel free to contact our dedicated support team if you have any questions or if you're ready to place an order.

I Need Help
Visionis by Visionis

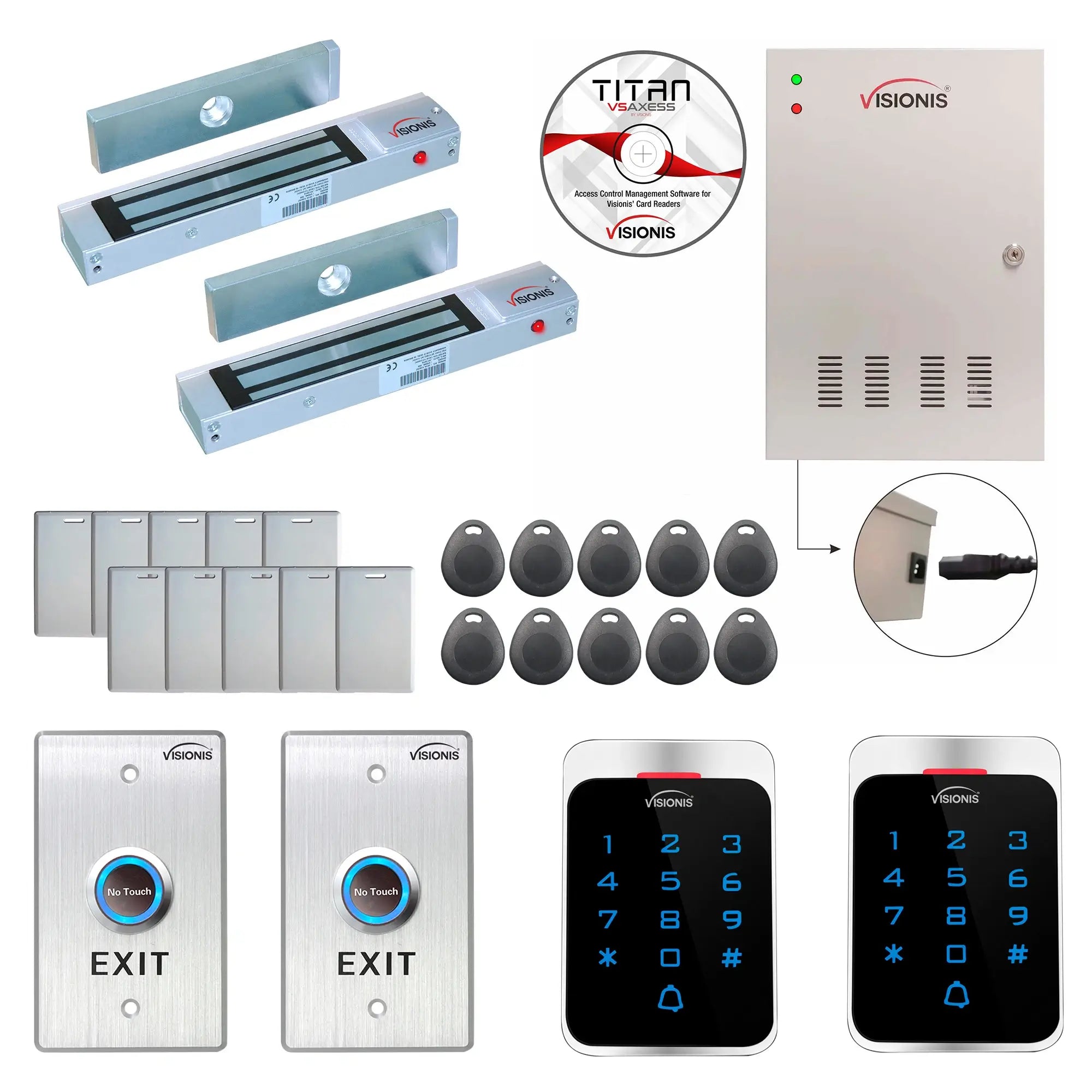

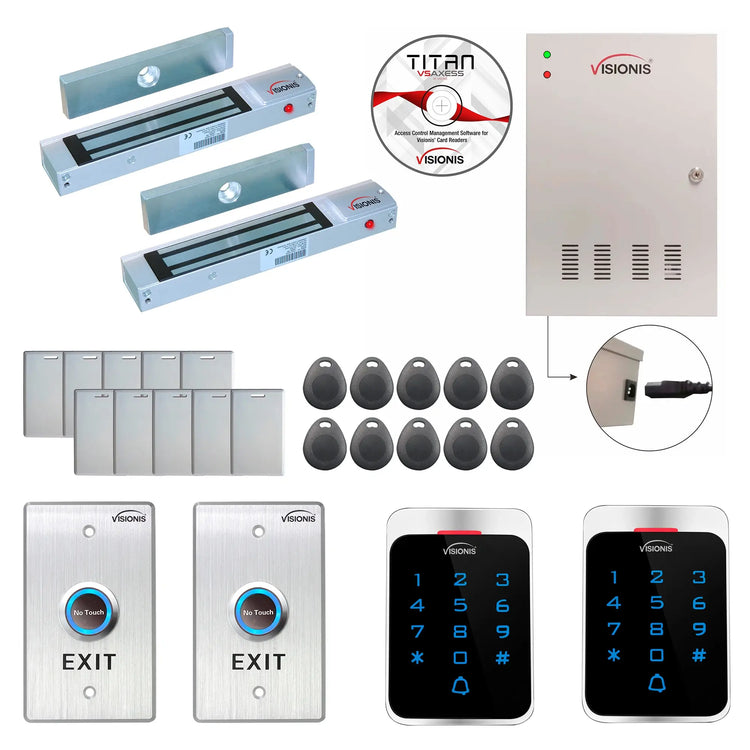

FPC-7286 Two Door Access Control For Out Swing Door 300lbs Maglock Time Attendance TCP/IP Wiegand Controller Box, Weatherproof Card/Keypad Reader, Software Included, 20,000 Users, 70,000 Records

Translation missing: en.products.product.sku:FPC-7286

UPC Code: 750958783066
Product Weight: 14.0 lb
Regular price
$401.04
Sale price
$401.04
Regular price
Shipping calculated at checkout.

In Stock

Phone Support Icon

Phone Life-Time Technical Support

Return Policy Icon

30-Day No Questions Return Policy

Free Shipping Icon

*Free Shipping within the USA

Contact an Expert
Return Policy
NOTE
Order Before 3:00pm EST on a week day and your order will be shipped out the same day
Free Shipping
*Free shipping within the USA
Including Puerto Rico, Hawaii and Alaska
ATTENTION:
Before purchasing, it is recommended that the customer checks with their local fire authority to see if there is any additional product they may need in order to comply with the local fire codes. We are not responsible for the improper installation of our product(s) or any type of fees that can be incurred by not complying with your local fire authority.
