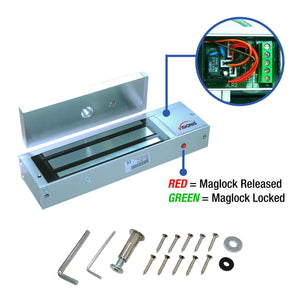

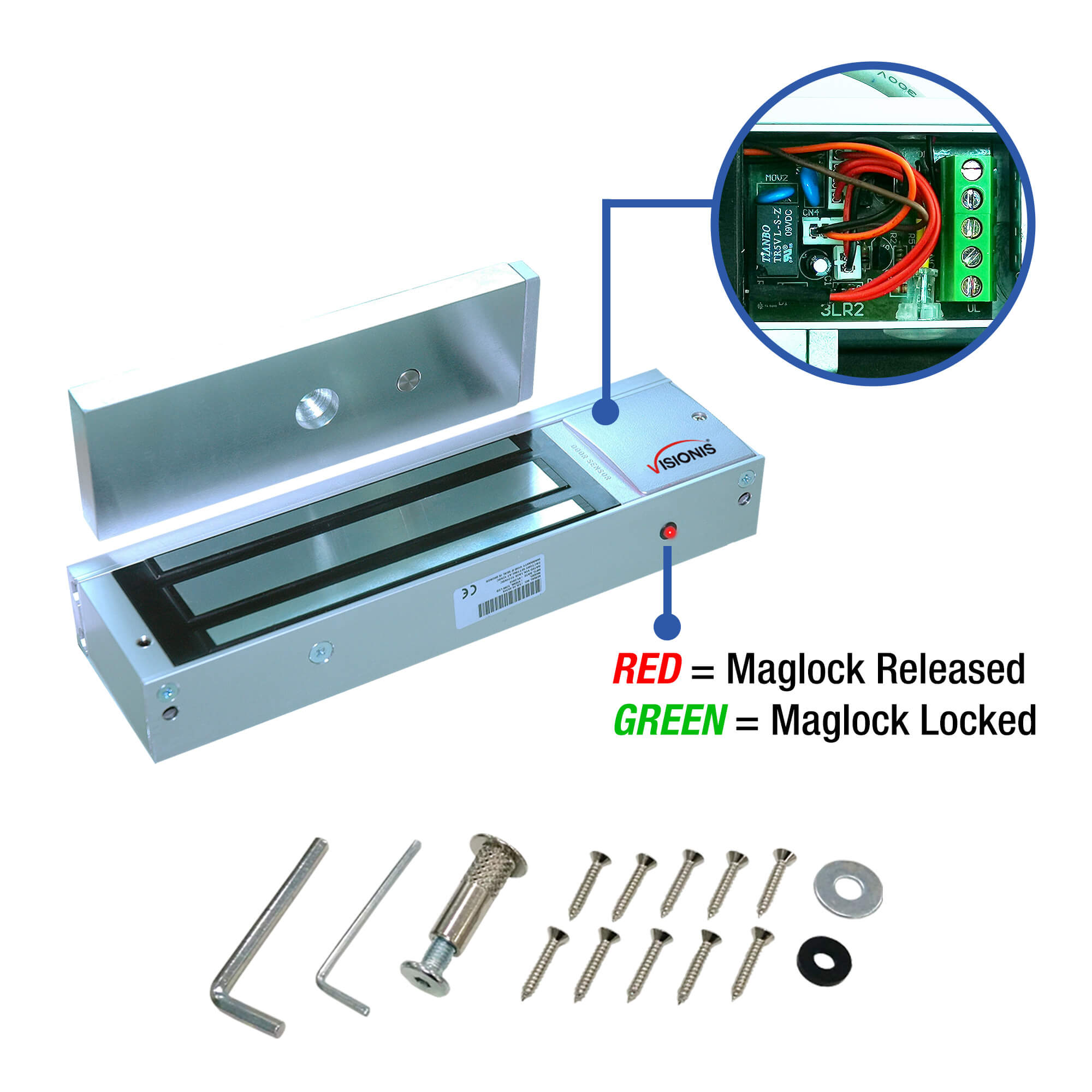

Model No. VIS-ML1200LED:

• Voltage Input: 12 VDC / 24 VDC
• Current Draw: 12V / 500mA ; 24V / 250mA (±5%)
• Holding Force: Up to 1200 lbs (545 kg)
• Hall Effect Contact: SPDT rated 2A at 24 VDC
• Magnetic Contact Rating: 28 VDC, 0.2A, 5W
• Anti-Rust Surface Treatment: Blue Zinc Plating
• Operating Temperature: 0~55° C (32~131° F)
• Weight (Magnet): 2.5 kg (±1%)

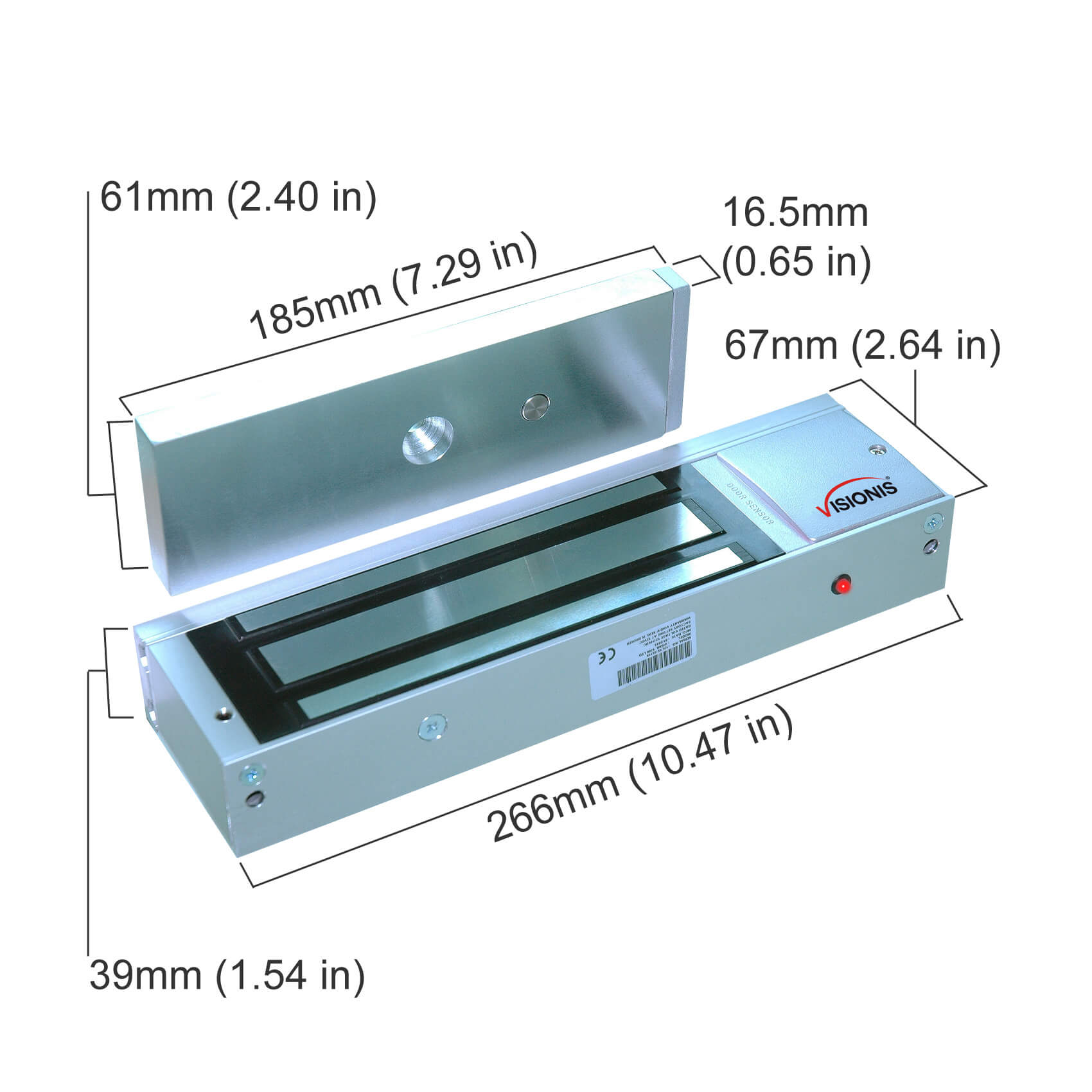

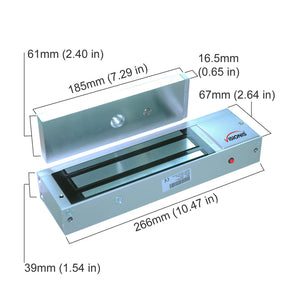

• Dimensions: Magnet - (L)266x(W)67x(T)39 mm Armature - (L)185x(W)61x(T)16.5 mm
• Green/Red LED Indication for EM Lock Status

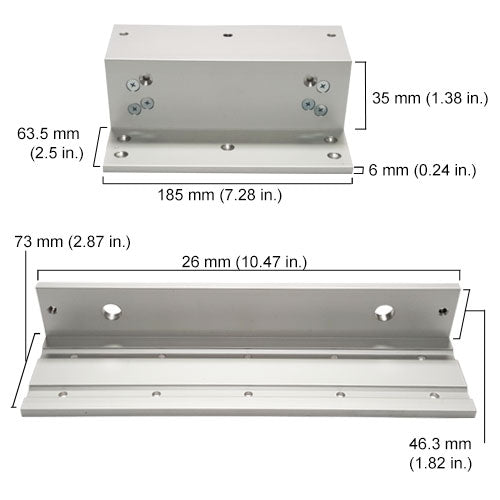

Model No. VIS-ZL1200:

• L and Z bracket for 1200lbs electromagnetic lock

Model No. VIS-3022:

• Operating Voltage: DC 12V±10%
• Card Reading Distance: 3-6 cm (1.18 - 2.36in.)
• Active Current: >60mA
• Idle Current: 25±5 mA
• Lock Output Load Max: Max 3A
• Alarm Output Load Max: Max 20A
• Operating Temperature: -45°C ~ 60°C (-49°F ~ 140°F)
• Operating Humidity: 10%- 90% RH
• Adjustable Alarm Time: 0- 3 minutes
• Wiegand Interface: Wiegand 26 bit
• Wiring Connections: Electric Lock, Exit Button, External Alarm, External reader
• Dimensions: 100*68*22mm (3.93*2.67*0.86in.)

Model No. VIS-AXESS-2D-ETL-version2:

• Arm 7 processor, RTOS system, new PCB circuit design
• Advanced access control function, including multi-card, first card, interlock and anti-passback etc.
• Multiple authentication mode, it supports card, password, card + code and fingerprint.
• TCP/IP communication mode, there is 5 SOCKET port.
• Optical coupling isolation protection, more stable
• Record capacity can be extended, it can be 130,000pcs
• Alarm linkage and relay self-defined.
• Access Mode: It supports card, card+ password, card or password, password
• Event Type: Legal card, illegal card, anti-passback, exit button, password, threaten code
• Alarm Event Type: Door-magnet alarm, self-defined alarm, threaten code alarm
• Linkage Function: All event and alarm can linkage any or multiple relay output
• Access Group: 200 group
• Holiday Schedule: 300
• User Capacity: 20000
• Record Capacity: 70000
• Reader Port: 2
• Exit Button Port: 2
• Door-magnet Port: 2
• Lock Output: 2
• Door-magnet Alarm Output: 1
• Self-defined Alarm Output: 1
• Self-defined Alarm Input: 2
• Communication Port: 10/100MTCP/IP, 1 extension RS485 communication port
• Input Protection: Opto-isolator protection
• Output Protection: Varistor Protection
• Extension Function: It supports LED displayer, alarm host and so on

Model No. VIS-7013:

• Contact Rating: 12-24V, 3A
• Output Contact: NO/NC/COM
• Detection Range: 5-15cm (1.96 - 5.90in.), Adjustable
• Power: 12VDC or 24VDC
• LED Color: Blue (Stand by Mode), Green (Active/Open Mode)
• Time Delay: 0.5~22s
• Panel: 4mm (0.15) Thick Aluminium Alloy (CNC)
• Suitable for: Hollow Door
• Mechanical Life: 100.000 tests
• Operating Temperature: -20°C~+55°C (14°F-131°F)
• Operating Humidity: 0-95% (relative humidity)
• Weight: 0.105kg
• Dimensions: 115L × 70W × 25H mm - 4.52L x 2.75W x 0.98H in.
