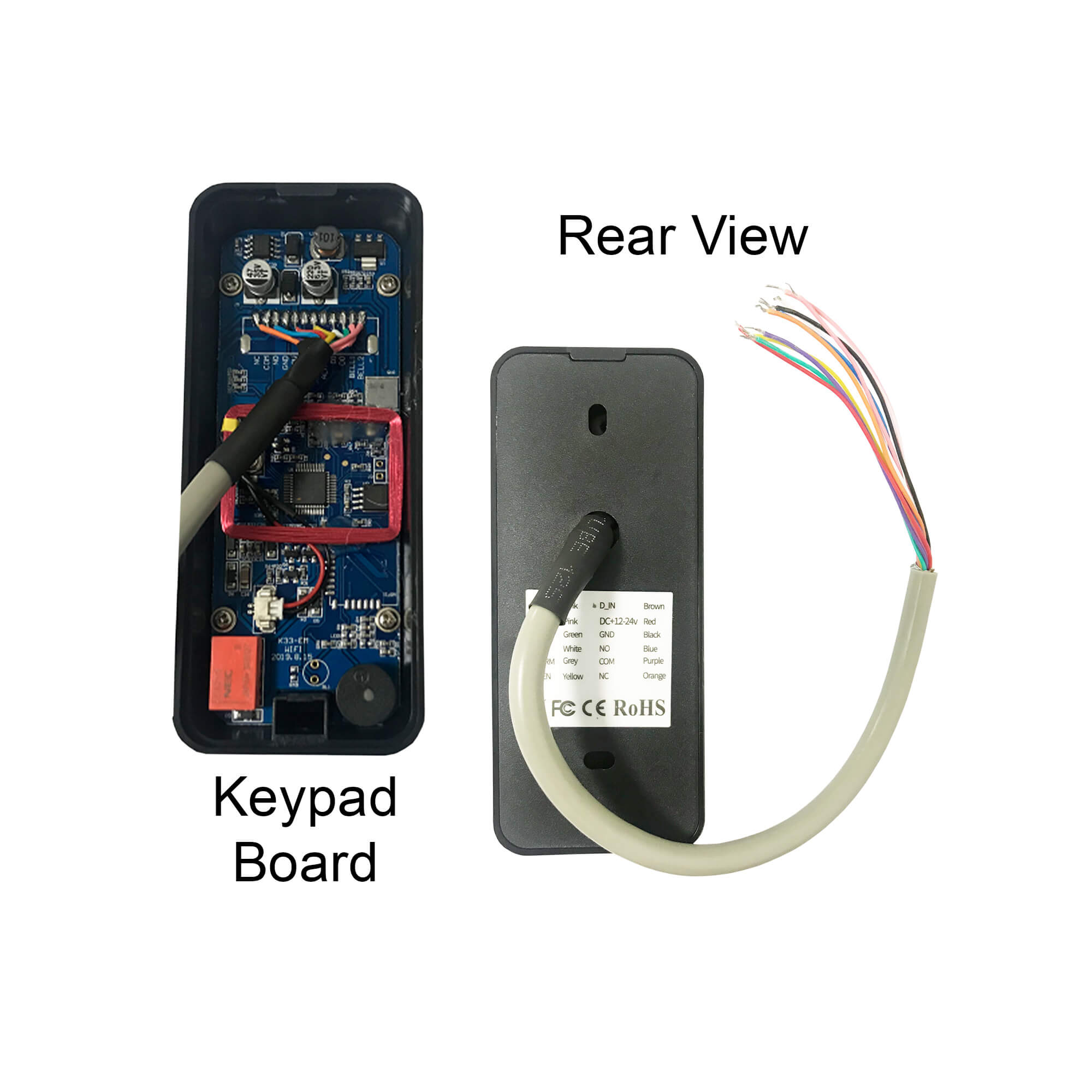

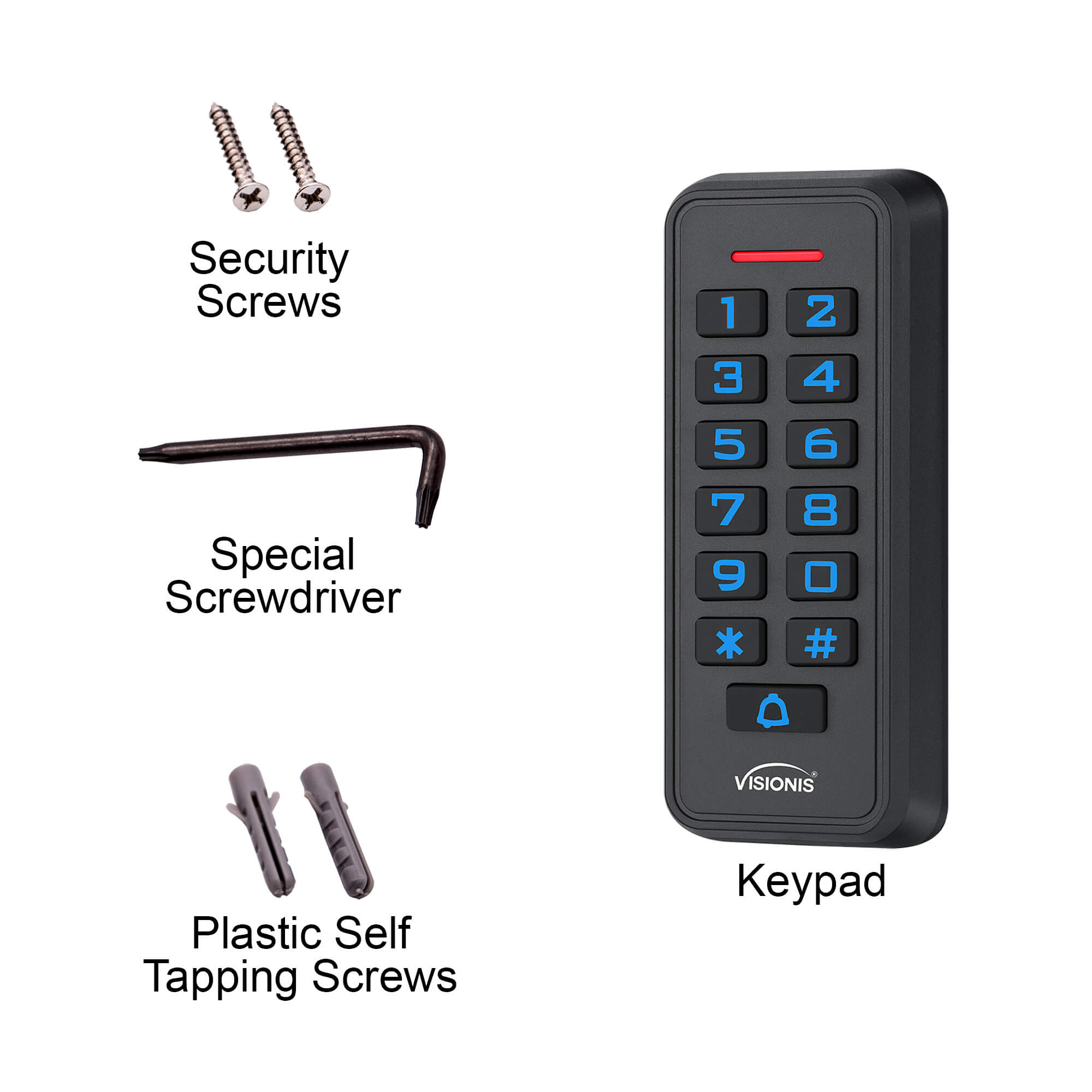

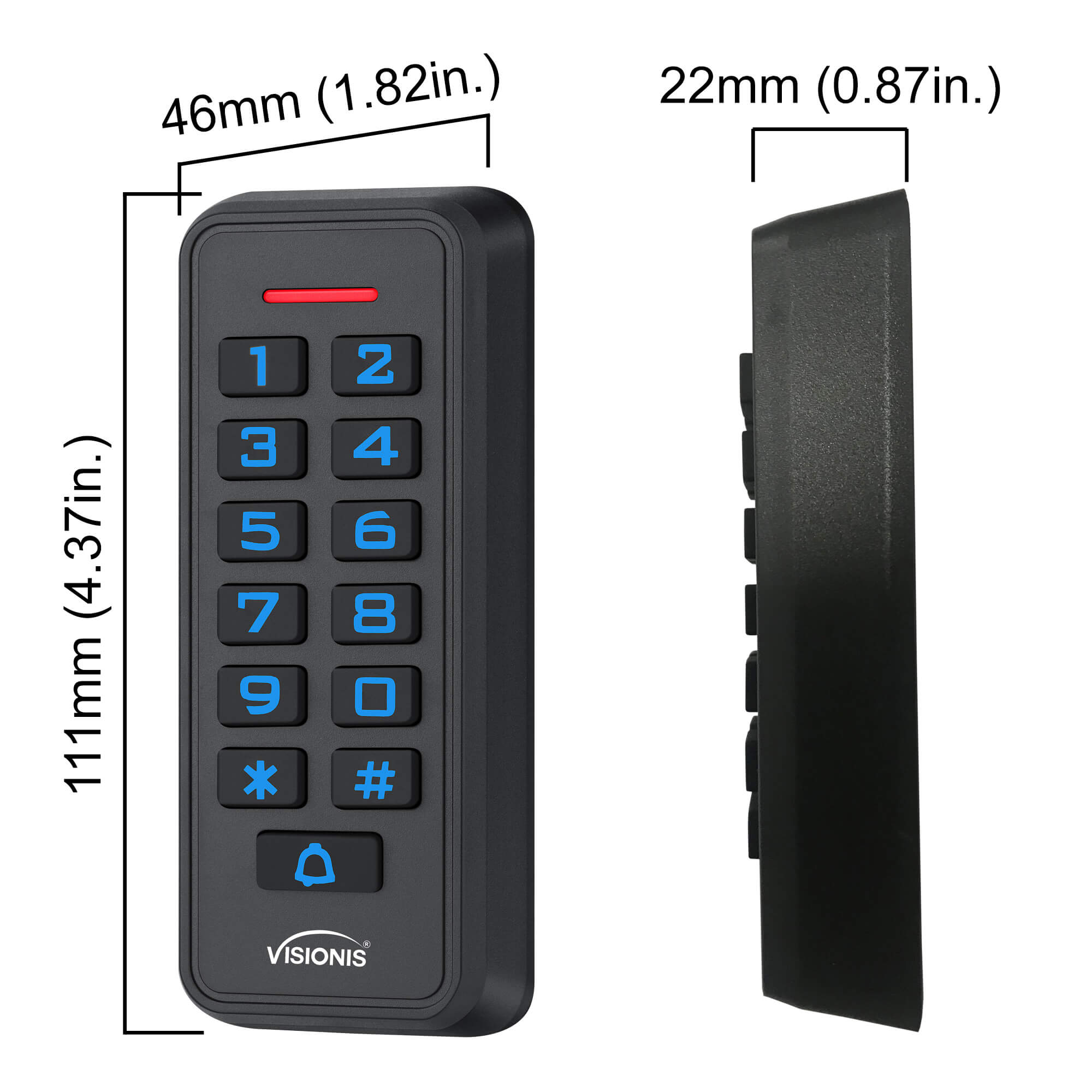

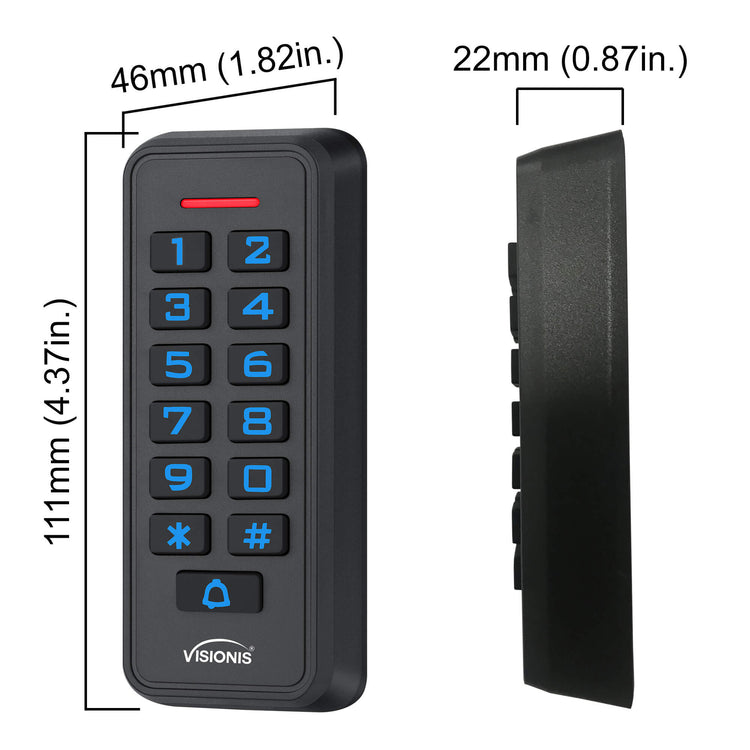

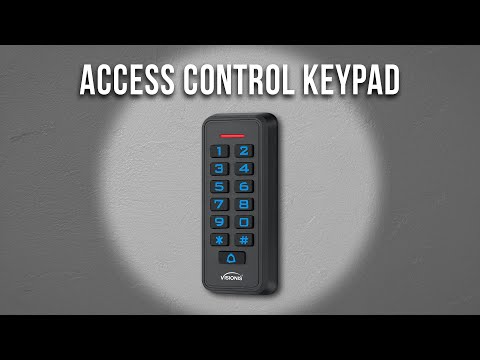

VIS-3008 Keypad and Proximity Card Reader Description

The Visionis VIS-3008 is a durable and reliable outdoor access control keypad designed for standalone or Wiegand system integration. With an IP68 weatherproof rating, this security access control keypad is ideal for both indoor and outdoor applications, ensuring dependable performance in harsh environments.

Supporting up to 1,000 users, it provides multiple access options, including PIN code, proximity card, or a combination of both. This sleek device features a high-quality plastic build with backlit keys, making it easy to operate in low-light settings.

Keep in mind, this keypad DOES NOT come with software and is standalone. If connected to a controller, the keypad would work based on the controller’s software.

The VIS-3008 is the perfect standalone access keypad for residential, commercial, and industrial security needs.

VIS-3008 Features

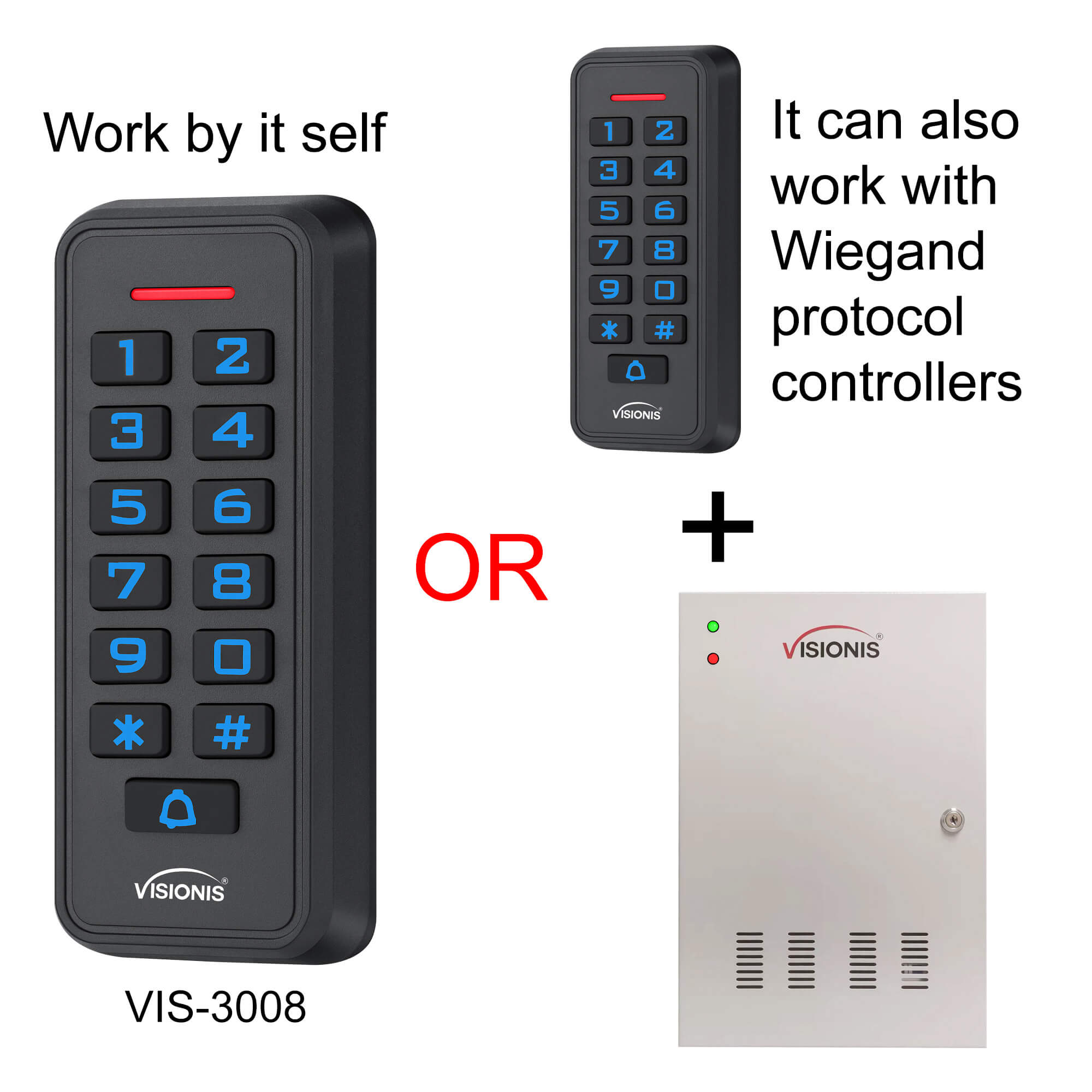

• Standalone or Wiegand Compatible: Operates independently or integrates with Wiegand 26–37 controllers.
• Weatherproof Design: IP68-rated for extreme weather and temperature resilience.

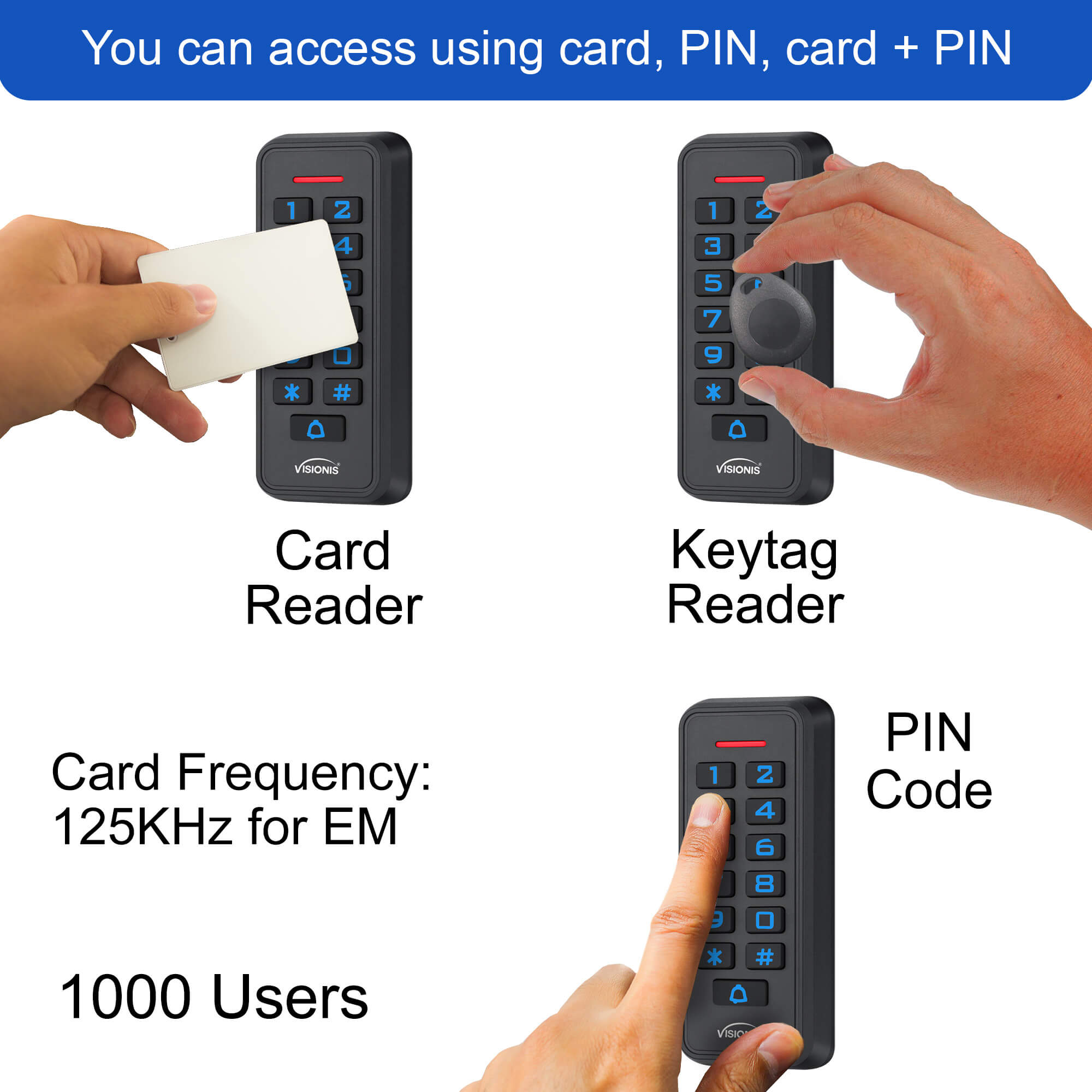

• Multi-Access Options: Use card, code, or a combination for secure access.
• Anti-Tamper Alarm: Alerts triggered by unauthorized tampering or removal.
• Low Power Consumption: Energy-efficient standby operation at less than 30mA.
• Flexible Security Management: Supports up to 1,000 users with easy-to-program codes or cards.



Attention:

• 12V 2Amp power supply IS NOT INCLUDED, SOLD SEPARATELY.
• Proximity cards Model Number: VIS-APRXCARD/26TH and Key Tags Model Number: VIS-AKEYTAG, ARE NOT INCLUDED, SOLD SEPARATELY.
• This Keypad/Reader conforms with the Wiegand 26-37 bit protocol. You can use this in almost all brands of access controllers that comply with the Wiegand protocol.
• This is a hardwire Keypad/Reader, this is not by any means a wireless product and can not be confused with the VIS-8009 or VIS-8010.

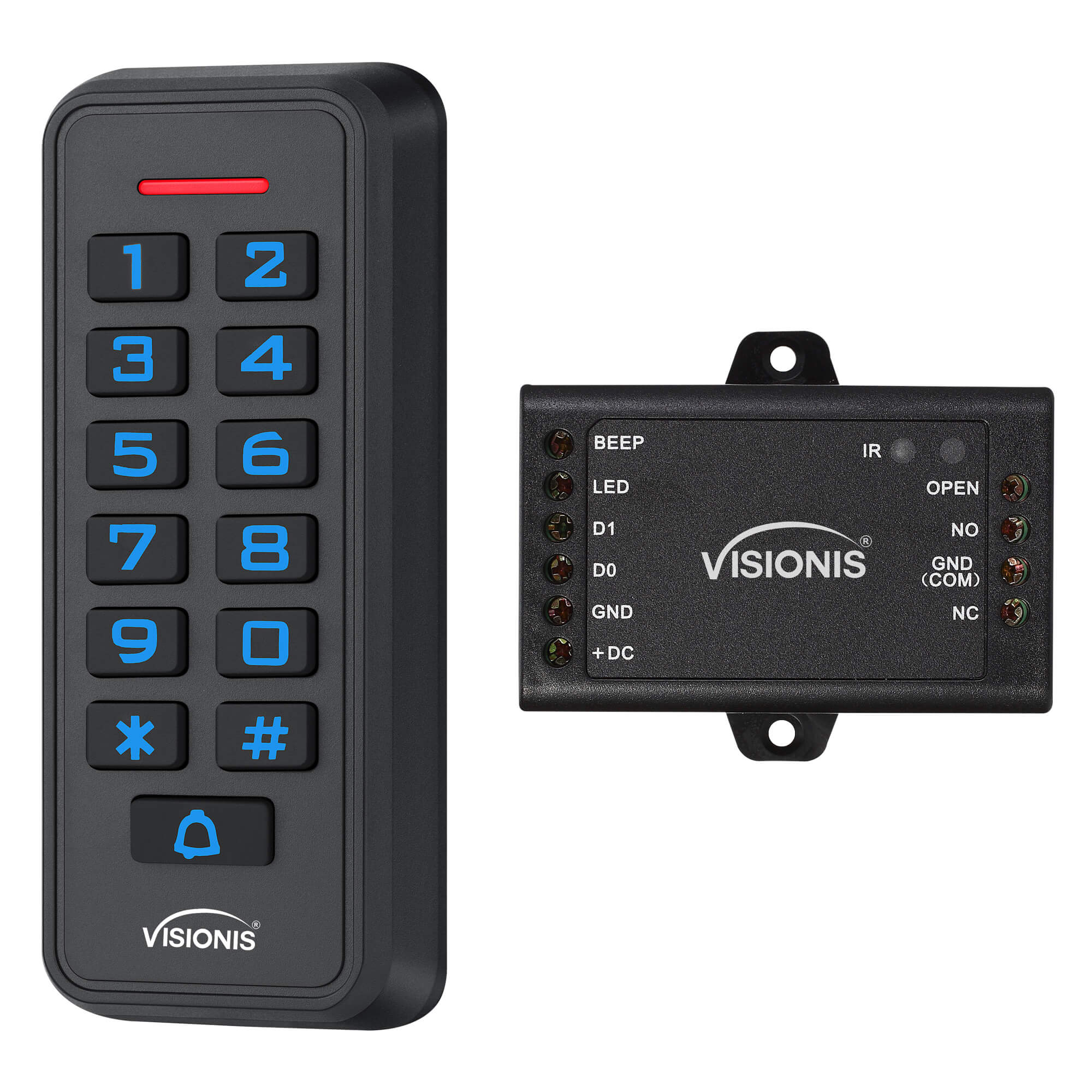

VIS-MINI-CNTRL Mini Controller Description

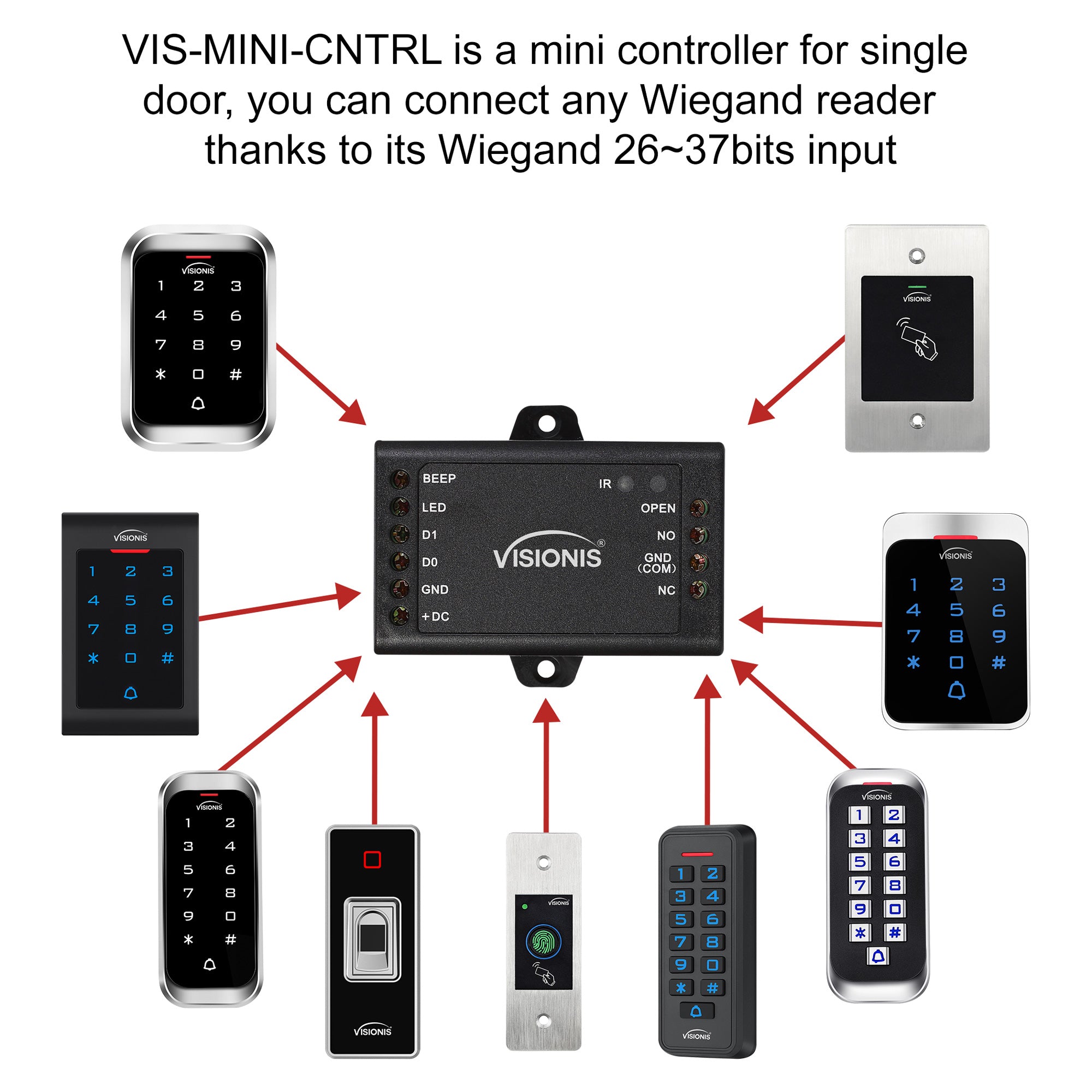

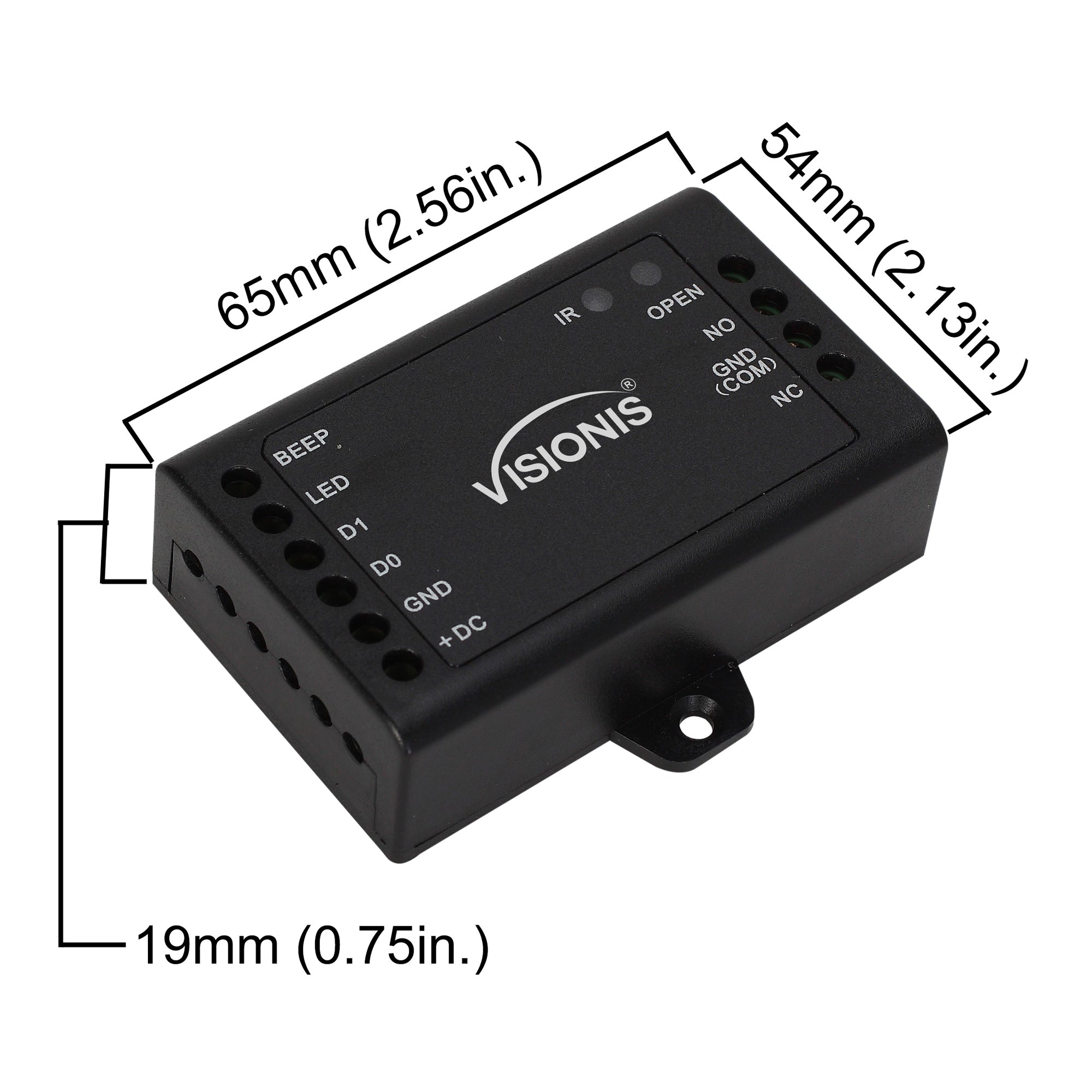

This keypad comes with the VIS-MINI-CNTRL. This device is a mini single door control panel that can work with any Wiegand 26~37 bits output reader. It uses Atmel microcontroller to assure stable performance, and it is equipped with an infrared remote control for easy operation. The VIS-MINI-CNTRL supports 1,000 users.

VIS-MINI-CNTRL Features

• User Capacity: 1,000
• Multi access modes: Card, Card or PIN, Card with PIN and multi Cards/PINs
• Can connect with any reader with Wiegand 26~37 bits output
• Can connect with any keypad reader with 4bits, 8bits (ASCII), or 10bits virtual number output
• Support Master Card function
• Low temperature resistance (-40°C)



IMPORTANT:

• Professional installation is recommended.

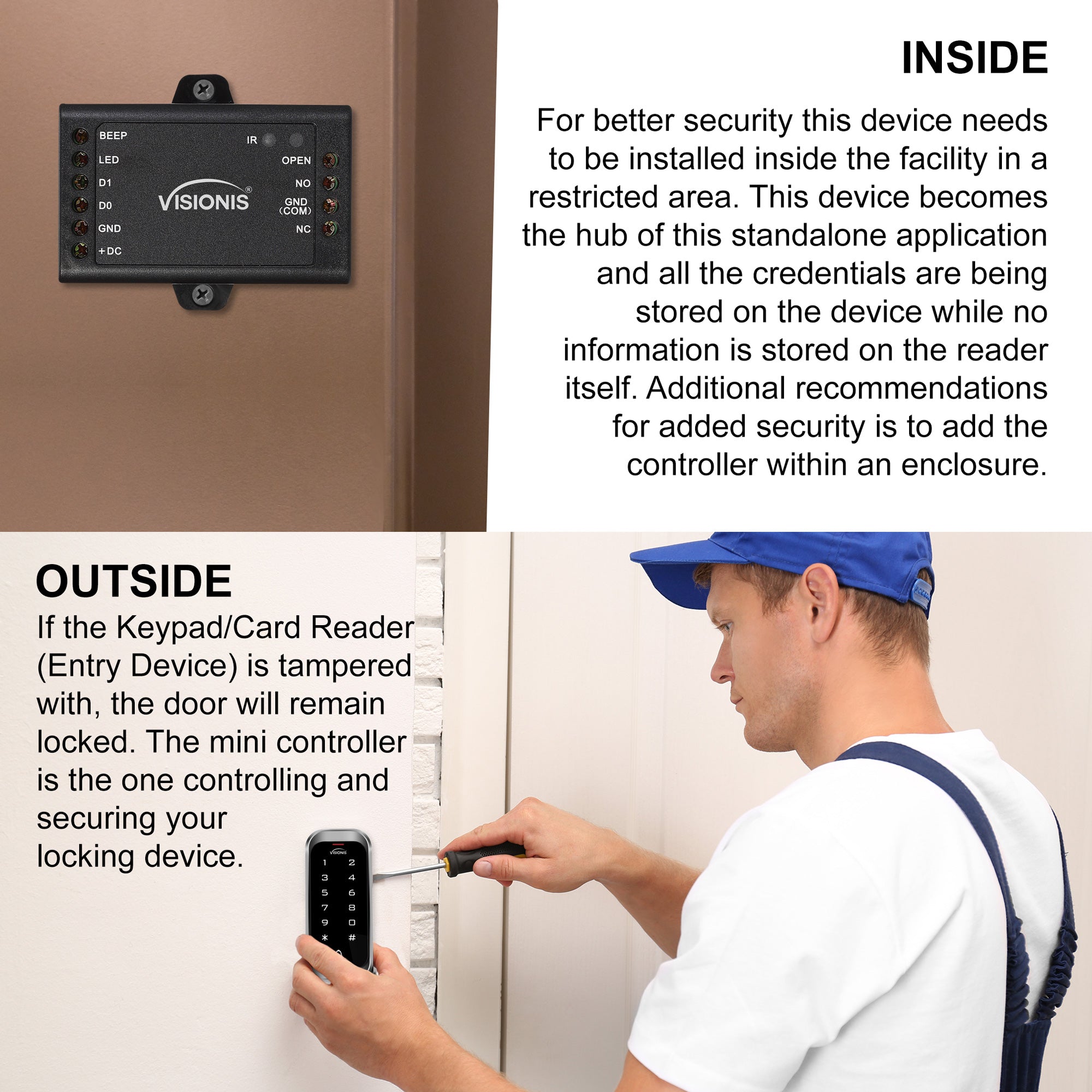

• For better security the VIS-MINI-CNTRL needs to be installed inside the facility in a restricted area. This device becomes the hub of this standalone application and all the credentials are being stored on the device while no information is stored on the reader itself. Additional recommendations for added security is to add the controller within an enclosure.
• If the keypad/card reader (entry device) is tampered with, the door will remain locked. The mini controller is the one controlling and securing your locking device.
• The VIS-MINI-CNTRL offers a more secure option to provide additional security to all type of standalone access control products.

---
