This PRODUCT has a 3 YEAR warranty with full access to tech support in the USA!

Single Door Mini Controller VIS-MINI-CNTRL
RECOMMENDATION: Use the Mini Controller VIS-MINI-CNTRL for Added Security

Pairing your keypad with a mini controller keeps user credentials secure inside a protected area, preventing tampering or breaches. It's an essential upgrade for enhanced security and reliable access control.

Description

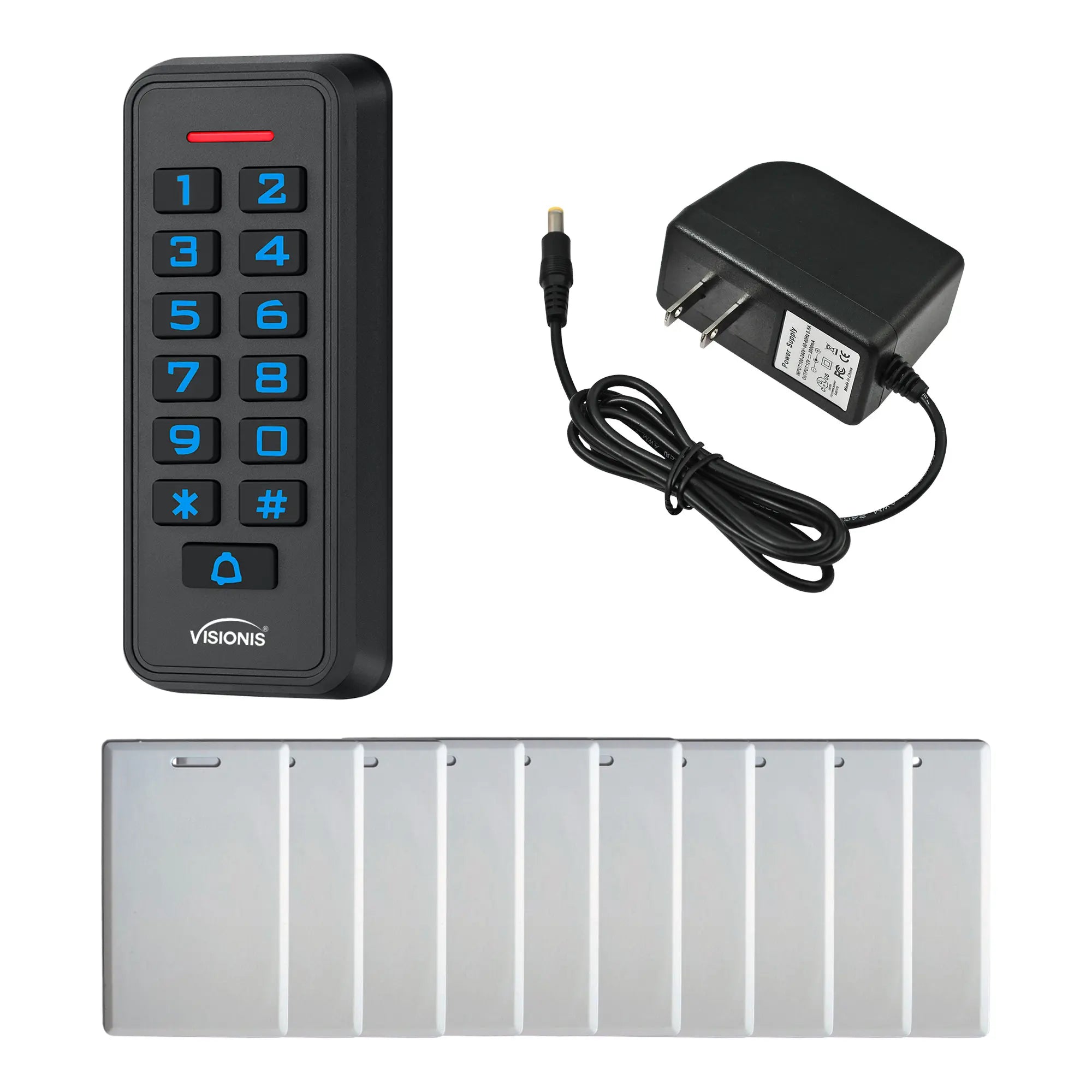

The FPC-6423 kit includes a Visionis VIS-3008 black weatherproof keypad/reader that is standalone, hardwired, and designed for access control, along with 10 proximity cards and a power supply. The keypad supports proximity entry for up to 1,000 users.

A key feature of this model is its dual functionality. While it operates as a standalone keypad, it can also integrate with Wiegand protocol controllers, providing greater flexibility. Please note that this keypad does not include software—it functions independently. However, when connected to a controller, it operates according to the controller’s software.

With its modern design and high-quality components, the VIS-3008 offers a reliable and versatile access control solution suitable for a wide range of installations.



Attention:

  • This Keypad/Reader conforms with the Wiegand 26-37 bit protocol. You can use this in almost all brands of access controllers that comply with the Wiegand protocol.
  • This is a hardwire Keypad/Reader, this is not by any means a wireless product and can not be confused with the VIS-8009 or VIS-8010.



Characteristics

Model No. VIS-3008:

  • Card Type: EM
  • Working Voltage: DC12V-24V
  • Reading Range: 2~5cm (0.79~1.97in.)
  • Capacity: 1000 Users
  • Protocol: Wiegand 26-34 (input and output)
  • Door Opening Time: 0~99s
  • Standby Current: ≤30mA
  • Lock Output Load: ≤3A
  • Door Relay Time: 0 ~ 99s (adjustable)
  • Short-circuit Protection Output Time: ≤100μS
  • Operating Temperature: -40°C ~ 60°C (-40°F ~ 140°F)
  • Dimensions: 111Lx46Wx22H (mm) - 4.37Lx1.82Wx0.87H (in.)
  • Protection Level: IP68 - No ingress of dust; complete protection against contact (dust tight), and waterproof

Model No. VIS-CP200:

  • Cable Length: 1.2 meters (4 feet)
  • Input Voltage Range: AC90V-264V
  • Input Frequency Range: 50Hz-60Hz
  • Output Voltage Range: DC12V+/-5%
  • Output Current: 2A
  • Output Power: 24 Watts
  • Output Ripple&Noise: ≤46MV
  • Output Efficiency: ≥79%
  • Environment Operating: -30°C~45°C 20%~90%RH
  • Environment Storage Temp.: -40°C~85°C 10%~95%RH
  • Product Dimension: 87*36.5*70mm (3.42x1.43x2.75in.)
  • Product Weight: 116g
  • Certificate: UL, CE, RoHS, FCC
Description

The FPC-6423 kit includes a Visionis VIS-3008 black weatherproof keypad/reader that is standalone, hardwired, and designed for access control, along with 10 proximity cards and a power supply. The keypad supports proximity entry for up to 1,000 users.

A key feature of this model is its dual functionality. While it operates as a standalone keypad, it can also integrate with Wiegand protocol controllers, providing greater flexibility. Please note that this keypad does not include software—it functions independently. However, when connected to a controller, it operates according to the controller’s software.

With its modern design and high-quality components, the VIS-3008 offers a reliable and versatile access control solution suitable for a wide range of installations.



Attention:

  • This Keypad/Reader conforms with the Wiegand 26-37 bit protocol. You can use this in almost all brands of access controllers that comply with the Wiegand protocol.
  • This is a hardwire Keypad/Reader, this is not by any means a wireless product and can not be confused with the VIS-8009 or VIS-8010.



Download Datasheets and Manuals of this product

VIS-3008

VIS-PROXCARD
