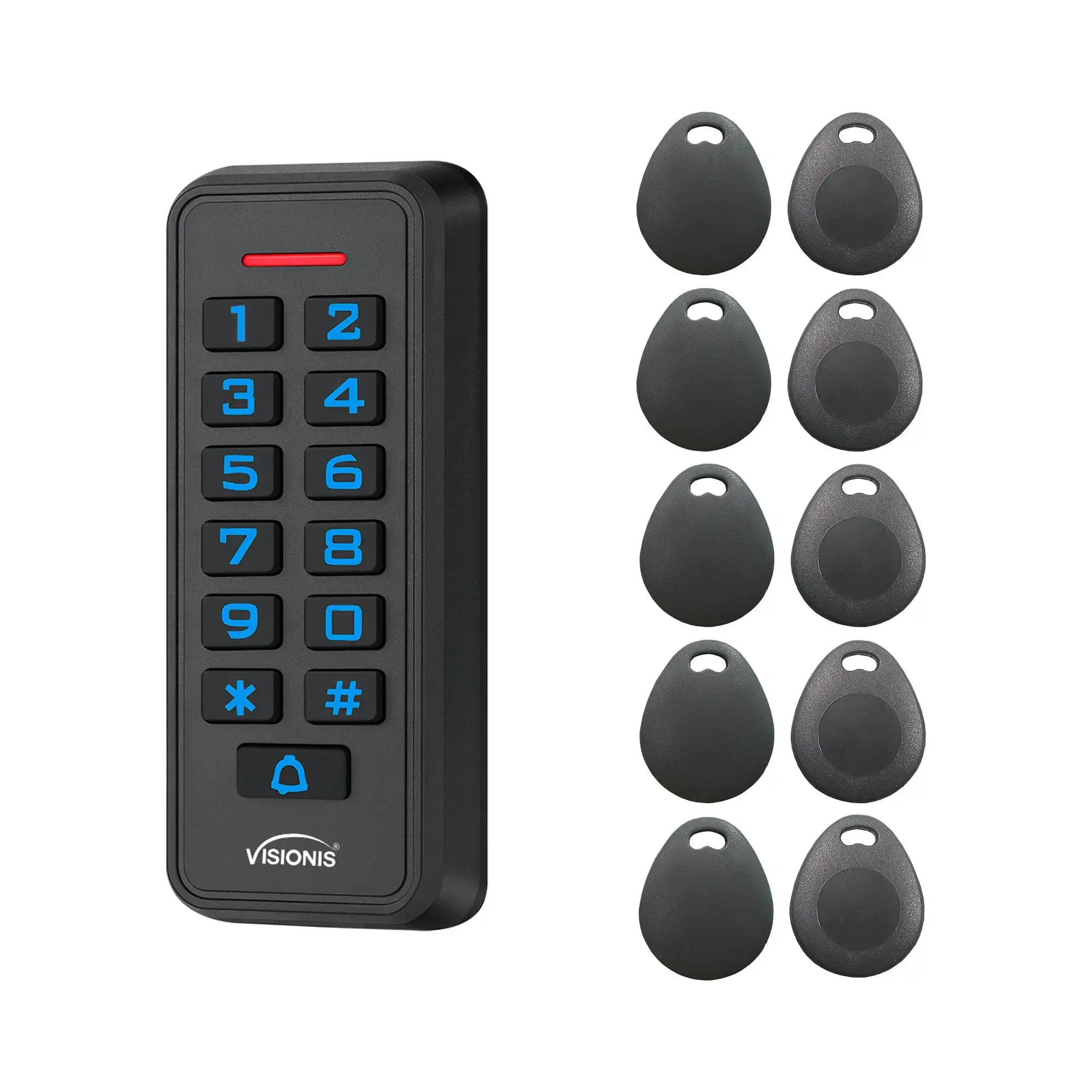

The 6424 kit has a Visionis 3008 black weather-proof keypad/reader that is standalone, hardwired, and designed for access control plus 10 proximity key tags. The keypad provides proximity entry for up to 1000 users. This keypad also has a unique feature that gives you more options. This keypad is standalone but it can also work with Wiegand protocol controllers. Keep in mind, this keypad DOES NOT come with software and is standalone. If connected to a controller, the keypad would work based on the controller’s software. The modern design and quality components provide for a great access control solution.



Attention:

• This Keypad/Reader conforms with the Wiegand 26-37 bit protocol. You can use this in almost all brands of access controllers that comply with the Wiegand protocol.
• This is a hardwire Keypad/Reader, this is not by any means a wireless product and can not be confused with the VIS-8009 or VIS-8010.

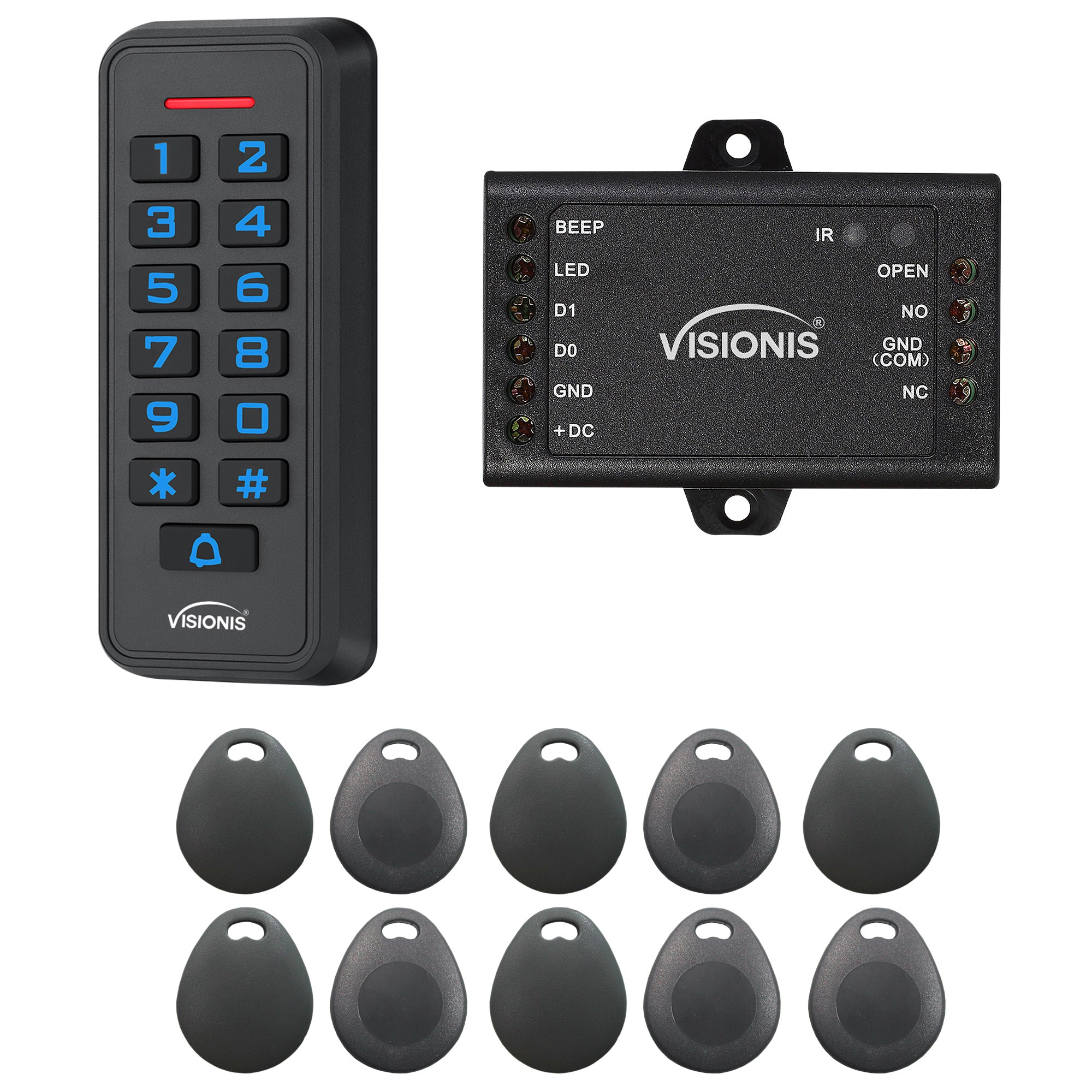

The VIS-MINI-CNTRL is a mini single door control panel that can work with any Wiegand 26~37 bits output reader. It uses Atmel microcontroller to assure stable performance, and it is equipped with an infrared remote control for easy operation. The VIS-MINI-CNTRL supports 1,000 users.



IMPORTANT:

• Professional installation is recommended.
• For better security the VIS-MINI-CNTRL needs to be installed inside the facility in a restricted area. This device becomes the hub of this standalone application and all the credentials are being stored on the device while no information is stored on the reader itself. Additional recommendations for added security is to add the controller within an enclosure.
• If the keypad/card reader (entry device) is tampered with, the door will remain locked. The mini controller is the one controlling and securing your locking device.
• The VIS-MINI-CNTRL offers a more secure option to provide additional security to all type of standalone access control products.
