Description

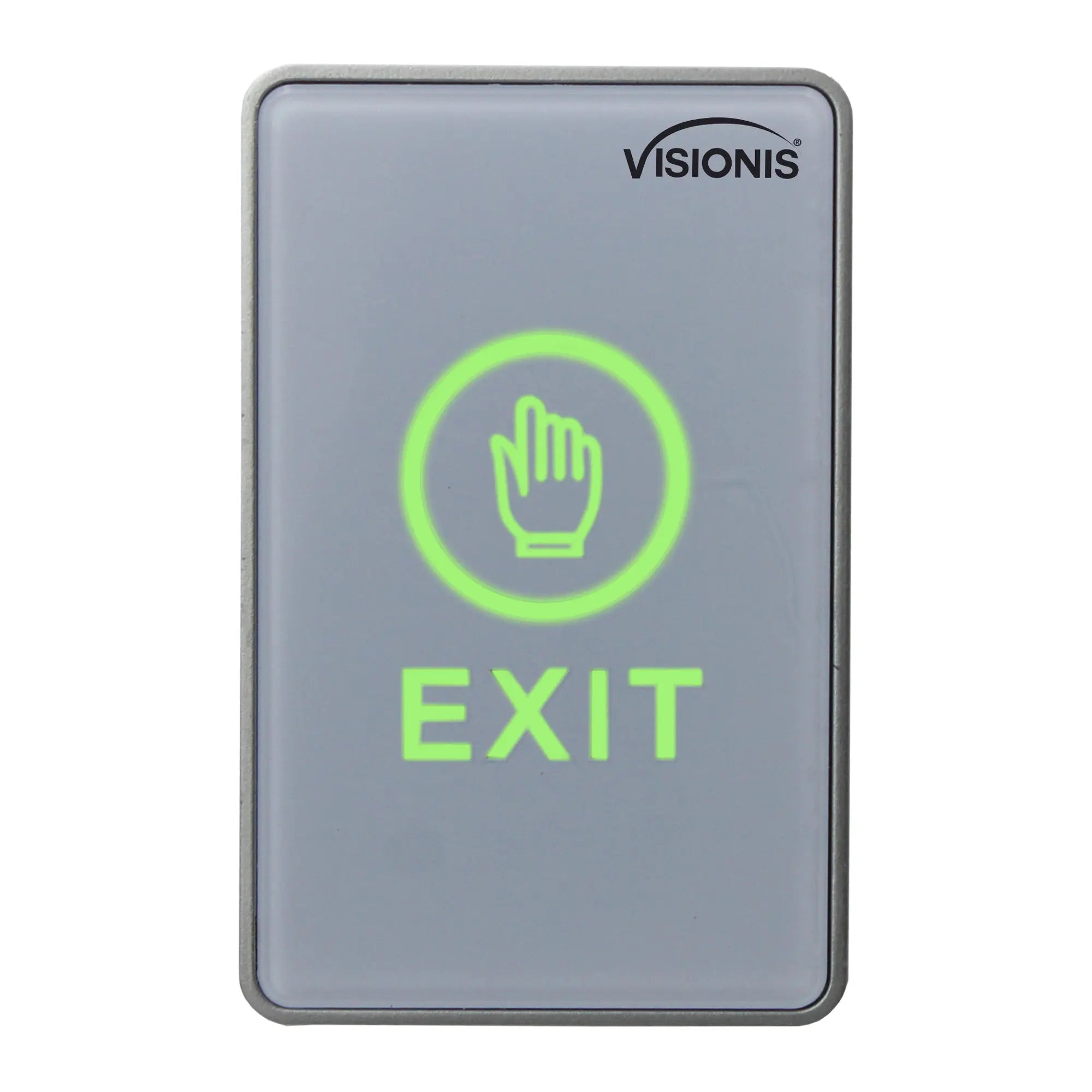

The VISIONIS VIS-7026 Indoor Touch Sensitive Push to Exit Button offers a sleek and modern solution for access control systems. This push to exit button is designed for easy and reliable operation, providing a seamless egress experience.

The touch-sensitive surface ensures responsive performance, while its durable acrylic panel ensures long-lasting use in high-traffic environments. The integrated LED indicators, featuring blue for standby and green for active/open, provide clear visual feedback.

This press to exit button supports NC, NO, and COM outputs, making it compatible with a wide range of access control systems. Whether you need a door exit button for residential, commercial, or industrial applications, the VIS-7026 delivers versatility and performance.

With a life cycle of 100,000 tests and a standard size design, this request to exit device is perfect for offices, banks, department stores, and more.

Key Features

  • Touch-sensitive operation for effortless use.
  • Durable acrylic panel with 1.5mm thickness.
  • Integrated LED indicators: blue (standby) and green (active/open).
  • Supports NO, NC, and COM outputs for compatibility with various systems.
  • Tested for 100,000 cycles for long-lasting reliability.
  • Compact dimensions: 86L × 50W × 20H mm (3.38L × 1.96W × 0.78H in.).
  • Operating temperature: -20°C to +55°C (-4°F to 131°F).
  • Easy installation for a variety of applications.
Characteristics

Model No. VIS-7026:

  • Contact Rating: 3A/12-24V
  • Output Contact: NO/NC/COM
  • Power: 12-24VDC
  • LED Color: Blue (Stand by Mode), Green (Active/Open Mode)
  • Panel: 1.5mm (0.05in.) Thick Acrylic (White)
  • Mechanical Life: 100.000 tests
  • Operating Temperature: -20°C~+55°C (14°F-131°F)
  • Operating Humidity: 0-95% (relative humidity)
  • Weight: 0.08kg
  • Dimensions: 86L × 50W × 20H mm - 3.38L x 1.96W x 0.78H in.
Packaging of this product
Description

The VISIONIS VIS-7026 Indoor Touch Sensitive Push to Exit Button offers a sleek and modern solution for access control systems. This push to exit button is designed for easy and reliable operation, providing a seamless egress experience.

The touch-sensitive surface ensures responsive performance, while its durable acrylic panel ensures long-lasting use in high-traffic environments. The integrated LED indicators, featuring blue for standby and green for active/open, provide clear visual feedback.

This press to exit button supports NC, NO, and COM outputs, making it compatible with a wide range of access control systems. Whether you need a door exit button for residential, commercial, or industrial applications, the VIS-7026 delivers versatility and performance.

With a life cycle of 100,000 tests and a standard size design, this request to exit device is perfect for offices, banks, department stores, and more.

Key Features

  • Touch-sensitive operation for effortless use.
  • Durable acrylic panel with 1.5mm thickness.
  • Integrated LED indicators: blue (standby) and green (active/open).
  • Supports NO, NC, and COM outputs for compatibility with various systems.
  • Tested for 100,000 cycles for long-lasting reliability.
  • Compact dimensions: 86L × 50W × 20H mm (3.38L × 1.96W × 0.78H in.).
  • Operating temperature: -20°C to +55°C (-4°F to 131°F).
  • Easy installation for a variety of applications.
Characteristics
Packaging of this product

Model No. VIS-7026:

  • Contact Rating: 3A/12-24V
  • Output Contact: NO/NC/COM
  • Power: 12-24VDC
  • LED Color: Blue (Stand by Mode), Green (Active/Open Mode)
  • Panel: 1.5mm (0.05in.) Thick Acrylic (White)
  • Mechanical Life: 100.000 tests
  • Operating Temperature: -20°C~+55°C (14°F-131°F)
  • Operating Humidity: 0-95% (relative humidity)
  • Weight: 0.08kg
  • Dimensions: 86L × 50W × 20H mm - 3.38L x 1.96W x 0.78H in.

  • What is the exit button made of?

    The panel of the Visionis VIS-7026 Touch Sensitive Exit Button is made of 1.5mm (0.05 in.) thick acrylic.

  • Is this request to exit button easy to install?

    Yes, the Visionis VIS-7026 Touch Sensitive Exit Button is designed for easy, DIY installation.
    Installation methods: Supports screw-in mounting
    Single gang wall mount — fits standard electrical boxes
    Wired connection: Requires connecting to a 12–24V DC power source with NO/NC/COM wiring

  • Can this request to exit button be used outdoors? Is it weatherproof?

    The Visionis VIS-7026 Exit Button is not weatherproof and is designed for indoor use only. You can check our outdoor/weatherproof models here.

  • What access control systems is this exit button compatible with?

    The Visionis VIS-7026 Exit Button is designed to be broadly compatible with most access control systems, thanks to its NO/NC/COM outputs. Specifically, it works with:

    • Electromagnetic locks (maglocks)
    • Electric strikes
    • Access Control Systems in general (offices, banks, secure facilities)

  • Does the whole faceplate operate the switch or just the section in the circle?

    It will work on most of the areas around the circle but not near the edges.
