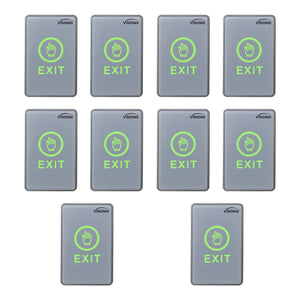

Pack of 10 request to exit button touch-sensitive with LED indicators - VISIONIS VIS-7026
push to exit button touch-sensitive for access control systems. VISIONIS VIS-7026
push to exit button touch-sensitive for access control systems. VISIONIS VIS-7026
Door release button for Access Control - VIS-7026 Visionis
Request to exit button features - VIS-7026 VISIONIS
Request to exit button reviews - VIS-7026 VISIONIS
Push to exit button with LED Light - VIS-7026 Visionis
Push to exit button for Access Control - VIS-7026 Visionis
Push to exit button side view and rear view - VIS-7026 Visionis
Request to exit button for Door Access Control - VIS-7026 Visionis
    Pack of 10 request to exit button touch-sensitive with LED indicators - VISIONIS VIS-7026
    push to exit button touch-sensitive for access control systems. VISIONIS VIS-7026
    push to exit button touch-sensitive for access control systems. VISIONIS VIS-7026
    Door release button for Access Control - VIS-7026 Visionis
    Request to exit button features - VIS-7026 VISIONIS
    Request to exit button reviews - VIS-7026 VISIONIS
    Push to exit button with LED Light - VIS-7026 Visionis
    Push to exit button for Access Control - VIS-7026 Visionis
    Push to exit button side view and rear view - VIS-7026 Visionis
    Request to exit button for Door Access Control - VIS-7026 Visionis
Pack of 10 request to exit button touch-sensitive with LED indicators - VISIONIS VIS-7026
push to exit button touch-sensitive for access control systems. VISIONIS VIS-7026
push to exit button touch-sensitive for access control systems. VISIONIS VIS-7026
Door release button for Access Control - VIS-7026 Visionis
Request to exit button features - VIS-7026 VISIONIS
Request to exit button reviews - VIS-7026 VISIONIS
Push to exit button with LED Light - VIS-7026 Visionis
Push to exit button for Access Control - VIS-7026 Visionis
Push to exit button side view and rear view - VIS-7026 Visionis
Request to exit button for Door Access Control - VIS-7026 Visionis
Pack of 10 request to exit button touch-sensitive with LED indicators - VISIONIS VIS-7026
push to exit button touch-sensitive for access control systems. VISIONIS VIS-7026
push to exit button touch-sensitive for access control systems. VISIONIS VIS-7026
Door release button for Access Control - VIS-7026 Visionis
Request to exit button features - VIS-7026 VISIONIS
Request to exit button reviews - VIS-7026 VISIONIS
Push to exit button with LED Light - VIS-7026 Visionis
Push to exit button for Access Control - VIS-7026 Visionis
Push to exit button side view and rear view - VIS-7026 Visionis
Request to exit button for Door Access Control - VIS-7026 Visionis
    Pack of 10 request to exit button touch-sensitive with LED indicators - VISIONIS VIS-7026
    push to exit button touch-sensitive for access control systems. VISIONIS VIS-7026
    push to exit button touch-sensitive for access control systems. VISIONIS VIS-7026
    Door release button for Access Control - VIS-7026 Visionis
    Request to exit button features - VIS-7026 VISIONIS
    Request to exit button reviews - VIS-7026 VISIONIS
    Push to exit button with LED Light - VIS-7026 Visionis
    Push to exit button for Access Control - VIS-7026 Visionis
    Push to exit button side view and rear view - VIS-7026 Visionis
    Request to exit button for Door Access Control - VIS-7026 Visionis
Pack of 10 request to exit button touch-sensitive with LED indicators - VISIONIS VIS-7026
push to exit button touch-sensitive for access control systems. VISIONIS VIS-7026
push to exit button touch-sensitive for access control systems. VISIONIS VIS-7026
Door release button for Access Control - VIS-7026 Visionis
Request to exit button features - VIS-7026 VISIONIS
Request to exit button reviews - VIS-7026 VISIONIS
Push to exit button with LED Light - VIS-7026 Visionis
Push to exit button for Access Control - VIS-7026 Visionis
Push to exit button side view and rear view - VIS-7026 Visionis
Request to exit button for Door Access Control - VIS-7026 Visionis

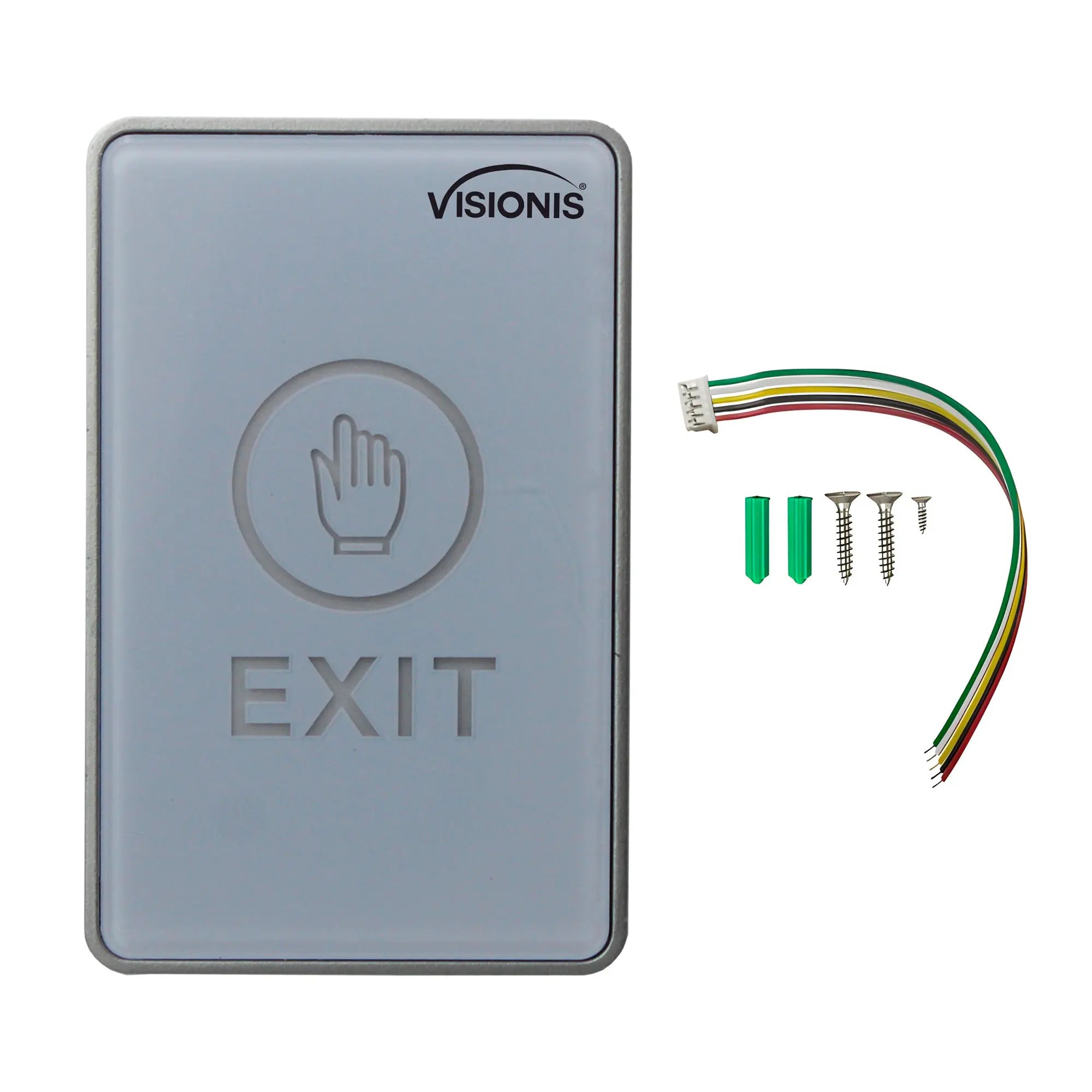

Kit Includes:
(10)
VIS-7026: Indoor Touch Sensitive Type Standard Size Push to Exit Button for Door Access Control with LED NC COM and NO Outputs
Description

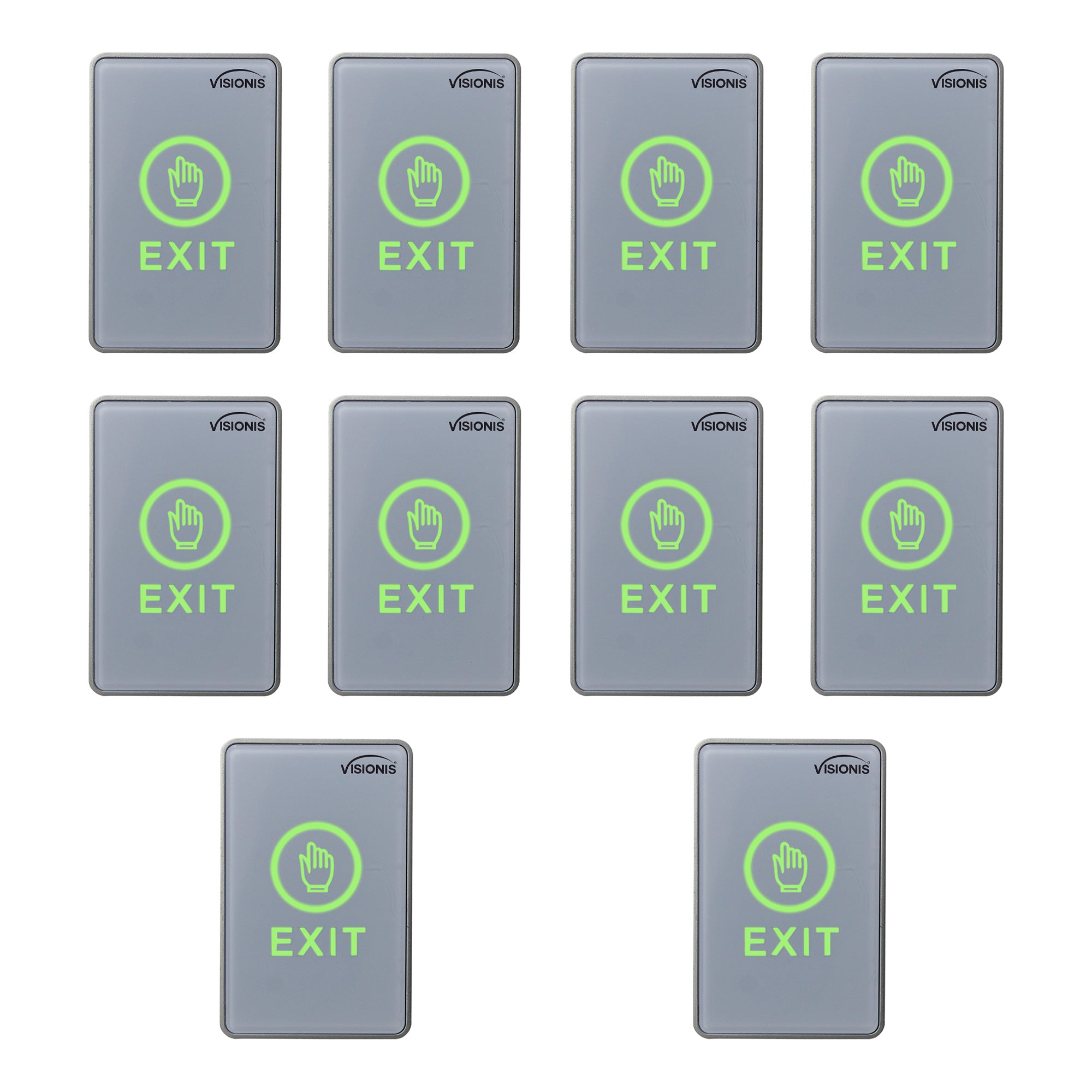

Get full coverage with this 10-pack of touch-sensitive push to exit buttons, ideal for large commercial buildings, business parks, or corporate environments.

Each door release button delivers responsive touch control, long service life, and simple wiring to electromagnetic locks or access panels. A stylish and secure upgrade for any multi-exit system.

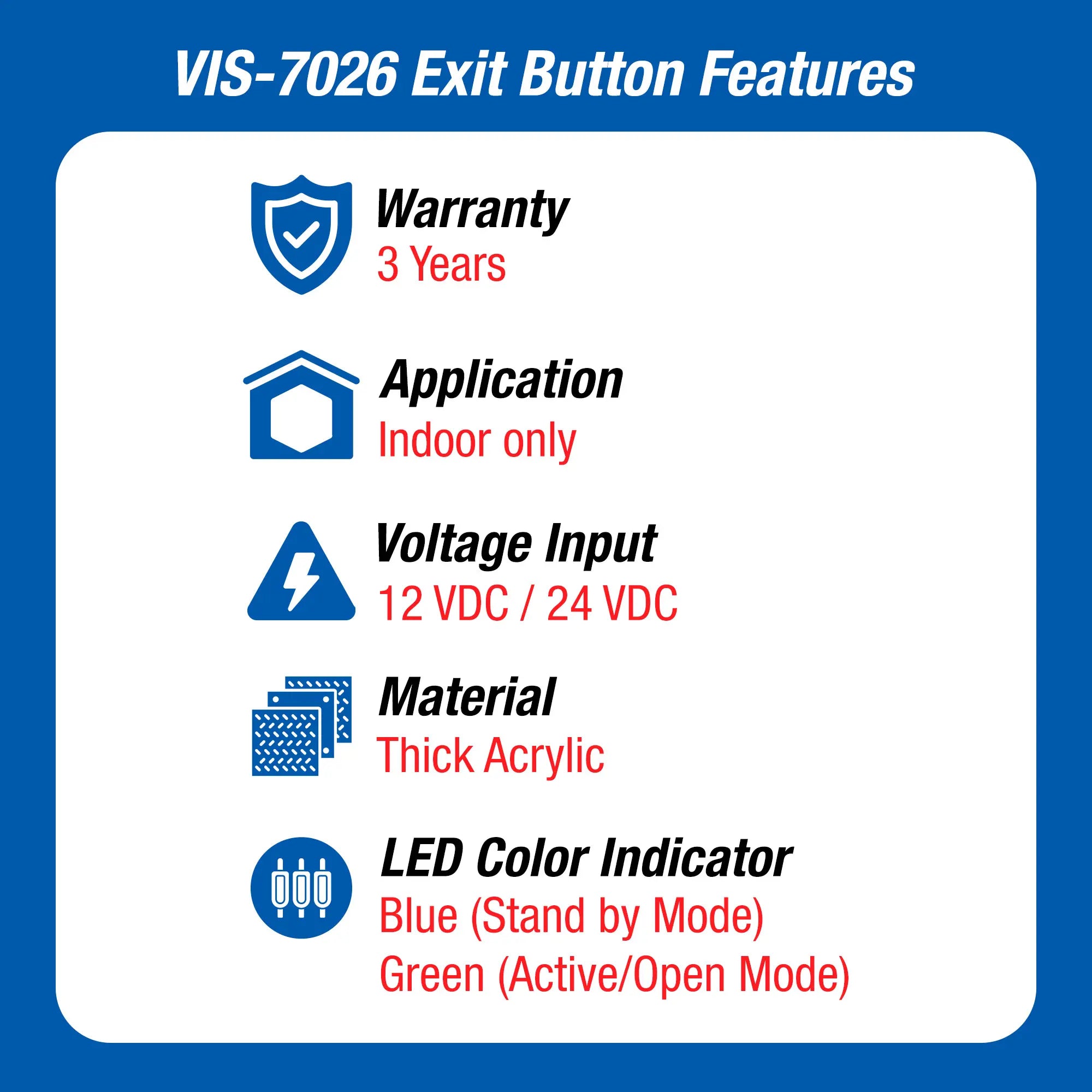

Characteristics

Model No. VIS-7026:

  • Contact Rating: 3A/12-24V
  • Output Contact: NO/NC/COM
  • Power: 12-24VDC

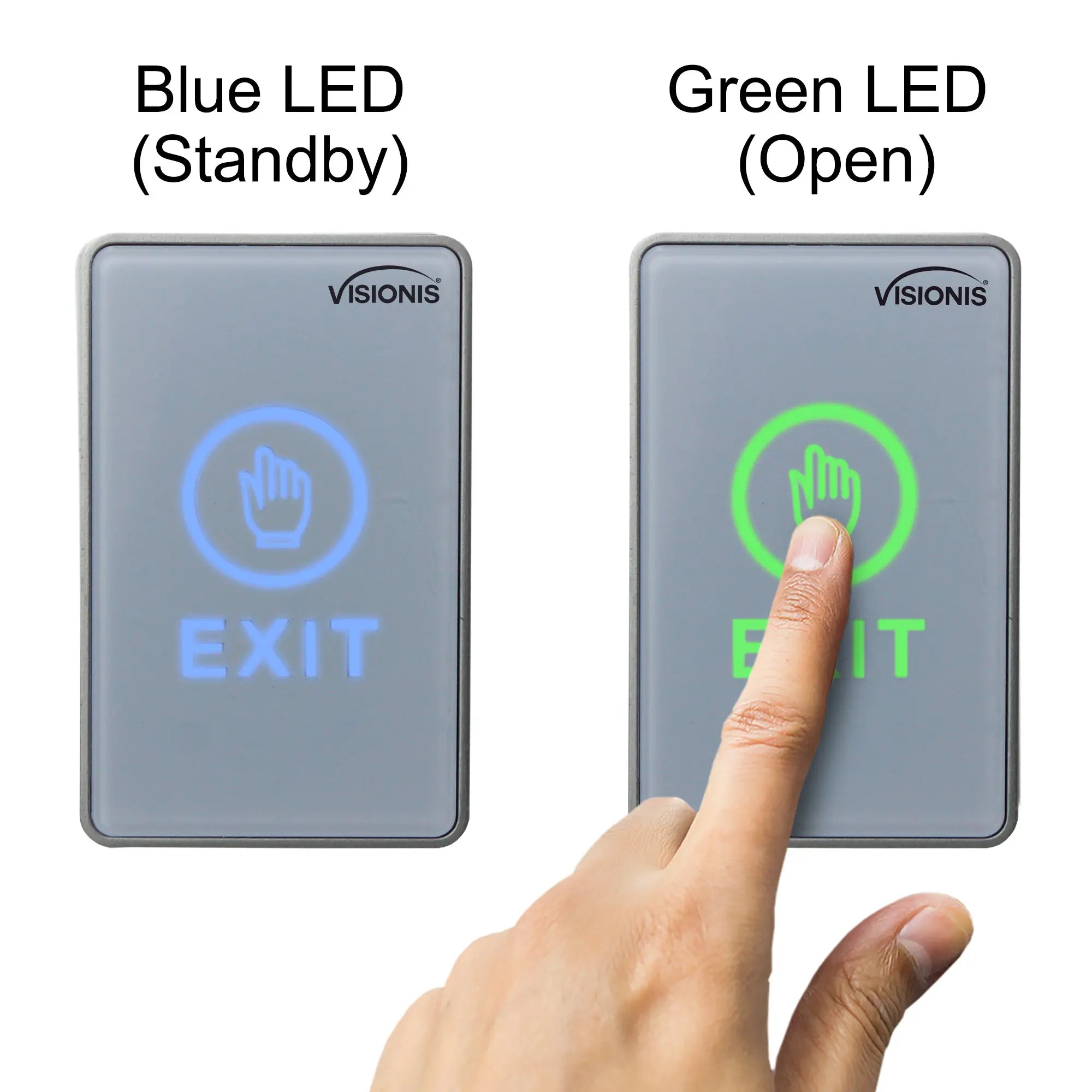

  • LED Color: Blue (Stand by Mode), Green (Active/Open Mode)
  • Panel: 1.5mm (0.05in.) Thick Acrylic (White)
  • Mechanical Life: 100.000 tests
  • Operating Temperature: -20°C~+55°C (14°F-131°F)
  • Operating Humidity: 0-95% (relative humidity)
  • Weight: 0.08kg

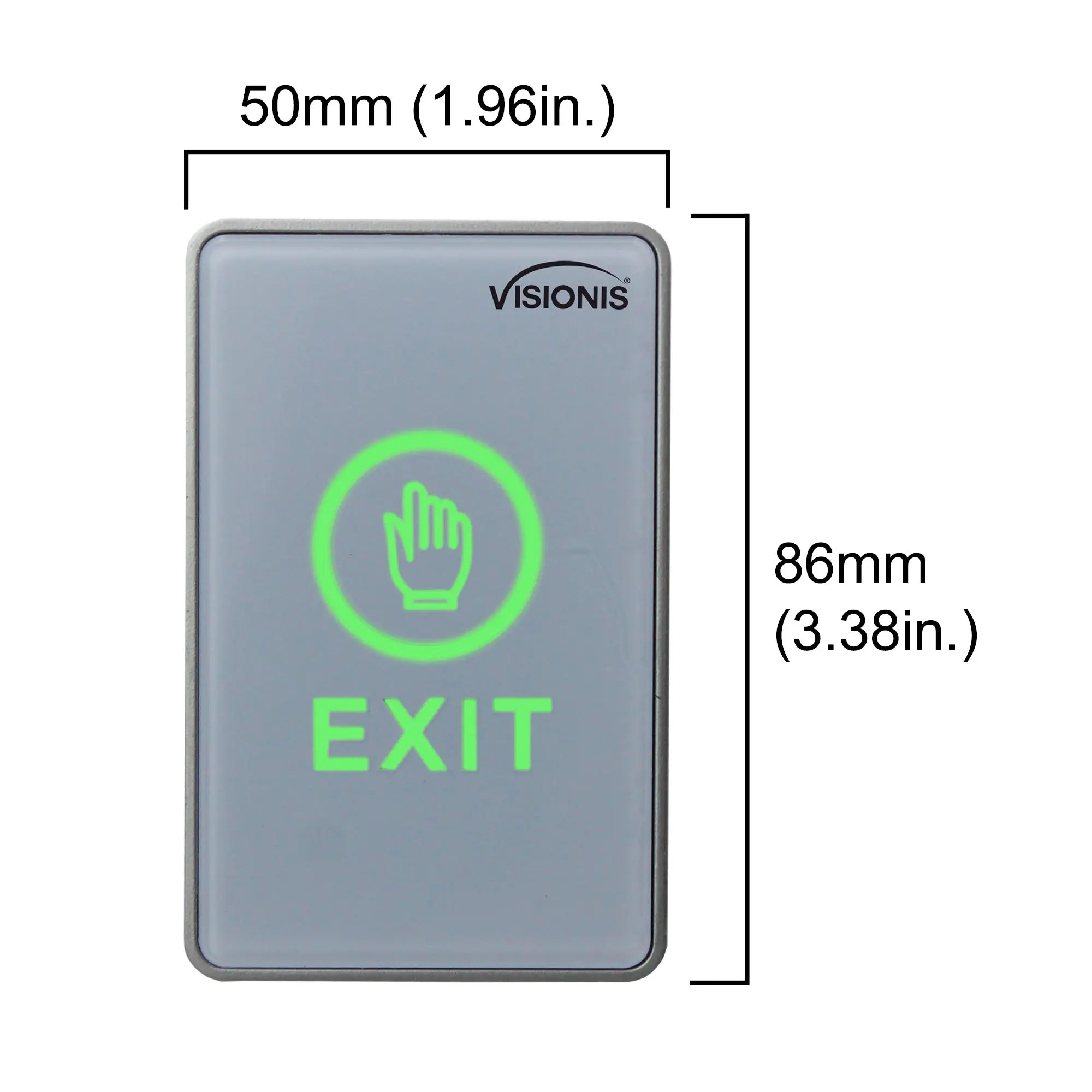

  • Dimensions: 86L × 50W × 20H mm - 3.38L x 1.96W x 0.78H in.
Packaging of this product
Description

Get full coverage with this 10-pack of touch-sensitive push to exit buttons, ideal for large commercial buildings, business parks, or corporate environments.

Each door release button delivers responsive touch control, long service life, and simple wiring to electromagnetic locks or access panels. A stylish and secure upgrade for any multi-exit system.

  • What is the exit button made of?

    The panel of the Visionis VIS-7026 Touch Sensitive Exit Button is made of 1.5mm (0.05 in.) thick acrylic.

  • Is this request to exit button easy to install?

    Yes, the Visionis VIS-7026 Touch Sensitive Exit Button is designed for easy, DIY installation.
    Installation methods: Supports screw-in mounting
    Single gang wall mount — fits standard electrical boxes

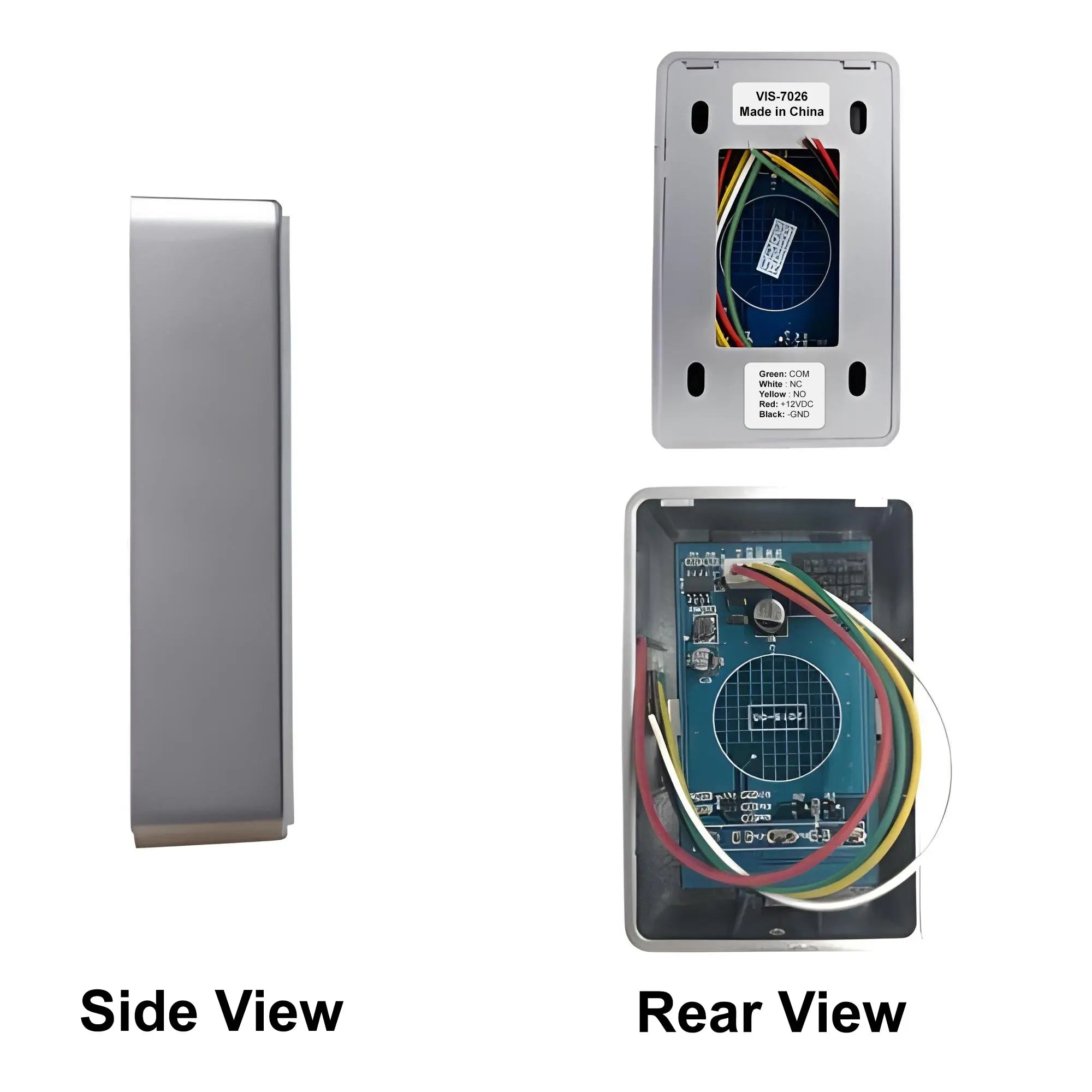

    Wired connection: Requires connecting to a 12–24V DC power source with NO/NC/COM wiring

  • Can this request to exit button be used outdoors? Is it weatherproof?

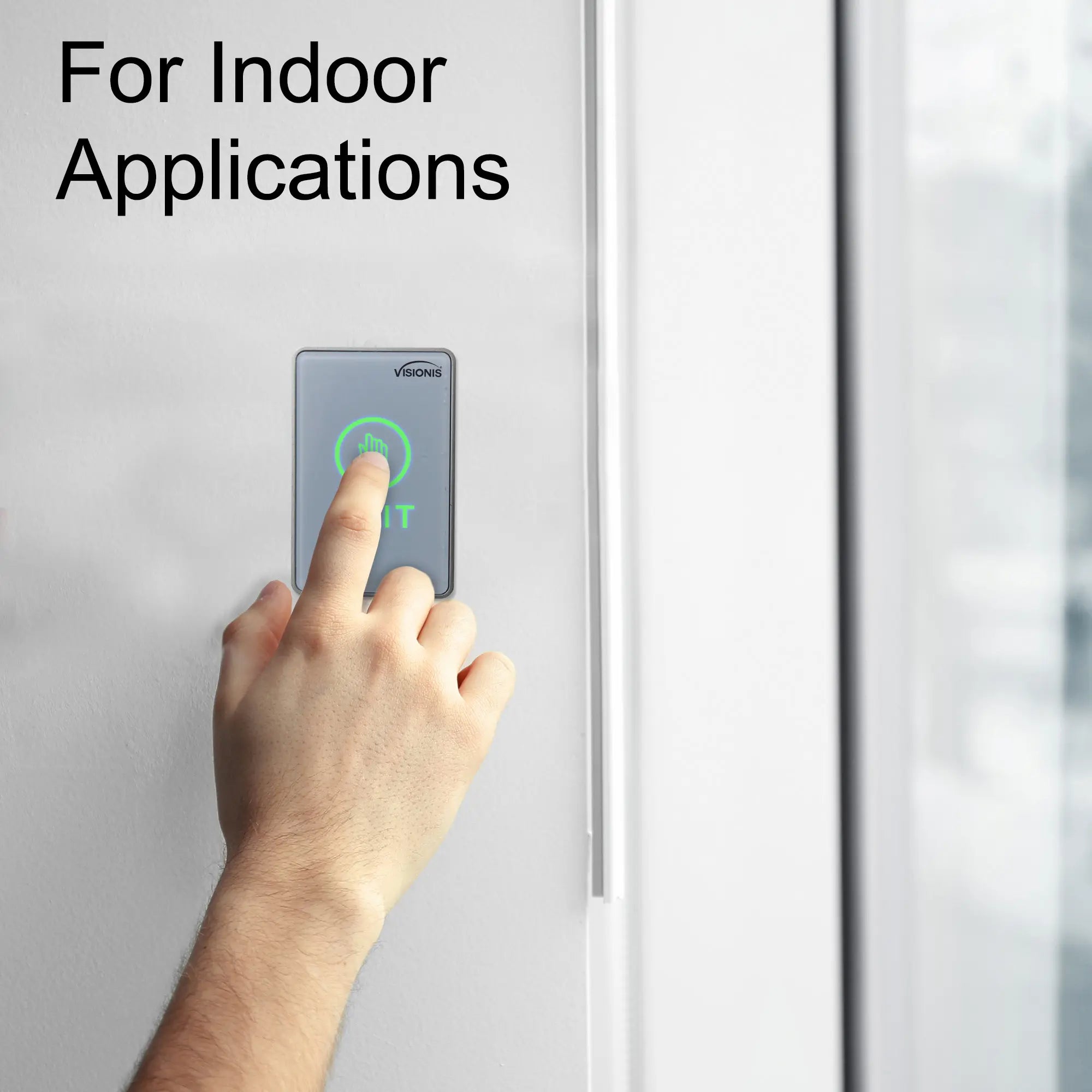

    The Visionis VIS-7026 Exit Button is not weatherproof and is designed for indoor use only. You can check our outdoor/weatherproof models here.

  • What access control systems is this exit button compatible with?

    The Visionis VIS-7026 Exit Button is designed to be broadly compatible with most access control systems, thanks to its NO/NC/COM outputs. Specifically, it works with:

    • Electromagnetic locks (maglocks)
    • Electric strikes
    • Access Control Systems in general (offices, banks, secure facilities)

  • Does the whole faceplate operate the switch or just the section in the circle?

    It will work on most of the areas around the circle but not near the edges.
