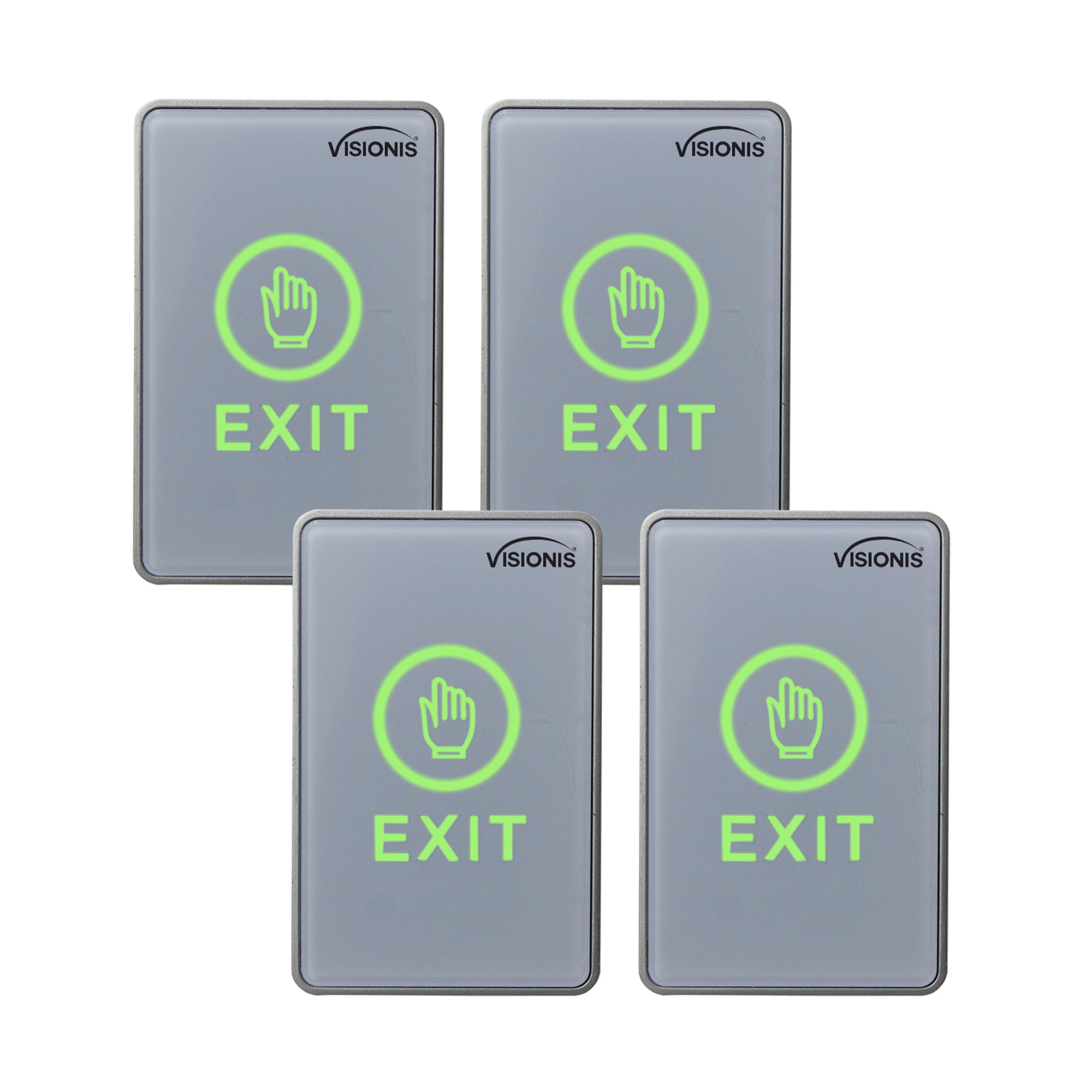

Pack of 4 request to exit button touch-sensitive with LED indicators - VISIONIS VIS-7026

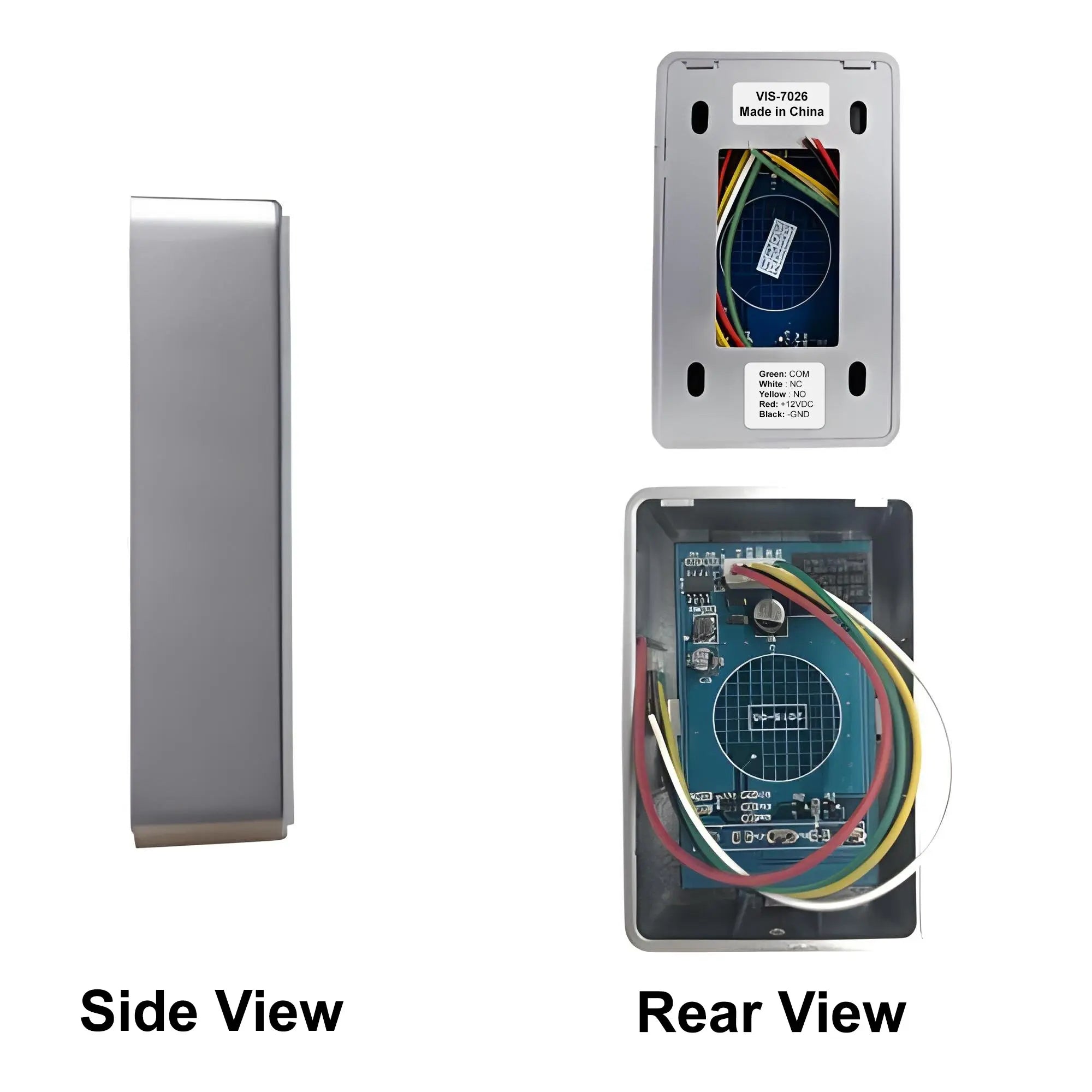

rear view push to exit button touch-sensitive for access control systems. VISIONIS VIS-7026

push to exit button touch-sensitive with LED indicators for access control systems. VISIONIS VIS-7026

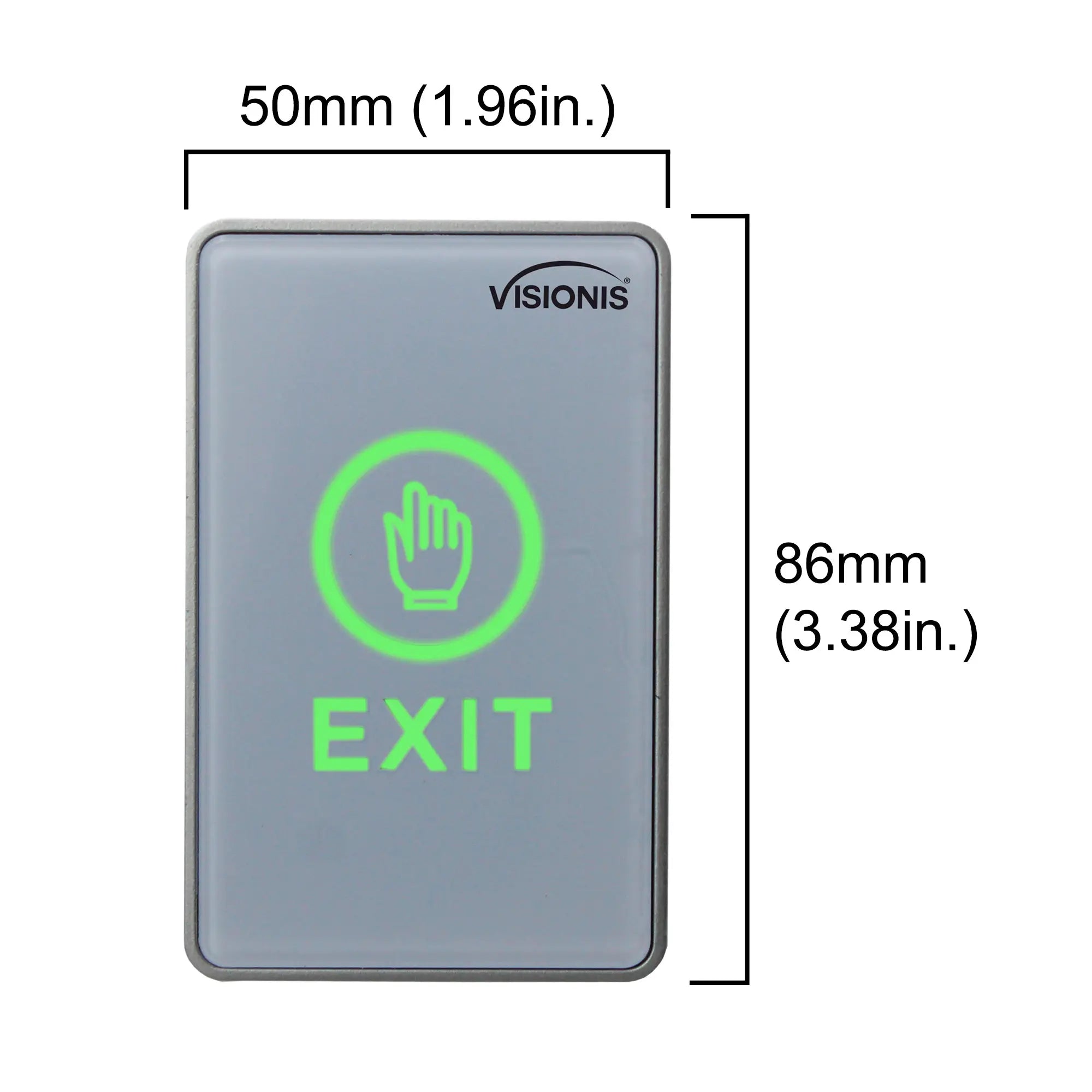

dimensions push to exit button touch-sensitive for access control systems. VISIONIS VIS-7026

Looking for something slightly different? Check out these variations:

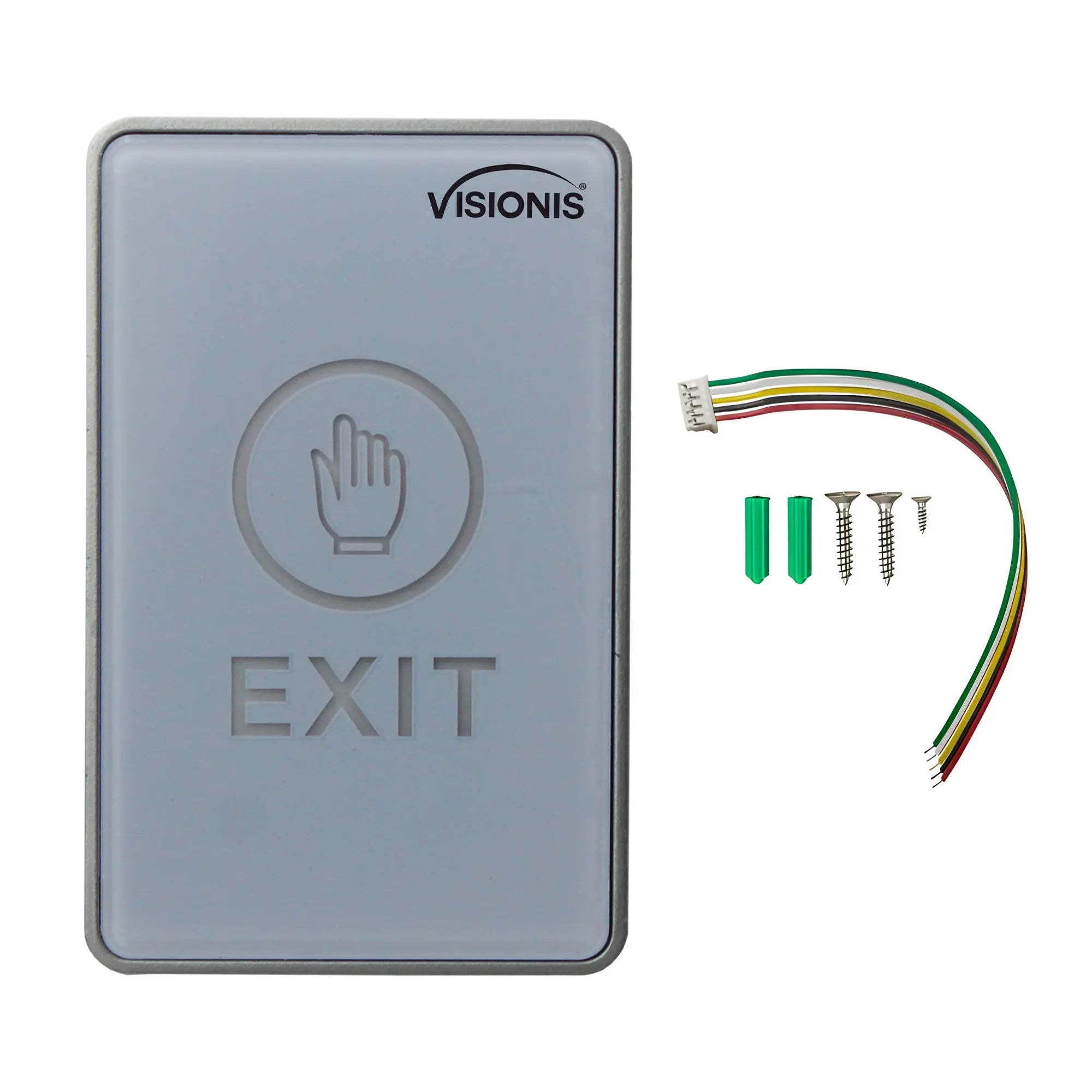

Kit Includes:

(4)

VIS-7026: Indoor Touch Sensitive Type Standard Size Push to Exit Button for Door Access Control with LED NC COM and NO Outputs

Description

Add modern egress control to multiple access points with this 4-pack of touch-sensitive push to exit buttons.

These elegant door release buttons offer LED feedback for standby and active states, and are ideal for use in retail, hospitality, or administrative spaces.

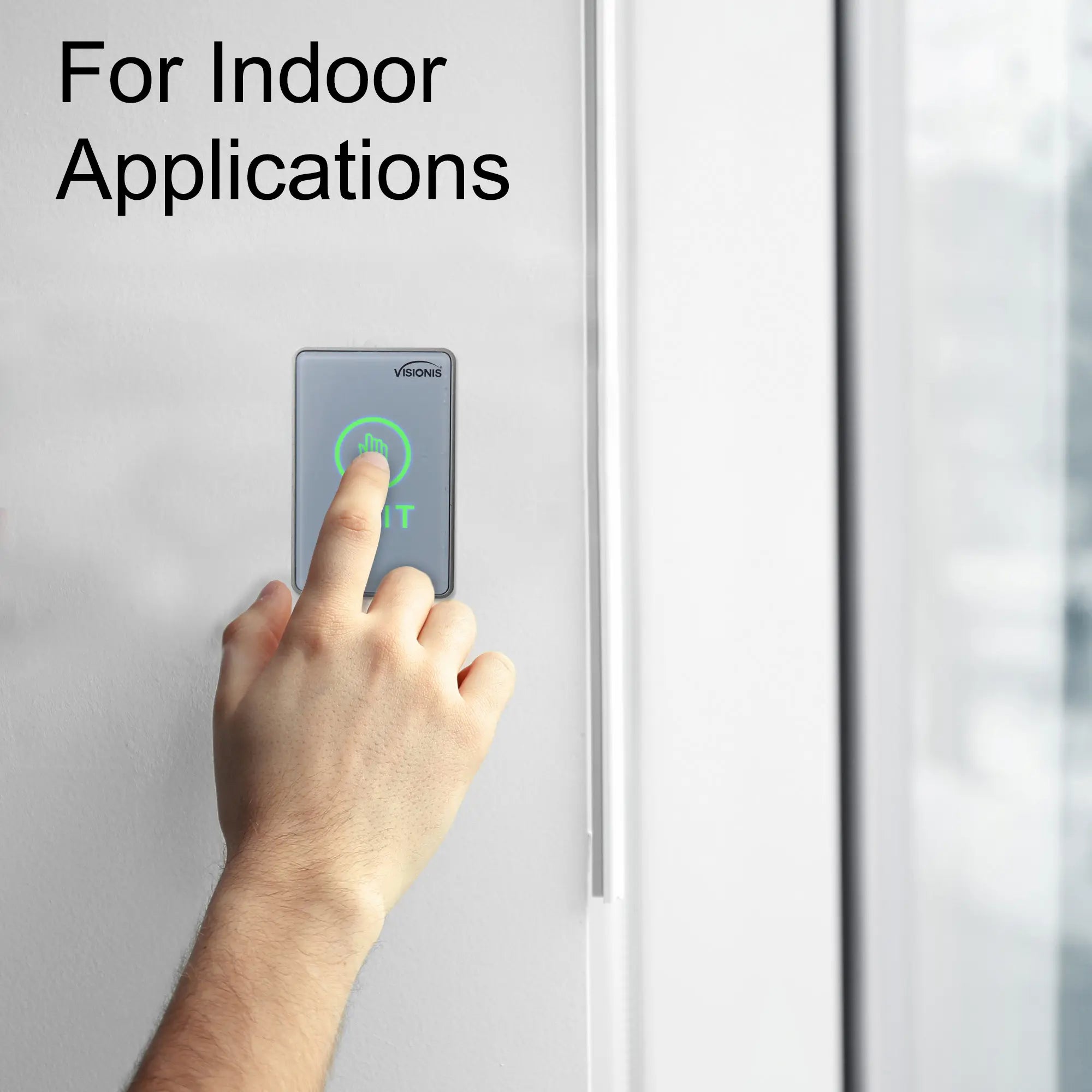

Built for longevity, each button is rated for 100,000 cycles and designed for indoor use.

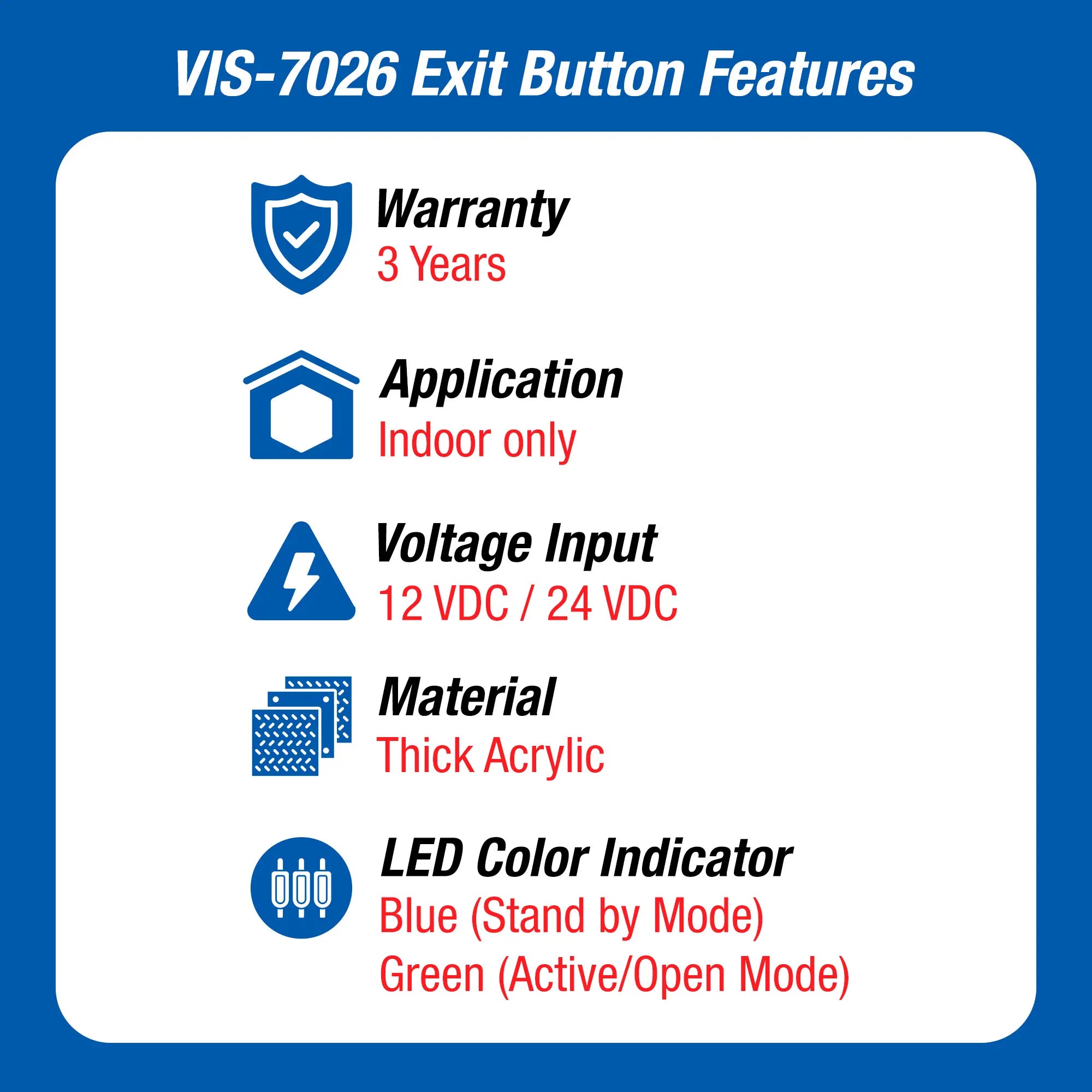

Characteristics

Model No. VIS-7026:

Contact Rating: 3A/12-24V
Output Contact: NO/NC/COM
Power: 12-24VDC

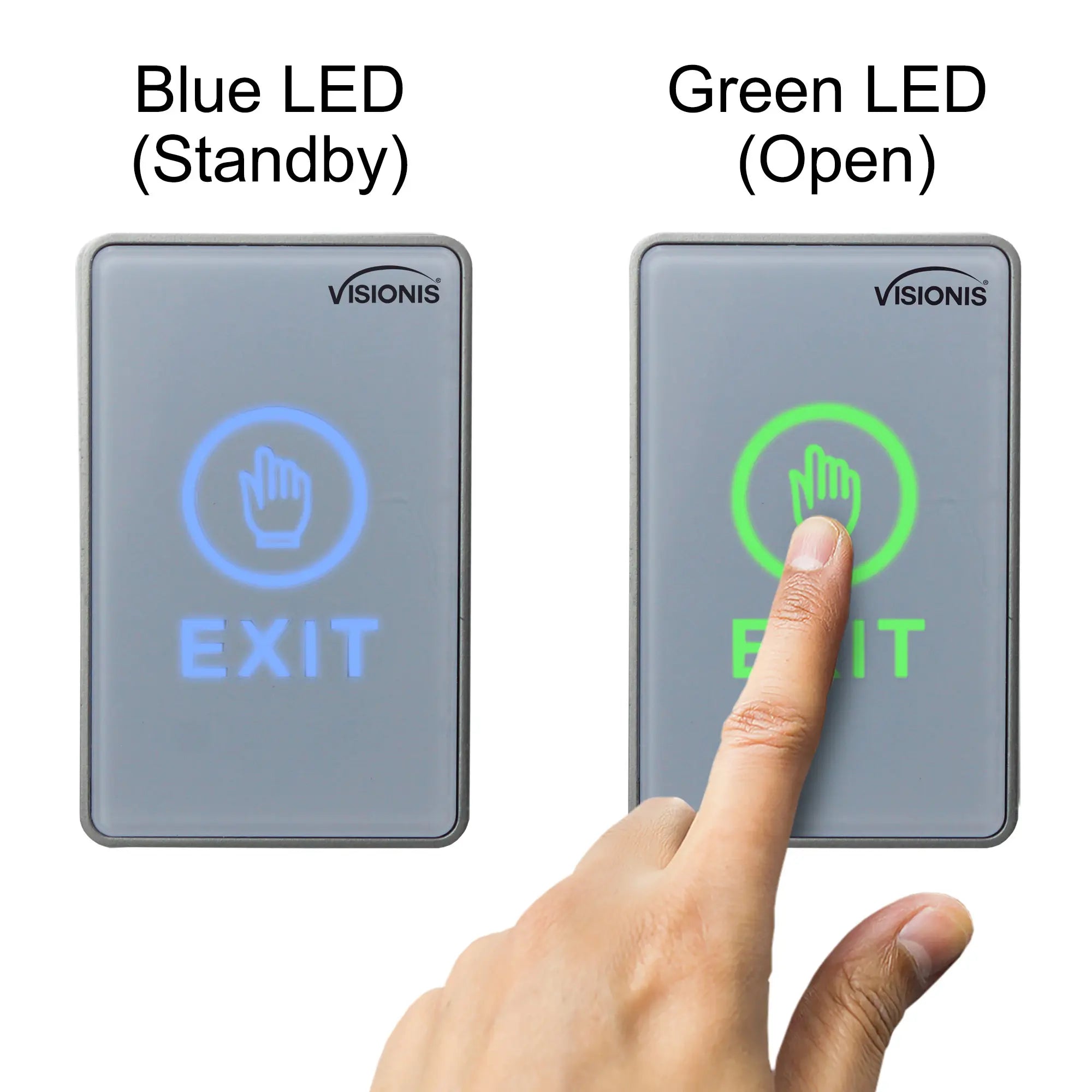

LED Color: Blue (Stand by Mode), Green (Active/Open Mode)
Panel: 1.5mm (0.05in.) Thick Acrylic (White)
Mechanical Life: 100.000 tests
Operating Temperature: -20°C~+55°C (14°F-131°F)
Operating Humidity: 0-95% (relative humidity)
Weight: 0.08kg
Dimensions: 86L × 50W × 20H mm - 3.38L x 1.96W x 0.78H in.

Description

Add modern egress control to multiple access points with this 4-pack of touch-sensitive push to exit buttons.

These elegant door release buttons offer LED feedback for standby and active states, and are ideal for use in retail, hospitality, or administrative spaces.

Built for longevity, each button is rated for 100,000 cycles and designed for indoor use.

Download Datasheets and Manuals of this product

VIS-7026

Visionis by Visionis

4 Pack Push to Exit Button for Door Access Control VIS-7026. Indoor Touch Sensitive Type. Standard Size. With LED and NC, COM and NO Outputs - FPC-7552 Visionis

Translation missing: en.products.product.sku:FPC-7552

UPC Code: 793811572513 Weight: 2.0 lb

Regular price: $48.52
Sale price: $48.52
Regular price

Shipping calculated at checkout.

In Stock

Quantity:

Phone Life-Time Technical Support

30-Day No Questions Return Policy

*Free Shipping within the USA

Contact an Expert

Order Before 3:00pm EST on a week day and your order will be shipped out the same day

*Free shipping within the USA

Including Puerto Rico, Hawaii and Alaska

ATTENTION:

Before purchasing, it is recommended that the customer checks with their local fire authority to see if there is any additional product they may need in order to comply with the local fire codes. We are not responsible for the improper installation of our product(s) or any type of fees that can be incurred by not complying with your local fire authority.
