What access control systems is this exit button compatible with?

The Visionis VIS-7030 Exit Button is designed to be broadly compatible with most access control systems, thanks to its NO/NC/COM outputs. Specifically, it works with:Electromagnetic locks (maglocks)Electric strikesAccess Control Systems in general (offices, banks, secure facilities)

Can it be used outdoors? Is it weatherproof?

The Visionis VIS-7030 Psuh to Exit Button is not weatherproof and is designed for indoor use only. You can check our outdoor/weatherproof models here.

What magnetic locks work with this?

Since the VIS-7030 uses standard NO/NC/COM outputs and 12–24V wiring, it's compatible with virtually any standard magnetic lock. Here are some great options:Visionis FPC-5193 1200lbs Indoor Electromagnetic Lock with 1,200 lbs L and Z Bracket KitIndoor Magnetic Door Lock White Color. Up to 600 lbs (272 kg) of Holding ForceElectric Drop Bolt Lock (Deadbolt) with 2600lbs (1200Kg) of Holding Force. With Timer Delay and LED

Does it require any special tools to install?

No special tools are required to install the Visionis VIS-7030 Wide Push to Exit Button. Standard wiring tools – A basic screwdriver and wire stripper are all you typically needSingle gang wall mount – Fits into a standard single-gang electrical box, so no special cutouts or drilling beyond what's needed for a typical wall box

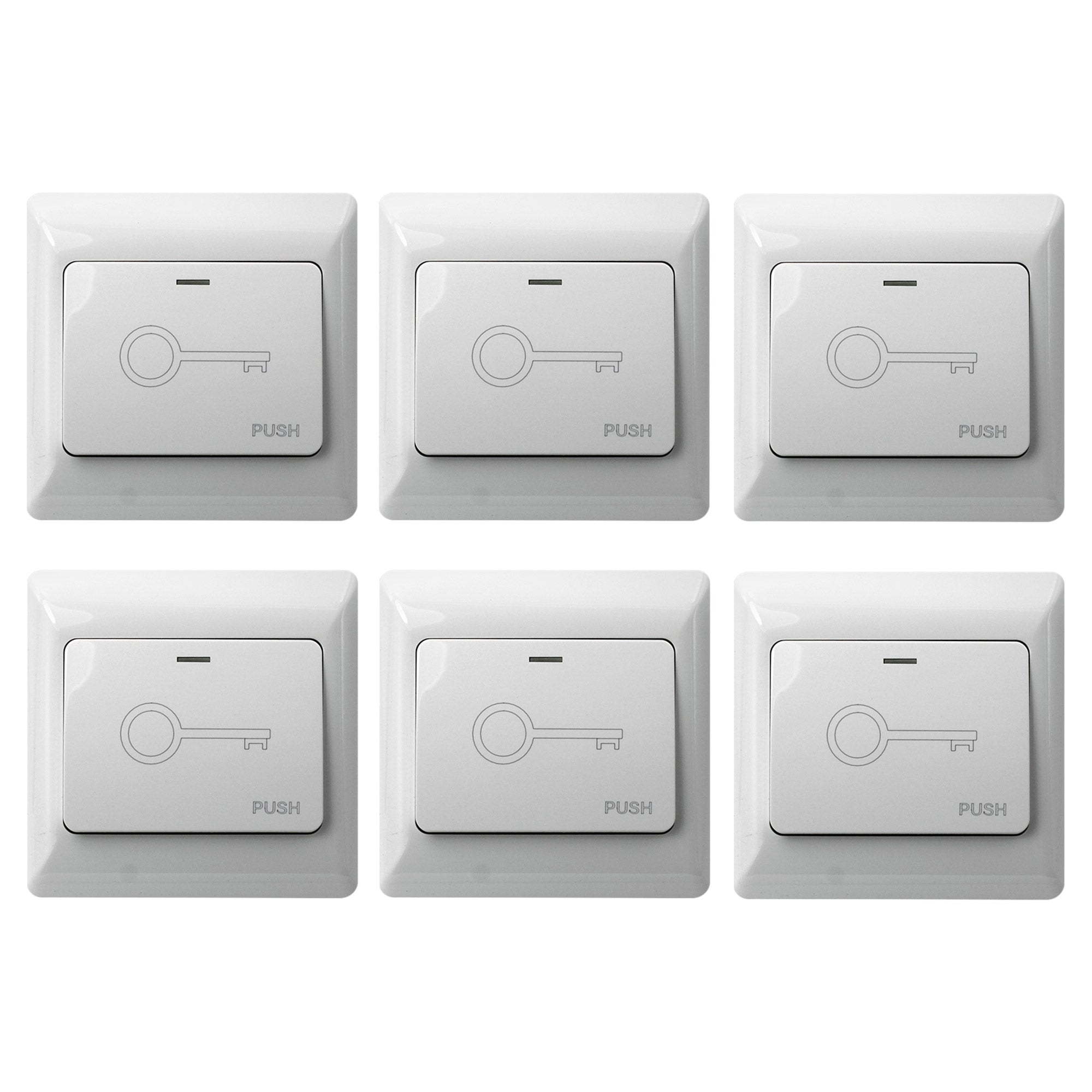

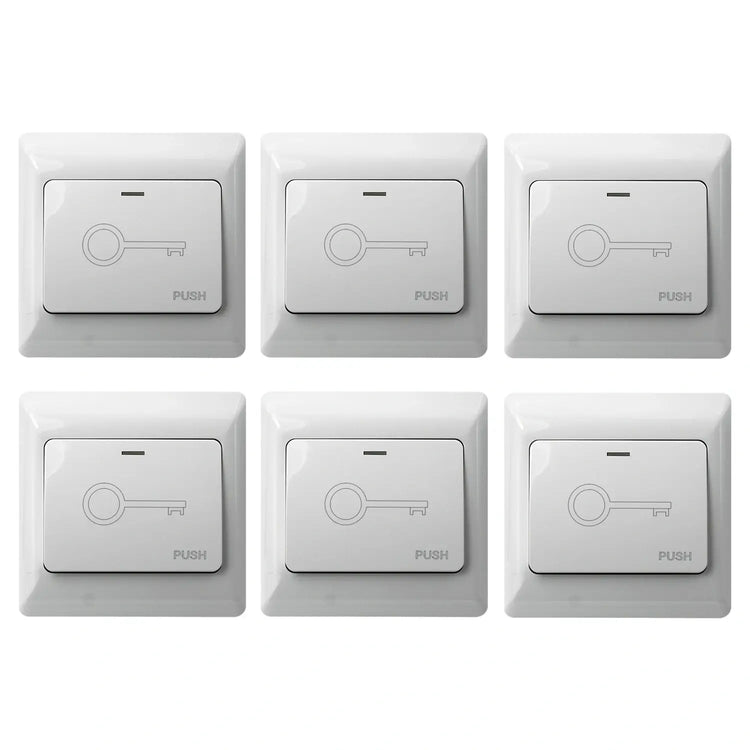

Pack of 6 Push to exit buttons for door release - VIS-7030 Visionis

Push to Exit Button for Access Control VIS-7030

Push to exit button installation VIS-7030

request to exit button dimensions - VIS-7030 Visionis

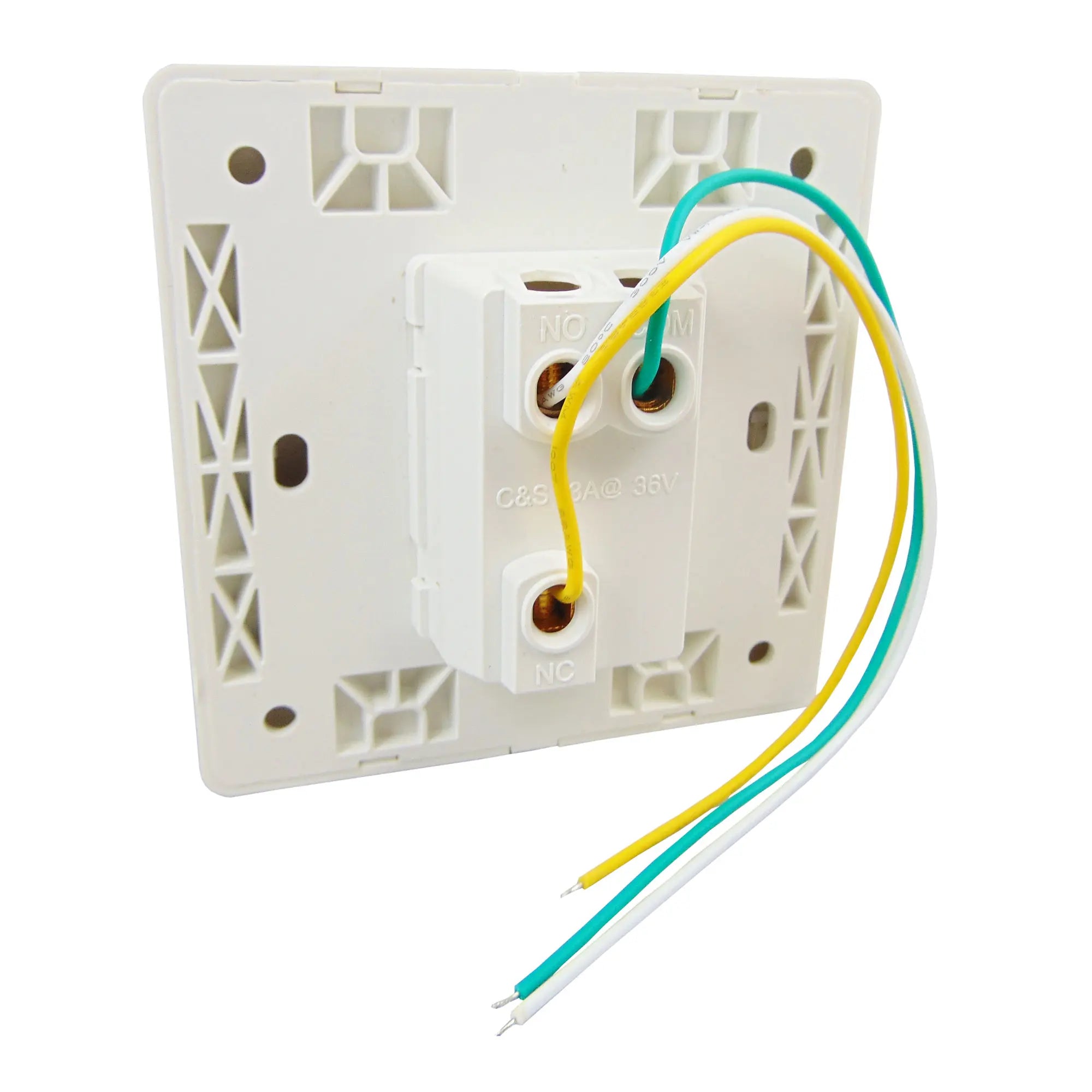

door release button for magnetic door lock rear view and wires - VIS-7030 Visionis

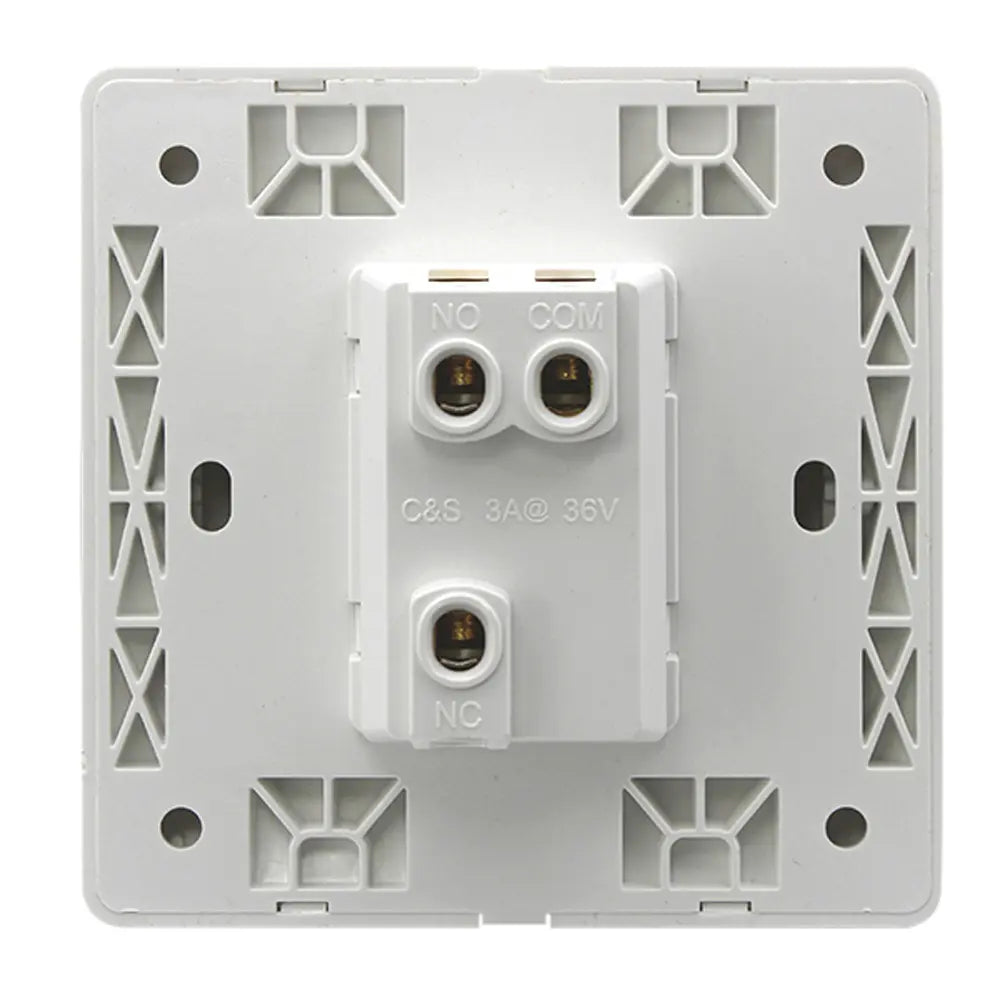

push to exit button rear view - VIS-7030 Visionis

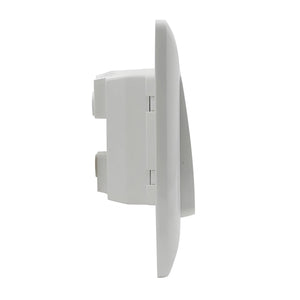

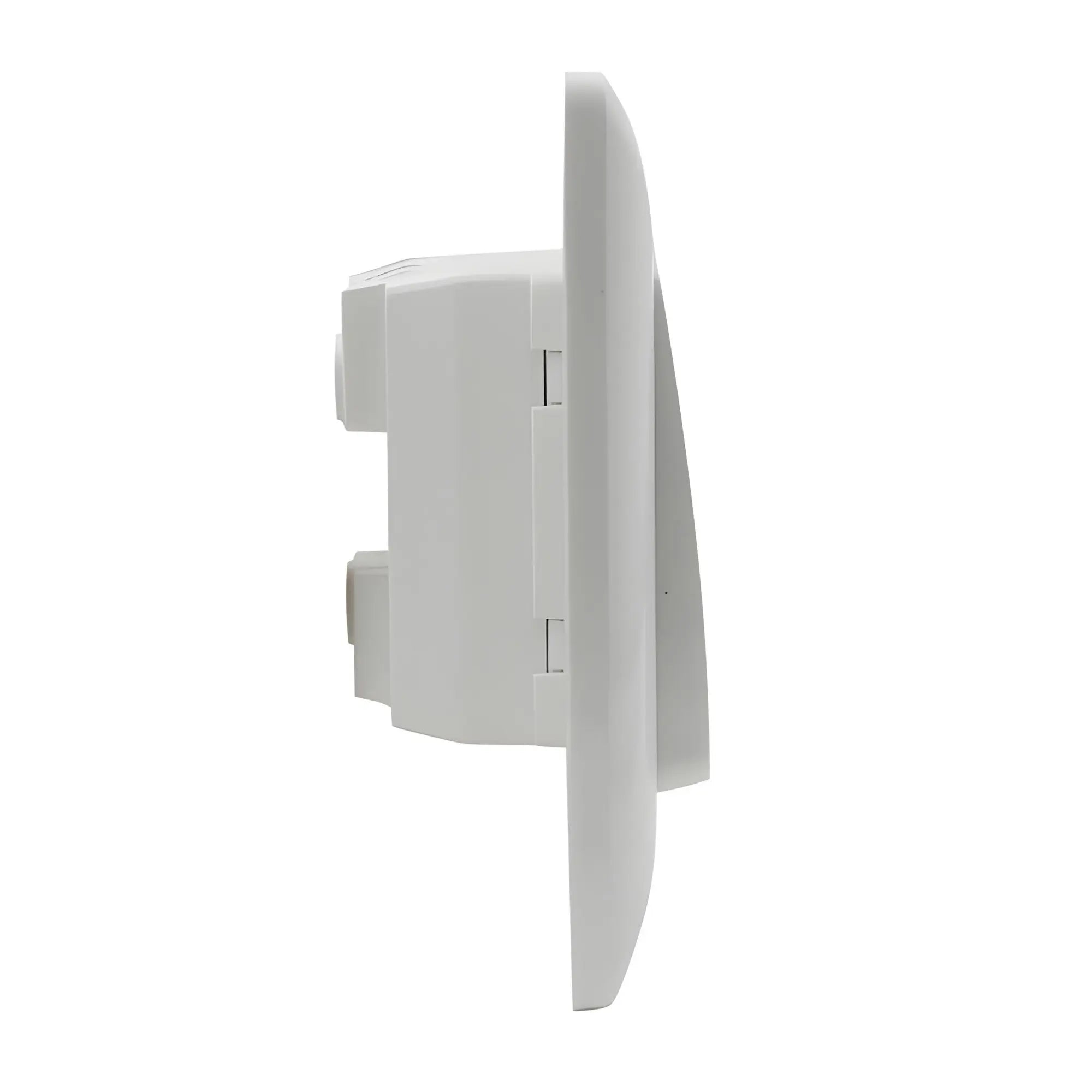

push to exit button side view - VIS-7030 Visionis

Kit Includes:

(6)

VIS-7030: White Wide Push to Exit Button for Access Control NC, COM and NO Outputs, Indoor only

Description

Offering broad functionality in a cost-effective bundle, this 6-pack of push to exit buttons supports access control expansion in growing facilities.

Each door release button is easy to install on hollow doors and designed for durability with a high mechanical cycle rating. Maintain smooth traffic flow across multiple controlled exits with this versatile set.

Characteristics

Model No. VIS-7030:

Dimensions: 86L*86W*20H mm (3.38*3.38*0.78in.)
Current Rating: 3A/125-250VAC
Output Contact: NC/NO/COM Surface
Operating Temp.: -20°C~+55°C(-4°F~ 131°F)
Suitable Humidity: 0-95% (relative humidity)
Weight: 0.045kg
Suitable for Door: Hollow Door
Mechanical Life: 100,000 tests

Description

Offering broad functionality in a cost-effective bundle, this 6-pack of push to exit buttons supports access control expansion in growing facilities.

Product FAQs

What access control systems is this exit button compatible with?
The Visionis VIS-7030 Exit Button is designed to be broadly compatible with most access control systems, thanks to its NO/NC/COM outputs. Specifically, it works with:
- Electromagnetic locks (maglocks)
- Electric strikes
- Access Control Systems in general (offices, banks, secure facilities)
Can it be used outdoors? Is it weatherproof?

The Visionis VIS-7030 Psuh to Exit Button is not weatherproof and is designed for indoor use only. You can check our outdoor/weatherproof models here.
What magnetic locks work with this?
Since the VIS-7030 uses standard NO/NC/COM outputs and 12–24V wiring, it's compatible with virtually any standard magnetic lock. Here are some great options:
Does it require any special tools to install?
No special tools are required to install the Visionis VIS-7030 Wide Push to Exit Button.
- Standard wiring tools – A basic screwdriver and wire stripper are all you typically need
- Single gang wall mount – Fits into a standard single-gang electrical box, so no special cutouts or drilling beyond what's needed for a typical wall box
Do you sell the gang box?

No, we don't.

Download Datasheets and Manuals of this product

VIS-7030

Datasheet

Visionis by Visionis

6 Pack Push to Exit Button For Access Control VIS-7030. White Wide Size. NC, COM and NO Outputs. Indoor Only - FPC-7451 Visionis

UPC Code: 680044676104

⚡ Order before 2:00 PM EST on weekdays for same-day shipping

In Stock

Regular price: $28.38
Sale price: $28.38
Regular price

Shipping calculated at checkout.

Looking for something slightly different? Check out these variations:

Quantity:

Free US Shipping
To all 50 states

3 YEAR Warranty

30-Day Returns
No questions asked

Lifetime Phone Support
Mon–Fri 9am–6pm EST

ATTENTION:

Before purchasing, it is recommended that the customer checks with their local fire authority to see if there is any additional product they may need in order to comply with the local fire codes. We are not responsible for the improper installation of our product(s) or any type of fees that can be incurred by not complying with your local fire authority.
