This PRODUCT has a 3 YEAR warranty with full access to tech support in the USA!

Description

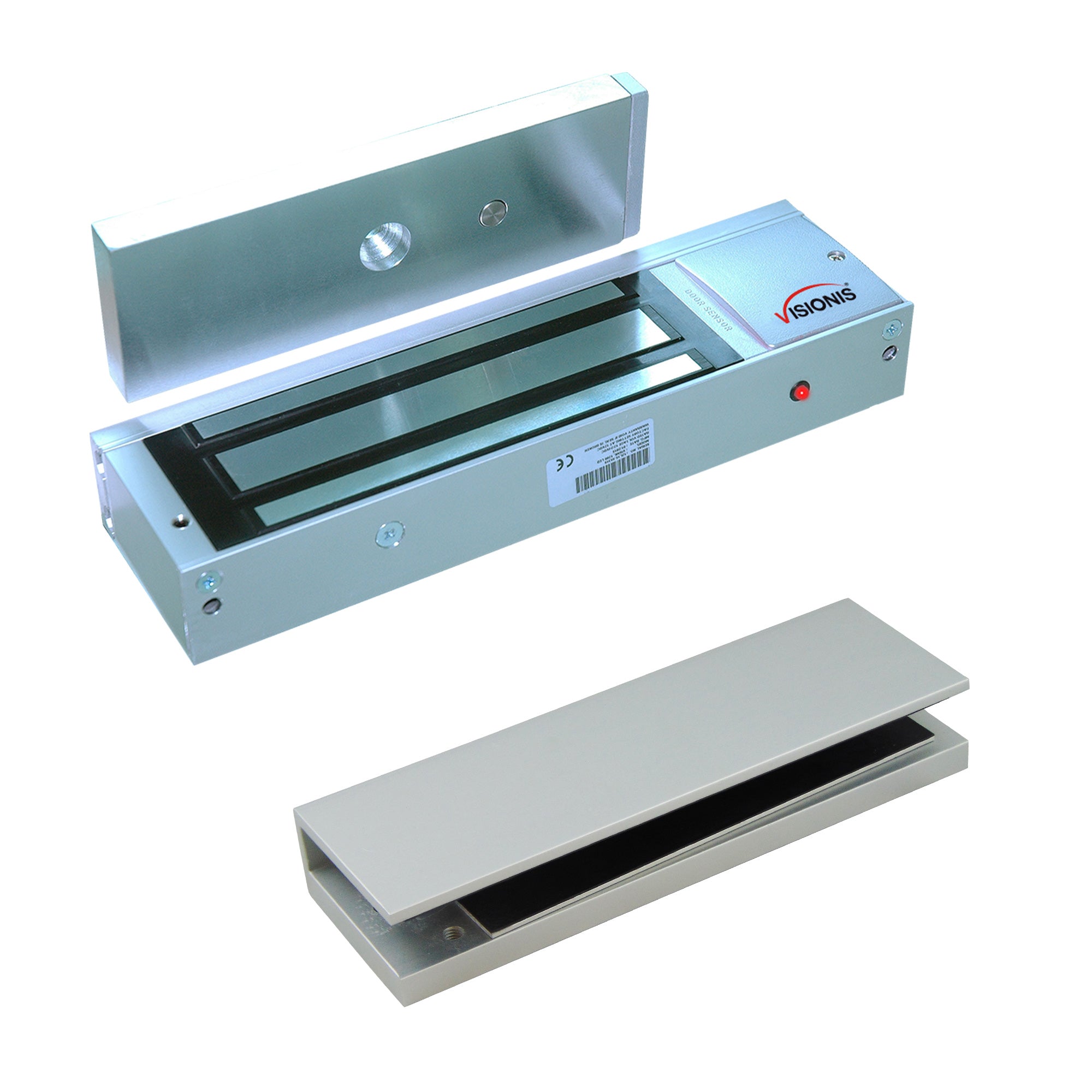

The VISIONIS FPC-5226 Magnetic Door Lock Kit is the ideal solution for securing glass doors in commercial or office settings. This professional-grade package includes the VIS-ML1200LED electromagnetic door lock—with up to 1200 lbs of holding force—and the VIS-U1-1200 U-Bracket, specially designed for mounting maglocks on frameless glass doors.

Installed at the top of the door frame, the door magnetic lock engages when powered and prevents the door from opening unless access is granted. The built-in LED status indicator makes monitoring simple: red means locked, green means unlocked.

The included U1 bracket allows the lock to be securely mounted to glass doors without drilling into the glass, maintaining both functionality and a clean, modern appearance. Whether for conference rooms, storefronts, or secure internal offices, this magnetic lock for door setups provides dependable, tamper-resistant access control.

This product doesn’t include a power supply. You can add this one to your purchase.

Key Features:

  • 1200 lb electromagnetic door lock (VIS-ML1200LED)
  • U-Bracket (VIS-U1-1200) designed for frameless glass door installation
  • LED status light: Red = Locked, Green = Unlocked
  • Compatible with 12VDC and 24VDC power systems
  • Durable blue zinc anti-rust surface treatment
  • Ideal for offices, glass entrances, or interior security doors
  • Quick installation with no drilling into the glass panel required
  • Reliable solution for high-security glass door access control



NOTE: This is a Fail Safe or Normally Close lock, meaning it will unlock without power. You can add a battery backup to keep the lock engaged in case of an outage.

Characteristics

Model No. VIS-ML1200LED:

  • Voltage Input: 12 VDC / 24 VDC
  • Current Draw: 12V / 500mA ; 24V / 250mA (±5%)
  • Holding Force: Up to 1200 lbs (545 kg)
  • Hall Effect Contact: SPDT rated 2A at 24 VDC
  • Magnetic Contact Rating: 28 VDC, 0.2A, 5W
  • Anti-Rust Surface Treatment: Blue Zinc Plating
  • Operating Temperature: 0~55° C (32~131° F)
  • Weight (Magnet): 2.5 kg (±1%)
  • Dimensions: Magnet - (L)266x(W)67x(T)39 mm Armature - (L)185x(W)61x(T)16.5 mm
  • Green/Red LED Indication for EM Lock Status
Packaging of this product

Model No. VIS-U1-1200:

  • Visionis U1-1200 bracket for 1200lb Electromagnetic lock for Glass Doors
Packaging of this product
Description

The VISIONIS FPC-5226 Magnetic Door Lock Kit is the ideal solution for securing glass doors in commercial or office settings. This professional-grade package includes the VIS-ML1200LED electromagnetic door lock—with up to 1200 lbs of holding force—and the VIS-U1-1200 U-Bracket, specially designed for mounting maglocks on frameless glass doors.

Installed at the top of the door frame, the door magnetic lock engages when powered and prevents the door from opening unless access is granted. The built-in LED status indicator makes monitoring simple: red means locked, green means unlocked.

The included U1 bracket allows the lock to be securely mounted to glass doors without drilling into the glass, maintaining both functionality and a clean, modern appearance. Whether for conference rooms, storefronts, or secure internal offices, this magnetic lock for door setups provides dependable, tamper-resistant access control.

This product doesn’t include a power supply. You can add this one to your purchase.

Key Features:

  • 1200 lb electromagnetic door lock (VIS-ML1200LED)
  • U-Bracket (VIS-U1-1200) designed for frameless glass door installation
  • LED status light: Red = Locked, Green = Unlocked
  • Compatible with 12VDC and 24VDC power systems
  • Durable blue zinc anti-rust surface treatment
  • Ideal for offices, glass entrances, or interior security doors
  • Quick installation with no drilling into the glass panel required
  • Reliable solution for high-security glass door access control



NOTE: This is a Fail Safe or Normally Close lock, meaning it will unlock without power. You can add a battery backup to keep the lock engaged in case of an outage.

  • Do these locks work with both 12V and 24V power supplies?

    Yes, each lock is compatible with 12V and 24V DC inputs, making it adaptable to different setups.

  • Will I be able to tell if the magnetic lock is working by looking at it?

    Yes, the maglock has a bright-colored status LED. It provides a clear indication of the lock status, so you know at a glance if the door is secured.

    Green = Locked
    Red = Released
    Off = No input

  • Can these magnetic locks be installed on glass/sliding doors?

    Yes, they can be installed on glass doors and they can be installed on sliding doors. You might need a proper bracket.

  • What happens to the maglock when the power goes out?

    This is a Fail Safe or Normally Close lock, meaning it will unlock without power. You can add a battery backup to keep the lock engaged in case of an outage.

  • Does the magnetic lock make a noise when unlocking?

    The maglock makes a sort of clicking noise when it unlocks. If you want a louder noise to identify when the door unlocks, you can add a buzzer to your system.

  • Does it have a time delay or timer function?

    No, it doesn't.

  • Is this magnetic door lock kit weatherproof?

    This model is designed for indoor use only. For outdoor use, look for weatherproof-rated maglocks.
