Do these locks work with both 12V and 24V power supplies?

Yes, each lock is compatible with 12V and 24V DC inputs, making it adaptable to different setups.

Will I be able to tell if the magnetic lock is working by looking at it?

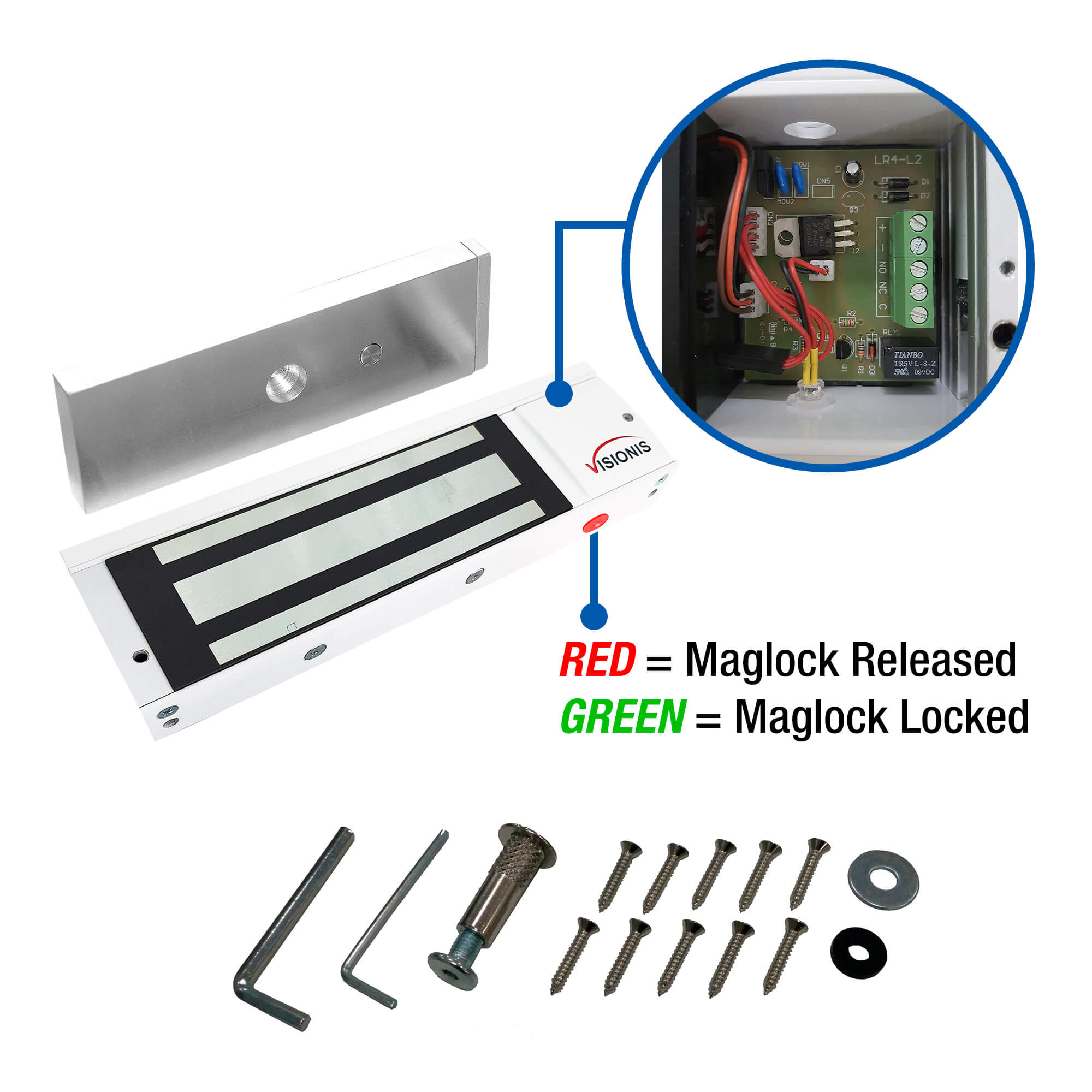

Yes, the maglock has a bright-colored status LED. It provides a clear indication of the lock status, so you know at a glance if the door is secured.Green = LockedRed = ReleasedOff = No input

Can these magnetic locks be installed on glass/sliding doors?

Yes, they can be installed on glass doors and they can be installed on sliding doors. You might need a proper bracket.

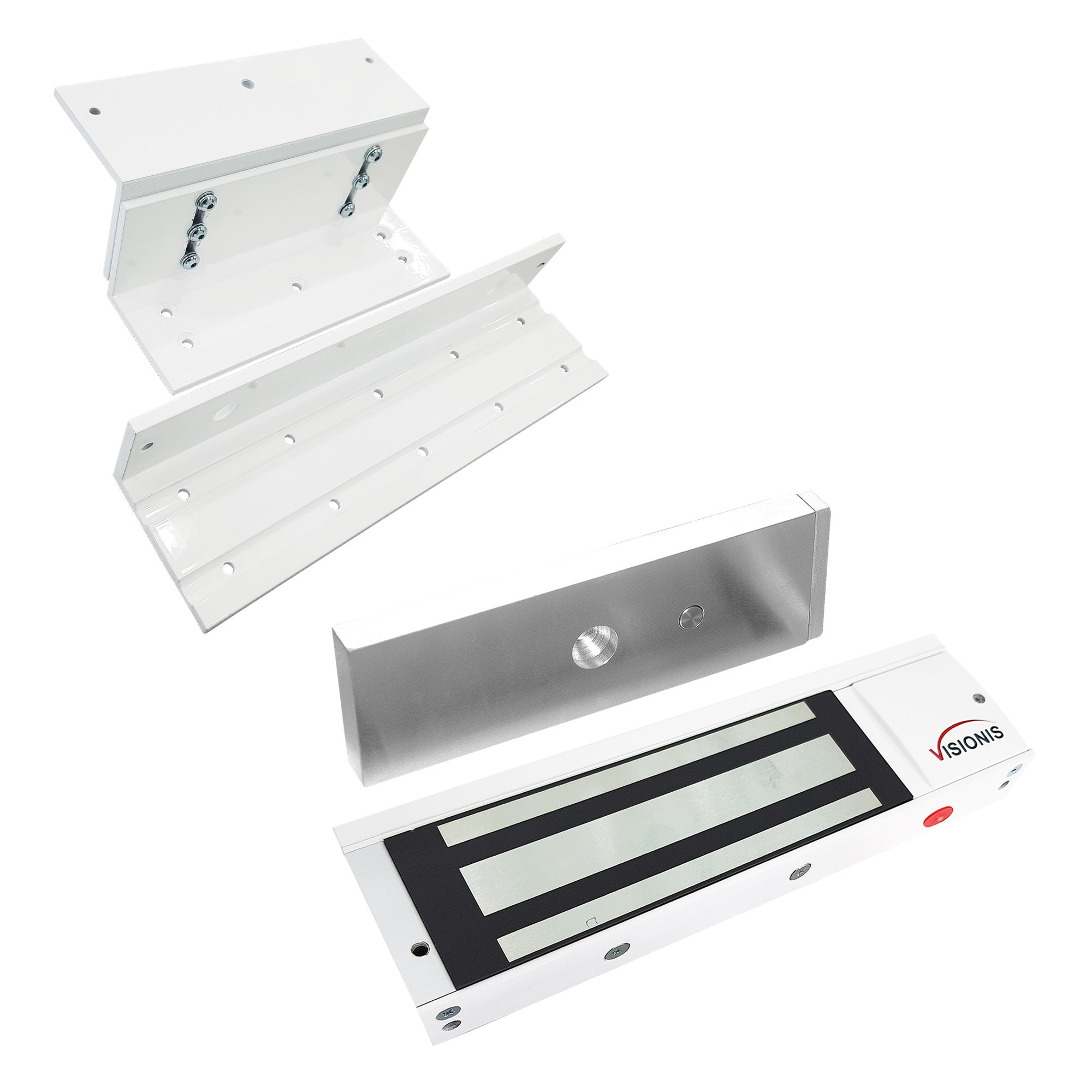

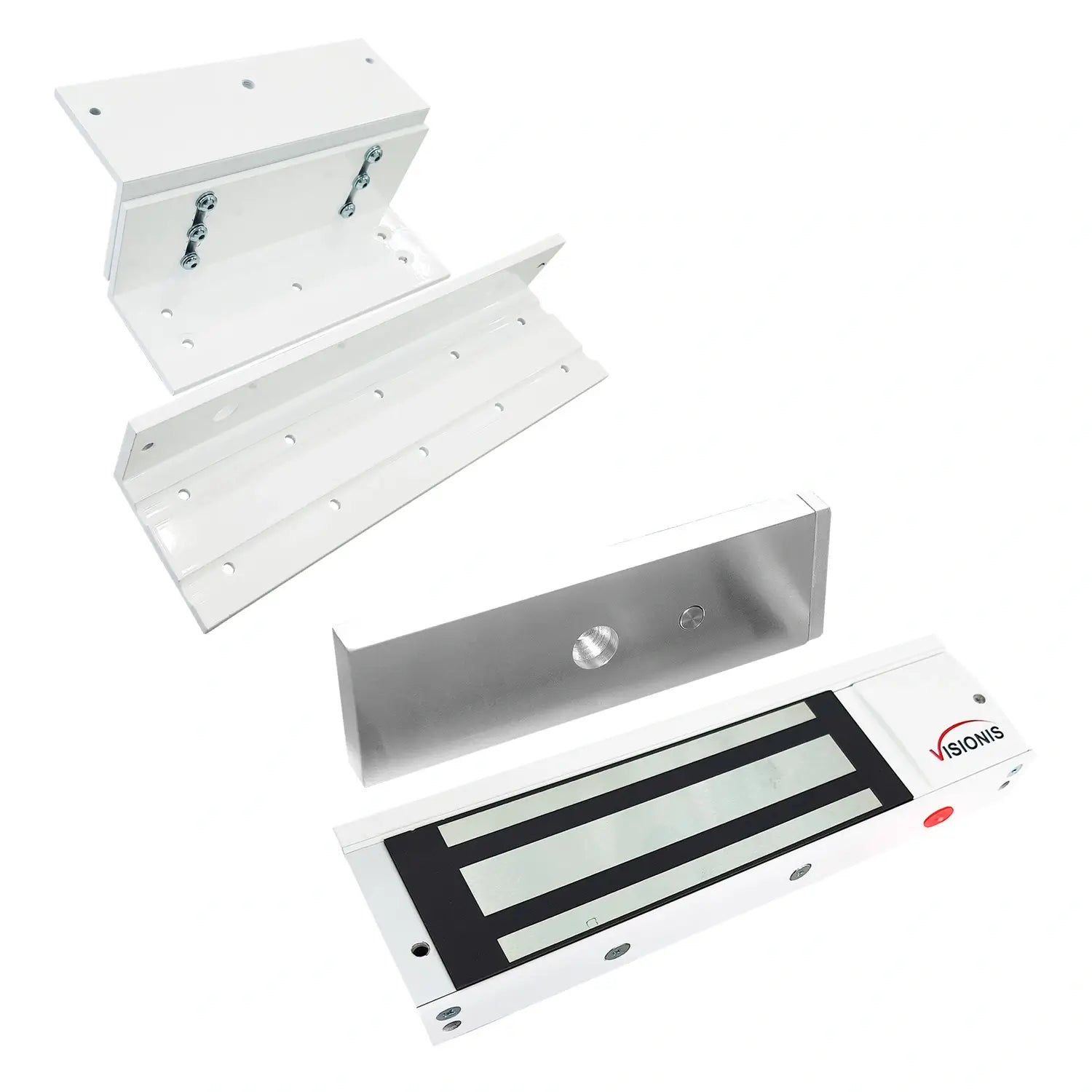

White magnetic door lock kit with 1200lb electromagnetic lock and bracket for inswinging doors. VIS-ML1200LED FPC-5193-WH VISIONIS

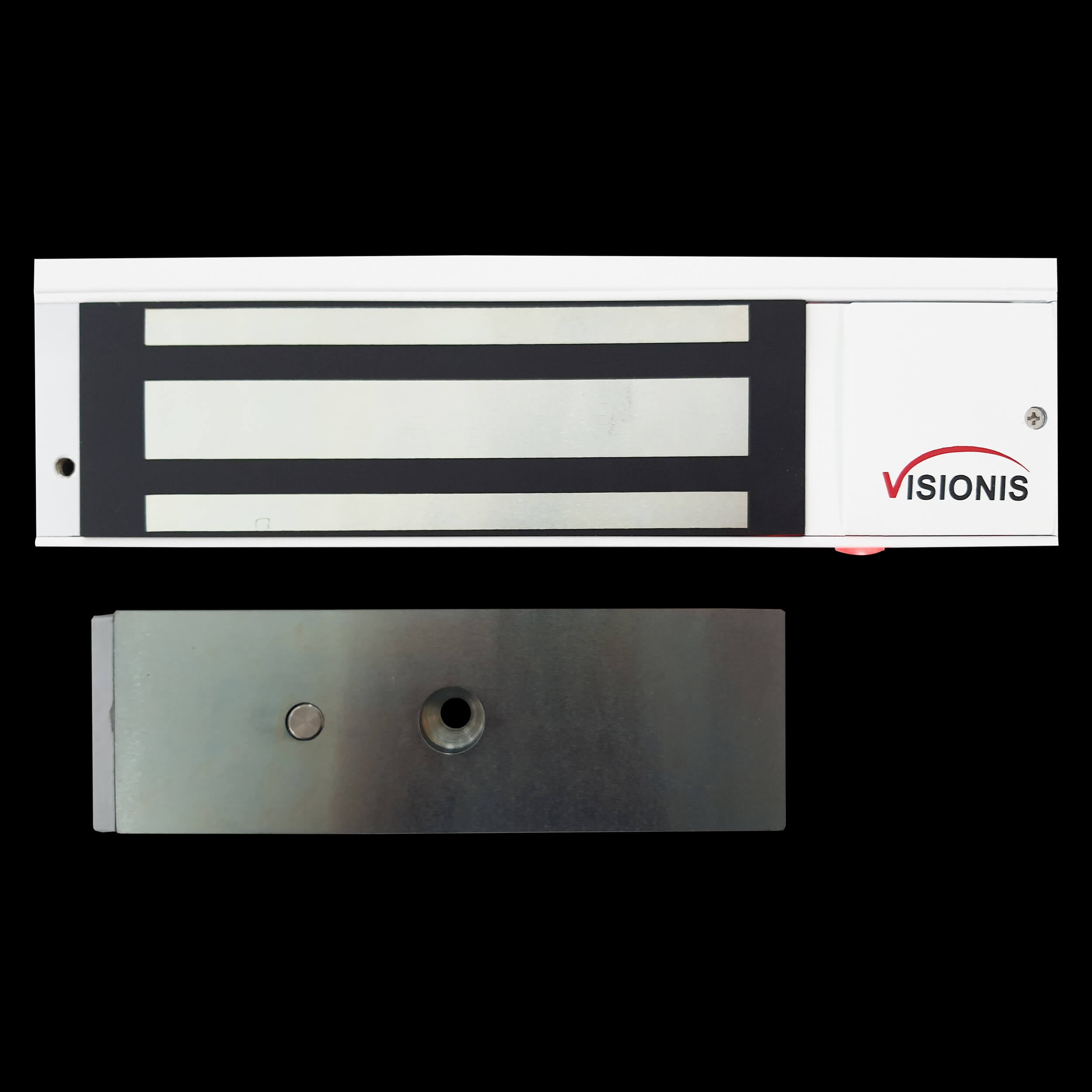

Indoor Maglock 1200 lbs - White Color VIS-ML1200LED-WH Visionis

Indoor Magnetic Lock for Door Access Control 1200 lbs VIS-ML1200LED

Electromagnetic Lock 1200 lbs - White Color VIS-ML1200LED-WH Visionis

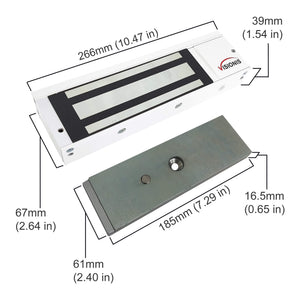

Indoor Maglock 1200 lbs DIMENSIONS -White Color VIS-ML1200LED-WH Visionis

Magnetic Lock for Door Access Control 1200 lbs VIS-ML1200LED White Color

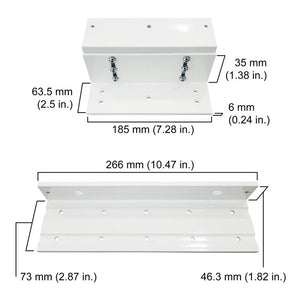

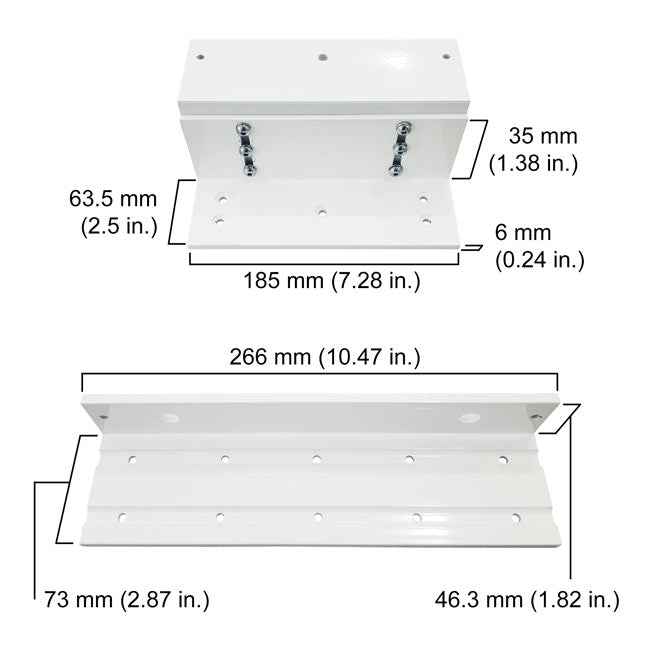

Z and L bracket for 1200 lbs magnetic door lock dimensions - VIS-ZL1200-WH

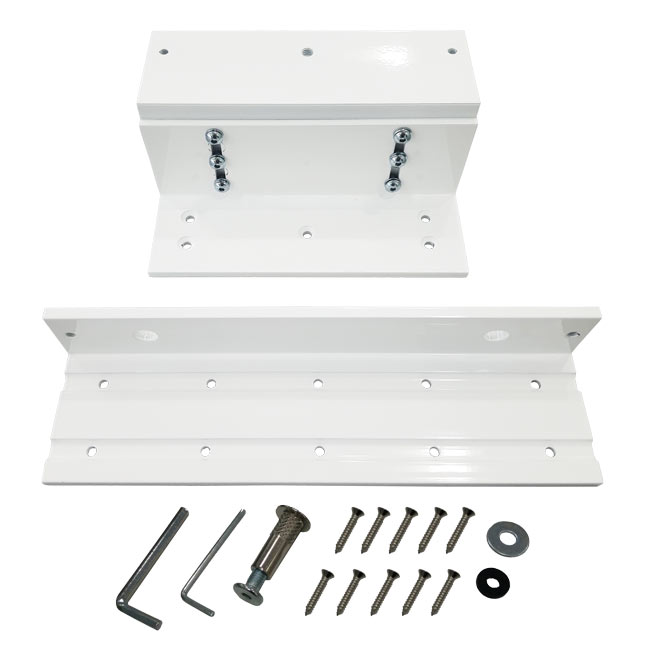

Z and L bracket for 1200 lbs electromagnetic lock. White color - VIS-ZL1200-WH

Looking for something slightly different? Check out these variations:

This PRODUCT has a 3 YEAR warranty with full access to tech support in the USA!

Kit Includes:

(1)

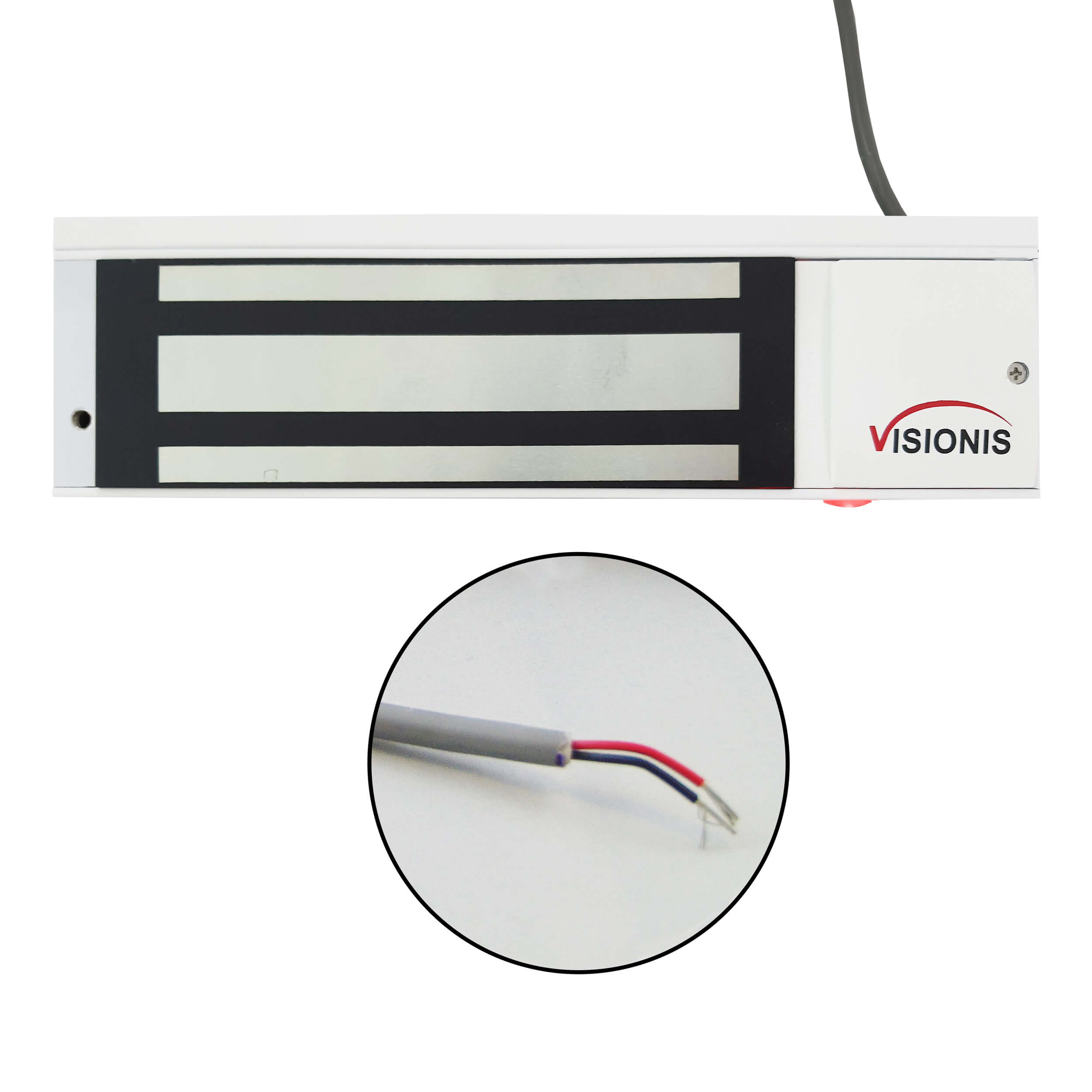

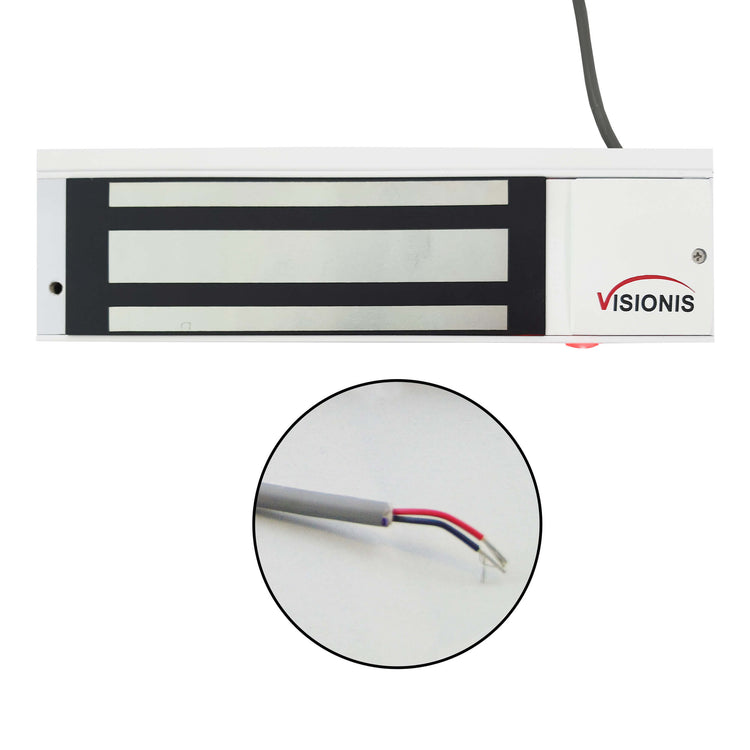

VIS-ML1200LED-WH: White 1200lb Indoor Electromagnetic Lock with LED Sensor

VIS-ZL1200-WH: L and Z Bracket for 1200lbs Electromagnetic Lock

Description

The VISIONIS FPC-5193-WH Magnetic Door Lock Kit is a powerful, professional-grade solution for securing inswinging doors in residential, commercial, or industrial environments. It includes the VIS-ML1200LED electromagnetic door lock with up to 1200 lbs of holding force and the matching VIS-ZL1200 bracket, ensuring proper alignment and optimal performance for doors that open inward.

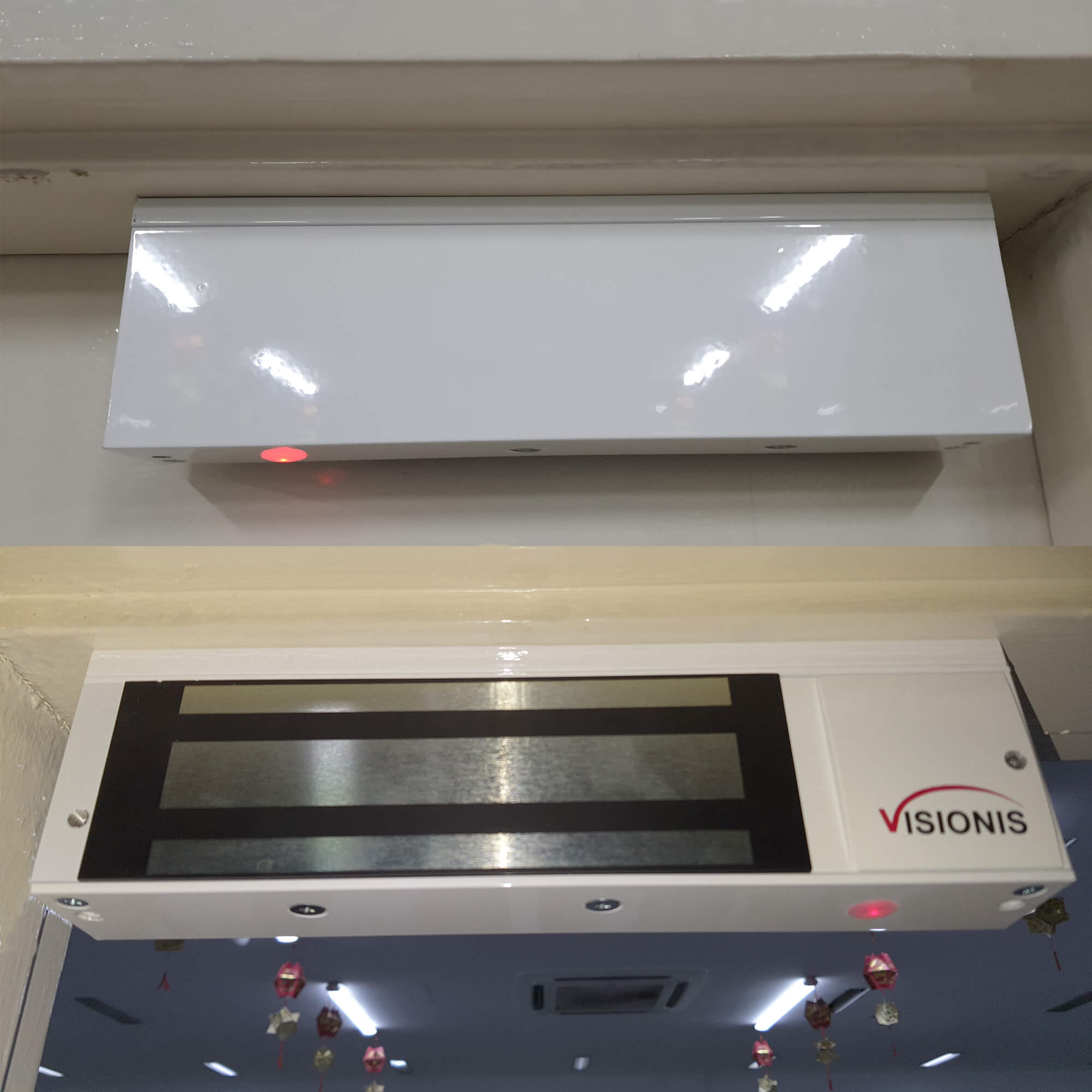

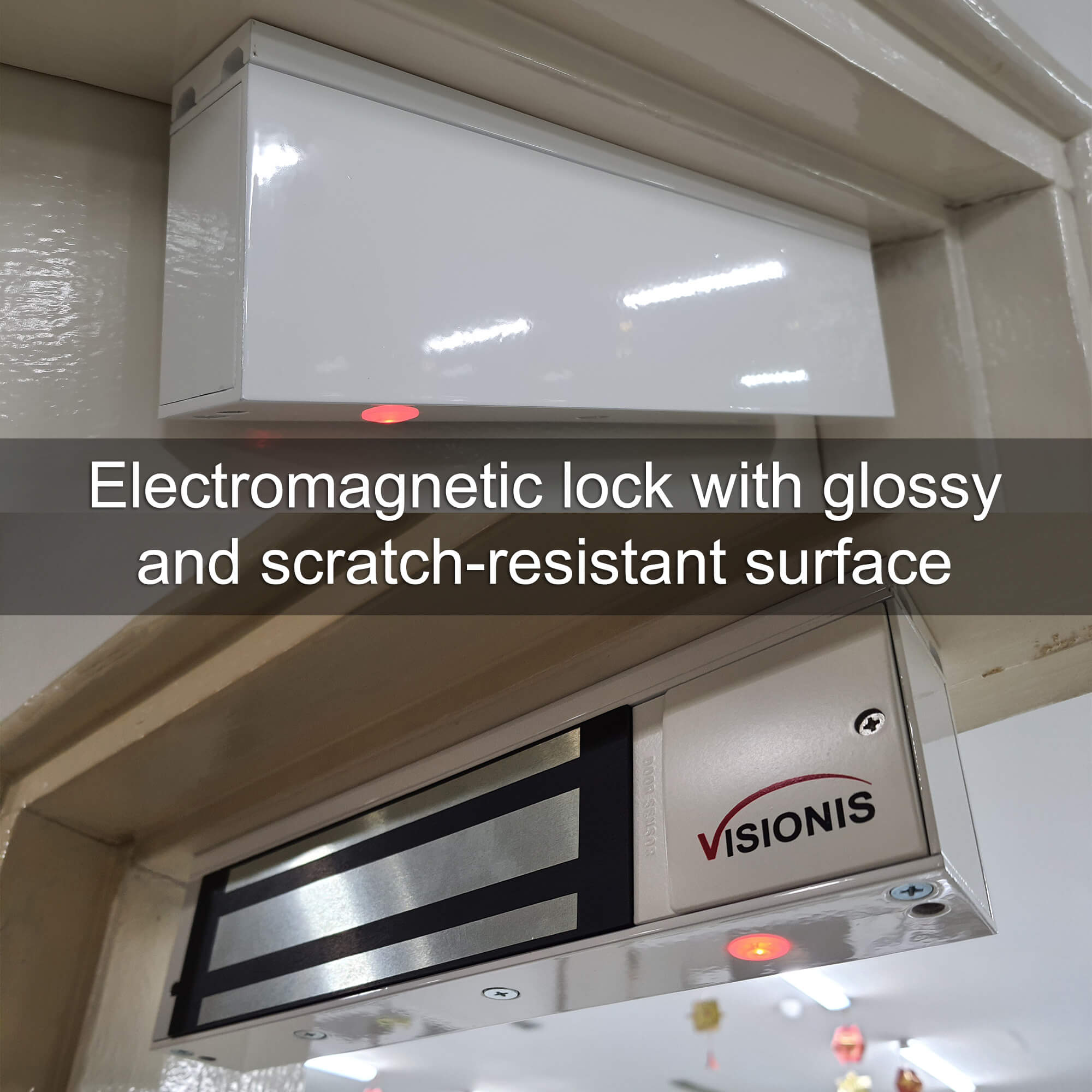

Designed for maximum strength and reliability, this door magnetic lock installs at the top of the door frame and locks automatically when powered. The built-in LED status indicator allows you to quickly verify the lock’s condition—red for locked, green for unlocked.

The included L and Z bracket makes installation simple and ensures that the maglock is securely positioned for stability and long-term use. This magnetic door lock kit is ideal for heavy-duty access control setups where strong, tamper-resistant locking is essential.

This product doesn’t include a power supply. You can add this one to your purchase.

NOTE: This is a Fail Safe or Normally Close lock, meaning it will unlock without power. You can add a battery backup to keep the lock engaged in case of an outage.

Characteristics

Model No. VIS-ML1200LED-WH:

Color: White
Voltage Input: 12 VDC / 24 VDC
Current Draw: 12V / 500mA ; 24V / 250mA (±5%)
Holding Force: Up to 1200 lbs (545 kg)
Hall Effect Contact: SPDT rated 2A at 24 VDC
Magnetic Contact Rating: 28 VDC, 0.2A, 5W
Anti-Rust Surface Treatment: Blue Zinc Plating
Operating Temperature: 0~55° C (32~131° F)
Weight (Magnet): 2.5 kg (±1%)

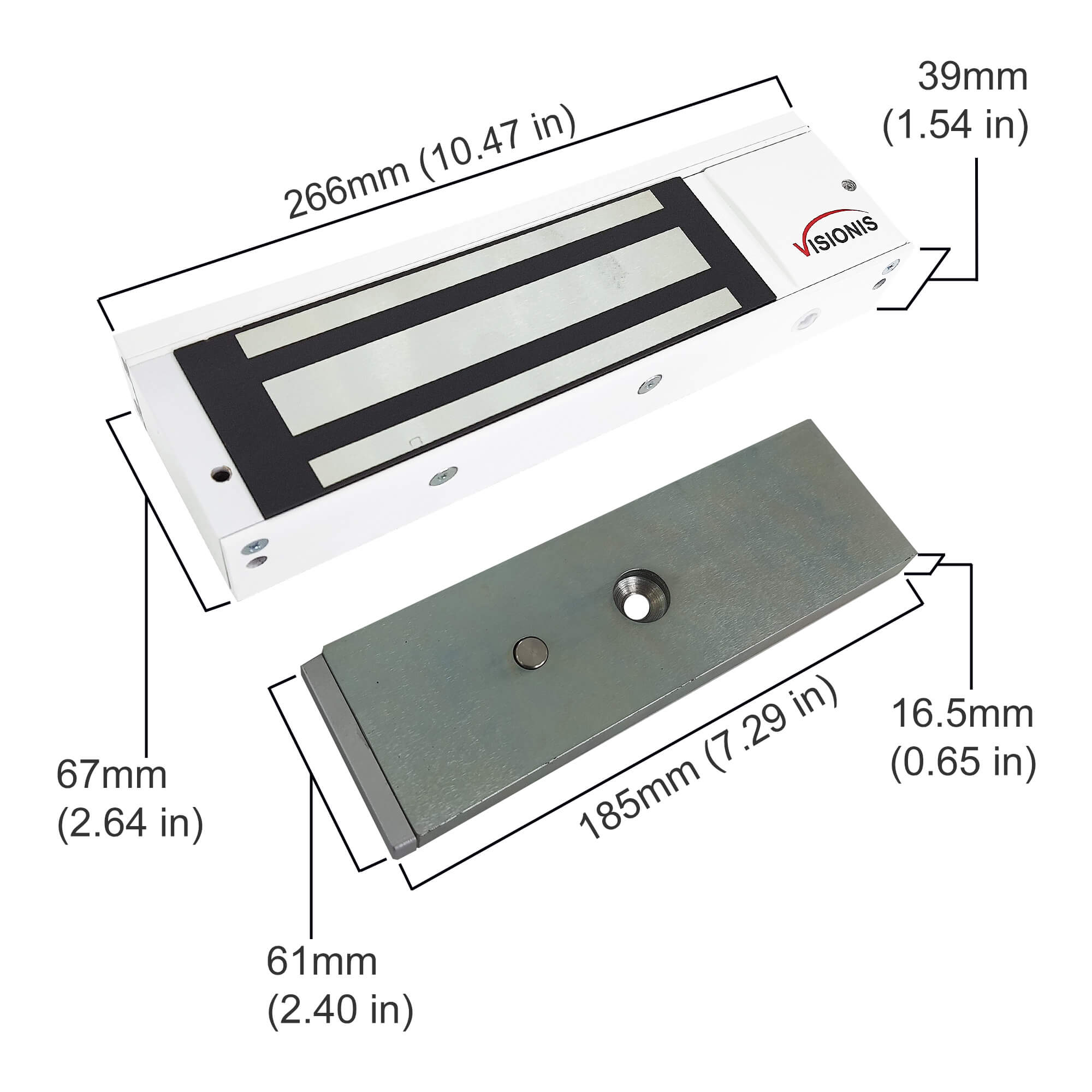

Dimensions: Magnet - (L)266x(W)67x(T)39 mm Armature - (L)185x(W)61x(T)16.5 mm
Green/Red LED Indication for EM Lock Status

Model No. VIS-ZL1200-WH:

L and Z bracket for 1200lbs electromagnetic lock

Description

The VISIONIS FPC-5193-WH Magnetic Door Lock Kit is a powerful, professional-grade solution for securing inswinging doors in residential, commercial, or industrial environments. It includes the VIS-ML1200LED electromagnetic door lock with up to 1200 lbs of holding force and the matching VIS-ZL1200 bracket, ensuring proper alignment and optimal performance for doors that open inward.

Designed for maximum strength and reliability, this door magnetic lock installs at the top of the door frame and locks automatically when powered. The built-in LED status indicator allows you to quickly verify the lock’s condition—red for locked, green for unlocked.

The included L and Z bracket makes installation simple and ensures that the maglock is securely positioned for stability and long-term use. This magnetic door lock kit is ideal for heavy-duty access control setups where strong, tamper-resistant locking is essential.

This product doesn’t include a power supply. You can add this one to your purchase.

NOTE: This is a Fail Safe or Normally Close lock, meaning it will unlock without power. You can add a battery backup to keep the lock engaged in case of an outage.

Product FAQs

Do these locks work with both 12V and 24V power supplies?

Yes, each lock is compatible with 12V and 24V DC inputs, making it adaptable to different setups.
Will I be able to tell if the magnetic lock is working by looking at it?

Yes, the maglock has a bright-colored status LED. It provides a clear indication of the lock status, so you know at a glance if the door is secured.

Green = Locked
Red = Released
Off = No input
Can these magnetic locks be installed on glass/sliding doors?

Yes, they can be installed on glass doors and they can be installed on sliding doors. You might need a proper bracket.
What happens to the maglock when the power goes out?

This is a Fail Safe or Normally Close lock, meaning it will unlock without power. You can add a battery backup to keep the lock engaged in case of an outage.
Does the magnetic lock make a noise when unlocking?

The maglock makes a sort of clicking noise when it unlocks. If you want a louder noise to identify when the door unlocks, you can add a buzzer to your system.
Does it have a time delay or timer function?

No, it doesn't.
Is this magnetic door lock kit weatherproof?

This model is designed for indoor use only. For outdoor use, look for weatherproof-rated maglocks.

Download Datasheets and Manuals of this product

VIS-ML1200LED-WH

VIS-ZL1200-WH

Datasheet

LET US HELP YOU WITH YOUR PURCHASE

Feel free to contact our dedicated support team if you have any questions or if you're ready to place an order.

I Need Help

Visionis by Visionis

Indoor Magnetic Door Lock with 1200 lbs (545 kg) of Holding Force VIS-ML1200LED-WH. WHITE Color + L and Z Bracket - FPC-5193-WH

Translation missing: en.products.product.sku:FPC-5193-WH

UPC Code: 718910359896 Weight: 14.0 lb

Regular price: $110.79
Sale price: $110.79
Regular price

Shipping calculated at checkout.

In Stock

Quantity:

Phone Life-Time Technical Support

30-Day No Questions Return Policy

*Free Shipping within the USA

Contact an Expert

NOTE

Order Before 3:00pm EST on a week day and your order will be shipped out the same day

*Free shipping within the USA

Including Puerto Rico, Hawaii and Alaska

ATTENTION:

Before purchasing, it is recommended that the customer checks with their local fire authority to see if there is any additional product they may need in order to comply with the local fire codes. We are not responsible for the improper installation of our product(s) or any type of fees that can be incurred by not complying with your local fire authority.
