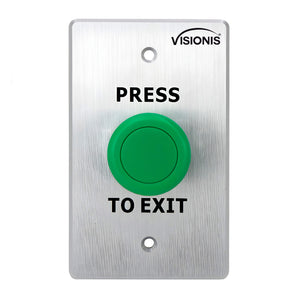

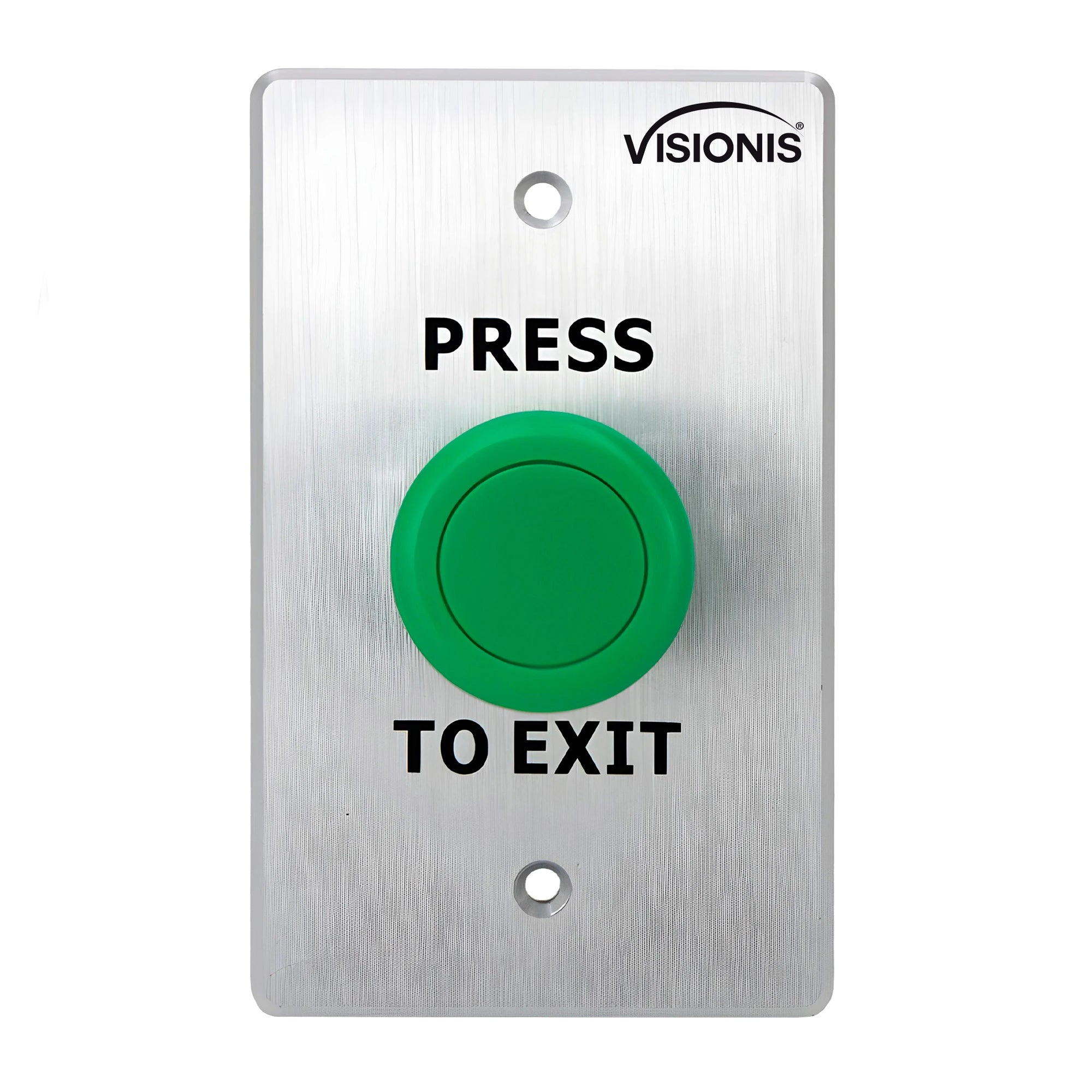

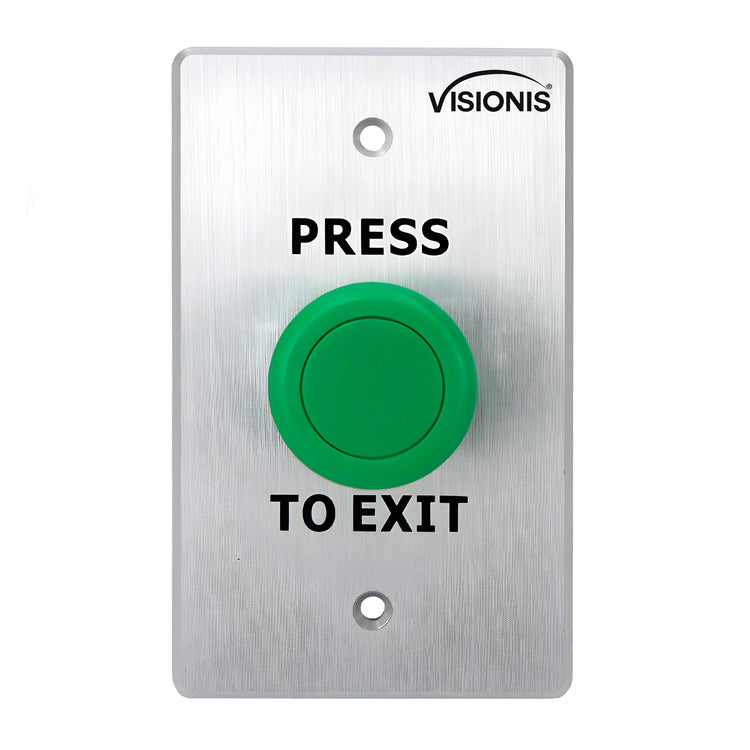

Green push to exit button for door access control VIS-7032 Visionis
Request To Push To Exit Button For Door Access Control VIS-7032
Push to exit button installation VIS-7032
Green request to exit button for door access control VIS-7032 Visionis
Green request to exit button side and rear views - VIS-7032 Visionis
Green push to exit button dimensions - VIS-7032 Visionis
Green push to exit button for door access control VIS-7032 Visionis
    Green push to exit button for door access control VIS-7032 Visionis
    Request To Push To Exit Button For Door Access Control VIS-7032
    Push to exit button installation VIS-7032
    Green request to exit button for door access control VIS-7032 Visionis
    Green request to exit button side and rear views - VIS-7032 Visionis
    Green push to exit button dimensions - VIS-7032 Visionis
    Green push to exit button for door access control VIS-7032 Visionis
Green push to exit button for door access control VIS-7032 Visionis
Request To Push To Exit Button For Door Access Control VIS-7032
Push to exit button installation VIS-7032
Green request to exit button for door access control VIS-7032 Visionis
Green request to exit button side and rear views - VIS-7032 Visionis
Green push to exit button dimensions - VIS-7032 Visionis
Green push to exit button for door access control VIS-7032 Visionis
Green push to exit button for door access control VIS-7032 Visionis
Request To Push To Exit Button For Door Access Control VIS-7032
Push to exit button installation VIS-7032
Green request to exit button for door access control VIS-7032 Visionis
Green request to exit button side and rear views - VIS-7032 Visionis
Green push to exit button dimensions - VIS-7032 Visionis
Green push to exit button for door access control VIS-7032 Visionis
    Green push to exit button for door access control VIS-7032 Visionis
    Request To Push To Exit Button For Door Access Control VIS-7032
    Push to exit button installation VIS-7032
    Green request to exit button for door access control VIS-7032 Visionis
    Green request to exit button side and rear views - VIS-7032 Visionis
    Green push to exit button dimensions - VIS-7032 Visionis
    Green push to exit button for door access control VIS-7032 Visionis
Green push to exit button for door access control VIS-7032 Visionis
Request To Push To Exit Button For Door Access Control VIS-7032
Push to exit button installation VIS-7032
Green request to exit button for door access control VIS-7032 Visionis
Green request to exit button side and rear views - VIS-7032 Visionis
Green push to exit button dimensions - VIS-7032 Visionis
Green push to exit button for door access control VIS-7032 Visionis
Description

The VISIONIS green push-to-exit buttons and switches offer a variety of options to fit several applications’ needs. The VISIONIS line is designed to provide a reliable source of egress access-controlled opening devices in residential, commercial and industrial locations.

The VISIONIS Request-to Exit Buttons may be connected to the request-to-exit input of any access control device or directly connected to an electromagnetic lock or electric strike Device.

Characteristics

Model No. VIS-7032:

  • Contact Rating: 5A/125-250VAC
  • Output Contact: NO/NC/COM
  • Button: Self Reset
  • Button: Color Green
  • Panel: 0.9mm (0.03in.) Thick 304 Stainless steel
  • Suitable for: Hollow Door
  • Mechanical Life: 100.000 tests
  • Operating Temperature: -20°C~+55°C (14°F-131°F)
  • Operating Humidity: 0-95% (relative humidity)
  • Weight: 0.2kg
  • Dimension Of Plate: 115L × 70W × 45H mm - 4.52L x 2.75W x 1.77H in.
Packaging of this product
Description

The VISIONIS green push-to-exit buttons and switches offer a variety of options to fit several applications’ needs. The VISIONIS line is designed to provide a reliable source of egress access-controlled opening devices in residential, commercial and industrial locations.

The VISIONIS Request-to Exit Buttons may be connected to the request-to-exit input of any access control device or directly connected to an electromagnetic lock or electric strike Device.

Characteristics
Packaging of this product

Model No. VIS-7032:

  • Contact Rating: 5A/125-250VAC
  • Output Contact: NO/NC/COM
  • Button: Self Reset
  • Button: Color Green
  • Panel: 0.9mm (0.03in.) Thick 304 Stainless steel
  • Suitable for: Hollow Door
  • Mechanical Life: 100.000 tests
  • Operating Temperature: -20°C~+55°C (14°F-131°F)
  • Operating Humidity: 0-95% (relative humidity)
  • Weight: 0.2kg
  • Dimension Of Plate: 115L × 70W × 45H mm - 4.52L x 2.75W x 1.77H in.

  • What material is the button made of?

    The Visionis VIS-7032 Big Green Push to Exit Button is made of the following materials:

    • Plate/faceplate: 0.9mm thick 304 Stainless Steel – a durable, corrosion-resistant grade of stainless steel commonly used in commercial applications
    • Button: Green plastic (self-reset push button)

  • Does it come in other colors?

    The Visionis VIS-7032 is only available with a green button — it doesn't come in other button colors.

  • Can it be used outdoors? Is it weatherproof?

    The Visionis VIS-7032 Push to Exit Button is not weatherproof and is designed for indoor use only. You can check our outdoor/weatherproof models here.

  • Does this request to exit button light up?

    This button does not light up. But we have other models with LED light like the VIS-7005 or VIS-7026

  • Do you sell the gang box?

    No, we don't.

Download Datasheets and Manuals of this product

VIS-7032

Contact Us for Support
LET US HELP YOU WITH YOUR PURCHASE

Feel free to contact our dedicated support team if you have any questions or if you're ready to place an order.

I Need Help
Visionis by Visionis

Green Push to Exit Button for Door Access Control. For Indoor Use. Stainless Steel. With NC, COM and NO Outputs - VIS-7032 Visionis

UPC Code: 680044677071

Certifications:

  • CE Certificate
