This PRODUCT has a 3 YEAR warranty with full access to tech support in the USA!

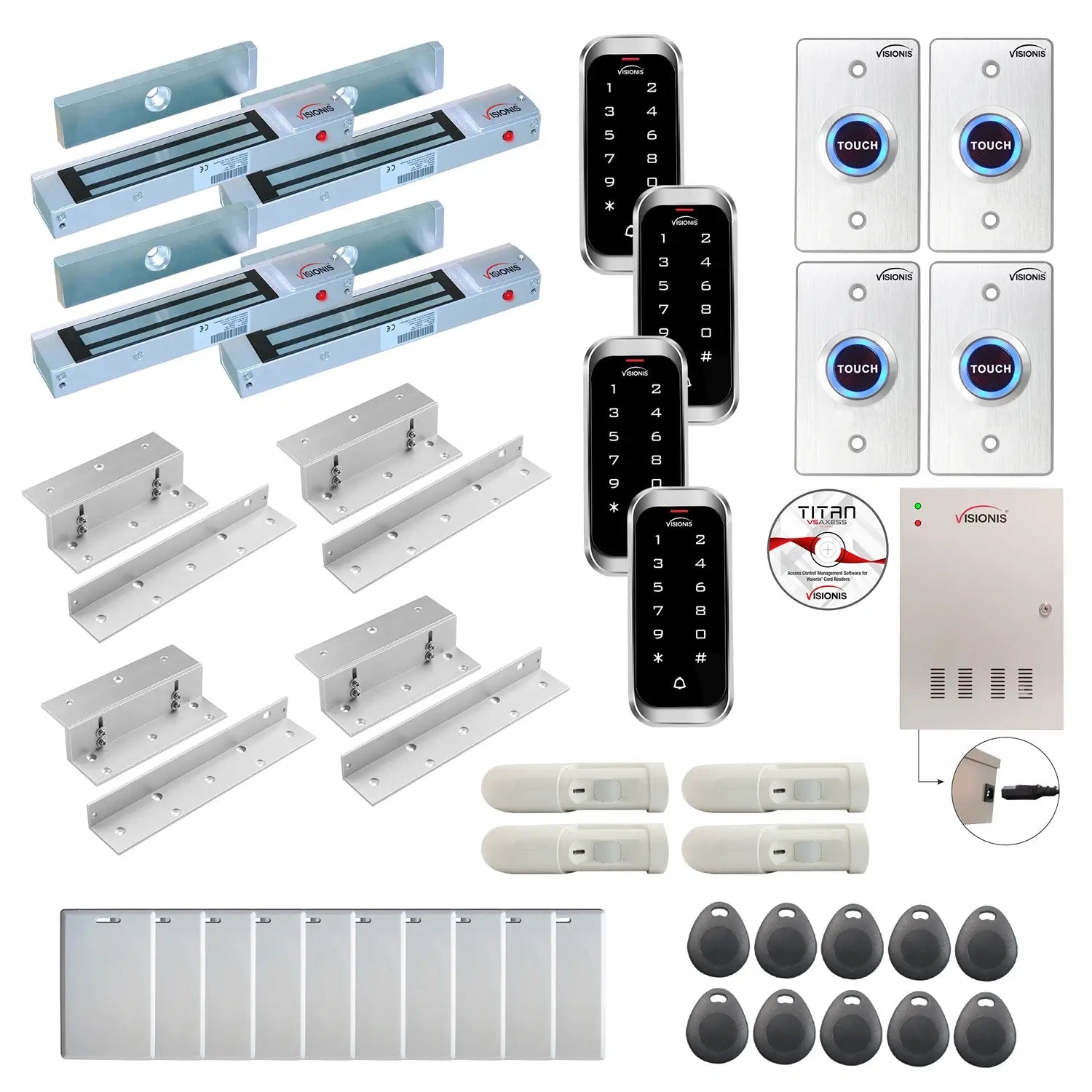

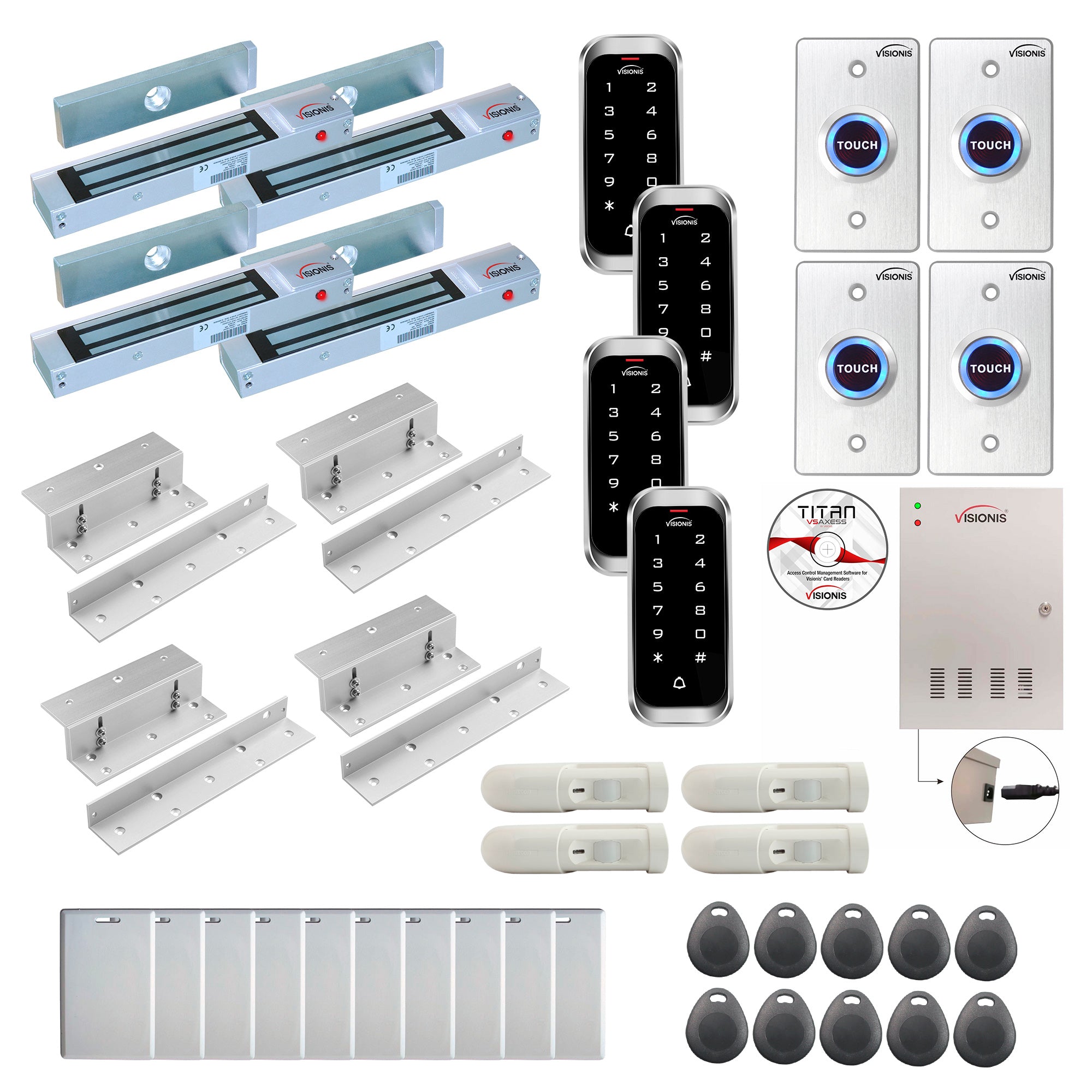

Kit Includes:

(4)

(1)

(4)

(10)

VIS-ML300LED: 300lbs Indoor Electromagnetic Lock

VIS-ZL300: L and Z Bracket for 300lbs Electromagnetic Lock

VIS-3003+: Access Control Indoor + Outdoor Rated IP68 Metal Anti Vandal Digital Touch Keypad + Reader Standalone with Mini Controller, Wiegand 26, Slim Design, No Software

VIS-AXESS-4D-ETL: Four Doors + Network Access Control Panel + Controller Board With Cabinet + TCP IP + Wiegand With Desktop Software + 20,000 Users, 70,000 Records

VIS-7005: Indoor Ultra Thin Push + Touch To Exit Button For Door Access Control With LED Light NC COM and NO Outputs

AL-OD22: Request To Exit Motion Sensor PIR With Adjustable Time Relay

FPC-5267: Pack of Proximity Cards, 125kHz, 26-Bit

FPC-5274: Pack of RFID Proximity Key Fobs, 125kHz, 26-Bit

Description

The FPC-8158 provides reliable access control for inswinging doors with 300lbs electromagnetic locks and included ZL brackets for proper mounting. With a weatherproof keypad, TCP/IP Wiegand controller, and PIR motion sensors, the system ensures smooth, hands-free entry. This kit supports up to 20,000 users and is designed for seamless integration and reliable operation in small to mid-sized facilities.

Attention:

These access control panels (Version 2.0) are only compatible with access control panels (Version 2.0) and with the Titan VSAxess software. They are not compatible with access control panels (Version 1.0) nor with VSAxess software.
Includes CD software
Power supply and power cord included
Install wires are not included
This software is not compatible with MAC computers, only with Microsoft.

Characteristics

Model VIS-ML300LED:

Voltage Input: 12 VDC / 24 VDC
Current Draw: 12V / 300mA ; 24V / 150mA (±5%)
Holding Force: Up to 300 lbs (136 kg)
Anti-Rust Surface Treatment: Blue Zinc Plating
Operating Temperature: 0~55° C ( 32~131° F)
Operating Humidity: 0~95% ( non condensing)
Weight ( Magnet): 0.6 kg (±1%)
Dimensions: Magnet - (L)210x(W)35x(T)21 mm Armature - (L)130x(W)33x(T)11 mm
Green/Red LED Indication for EM Lock Status

Model No. VIS-ZL300:

L and Z bracket for 300 lbs electromagnetic lock

Model No. VIS-3003:

Input Voltage: DC 12V
Idle current: ≤25mA
Card Reading Distance: 2 - 3 cm (0.78 - 1.18 in.)
Card Frequency: 125KHz for EM // 13.56MHz for MFR
Card Transmission Format: Wiegand26
Keypad Transmission Format: 4bit, 8bit and Virtual card number
Operating Temperature: -45°C ~ 55°C (-49°F ~ 131°F)
Operating Humidity: 0%~95%
Product Size: 133Lx59Wx21H (mm) - 5.23Lx2.32Wx0.82H (in.)
Protection Level: IP68 - No ingress of dust; complete protection against contact (dust tight), and waterproof

Model No. VIS-AXESS-4D-ETL-version2:

Arm 7 processor, RTOS system, new PCB circuit design
Advanced access control function, including multi-card, first card, interlock and anti-passback etc.
Multiple authentication mode, it supports card, password, card + code and fingerprint.
TCP/IP communication mode, there is 5 SOCKET port.
Optical coupling isolation protection, more stable
Record capacity can be extended, it can be 130,000pcs
Alarm linkage and relay self-defined.
Access Mode: It supports card, card+ password, card or password, password
Event Type: Legal card, illegal card, anti-passback, exit button, password, threaten code
Alarm Event Type: Door-magnet alarm, self-defined alarm, threaten code alarm
Linkage Function: All event and alarm can linkage any or multiple relay output
Access Group: 200 group
Holiday Schedule: 300
User Capacity: 20000
Record Capacity: 70000
Reader Port: 4
Exit Button Port: 4
Door-magnet Port: 4
Lock Output: 4
Door-magnet Alarm Output: 1
Self-defined Alarm Output: 1
Self-defined Alarm Input: 4
Communication Port: 10/100MTCP/IP, 1 extension RS485 communication port
Input Protection: Opto-isolator protection
Output Protection: Varistor Protection
Extension Function: It supports LED displayer, alarm host and so on

Model No. VIS-7005:

Contact Rating: 3A/12-24V
Output Contact: NO/NC/COM
Power: 12VDC - 24VDC
LED Color: Blue (Stand by Mode), Green (Active/Open Mode)
Panel: 4mm (0.15in.) Thick Aluminium alloy (CNC)
Suitable for Door: Hollow Door
Mechanical Life: 100.000 tests
Operating Temperature: -20°C~+55°C (14°F-131°F)
Operating Humidity: 0-95% (relative humidity)
Weight: 0.065kg
Dimension Of Plate: 86L × 50W × 25H mm - 3.38L x 1.96W x 0.98H in.

Model No. AL-OD22 :

Supply Voltage: 12-24VDC or VAC
Supply Current: 18-30mA@12-24VDC,45-80mA@12-24VAC
Relay Output: 2C Contact(N.C/N.O), 24VDC 1A Max.
Detection Type: Passive infrared
Relay Hold Time: 0.5-64 seconds
LED Indication: Red
Operating Temp: -14° F to 131° F(-10° Cto55°C)
Weight: 0. 4Ib (0. 18kg)
Range Coverage: 12x5 ft at 7ft high,30x12 ft at 15 ft high (Adjustment)
Humidity: 0-95% non-condensing
Dimensions: 6.53"Wx1. 57"Hx1. 53"0 ( 166x40x39mm)

Description

Attention:

These access control panels (Version 2.0) are only compatible with access control panels (Version 2.0) and with the Titan VSAxess software. They are not compatible with access control panels (Version 1.0) nor with VSAxess software.
Includes CD software
Power supply and power cord included
Install wires are not included
This software is not compatible with MAC computers, only with Microsoft.

Compatible Software

TITAN VSAXESS is a powerful and complete Access control management software for Visionis products for a our second generation of Access Control Panels.

DOWNLOAD SOFTWARE

Screenshots Examples of the Software

Click the image to open a bigger version

Download Datasheets and Manuals of this product

VIS-AXESS-4D-ETL

VIS-ML300LED

VIS-ZL300

Datasheet

VIS-3003

VIS-7005

AL-OD22

VIS-PROXCARD

Datasheet

VIS-KEYTAG / VIS-KEYTAG-BLUE

Datasheet
