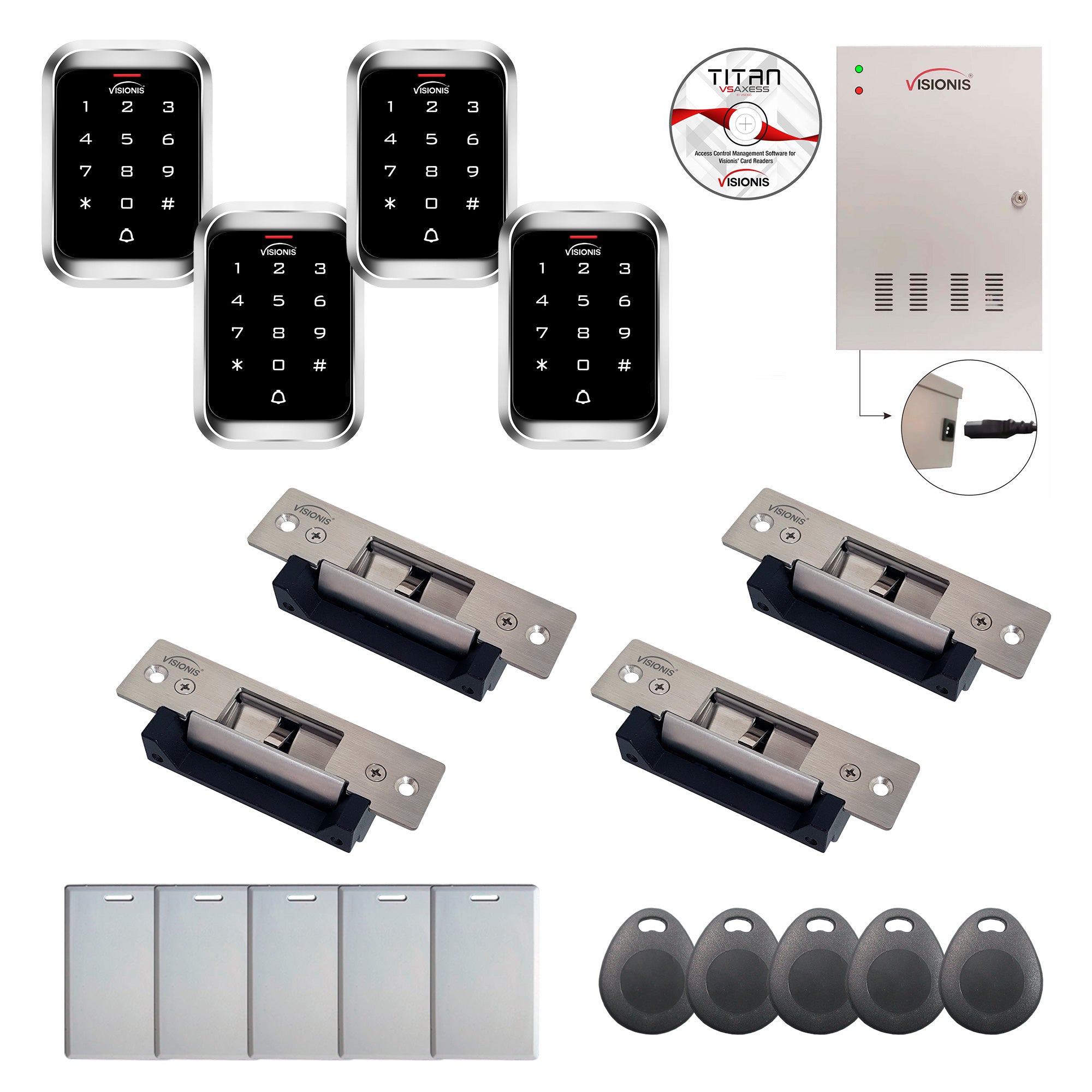

Model No. VIS-EL104-FSESA:

• Lock Size: 124.6Lx32.3H (mm) - 4.90Lx1.27H (in.)
• Holding Strength: 350kg (770 pounds)
• Voltage: 12VDC
• Current: 12VDC - 280mA // 24VDC - 140mA
• Feature: Fail Safe and Fail Secure Adjustable
• Suitable For: Wooden Door, Metal Door, PVC Door
• Cycles Tested: 300.000
• Operating Temperature: -15°C / +40°C (5°F / 104°F)
• Product + Packaging Weight: 0.50kg (1.10 pounds)

Model No. VIS-3000:

• Input Voltage: DC 12V
• Idle Current: ≤25mA
• Card Reading Distance: 2 - 3 cm (0.78 - 1.18 in.)
• Card Frequency: 125KHz for EM // 13.56MHz for MFR
• Card Transmission Format: Wiegand 26
• Keypad Transmission Format: 4bit, 8bit and Virtual card number
• Operating Temperature: -45°C ～55° C (-49°F ～131°F)
• Operating Humidity: 0%～95%
• Product Size: 118Lx81Wx21H (mm) - 4.64Lx3.18Wx0.82H (in.)
• Protection Level: IP68 - No ingress of dust; complete protection against contact (dust tight), and waterproof

Model No. VIS-AXESS-4DLX-version2:

• Access Mode: It supports card, card+ password, card or password, password
• Event Type: Legal card, illegal card, anti-passback, exit button, password, threaten code
• Alarm Event Type: Door-magnet alarm, self-defined alarm, threaten code alarm
• Linkage Function: All event and alarm can linkage any or multiple relay output
• Access Group: 200 group
• Holiday Schedule: 300
• User Capacity: 20,000
• User Record Capacity: 70,000
• Reader Port: 4
• Exit Button Port: 4
• Door-magnet Port: 4
• Lock Output: 4
• Door-magnet Alarm Output: 1
• Self-defined Alarm Output: 1
• Self-defined Alarm Input: 4
• Communication Port: 10/100MTCP/IP, 1 extension RS485 communication port
• Input Protection: Opto-isolator protection
• Output Protection: Varistor Protection
• Extension Function: It supports LED displayer, alarm host and so on
• Video Recording and Snapshot: All Event and alarm can linkage any video to record or snapshot by software
• First Card: Any cards can be first card
• Multiple Cards: To open a door by multiple cards, manager can set 4 cards to open a door at most
• Remote Control: Any doors can be opened by center authentication
• Forced Control: User can open/close door forcibly
• Threaten Code: 6 digits password, it is used in some special situation
• Open by Password: Each of user have a group password
• Timed Normal Open: User can setup three time-segment to let door open timed
• Door Bolt Mode: It can open door by card during some special time
• Timed Invalidation for Exit Button: Exit button invalidation can be set for three time-segments
• Anti-passback: Two readers or all readers can be set in a group
• Temporary Card Quantity: All users can be set as temporary cards
• Self-defined Input/Output: User can self-define input/output function to relative relay
• Activate/dismiss security:
  By manually: Any user card can be appointed to activate/dismiss security function
  By software: Activate/dismiss security function can be realized by software
• Communication Security: Password encryption during data transmission
• Transmission Mode: It supports TCP, UDP, RTP and multicast mode
• Data Storage Mode: Cycled storage
