Four Door + Network Access Control Panel + Controller Board With Cabinet VIS-AXESS-4DLX

Entry and Deluxe Access Control Panels Main Features - VISIONIS

Description

Features

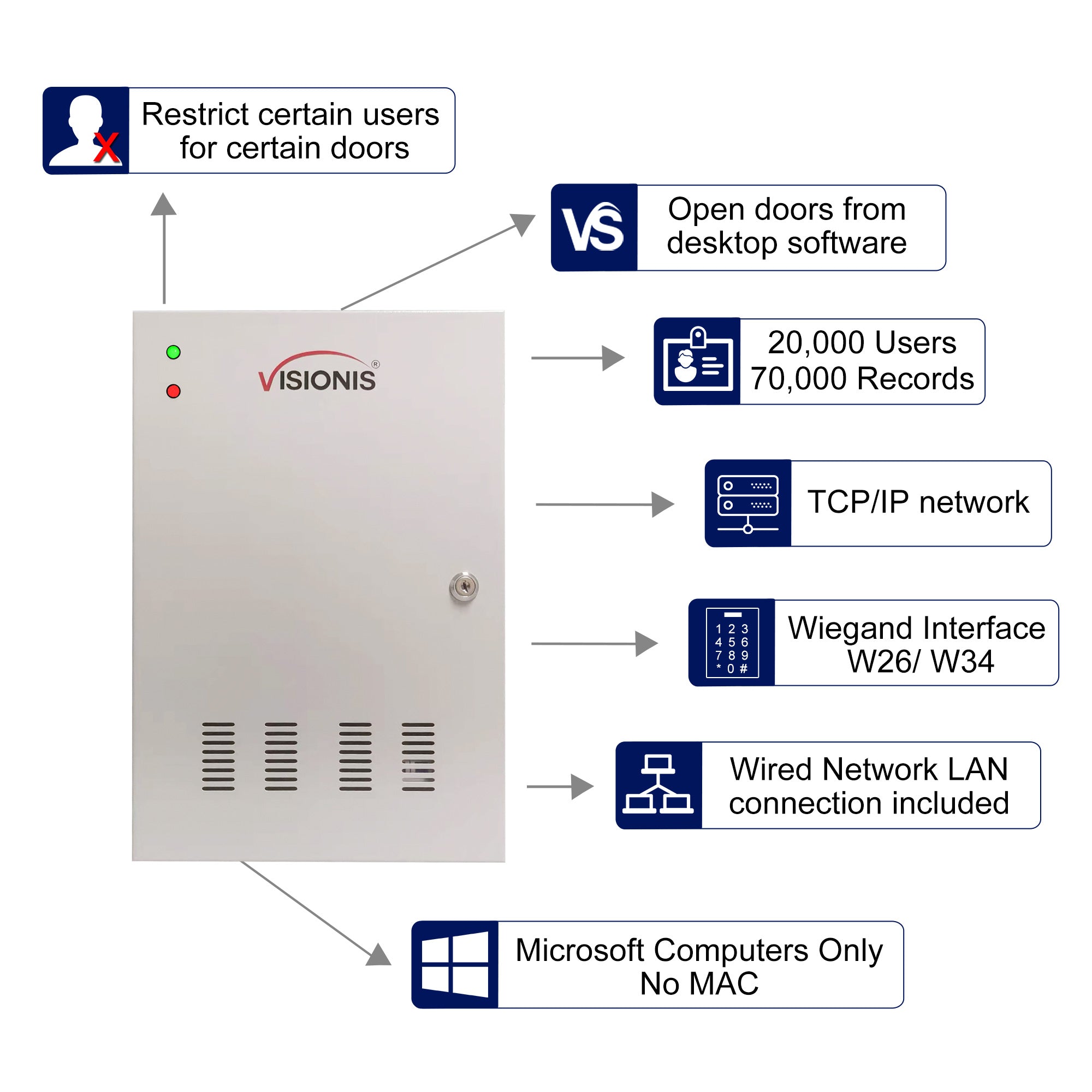

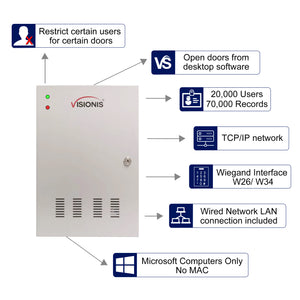

Arm 7 processor, RTOS system, new PCB circuit design
Advanced access control function, including multi-card, first card, interlock and anti-passback etc.
Multiple authentication mode, it supports card, password, card + code and fingerprint.
TCP/IP communication mode, there is 5 SOCKET port.
Optical coupling isolation protection, more stable
Record capacity can be extended, it can be 130,000pcs
Alarm linkage and relay self-defined.

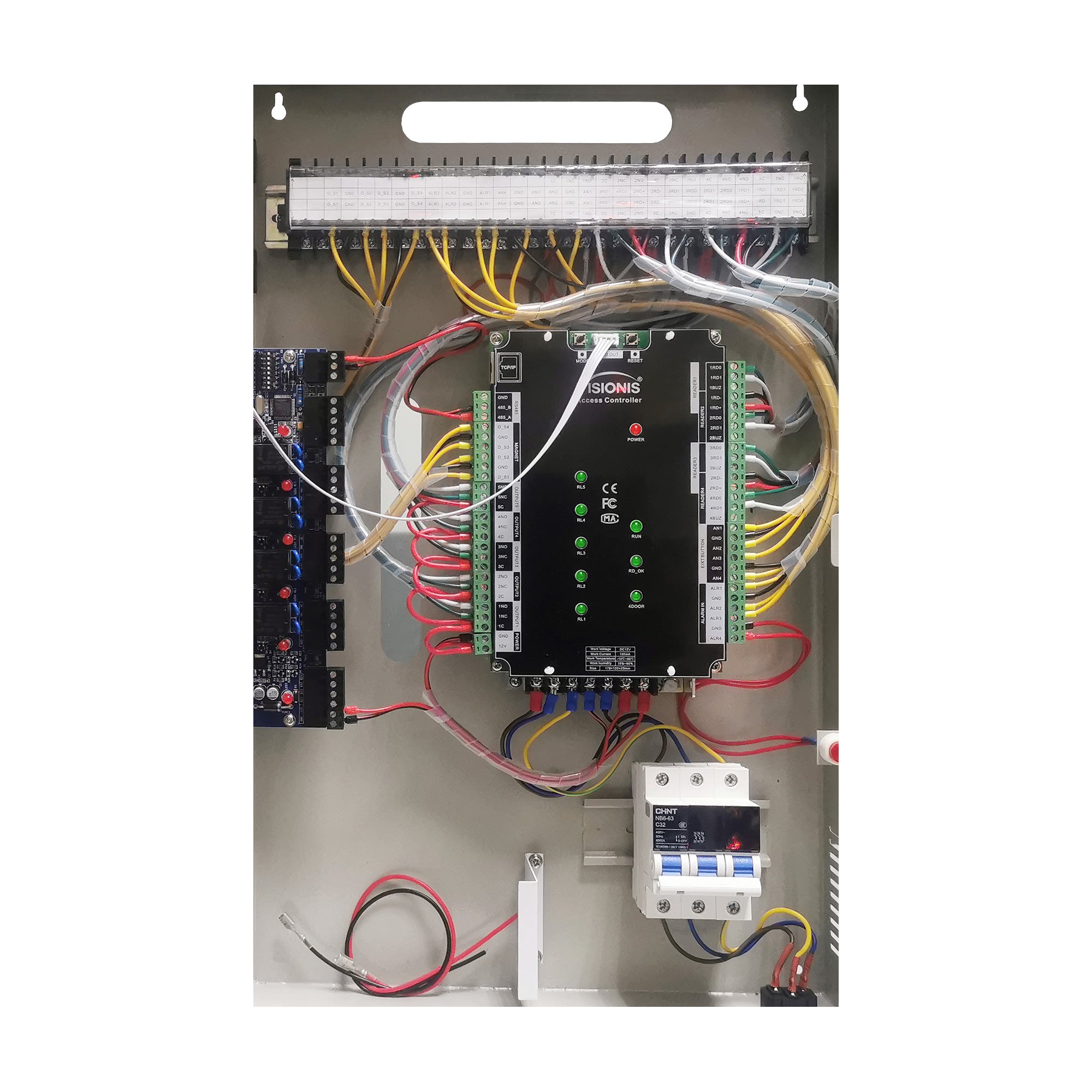

Bus bar for easy connection.
Available space for a 7AH battery back up.
Breaker switch.
Fire alarm extension board.

Hardware Design

New design and new integration, it supports TCP/IP communication mode and have 5 SOCKET port.
Large Capacity FLASH
Multiple output and input Protection
High/low temperature resistant design -20°C to +65°C (-4°F~+149°F)

Systemic Linkage Function

Abundant ports are reserved for future usage and add to multiple events linkage, it supports illegal card alarm linkage, alarm linkage to open door etc.

Multiple Authentication Management

Professional management function, manager can manage person access more efficiently and safe.
Cancel normal open by card
Multiple authentications
Card failure and activate time.
Access time segment setup

Economic Access C Management

This product can ensure the cost of project is low, but device access control function is perfect.

First Card
Multi-card Open
Anti-passback
Remote Control
Multi-door interlock
Threaten Code
Normal Open Automatically

Powerful Software

When access controller work with TITAN VSAxess software, it can achieve more complex security function. Such as, access data search, employee shift, attendance statistics.

Access Control and video device linkage
Attendance
On-line access control
Real-time Remote monitoring

Attention:

IMPORTANT: These access control panels (Version 2.0) are only compatible with access control panels (Version 2.0) and with the Titan VSAxess software. They are not compatible with access control panels (Version 1.0) nor with VSAxess software.

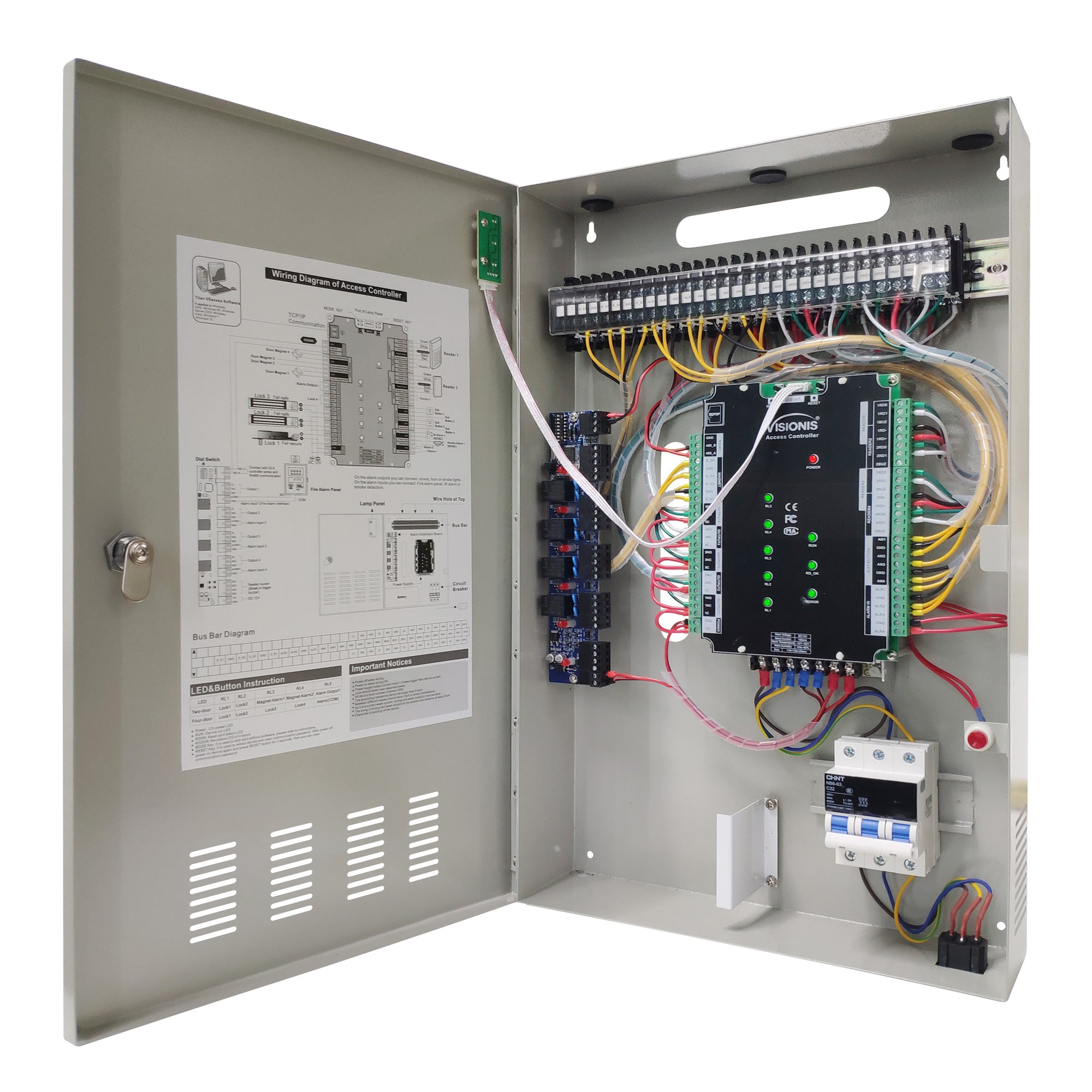

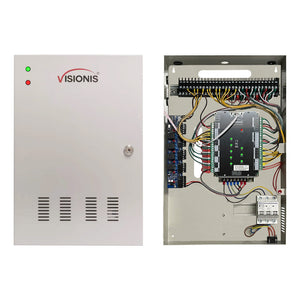

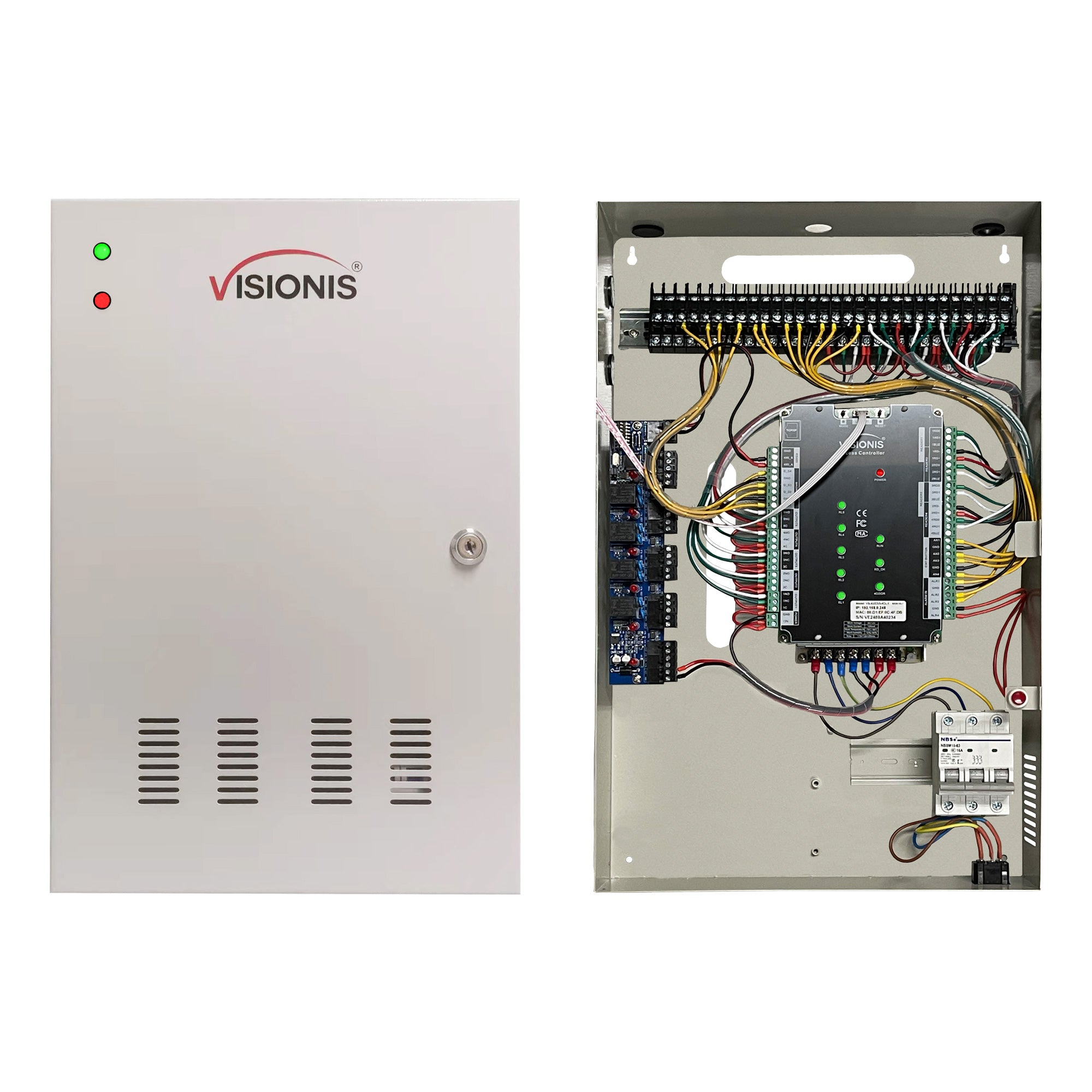

Metal box is included.
12V 8.5 Amp Power supply included.
Power cord included.
Battery backup is not included. For this device you can purchase a UPS device for battery backup, this is the same device that you usually purchase to give battery backup to your desktop computer. At the moment we do not sell such device.
No cable included for install.
Software USB is 100% included in this product.
The software is not compatible with MAC computers, only with Microsoft.

Characteristics

Model No. VIS-AXESS-4DLX-version2:

Access Mode: It supports card, card+ password, card or password, password
Event Type: Legal card, illegal card, anti-passback, exit button, password, threaten code
Alarm Event Type: Door-magnet alarm, self-defined alarm, threaten code alarm
Linkage Function: All event and alarm can linkage any or multiple relay output
Access Group: 200 group
Holiday Schedule: 300
User Capacity: 20,000
User Record Capacity: 70,000

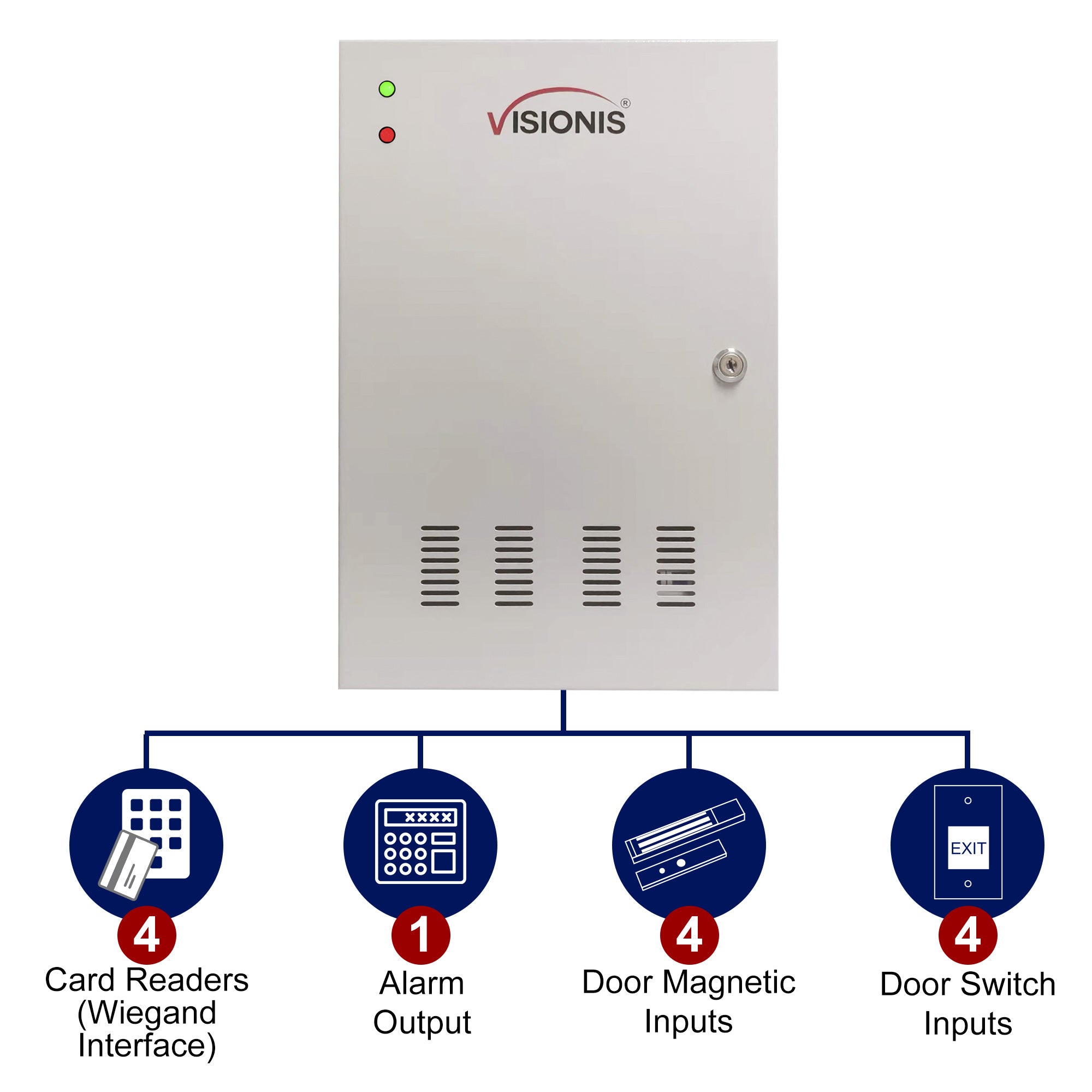

Reader Port: 4
Exit Button Port: 4
Door-magnet Port: 4
Lock Output: 4
Door-magnet Alarm Output: 1
Self-defined Alarm Output: 1
Self-defined Alarm Input: 4
Communication Port: 10/100MTCP/IP, 1 extension RS485 communication port
Input Protection: Opto-isolator protection
Output Protection: Varistor Protection
Extension Function: It supports LED displayer, alarm host and so on
Video Recording and Snapshot: All Event and alarm can linkage any video to record or snapshot by software
First Card: Any cards can be first card
Multiple Cards: To open a door by multiple cards, manager can set 4 cards to open a door at most
Remote Control: Any doors can be opened by center authentication
Forced Control: User can open/close door forcibly
Threaten Code: 6 digits password, it is used in some special situation
Open by Password: Each of user have a group password
Timed Normal Open: User can setup three time-segment to let door open timed
Door Bolt Mode: It can open door by card during some special time
Timed Invalidation for Exit Button: Exit button invalidation can be set for three time-segments
Anti-passback: Two readers or all readers can be set in a group
Temporary Card Quantity: All users can be set as temporary cards
Self-defined Input/Output: User can self-define input/output function to relative relay
Activate/dismiss security:
By manually: Any user card can be appointed to activate/dismiss security function
By software: Activate/dismiss security function can be realized by software
Communication Security: Password encryption during data transmission
Transmission Mode: It supports TCP, UDP, RTP and multicast mode
Data Storage Mode: Cycled storage

Description

Features

Arm 7 processor, RTOS system, new PCB circuit design
Advanced access control function, including multi-card, first card, interlock and anti-passback etc.
Multiple authentication mode, it supports card, password, card + code and fingerprint.
TCP/IP communication mode, there is 5 SOCKET port.
Optical coupling isolation protection, more stable
Record capacity can be extended, it can be 130,000pcs
Alarm linkage and relay self-defined.
Bus bar for easy connection.
Available space for a 7AH battery back up.
Breaker switch.
Fire alarm extension board.

Hardware Design

New design and new integration, it supports TCP/IP communication mode and have 5 SOCKET port.
Large Capacity FLASH
Multiple output and input Protection
High/low temperature resistant design -20°C to +65°C (-4°F~+149°F)

Systemic Linkage Function

Abundant ports are reserved for future usage and add to multiple events linkage, it supports illegal card alarm linkage, alarm linkage to open door etc.

Multiple Authentication Management

Professional management function, manager can manage person access more efficiently and safe.
Cancel normal open by card
Multiple authentications
Card failure and activate time.
Access time segment setup

Economic Access C Management

This product can ensure the cost of project is low, but device access control function is perfect.

First Card
Multi-card Open
Anti-passback
Remote Control
Multi-door interlock
Threaten Code
Normal Open Automatically

Powerful Software

When access controller work with TITAN VSAxess software, it can achieve more complex security function. Such as, access data search, employee shift, attendance statistics.

Access Control and video device linkage
Attendance
On-line access control
Real-time Remote monitoring

Attention:

IMPORTANT: These access control panels (Version 2.0) are only compatible with access control panels (Version 2.0) and with the Titan VSAxess software. They are not compatible with access control panels (Version 1.0) nor with VSAxess software.
Metal box is included.
12V 8.5 Amp Power supply included.
Power cord included.
Battery backup is not included. For this device you can purchase a UPS device for battery backup, this is the same device that you usually purchase to give battery backup to your desktop computer. At the moment we do not sell such device.
No cable included for install.
Software USB is 100% included in this product.
The software is not compatible with MAC computers, only with Microsoft.

Characteristics

Model No. VIS-AXESS-4DLX-version2:

Access Mode: It supports card, card+ password, card or password, password
Event Type: Legal card, illegal card, anti-passback, exit button, password, threaten code
Alarm Event Type: Door-magnet alarm, self-defined alarm, threaten code alarm
Linkage Function: All event and alarm can linkage any or multiple relay output
Access Group: 200 group
Holiday Schedule: 300
User Capacity: 20,000
User Record Capacity: 70,000
Reader Port: 4
Exit Button Port: 4
Door-magnet Port: 4
Lock Output: 4
Door-magnet Alarm Output: 1
Self-defined Alarm Output: 1
Self-defined Alarm Input: 4
Communication Port: 10/100MTCP/IP, 1 extension RS485 communication port
Input Protection: Opto-isolator protection
Output Protection: Varistor Protection
Extension Function: It supports LED displayer, alarm host and so on
Video Recording and Snapshot: All Event and alarm can linkage any video to record or snapshot by software
First Card: Any cards can be first card
Multiple Cards: To open a door by multiple cards, manager can set 4 cards to open a door at most
Remote Control: Any doors can be opened by center authentication
Forced Control: User can open/close door forcibly
Threaten Code: 6 digits password, it is used in some special situation
Open by Password: Each of user have a group password
Timed Normal Open: User can setup three time-segment to let door open timed
Door Bolt Mode: It can open door by card during some special time
Timed Invalidation for Exit Button: Exit button invalidation can be set for three time-segments
Anti-passback: Two readers or all readers can be set in a group
Temporary Card Quantity: All users can be set as temporary cards
Self-defined Input/Output: User can self-define input/output function to relative relay
Activate/dismiss security:
By manually: Any user card can be appointed to activate/dismiss security function
By software: Activate/dismiss security function can be realized by software
Communication Security: Password encryption during data transmission
Transmission Mode: It supports TCP, UDP, RTP and multicast mode
Data Storage Mode: Cycled storage

Compatible Software

TITAN VSAXESS is a powerful and complete Access control management software for Visionis products for a our second generation of Access Control Panels.

DOWNLOAD SOFTWARE

Screenshots Examples of the Software

Click the image to open a bigger version

Download Datasheets and Manuals of this product

VIS-AXESS-4DLX

Visionis by Visionis

VIS-AXESS-4DLX (Version 2.0) – Four Door + Network Access Control Panel + Controller Board With Cabinet + TCP IP + Wiegand + Desktop Software + 20,000 Users 70,000 Records + Fire Alarm Extension Board

Name: VIS-AXESS-4DLX (Version 2.0) – Four Door + Network Access Control Panel + Controller Board With Cabinet + TCP IP + Wiegand + Desktop Software + 20,000 Users 70,000 Records + Fire Alarm Extension Board
Brand: Visionis
SKU: VIS-AXESS-4DLX
Price: 383.77 USD
Availability: InStock

Translation missing: en.products.product.sku:VIS-AXESS-4DLX

UPC Code: 734598805494

Product Weight: 12.0 lb
