1500lbs Outdoor Electromagnetic Locks VIS-SS1500-G

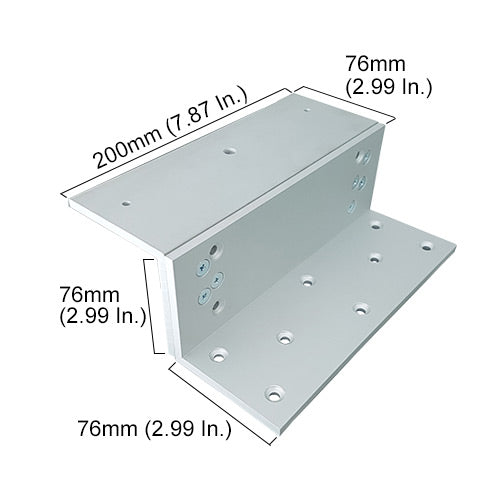

L and Z Bracket for VIS-SS1500-G Outdoor 1500lbs Maglock for Inswining Application VIS-ZL-SS1500

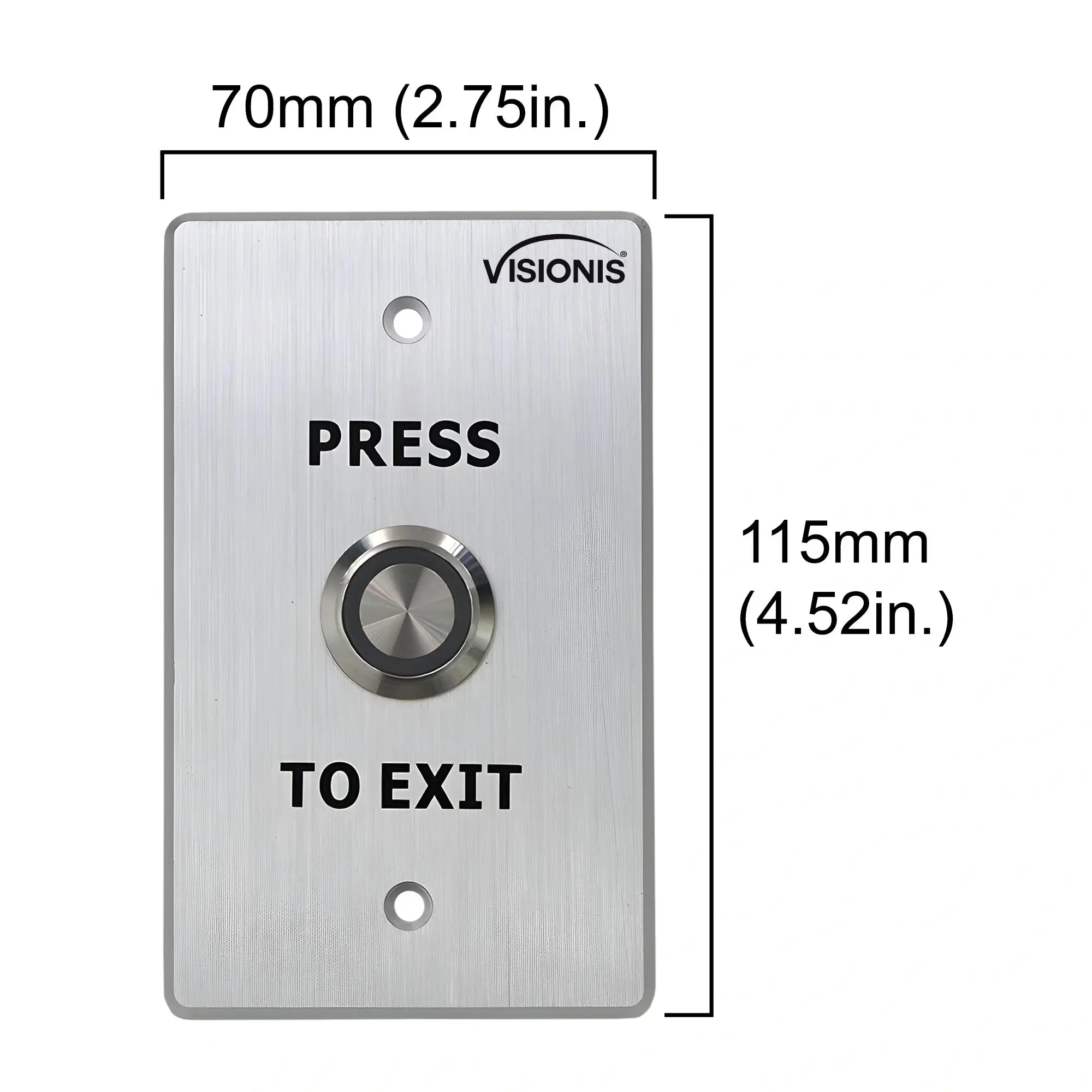

Dimensions VIS-7001 outdoor push to exit button with stainless steel and LED indicator

Visionis VIS-7001 outdoor push to exit button with stainless steel and LED indicator

Visionis VIS-7001 weatherproof request to exit button with stainless steel and LED indicator

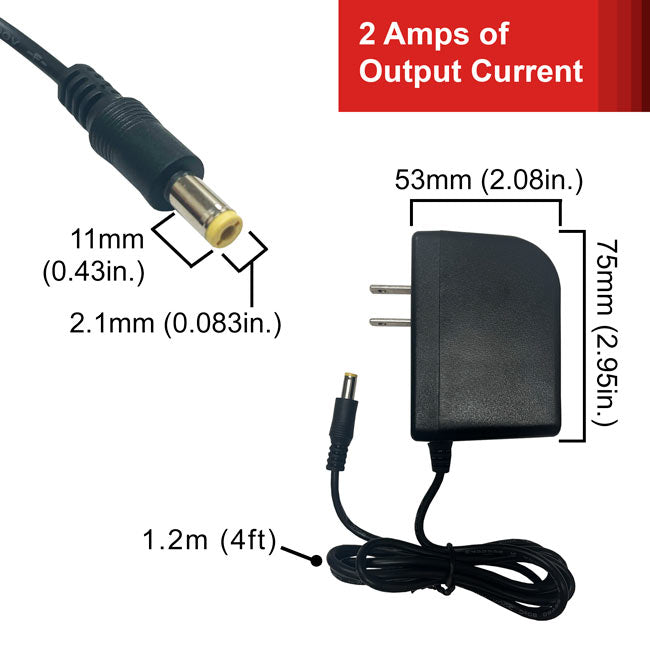

VIS-CP200 – 12 Volt 2Amp Power Supply Transformer, UL Listed

Below are more variations of this product:

This PRODUCT has a 3 YEAR warranty with full access to tech support in the USA!

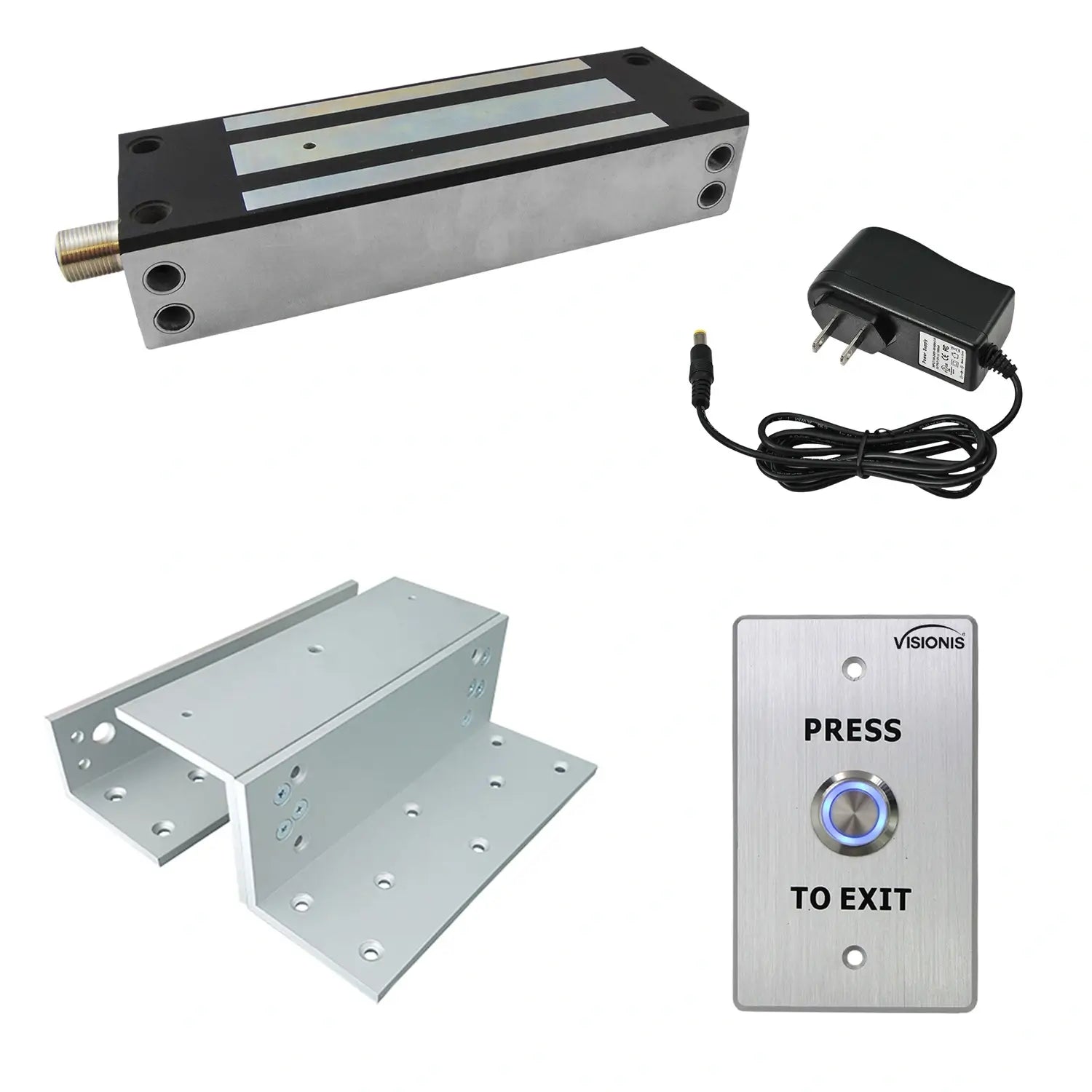

Kit Includes:

(1)

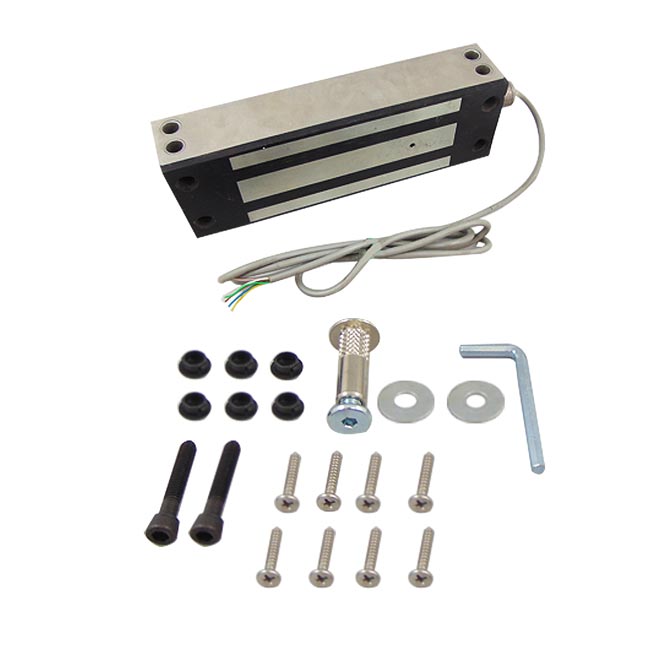

VIS-SS1500-G: 1500 lbs Out Door and Gate Electromagnetic lock

VIS-ZL-SS1500-G: L and Z Bracket for VS-SS1500-G Outdoor 1500lbs Maglock for Inswining Application

VIS-7001: Indoor + Outdoor Weather, Waterproof Rated IP65 Stainless Steel Door Bell Type Round Request To Exit Button Standard Size w/ LED Light

VIS-CP200: 12 Volt 2Amp Power Supply Transformer, UL Listed

Description

Attention Notes:

This Bundle might not be all you need for your install please check all your specs accordingly before you purchase. Please ask any questions that you might have before ordering.

Characteristics

Model No. VIS-SS1500-G:

Voltage Input: 12 VDC / 24 VDC
Current Draw: 12V / 450mA ; 24V / 220mA (±5%)
Holding Force: Up to 1500 lbs (680 kg)
Hall Effect Contact : 28 VDC, 0.2A, 5W
Anti-Rust Surface Treatment: Blue Zinc Plating
Operating Temperature: 0~55° C (32~131° F)
Operating Humidity: 0~95% (non condensing)
Weight (Magnet): 4.5 kg (±1%)

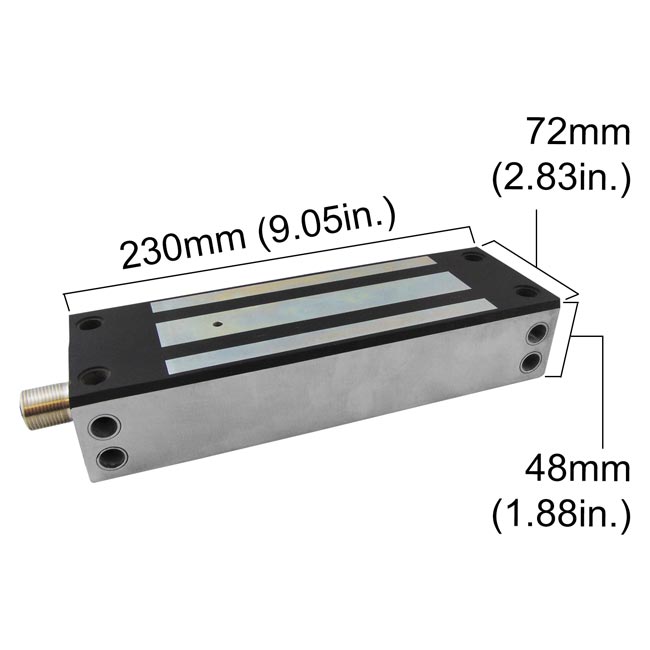

Dimensions:
Magnet - (L) 230x(W)72x(T)48 mm
Armature - (L) 200x(W)70x(T)16.5 mm

Model No. VIS-7001:

Contact Rating: 3A/125-250VAC

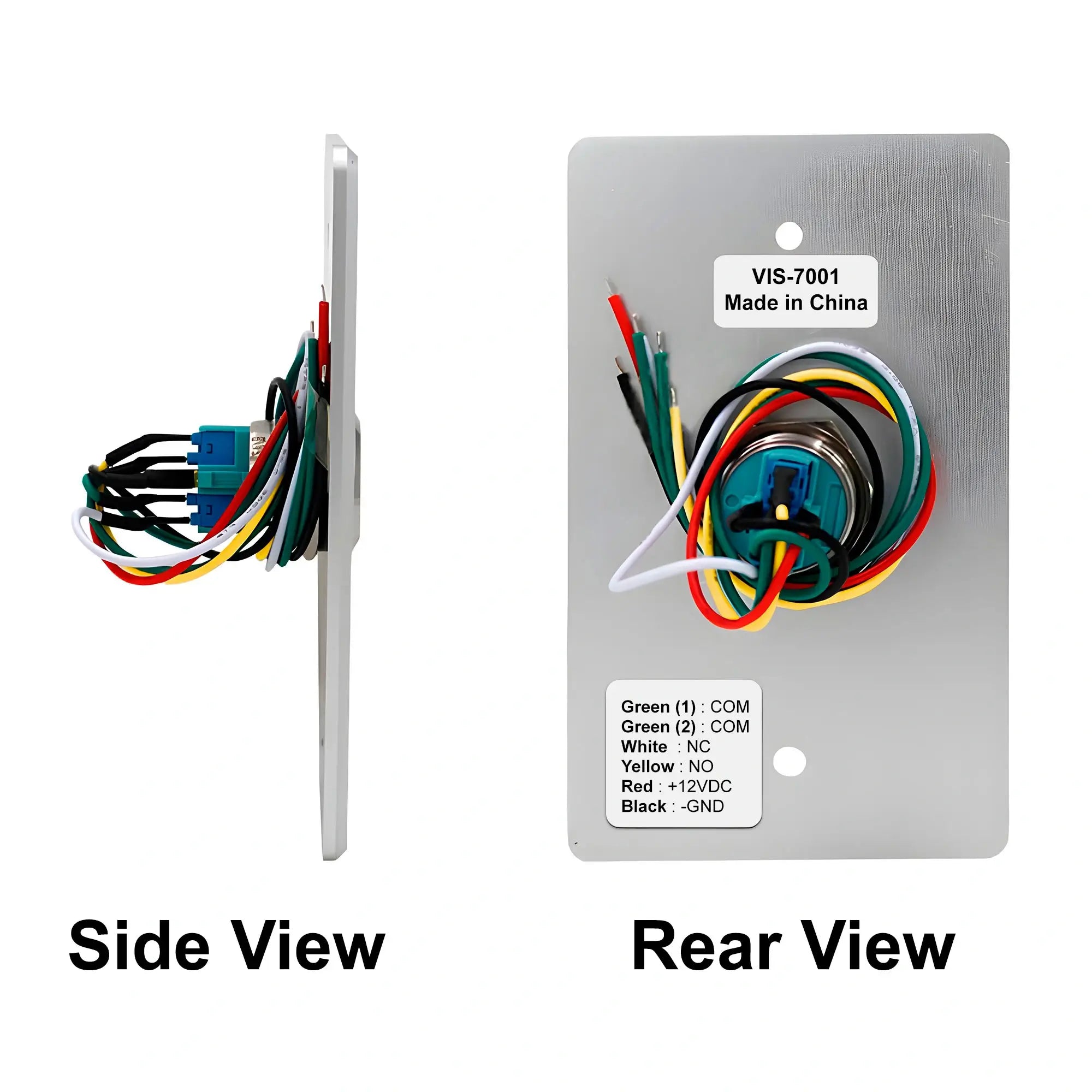

Output Contact: NC, COM, NO
Waterproof Grade: IP65
Power: 12VDC or 24VDC
Button: Stainless Steel
Button Installation Diameter: 19mm (0.74in.)
Panel: 1.7mm (0.07in.) Thick 304 Stainless Steel
Suitable for: Hollow Door
Mechanical Life: 100.000 tests
Operating Temperature: -20°C~+55°C (14°F-131°F)
Operating Humidity: 0-95% (relative humidity)
Weight: 0.12kg

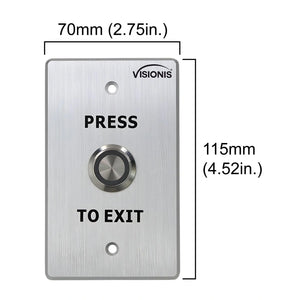

Dimension Of Plate: 115L × 70W × 40H mm - 4.52L x 2.75W x 1.57H in.

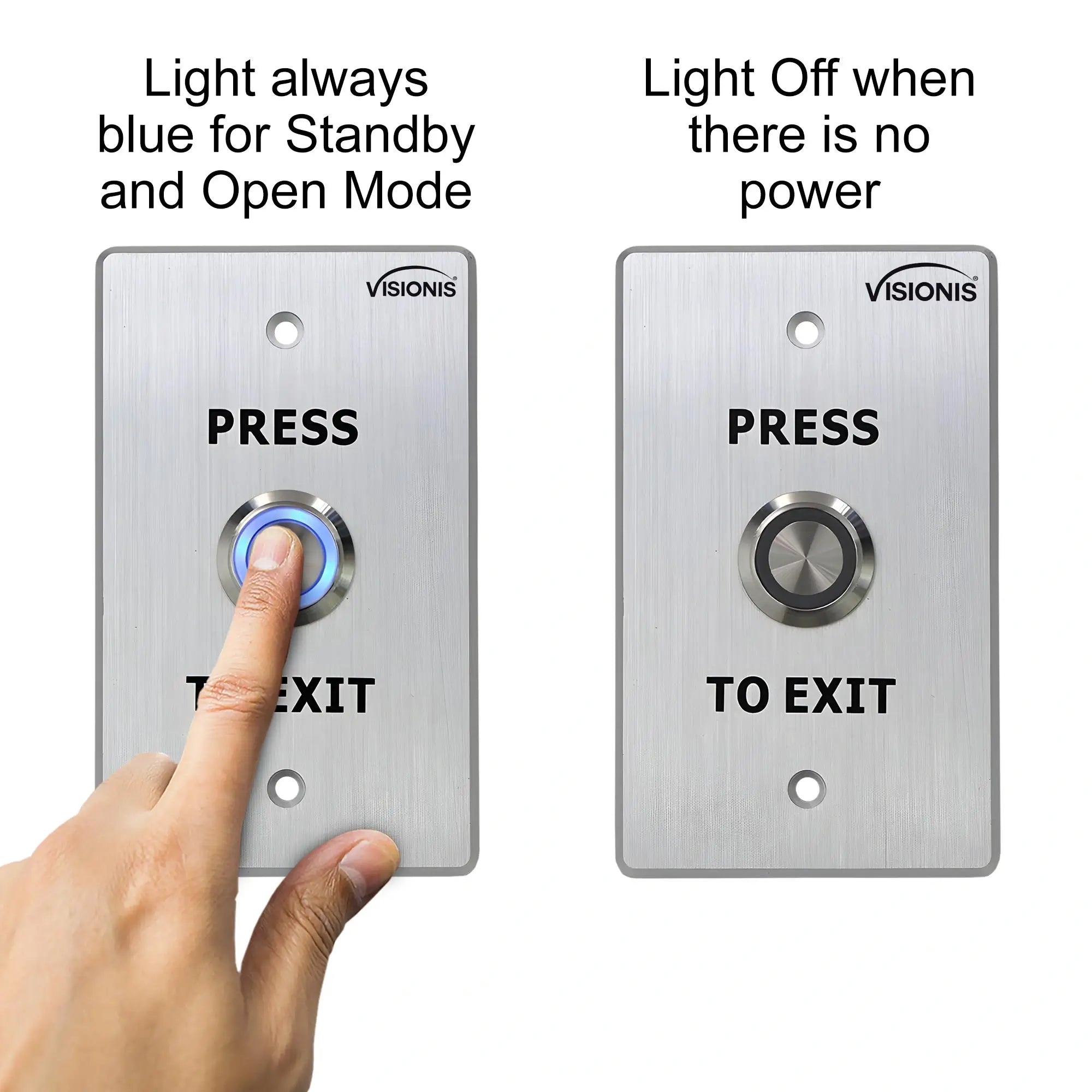

LED Color Indicator: Blue

Model No. VIS-CP200:

Input Voltage Range: AC90V-264V
Input Frequency Range: 50Hz-60Hz
Output Voltage Range: DC12V+/-5%
Output Current: 2A
Output Power: 24 Watts
Output Ripple&Noise: ≤46MV
Output Efficiency: ≥79%
Environment Operating: -30°C~45°C 20%~90%RH
Environment Storage Temp.: -40°C~85°C 10%~95%RH
Product Dimension: 87*36.5*70mm (3.42x1.43x2.75in.)
Product Weight: 116g
Certificate: UL, CE, RoHS, FCC

Description

Attention Notes:

This Bundle might not be all you need for your install please check all your specs accordingly before you purchase. Please ask any questions that you might have before ordering.

Download Datasheets and Manuals of this product
