What is the electromagnetic gate lock made of?

The VIS-SS1500-G is made of heavy-duty stainless steel, which provides durability, corrosion resistance, and protection against vandalism.

Does gate maglock kit come with a manual?

Yes, it does. A printed user manual is included in the box, or you can download the digital version.

Does this outdoor magnetic lock have a timer?

No, it doesn’t. However, you can add an exit button with a time delay, such as the VIS-7100 or the VIS-7013.

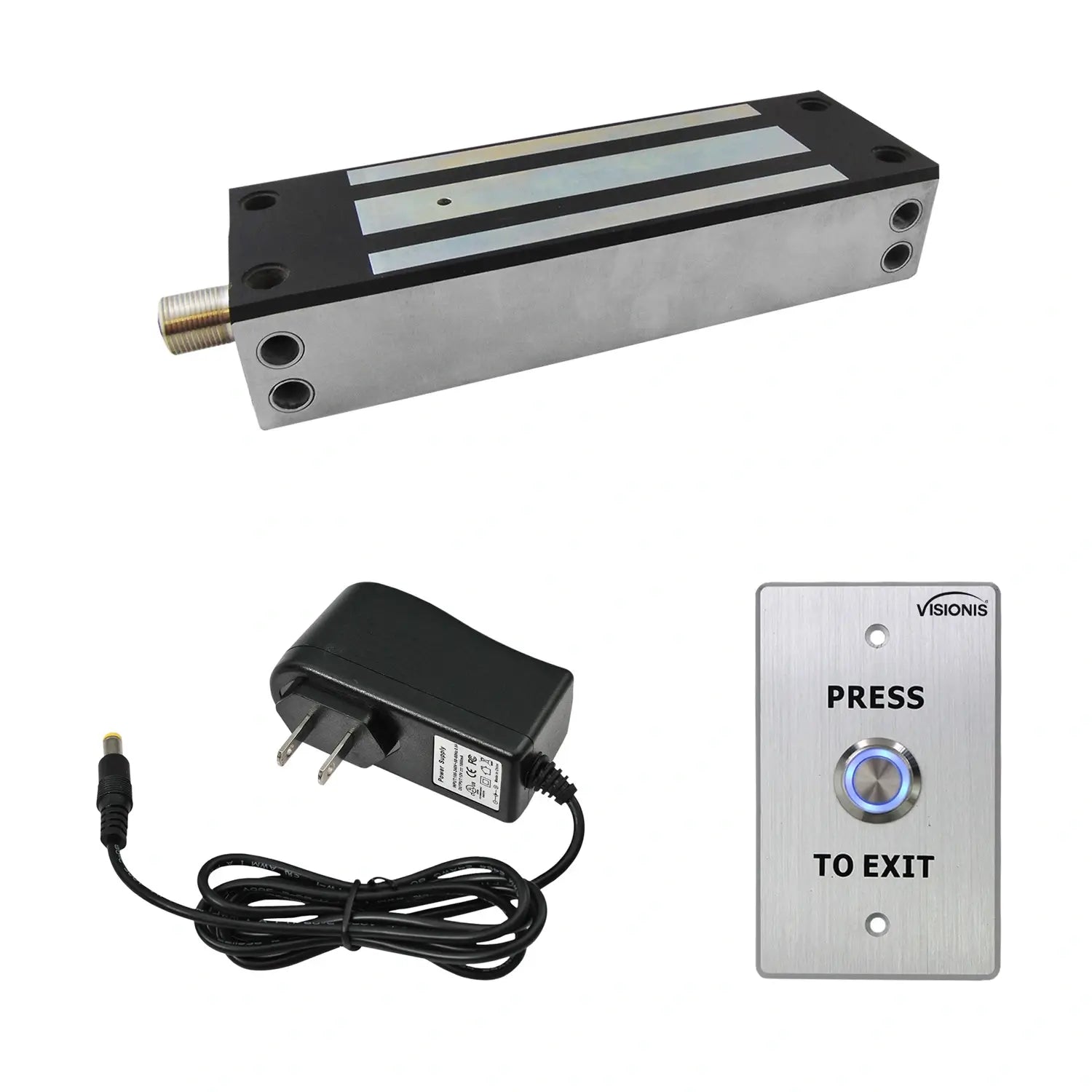

1500 lbs gate maglock kit with button release - FPC-7333

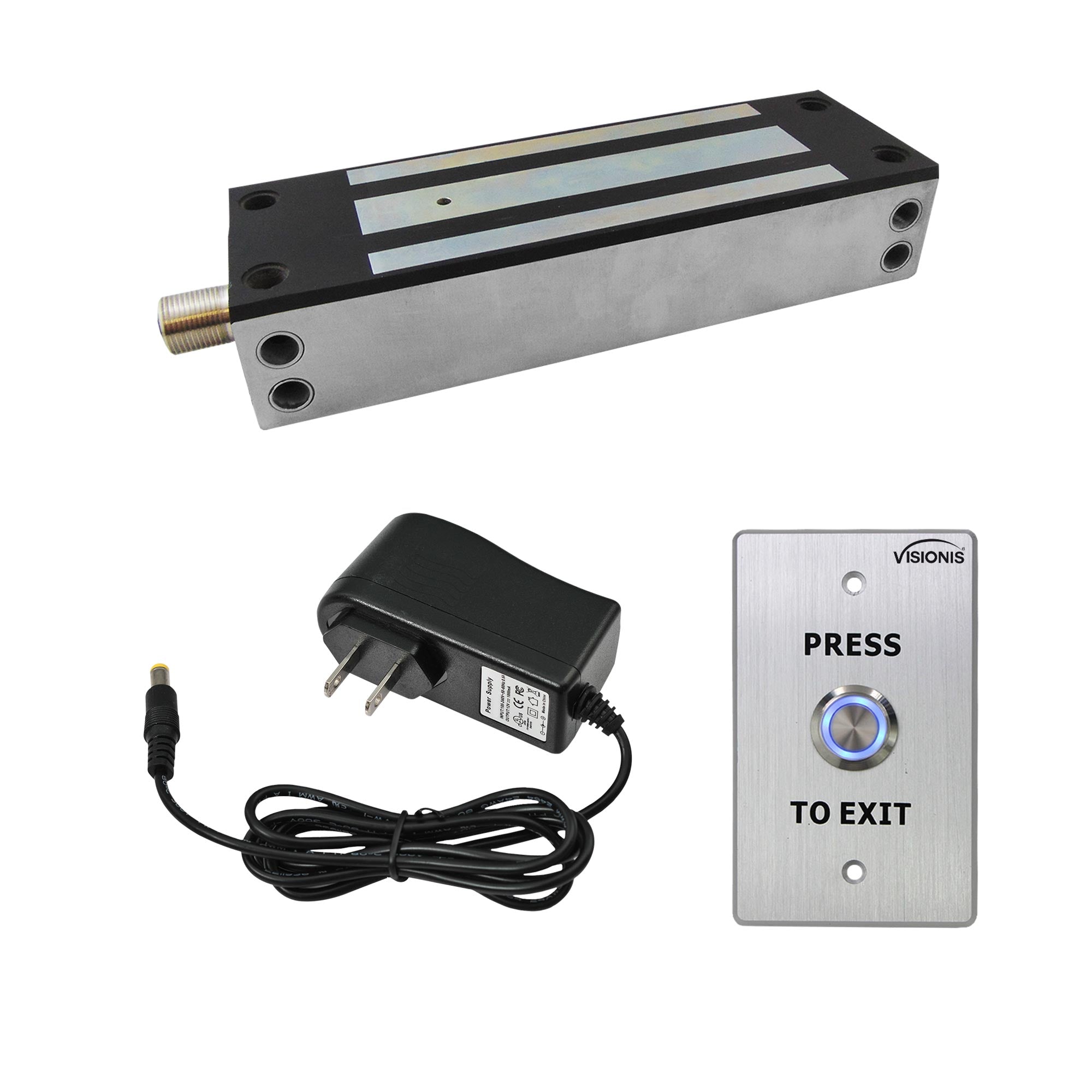

1500lbs Outdoor and Gate Electromagnetic Lock with Weatherproof Exit Button Kit for Access Control

waterproof lock for outdoor gate VIS-SS800-G, VIS-SS1500-G unboxing

weatherproof lock for outdoor gate 1500 lbs dimensions - VIS-SS1500-G

weatherproof lock for outdoor gate 1500 lbs - VIS-SS1500-G

Dimensions VIS-7001 outdoor push to exit button with stainless steel and LED indicator

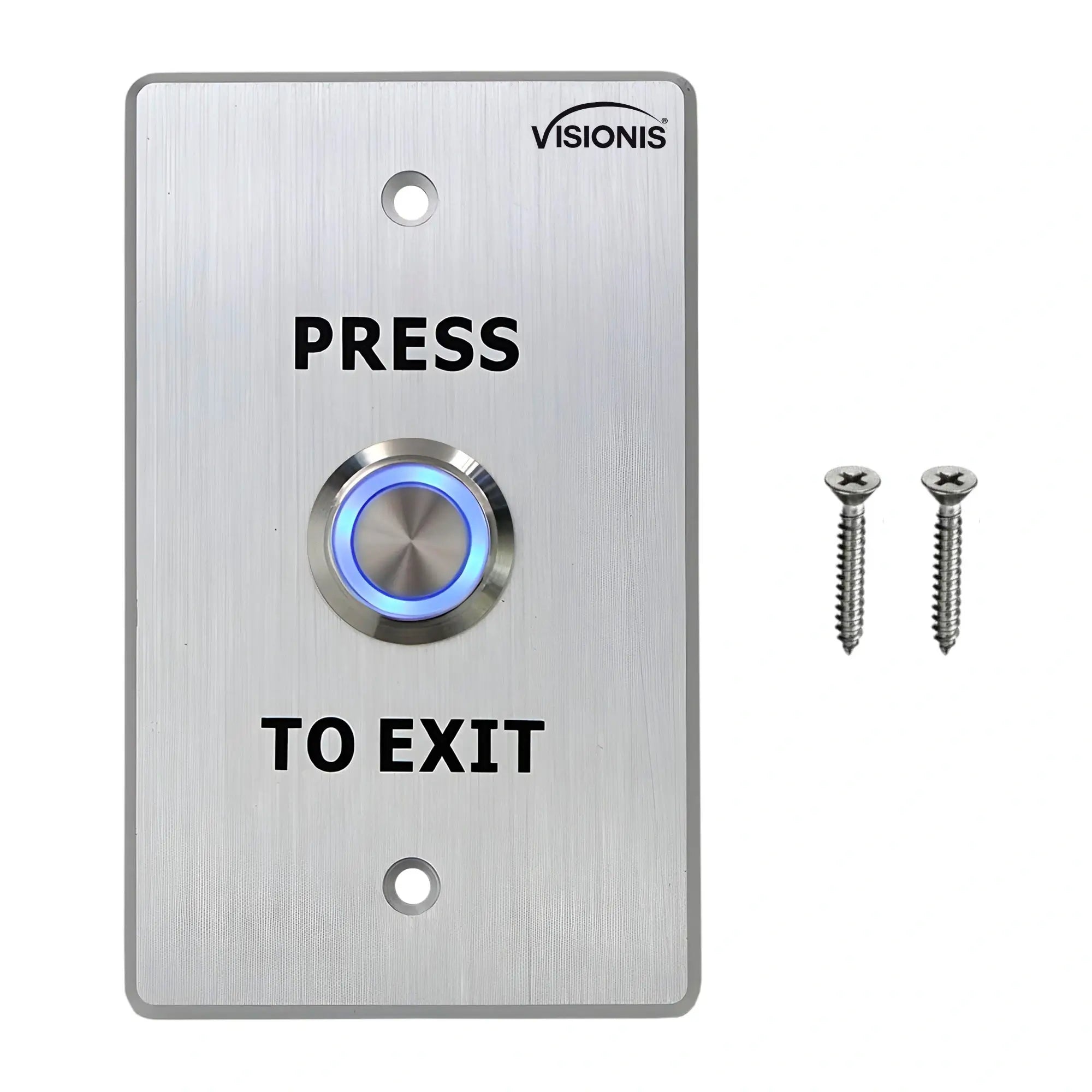

outdoor push to exit button with stainless steel and LED indicator - VIS-7001 Visionis

weatherproof request to exit button with stainless steel and LED indicator - VIS-7001 Visionis

VIS-CP200 – 12 Volt 2Amp Power Supply Transformer, UL Listed

Looking for something slightly different? Check out these variations:

This PRODUCT has a 3 YEAR warranty with full access to tech support in the USA!

Kit Includes:

(1)

VIS-SS1500-G: 1500 lbs Out Door and Gate Electromagnetic lock

VIS-7001: Indoor + Outdoor Weather, Waterproof Rated IP65 Stainless Steel Door Bell Type Round Request To Exit Button Standard Size w/ LED Light

VIS-CP200: 12 Volt 2Amp Power Supply Transformer, UL Listed

Description

Can this maglock be used with inswing doors?

No, this specific kit is designed for outswing doors. However, you can check out our kits made for inswing doors: FPC-7334, FPC-7335.

What is the holding force of this maglock?

This maglock provides 1500 lbs of holding force.

Attention Notes:

This Bundle might not be all you need for your install please check all your specs accordingly before you purchase. Please ask any questions that you might have before ordering.

Characteristics

Model No. VIS-SS1500-G:

Voltage Input: 12 VDC / 24 VDC
Current Draw: 12V / 450mA ; 24V / 220mA (±5%)
Holding Force: Up to 1500 lbs (680 kg)
Hall Effect Contact : 28 VDC, 0.2A, 5W
Anti-Rust Surface Treatment: Blue Zinc Plating
Operating Temperature: 0~55° C (32~131° F)
Operating Humidity: 0~95% (non condensing)
Weight (Magnet): 4.5 kg (±1%)
Dimensions:
Magnet - (L) 230x(W)72x(T)48 mm
Armature - (L) 200x(W)70x(T)16.5 mm

Model No. VIS-7001:

Contact Rating: 3A/125-250VAC
Output Contact: NC, COM, NO
Waterproof Grade: IP65
Power: 12VDC or 24VDC
Button: Stainless Steel
Button Installation Diameter: 19mm (0.74in.)
Panel: 1.7mm (0.07in.) Thick 304 Stainless Steel
Suitable for: Hollow Door
Mechanical Life: 100.000 tests
Operating Temperature: -20°C~+55°C (14°F-131°F)
Operating Humidity: 0-95% (relative humidity)
Weight: 0.12kg
Dimension Of Plate: 115L × 70W × 40H mm - 4.52L x 2.75W x 1.57H in.
LED Color Indicator: Blue

Model No. VIS-CP200:

Cable Length: 1.2 meters (4 feet)
Input Voltage Range: AC90V-264V
Input Frequency Range: 50Hz-60Hz
Output Voltage Range: DC12V+/-5%
Output Current: 2A
Output Power: 24 Watts
Output Ripple&Noise: ≤46MV
Output Efficiency: ≥79%
Environment Operating: -30°C~45°C 20%~90%RH
Environment Storage Temp.: -40°C~85°C 10%~95%RH
Product Dimension: 87*36.5*70mm (3.42x1.43x2.75in.)
Product Weight: 116g
Certificate: UL, CE, RoHS, FCC

Description

Can this maglock be used with inswing doors?

No, this specific kit is designed for outswing doors. However, you can check out our kits made for inswing doors: FPC-7334, FPC-7335.

What is the holding force of this maglock?

This maglock provides 1500 lbs of holding force.

Attention Notes:

This Bundle might not be all you need for your install please check all your specs accordingly before you purchase. Please ask any questions that you might have before ordering.

Product FAQs

Does the waterproof lock for outdoor gate come with an exit button?

Yes, it does.
What is the electromagnetic gate lock made of?

The VIS-SS1500-G is made of heavy-duty stainless steel, which provides durability, corrosion resistance, and protection against vandalism.
Does gate maglock kit come with a manual?

Yes, it does. A printed user manual is included in the box, or you can download the digital version.
Does this outdoor magnetic lock have a timer?

No, it doesn’t. However, you can add an exit button with a time delay, such as the VIS-7100 or the VIS-7013.
What is the operating temperature range?

The operating temperature range is from 0°C to 55°C (32°F to 131°F), making it ideal for diverse outdoor environments.
Is it hardwired?

Yes, it needs to be hardwired.
Can this be used on a wooden gate?

Yes, it can be used on wooden doors and gates.

Download Datasheets and Manuals of this product

FPC-7329, FPC-7331, FPC-7333, FPC-7335

Installation Diagram

VIS-SS1500-G

VIS-7001
