Below are more variations of this product:

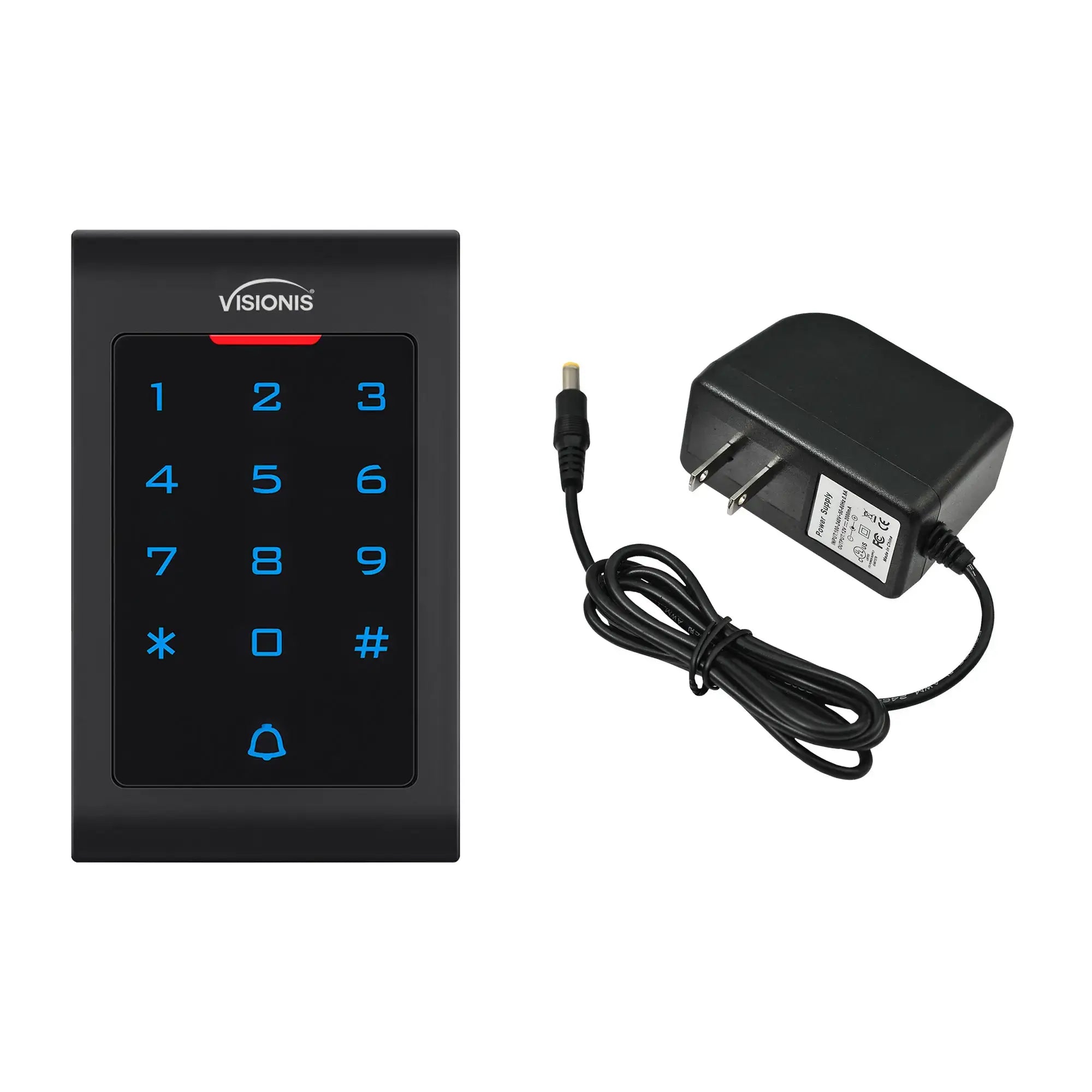

- VIS-3002+: Indoor Keypad/Reader Standalone - $64.37
- FPC-5670: With a Pack of 10 Proximity Cards - $71.42
- FPC-5671: With Power Supply - $73.42
- FPC-5672: With Power supply and Pack of 10 Proximity Cards - $77.11
- FPC-5673: With a Pack of 10 Proximity Key Tags - $70.80
- FPC-5674: With Power Supply, Pack of 10 Proximity Key Tags - $76.51
This PRODUCT has a 3 YEAR warranty with full access to tech support in the USA!
Kit Includes:

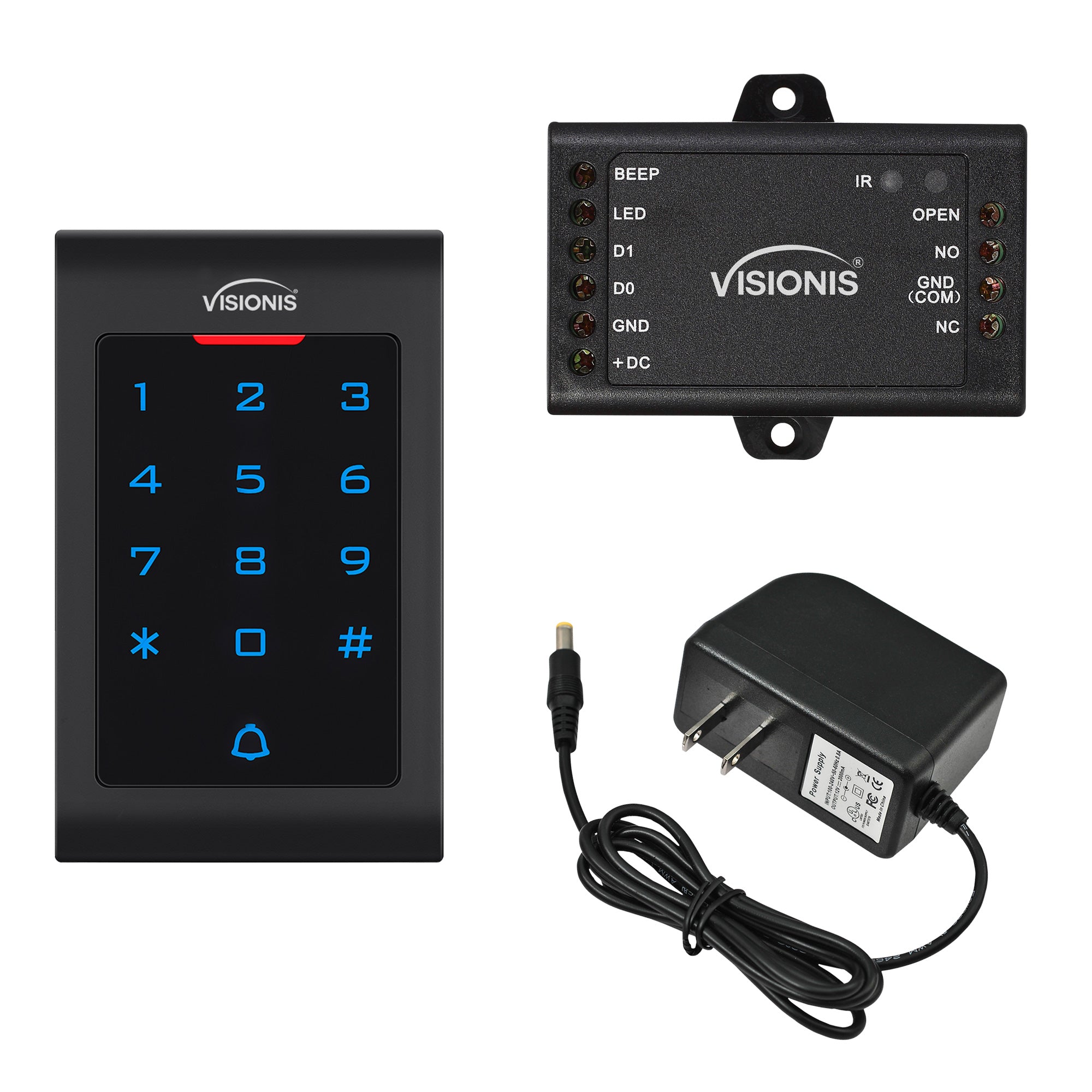

The 5671 kit contains a VIS-3002 standard-sized indoor keypad/reader used for access control, a mini controller and a power supply. A diverse keypad in its functionality, you can gain access through three different options. You can enter a pin code onto the keypad, use a proximity card, and/or use a proximity key tag. This keypad will allow up to 1000 users through either of the three access options. Since this is a standalone system, meaning that there is no software, it is recommended for you to keep a record of all personnel and their assigned user ID with key code, key card or key tag. On the keypad, you will notice a doorbell towards the right-hand side. This will allow people from the outside to ring the doorbell and notify those inside that there is someone wanting to come in.
Once someone has entered a programmed code, card, or tag, the locking mechanism will disengage and allow for entrance. The locking mechanism will then engage again and remain closed until it is unlocked by one of the three access options. Through the indoor keypad, you can program your delay from 0 to 99 seconds. The meaning of having a delay is setting a time until the locking mechanism engages again. The popular applications for this kit are for offices, commercial buildings, or any room that needs restricted access.
The VIS-MINI-CNTRL is a mini single door control panel that can work with any Wiegand 26~37 bits output reader. It uses Atmel microcontroller to assure stable performance, and it is equipped with an infrared remote control for easy operation. The VIS-MINI-CNTRL supports 1,000 users.
IMPORTANT:
- Professional installation is recommended.
- For better security the VIS-MINI-CNTRL needs to be installed inside the facility in a restricted area. This device becomes the hub of this standalone application and all the credentials are being stored on the device while no information is stored on the reader itself. Additional recommendations for added security is to add the controller within an enclosure.
- If the keypad/card reader (entry device) is tampered with, the door will remain locked. The mini controller is the one controlling and securing your locking device.
- The VIS-MINI-CNTRL offers a more secure option to provide additional security to all type of standalone access control products.
The 5671 kit contains a VIS-3002 standard-sized indoor keypad/reader used for access control, a mini controller and a power supply. A diverse keypad in its functionality, you can gain access through three different options. You can enter a pin code onto the keypad, use a proximity card, and/or use a proximity key tag. This keypad will allow up to 1000 users through either of the three access options. Since this is a standalone system, meaning that there is no software, it is recommended for you to keep a record of all personnel and their assigned user ID with key code, key card or key tag. On the keypad, you will notice a doorbell towards the right-hand side. This will allow people from the outside to ring the doorbell and notify those inside that there is someone wanting to come in.
Once someone has entered a programmed code, card, or tag, the locking mechanism will disengage and allow for entrance. The locking mechanism will then engage again and remain closed until it is unlocked by one of the three access options. Through the indoor keypad, you can program your delay from 0 to 99 seconds. The meaning of having a delay is setting a time until the locking mechanism engages again. The popular applications for this kit are for offices, commercial buildings, or any room that needs restricted access.
The VIS-MINI-CNTRL is a mini single door control panel that can work with any Wiegand 26~37 bits output reader. It uses Atmel microcontroller to assure stable performance, and it is equipped with an infrared remote control for easy operation. The VIS-MINI-CNTRL supports 1,000 users.
IMPORTANT:
- Professional installation is recommended.
- For better security the VIS-MINI-CNTRL needs to be installed inside the facility in a restricted area. This device becomes the hub of this standalone application and all the credentials are being stored on the device while no information is stored on the reader itself. Additional recommendations for added security is to add the controller within an enclosure.
- If the keypad/card reader (entry device) is tampered with, the door will remain locked. The mini controller is the one controlling and securing your locking device.
- The VIS-MINI-CNTRL offers a more secure option to provide additional security to all type of standalone access control products.
Download Datasheets and Manuals of this product
LET US HELP YOU WITH YOUR PURCHASE
Feel free to contact our dedicated support team if you have any questions or if you're ready to place an order.
I Need HelpFPC-5671 Visionis VIS-3002 Access Control Indoor Only Plastic Housing Keypad Reader Standalone With Mini Controller, Wiegand 26 No Software EM Cards, 1000 Users With Doorbell + Power Supply Included
Translation missing: en.products.product.sku:FPC-5671
- Regular price
- $73.42
- Sale price
- $73.42
- Regular price
-
In Stock
